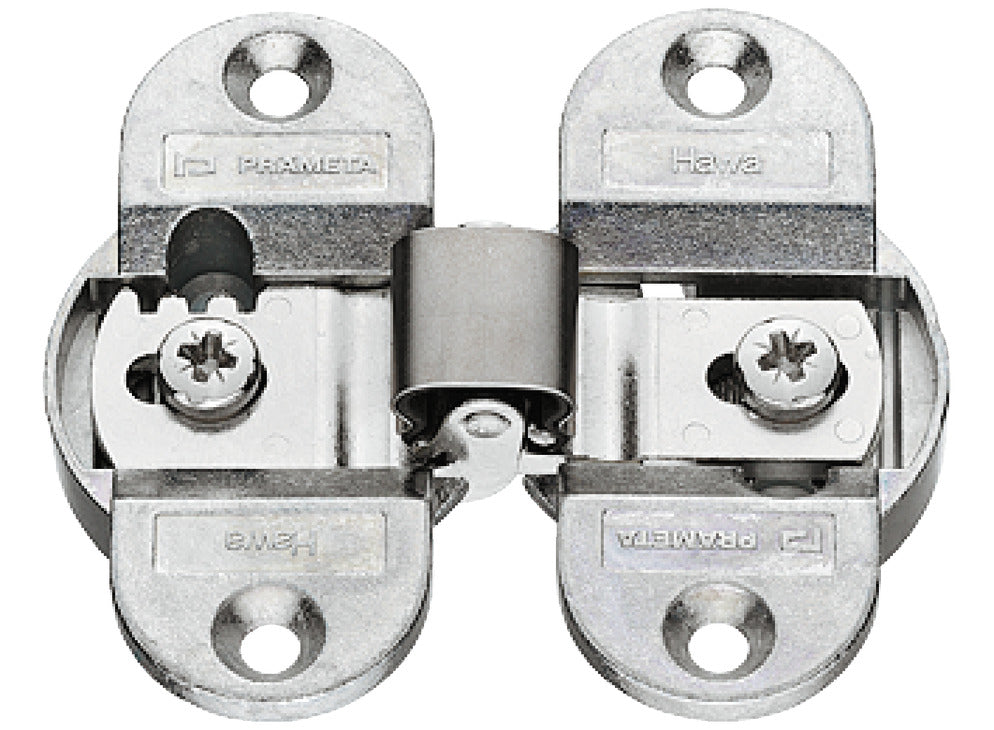

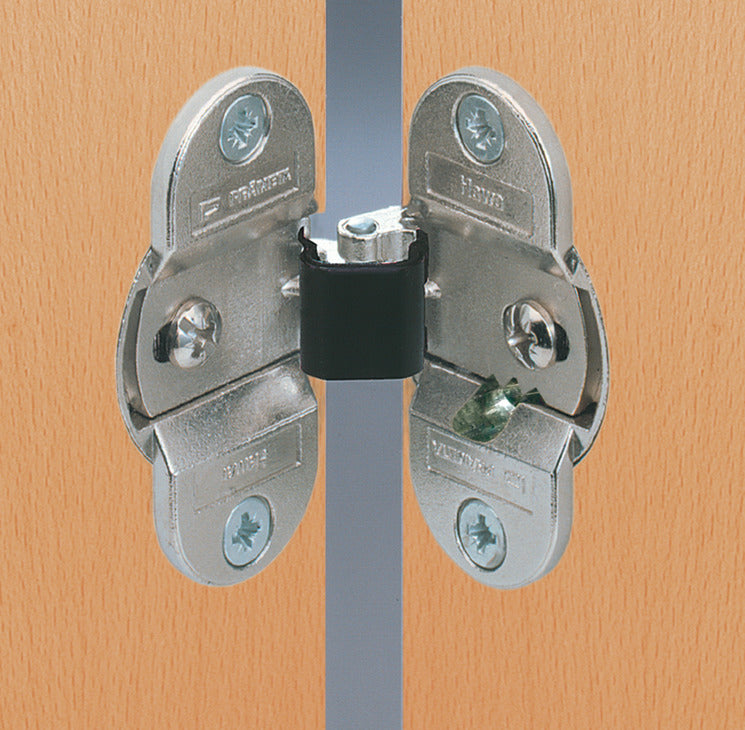

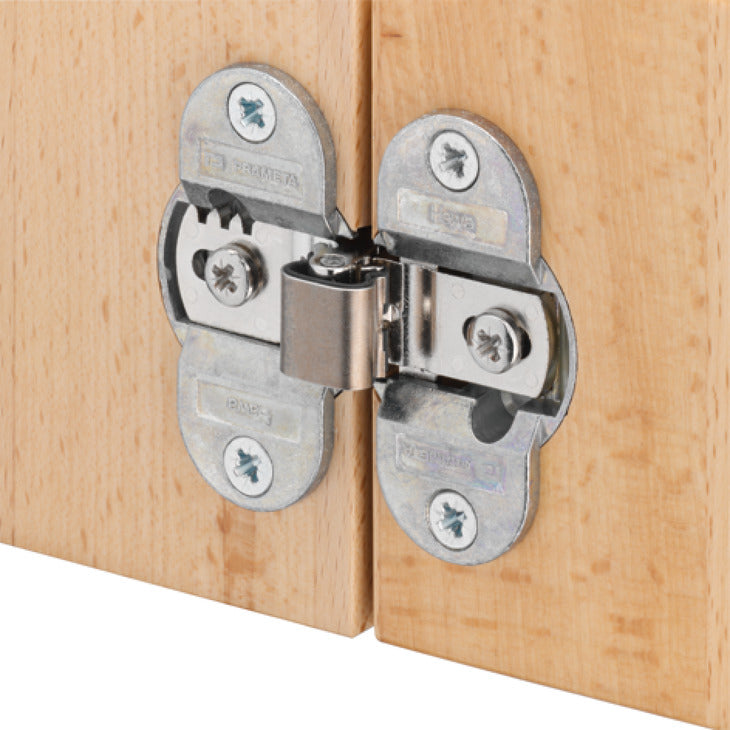

• Folding Door Institutional Hinge, Aximat®, Opening Angle 180°
1 10

Folding Door Institutional Hinge, Aximat®, Opening Angle 180°

$14.74
$14.74
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Same drilling pattern for both leaves
    Constant spring tension is maintained during all adjustments

  • Version: With spring
  • Color/finish: Zinc plated
  • Mounting: mounting in drilled hole, screw fixing
  • Length (inch): 2' 1 19/32"
  • For door material : wood
  • Opening angle : 180 °
  • Suitable for :

    HAWA Multifold

  • Material : Zinc alloy, Hinge arm: Zinc alloy
  • Installation :

    For screw fixing

  • Door processing for assembly : without

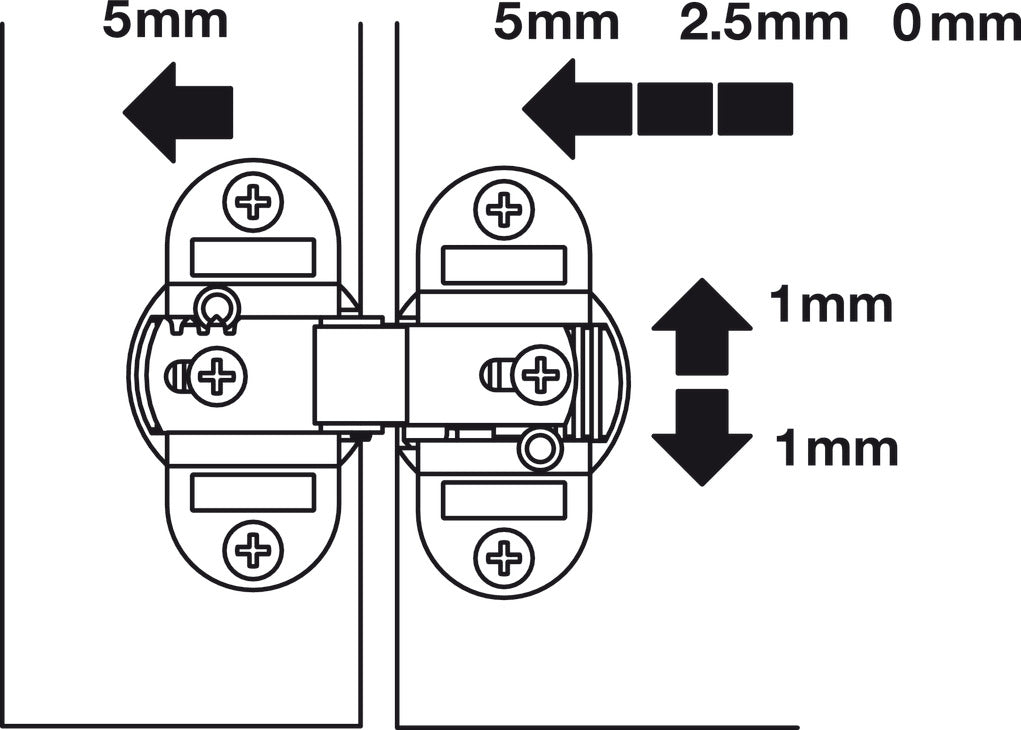

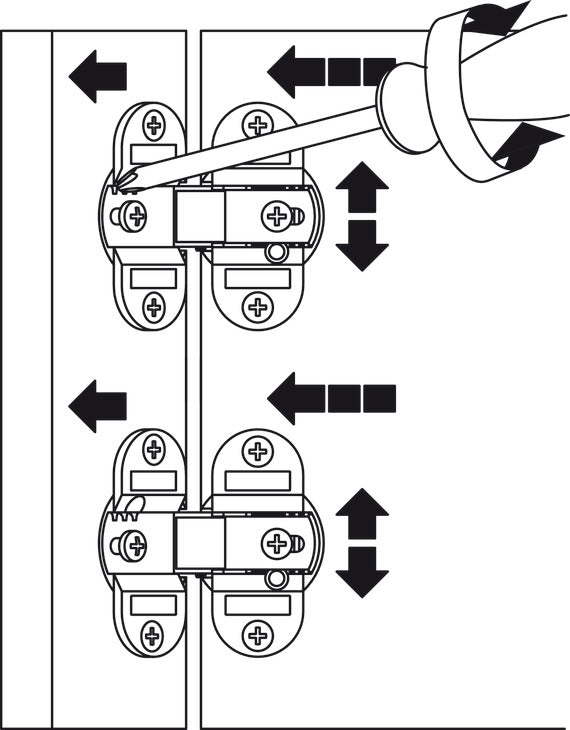

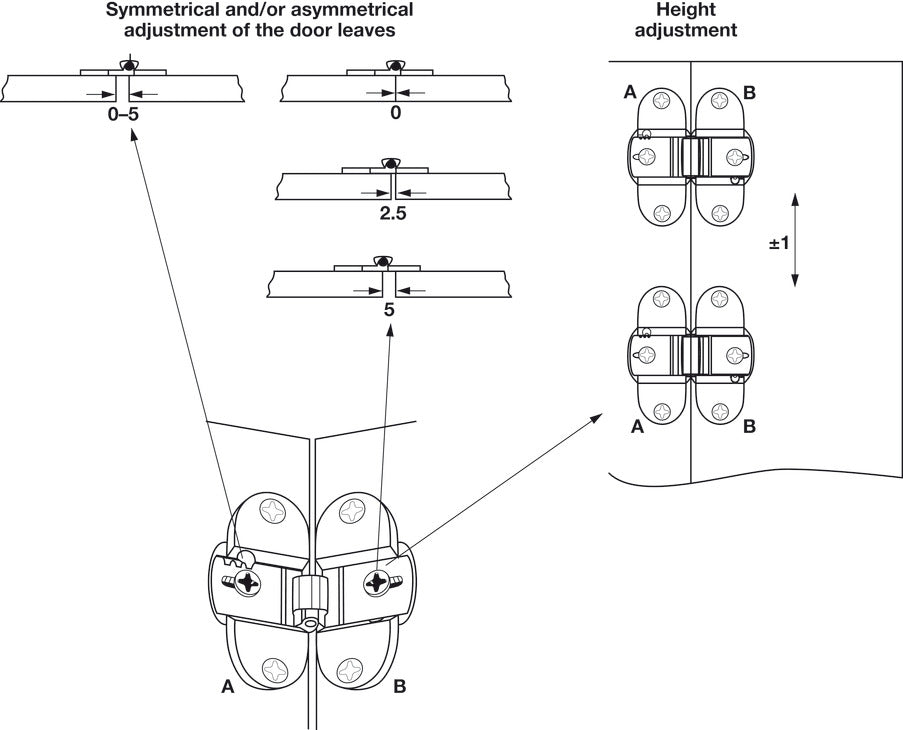

  • Adjustment facility : Gap adjustable by 0-10 mm (factory setting 3 mm, central pivot point)
  • For wooden door thickness : 13 mm
  • For door thickness min. : 1/2"

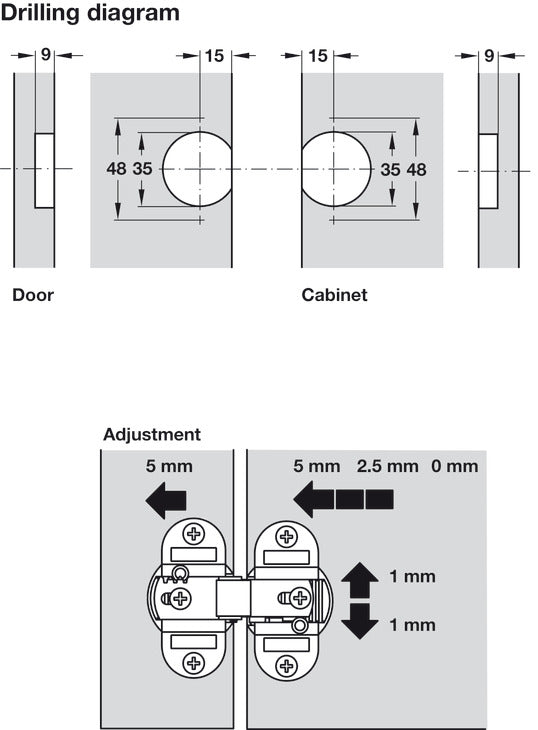

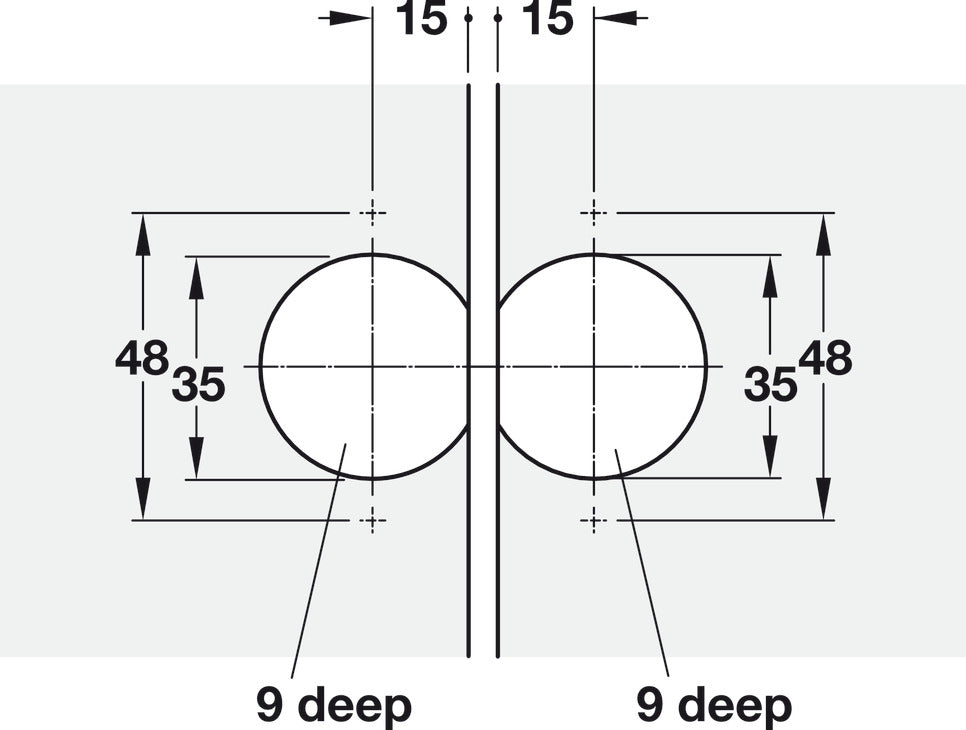

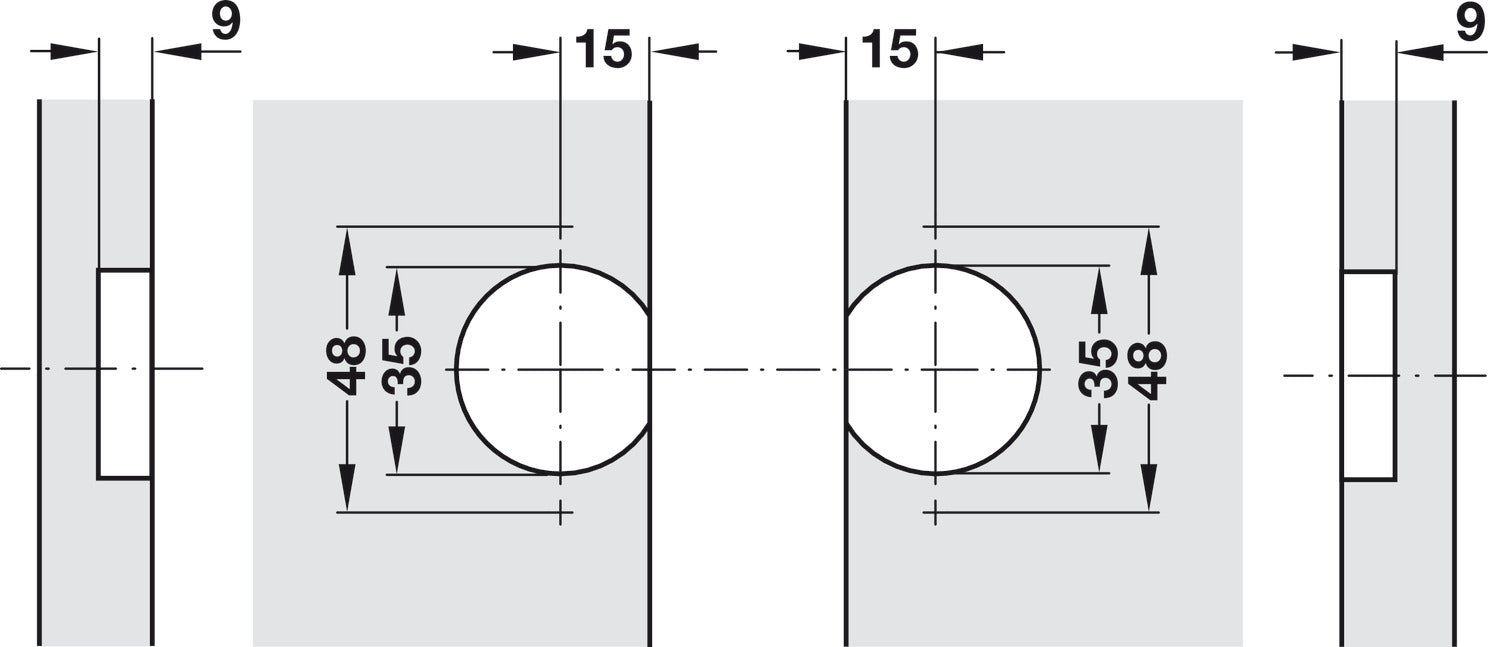

  • Cup drilling depth : 9 mm
