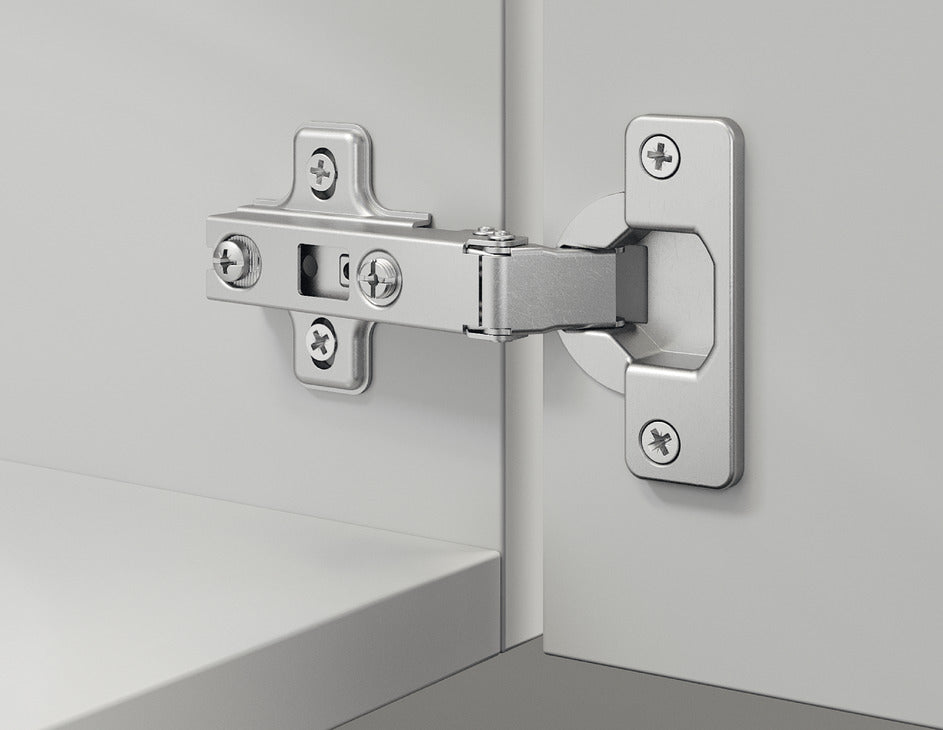

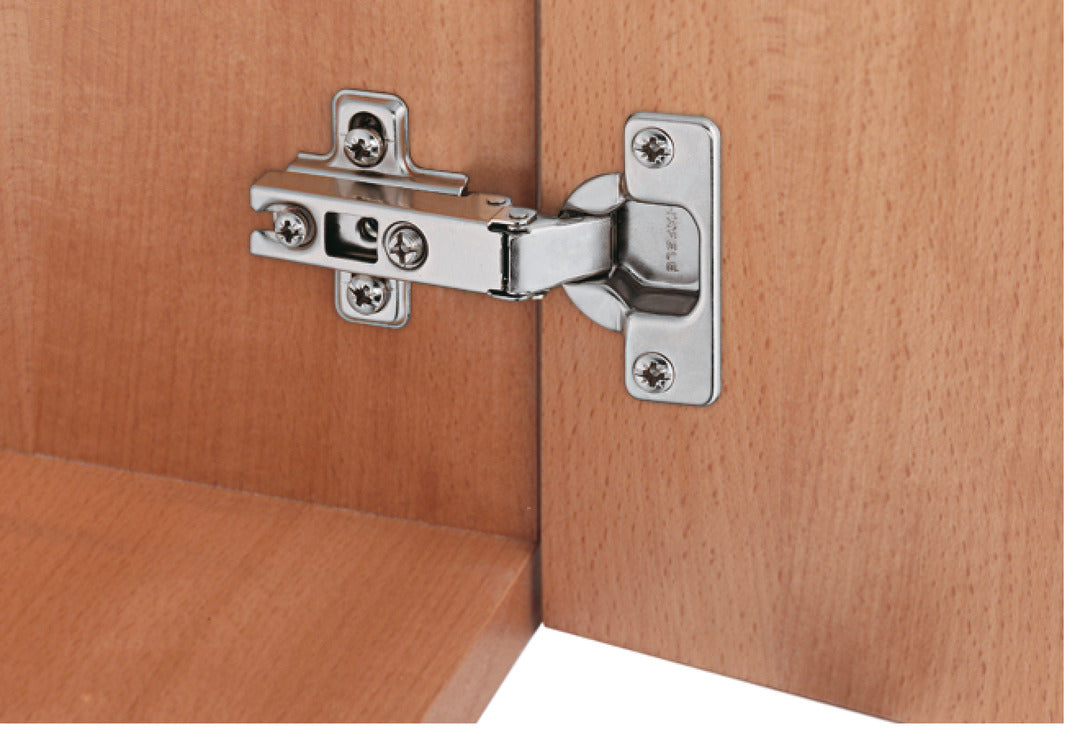

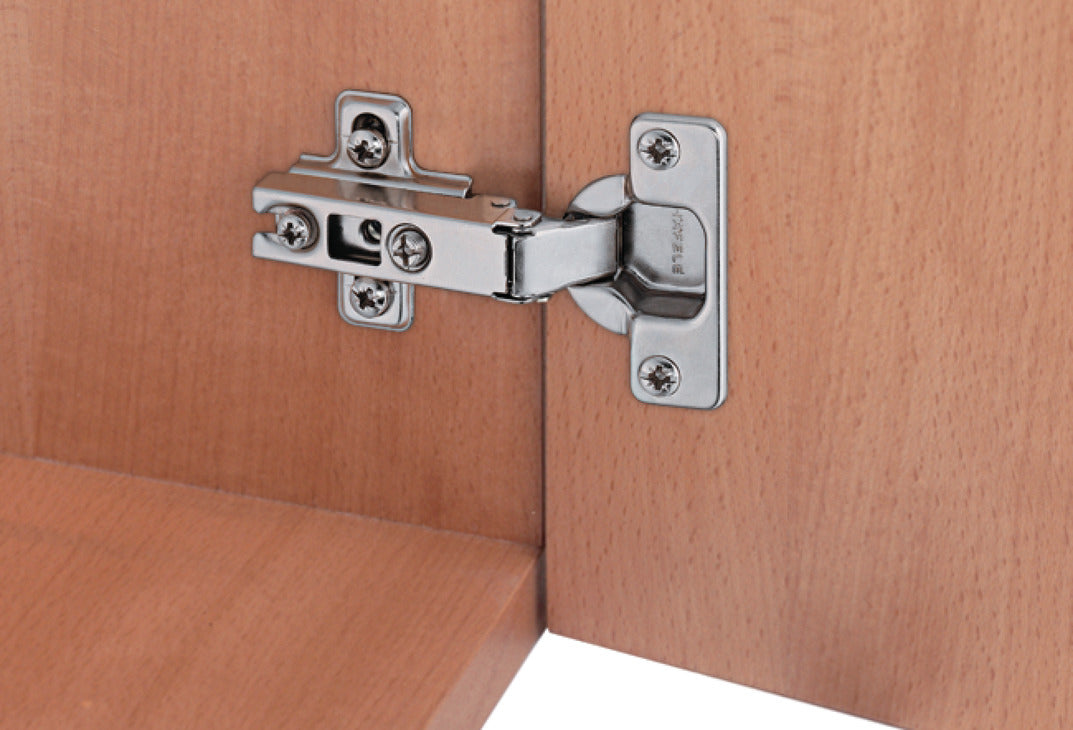

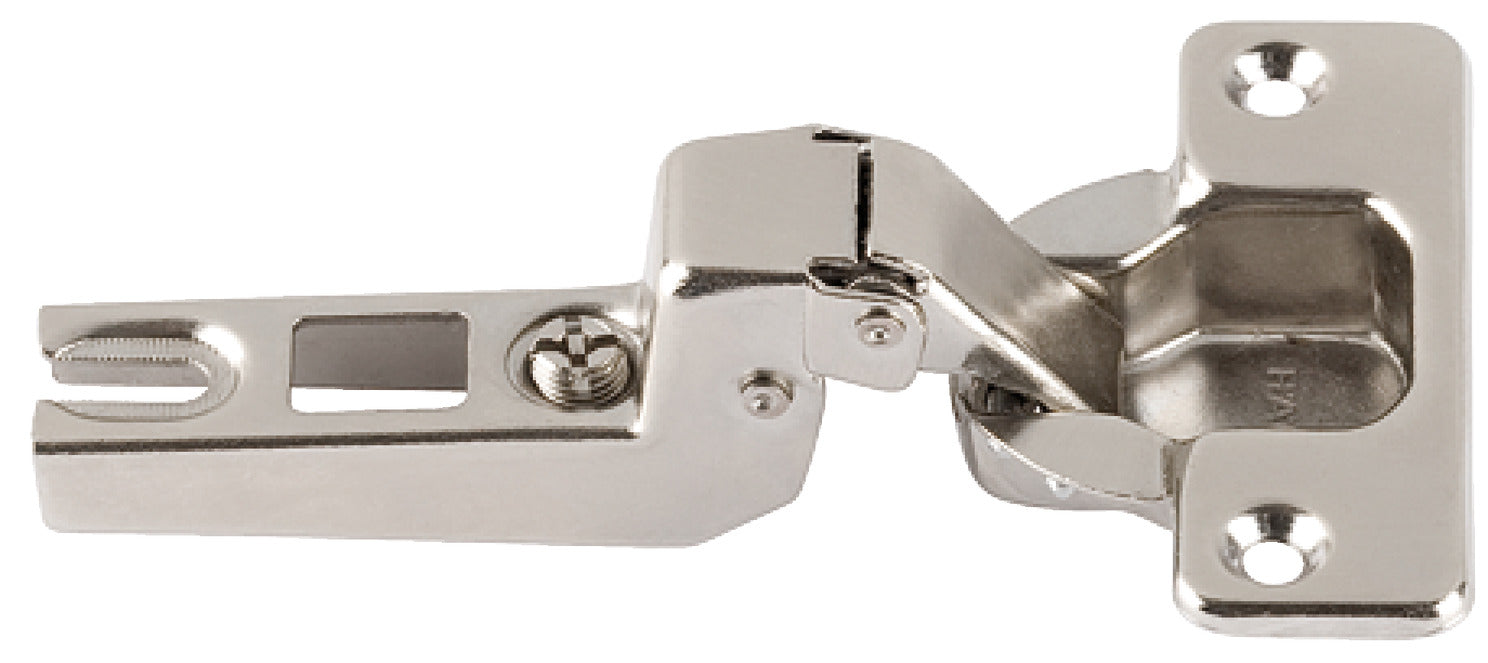

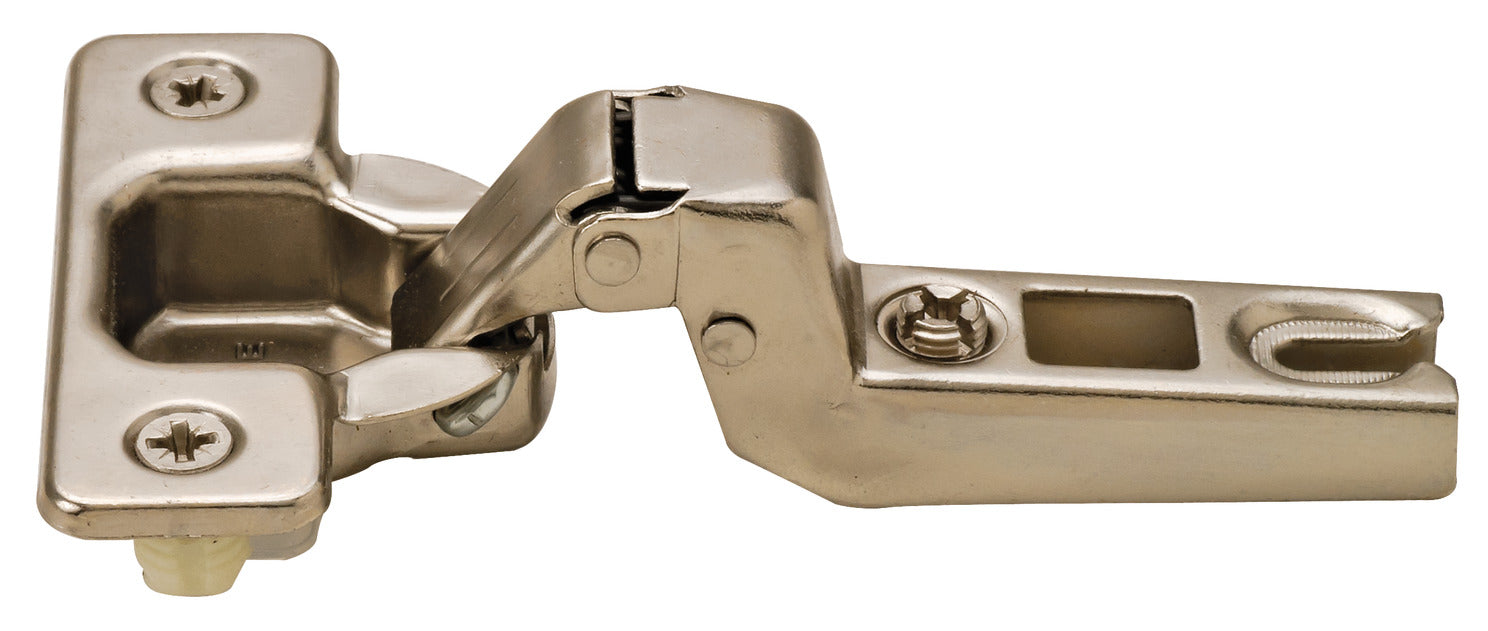

Concealed Cup Hinge, Häfele Metalla A 110°, inset mounting

$1.06
$1.06
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Version: With automatic closing spring
  • Color/finish: Nickel plated
  • Mounting: mounting in drilled hole, screw fixing
  • Model: 110°
  • Model series : Häfele Metalla 300
  • For door material : wood
  • Concealed hinge version : inset
  • Crank type : High Cranked
  • Opening angle : 110 °
  • Suitable for :

    Standard applications

  • Material : Steel, Hinge arm: Steel
  • Installation :

    Door to cabinet for sliding on with slide-on system A

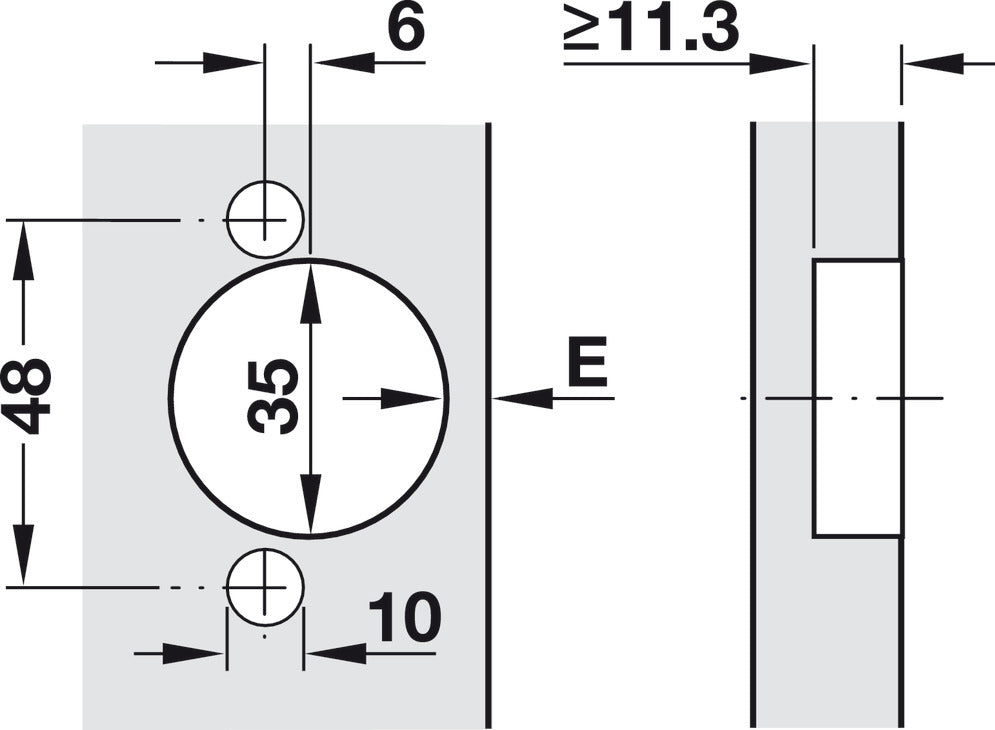

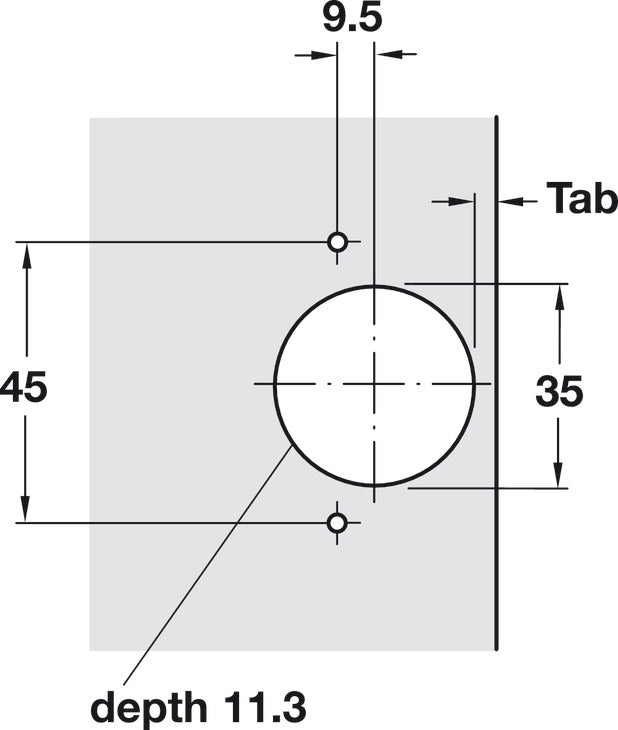

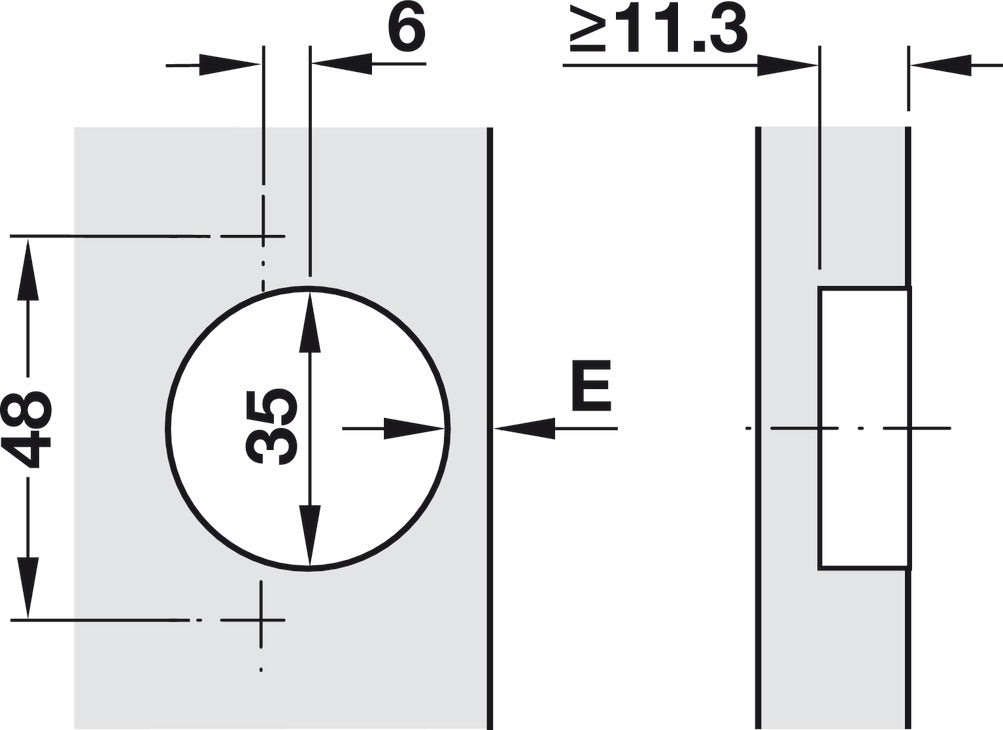

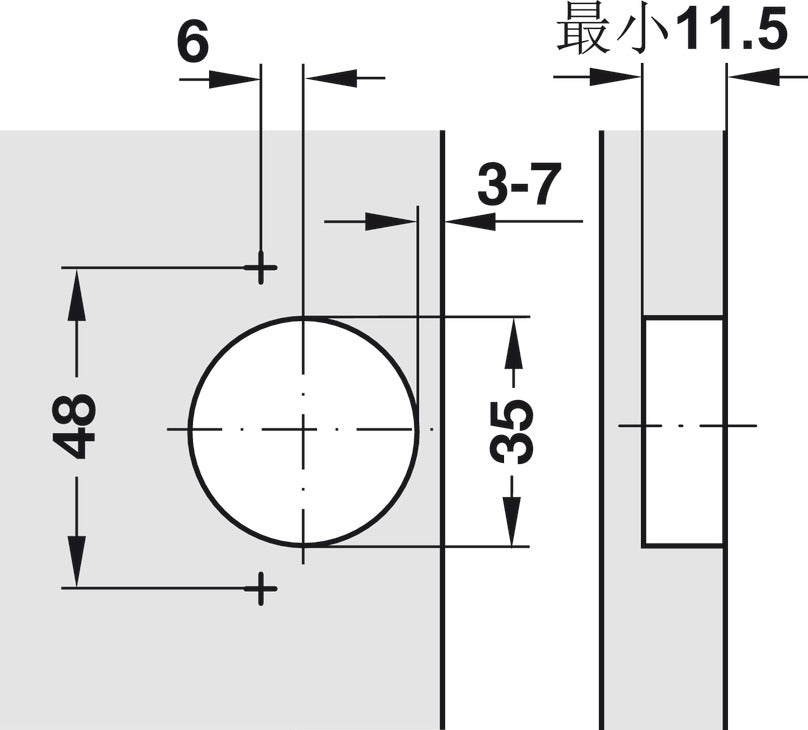

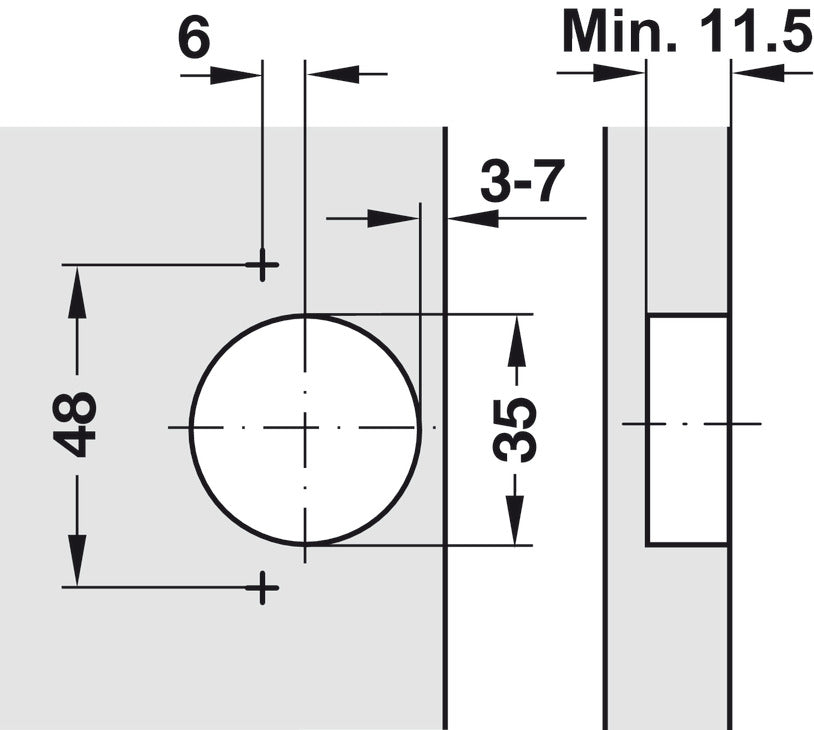

  • Door processing for assembly : cup drilling
  • Adjustment facility : Side adjustment facility: ±2.5 mm, Height adjustment facility: ±2 mm, Depth adjustment facility: ±2 mm, Height adjustment via mounting plate
  • Cup drilling depth : 12 mm
