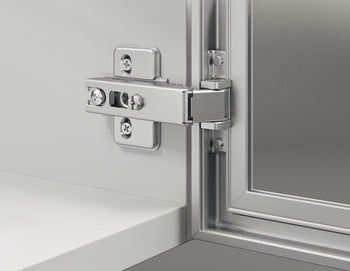

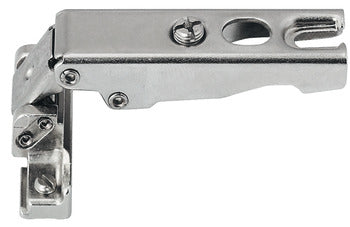

Aluminum Frame Door Hinge, H-Series, 110° Opening Angle, Self Closing, Full Overlay

$8.23
$8.23
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Version: With automatic closing spring
  • Cup fixing: for clamp fixing
  • Color/finish: Pan colour/finish: Nickel plated; Hinge arm color/finish: matt, Nickel plated
  • Mounting: mounting in drilled hole, screw fixing
  • Model: 110°
  • Model series : Metallamat A
  • For door material : aluminum frame
  • Concealed hinge version : full overlay
  • Crank type : Straight
  • Suitable for :

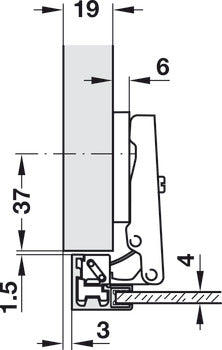

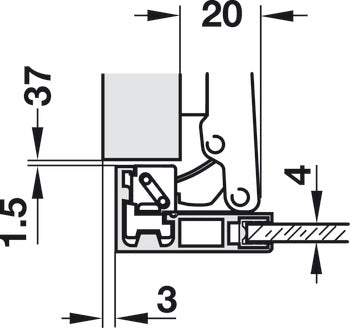

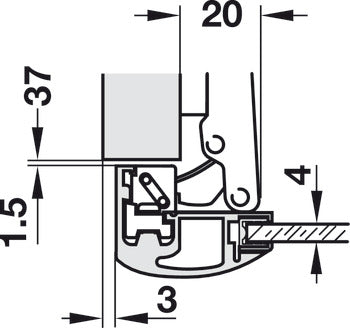

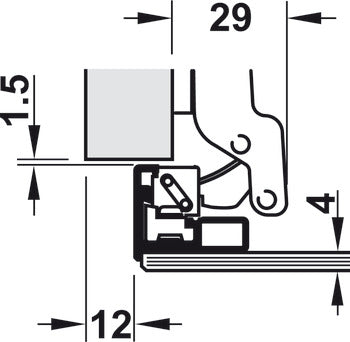

    Aluminium glass frame profile width 23/26/38 x 14 mm, straight, convex or with reduced frame

  • Material : Zinc alloy, Hinge arm: Steel

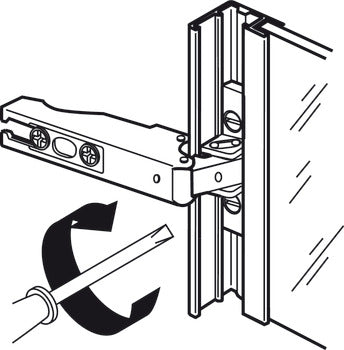

  • Installation :

    Glide shoe fixing for clamping

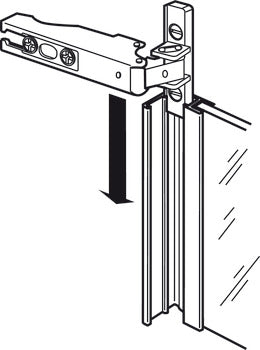

    Door is attached to the cabinet with slide-on system

  • Door processing for assembly : without
  • Adjustment facility : 3-dimensional (with appropriate mounting plate)

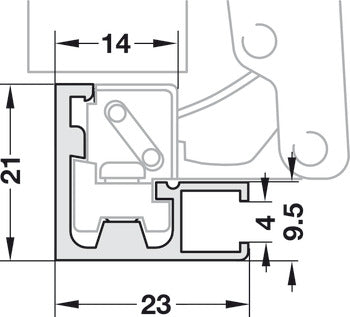

  • For aluminium frame width : 23 – 38 mm
  • Side panel thickness : 16 mm
