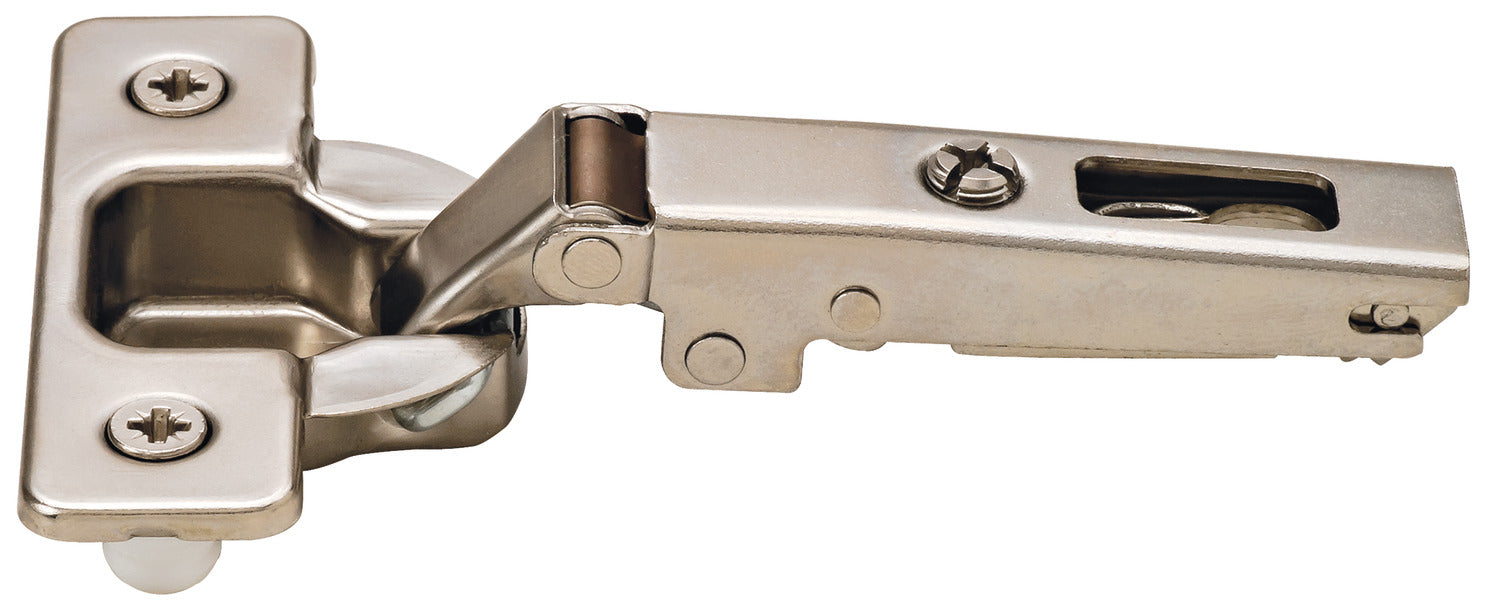

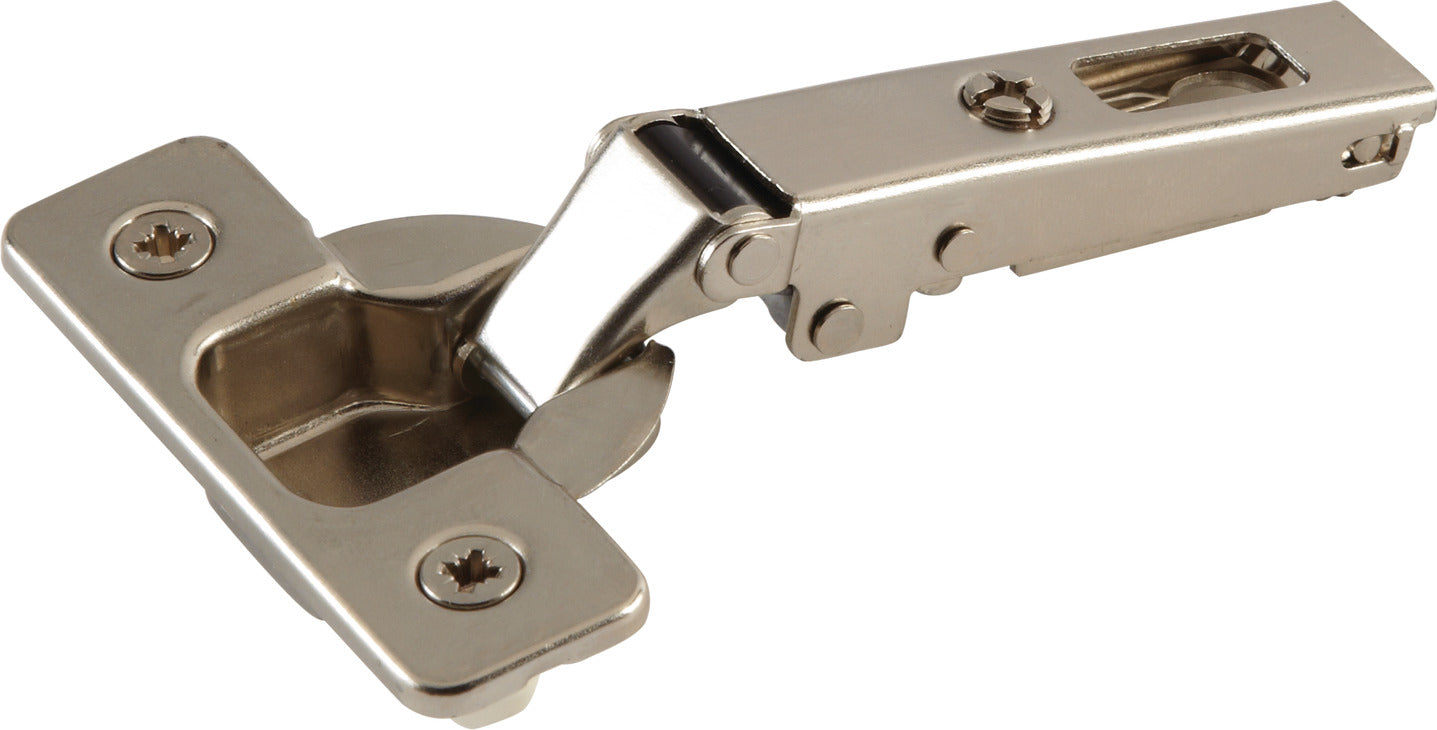

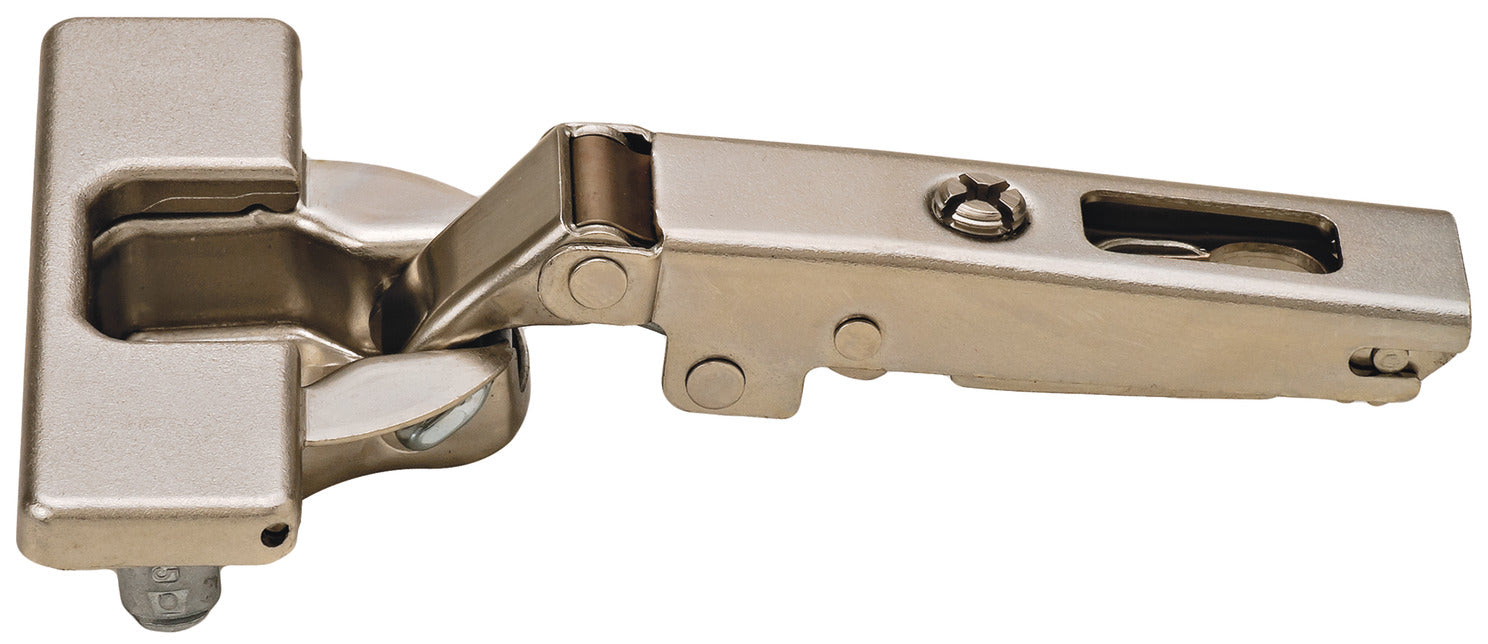

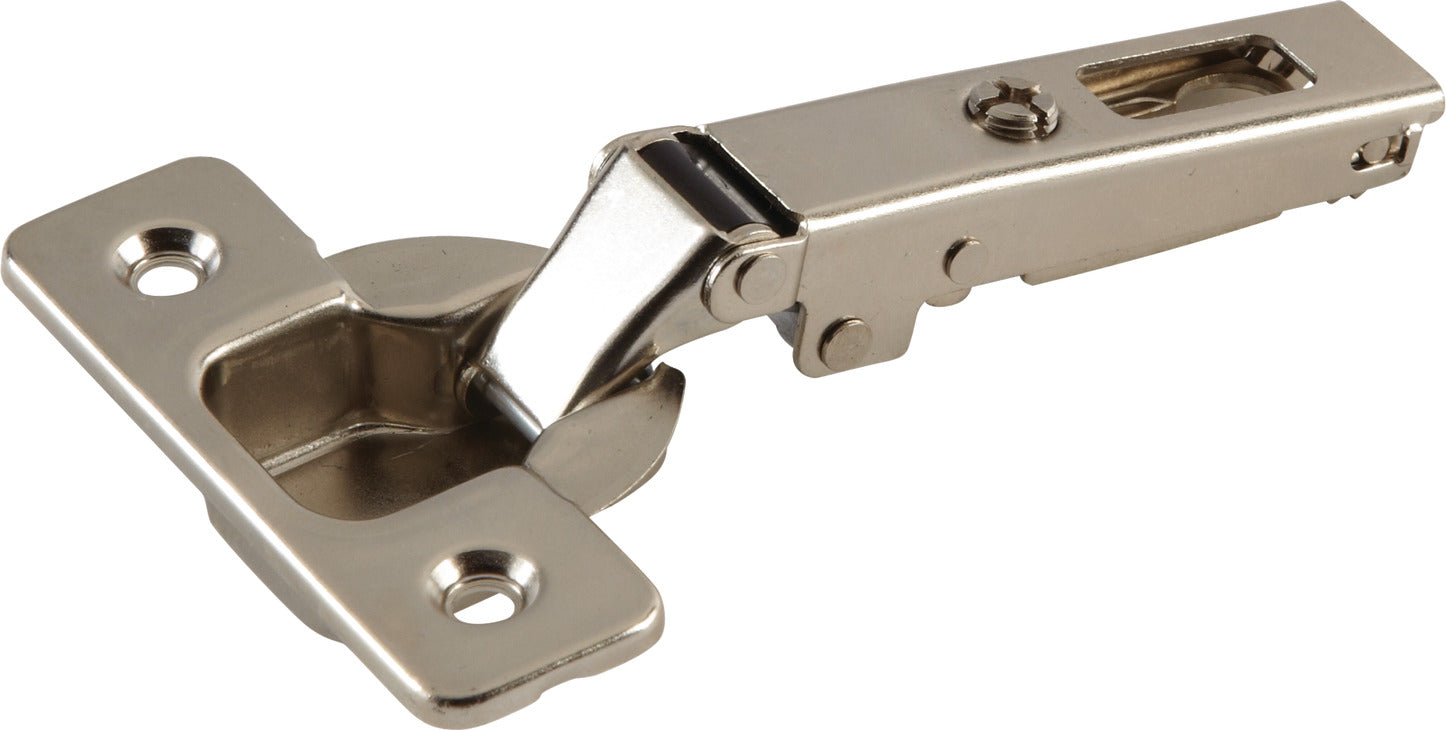

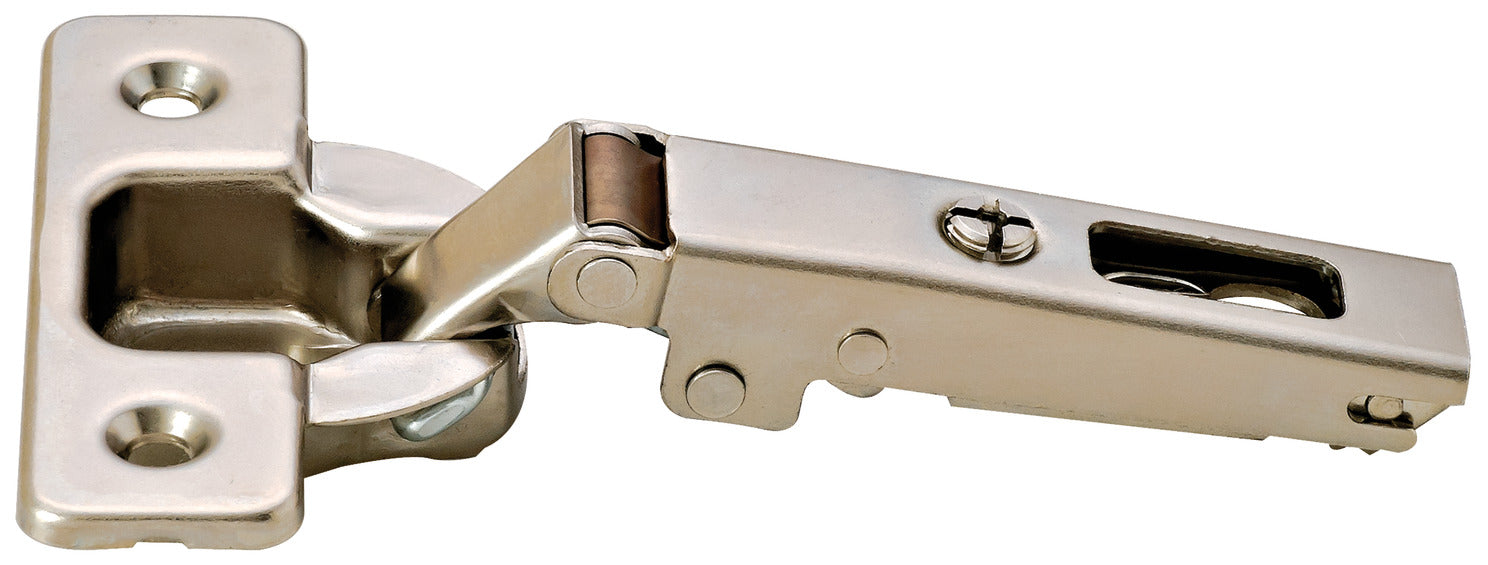

Concealed Hinge, Salice 200 Series, 110° Opening Angle, Full Overlay, Nickel plated
Regular price
$2.80
Regular price
Sale price
$2.80
Unit price
per
Shipping calculated at checkout.
*Free Standard Ground Shipping on Orders over $199
- Version: With automatic closing spring

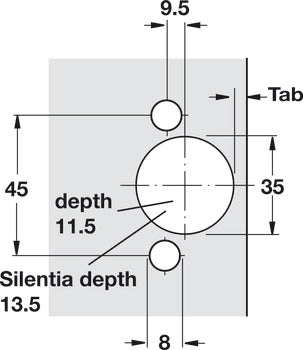

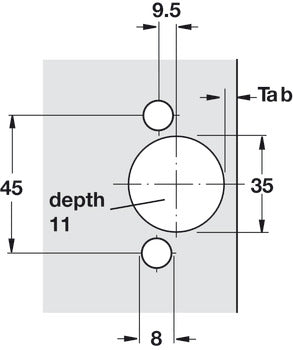

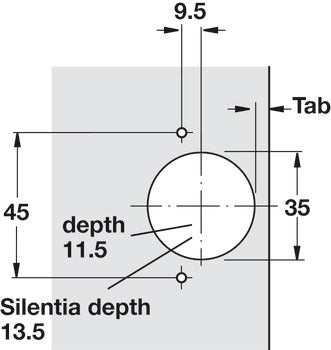

- Drilling pattern: 45/9,5
- Color/finish: Nickel plated
- Side panel thickness min.: 5/8"
- Model series : Duomatic
- For door material : wood
- Concealed hinge version : full overlay
- Crank type : Straight

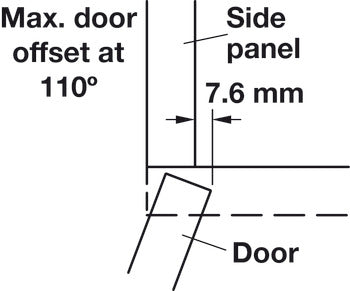

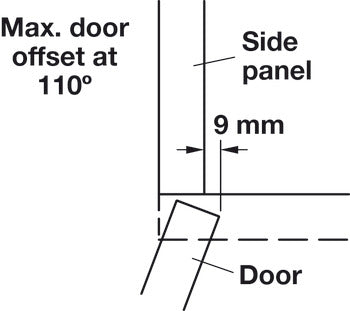

- Opening angle : 110 °
-
Suitable for
:
Standard applications
- Material : Steel, Hinge arm: Steel
-
Installation
:
Hinge attaches to door without tools
- Door processing for assembly : cup drilling
- Adjustment facility : Side adjustment facility: -1.5 – 4.5 mm, Height adjustment facility: ±2 mm, Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from -0.5 to +2.8 mm
- For wooden door thickness : 16 – 26 mm
- Cup drilling depth : 11 mm
