• Concealed Hinge, Grass TIOMOS, 120° Opening Angle, Half Overlay
1 11

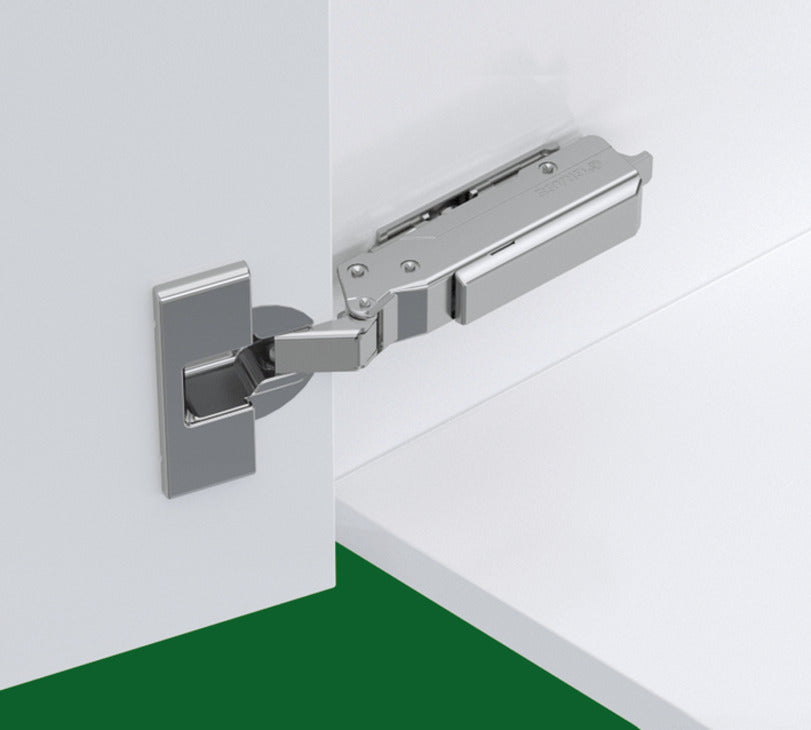

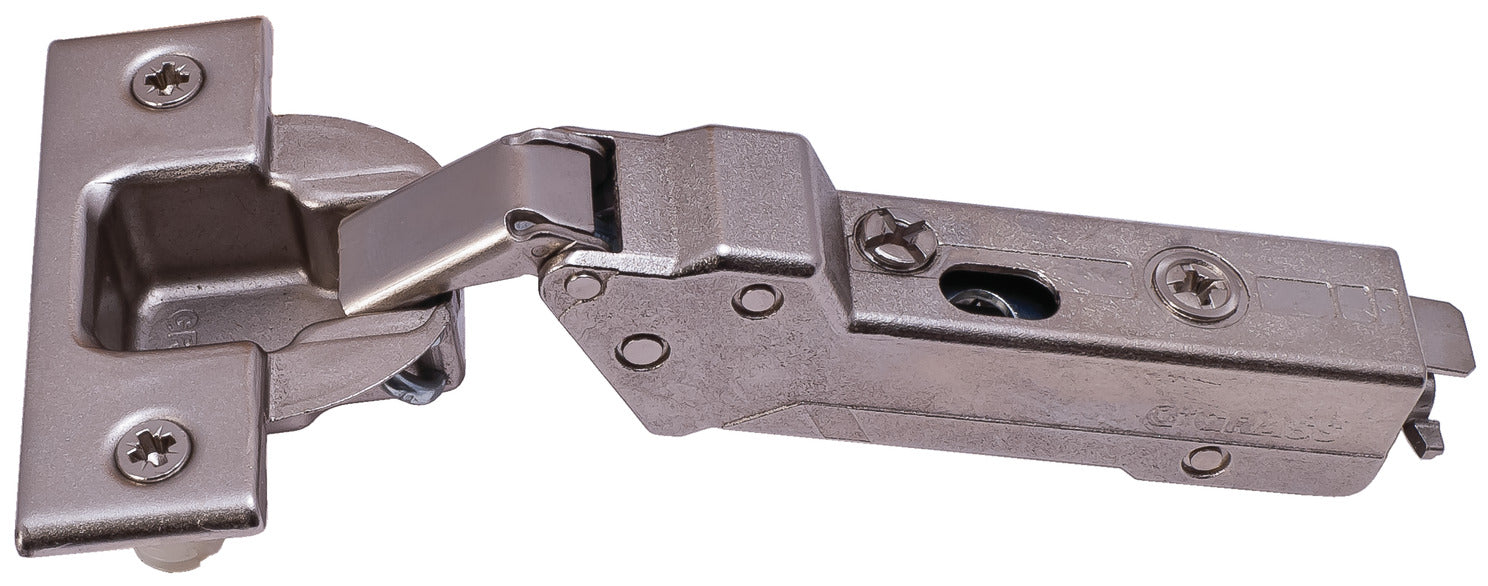

Concealed Hinge, Grass TIOMOS, 120° Opening Angle, Half Overlay

$5.70
$5.70
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Convenient opening angle with excellent overlay and gap dimensions up to 24 mm door thickness
    With soft close integrated in hinge arm, with 3 settings

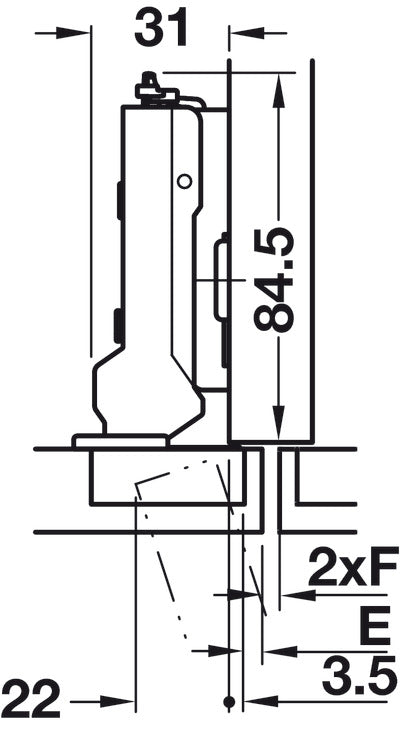

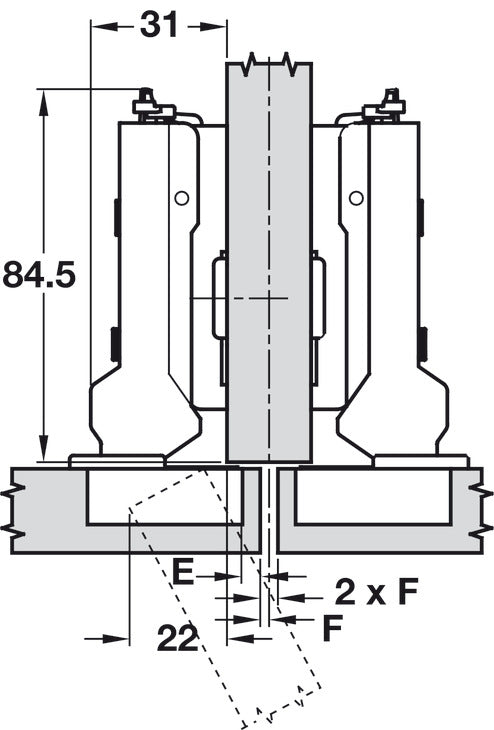

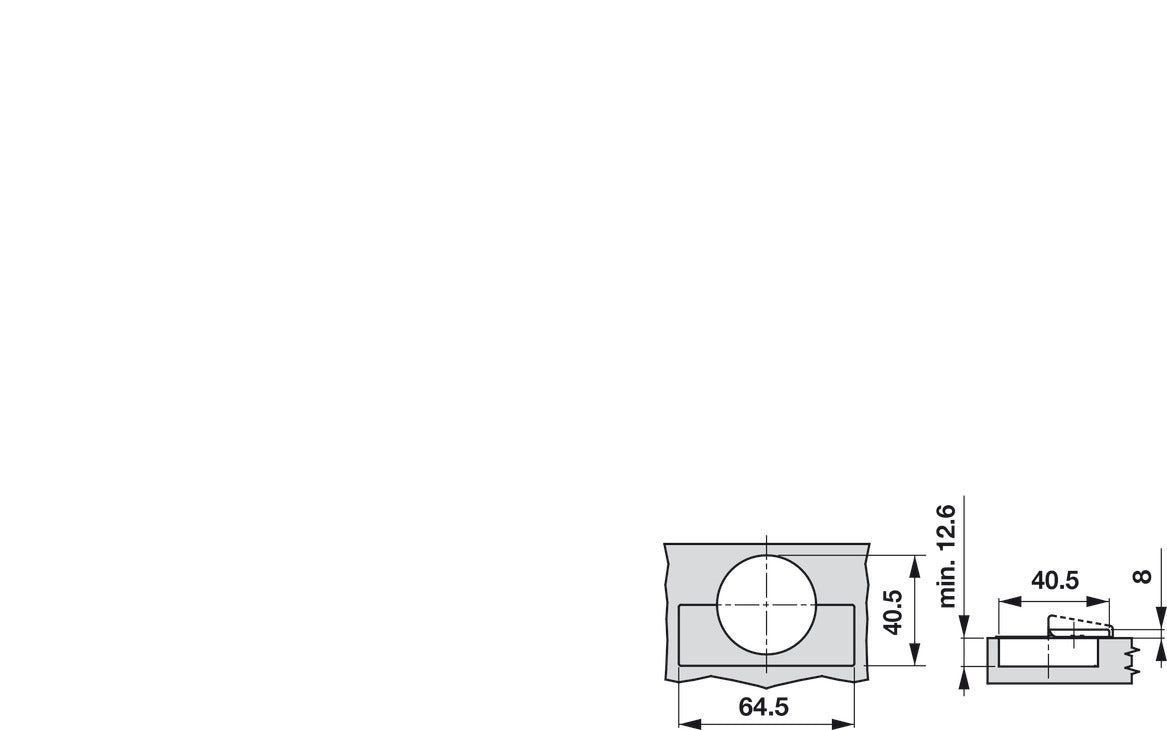

  • Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32”) 2 mm.

  • Cup fixing: for screw fixing
  • Mounting: mounting in drilled hole, screw fixing, without tools
  • Model series : Tiomos 120°

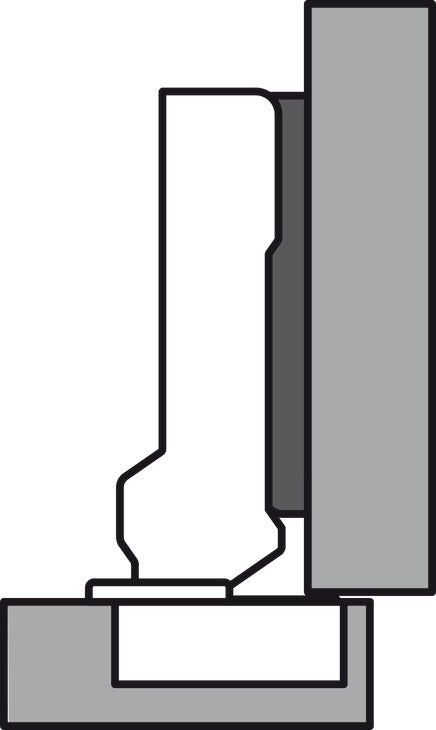

  • Concealed hinge version : half overlay
  • Crank type : Cranked
  • Opening angle : 120 °
  • Material : Steel, Hinge arm: Steel

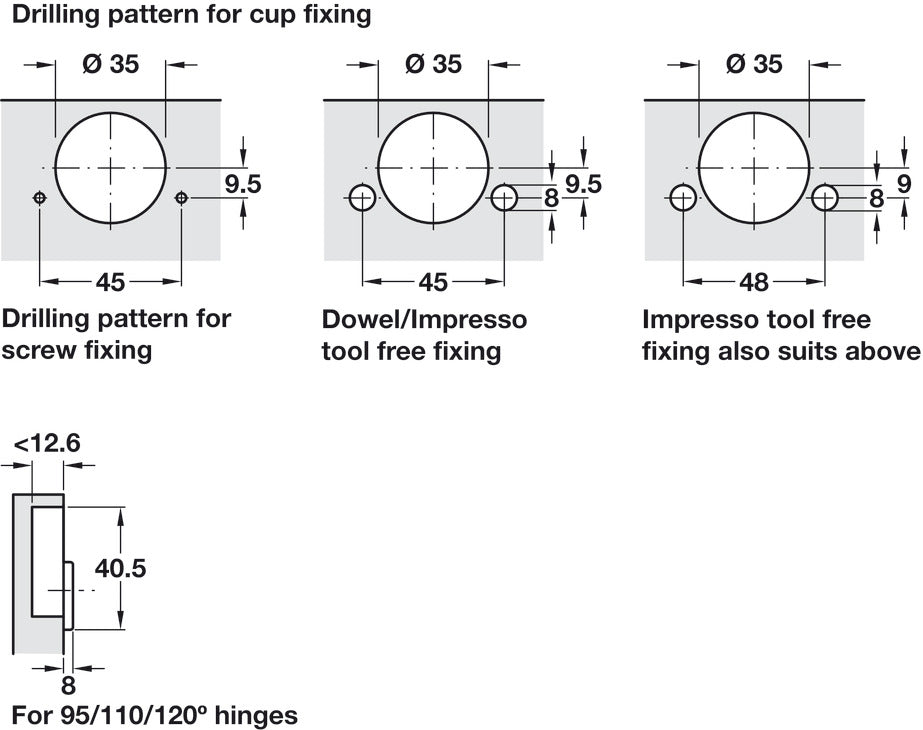

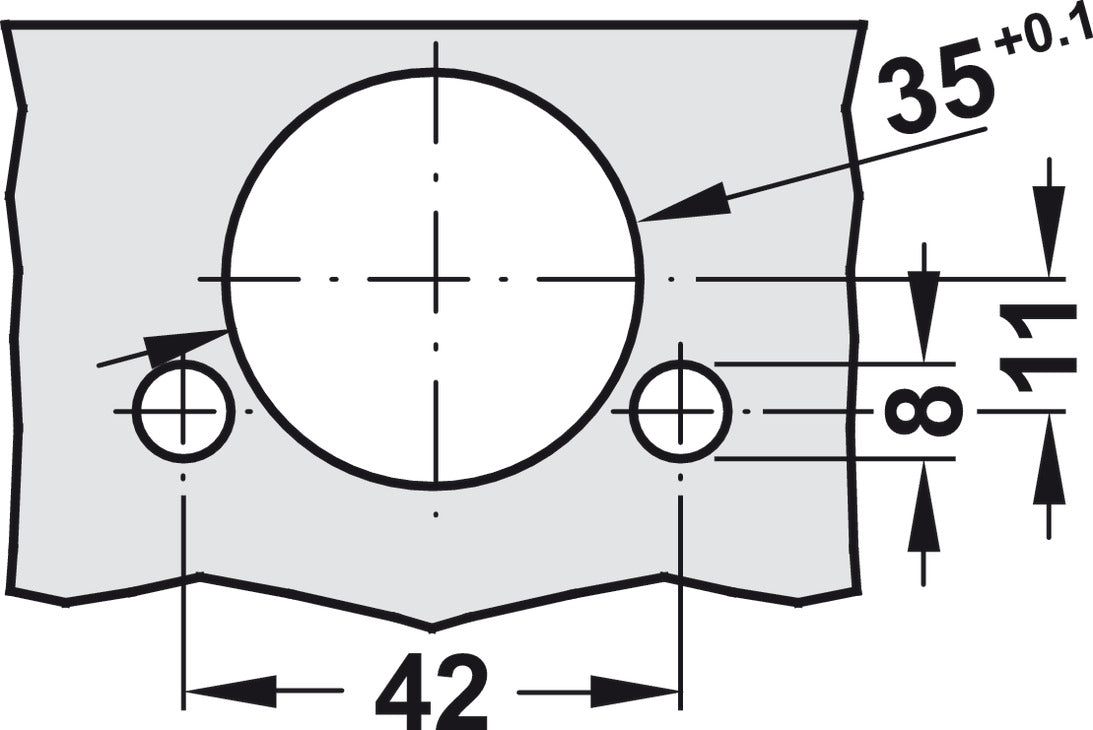

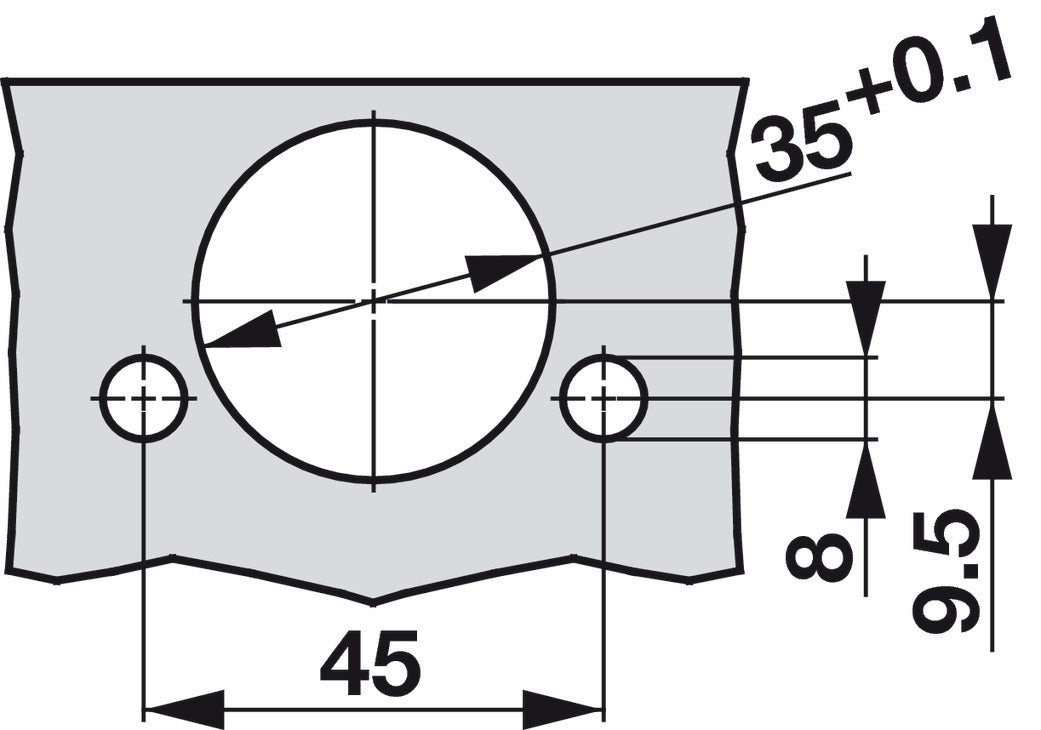

  • Door processing for assembly : cup drilling
  • Adjustment facility : Side adjustment facility: ±2 mm, Height adjustment facility: ±2.5 mm, Depth adjustment facility: -2 – 3 mm
  • For wooden door thickness : 16 – 24 mm

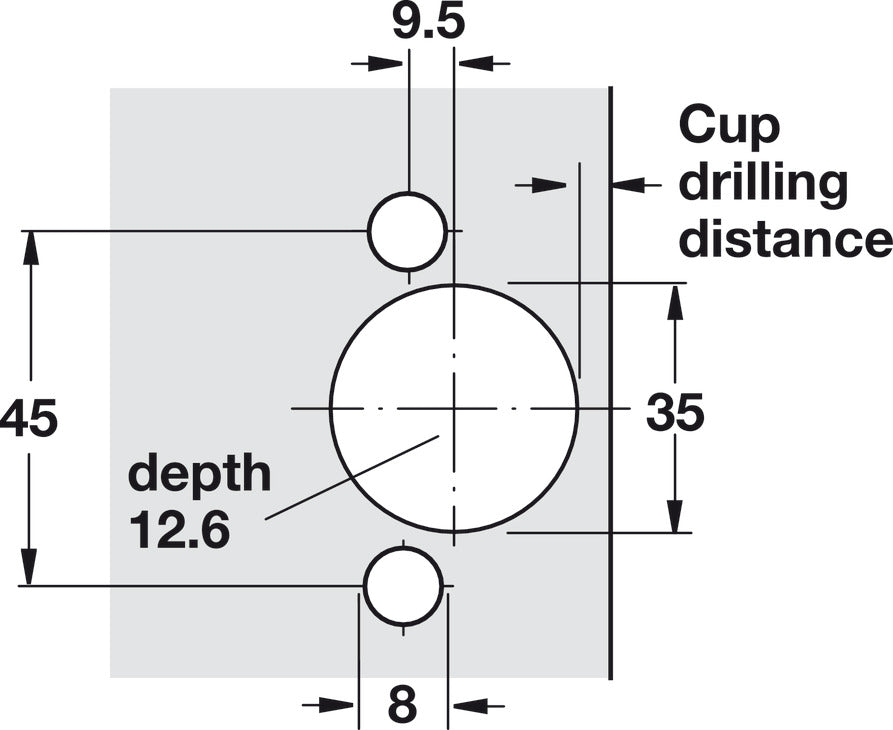

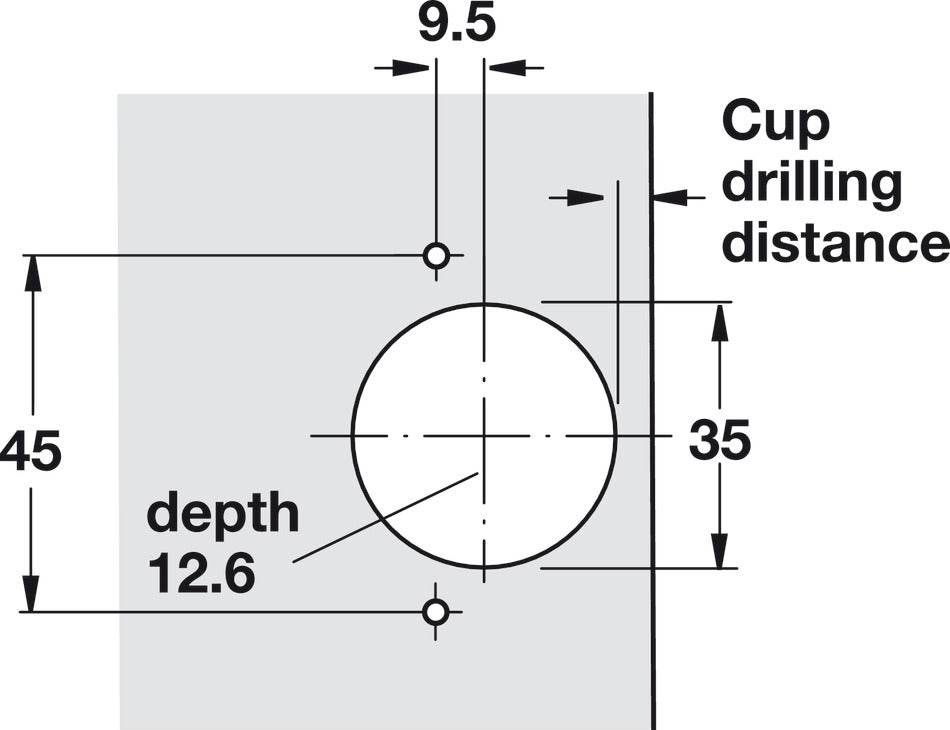

  • Cup drilling depth : 12.6 mm
  • Note :

    The dimensions specified in the drawings are calculated with a mounting plate height of 2mm (3/32”).
