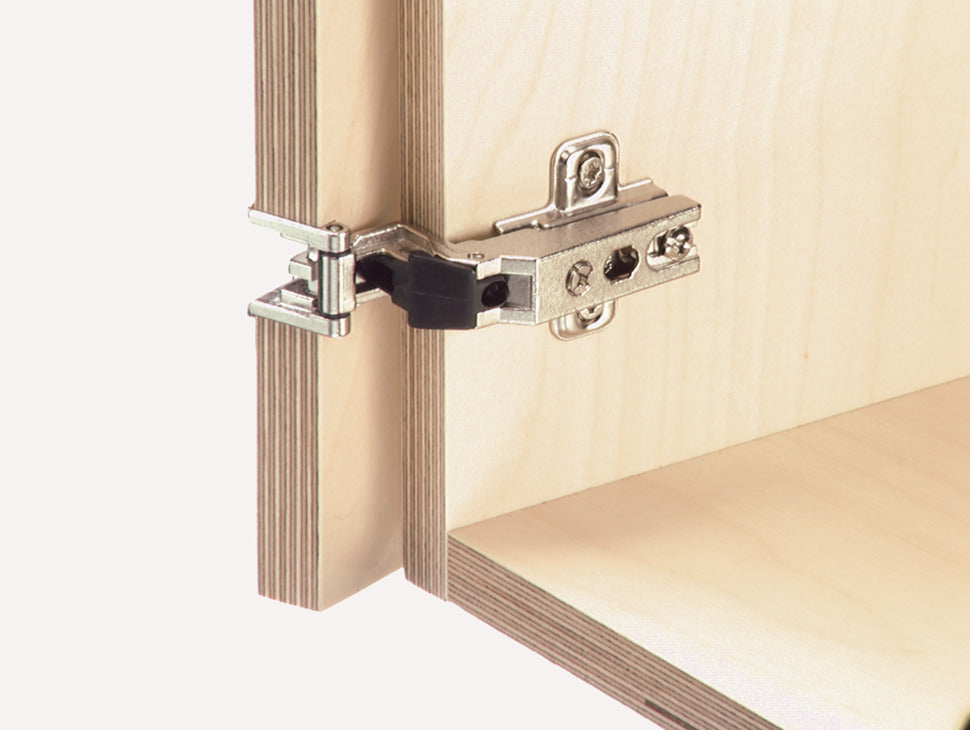

• Concealed Cup Hinge with Exposed Axle, 270° Nexis, with Ø 35 mm Cup, Full Overlay, Slide on Arm, with Catch, Grass
1 3

Concealed Cup Hinge with Exposed Axle, 270° Nexis, with Ø 35 mm Cup, Full Overlay, Slide on Arm, with Catch, Grass

$12.82
$12.82
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Mounting: mounting in drilled hole, screw fixing
  • Distance to cup min.: 0 mm
  • Distance to cup max.: 6 mm
  • Concealed hinge version : full overlay
  • Crank type : Cranked
  • Opening angle : 270 °
  • Material : Zinc alloy, Hinge arm: Zinc alloy

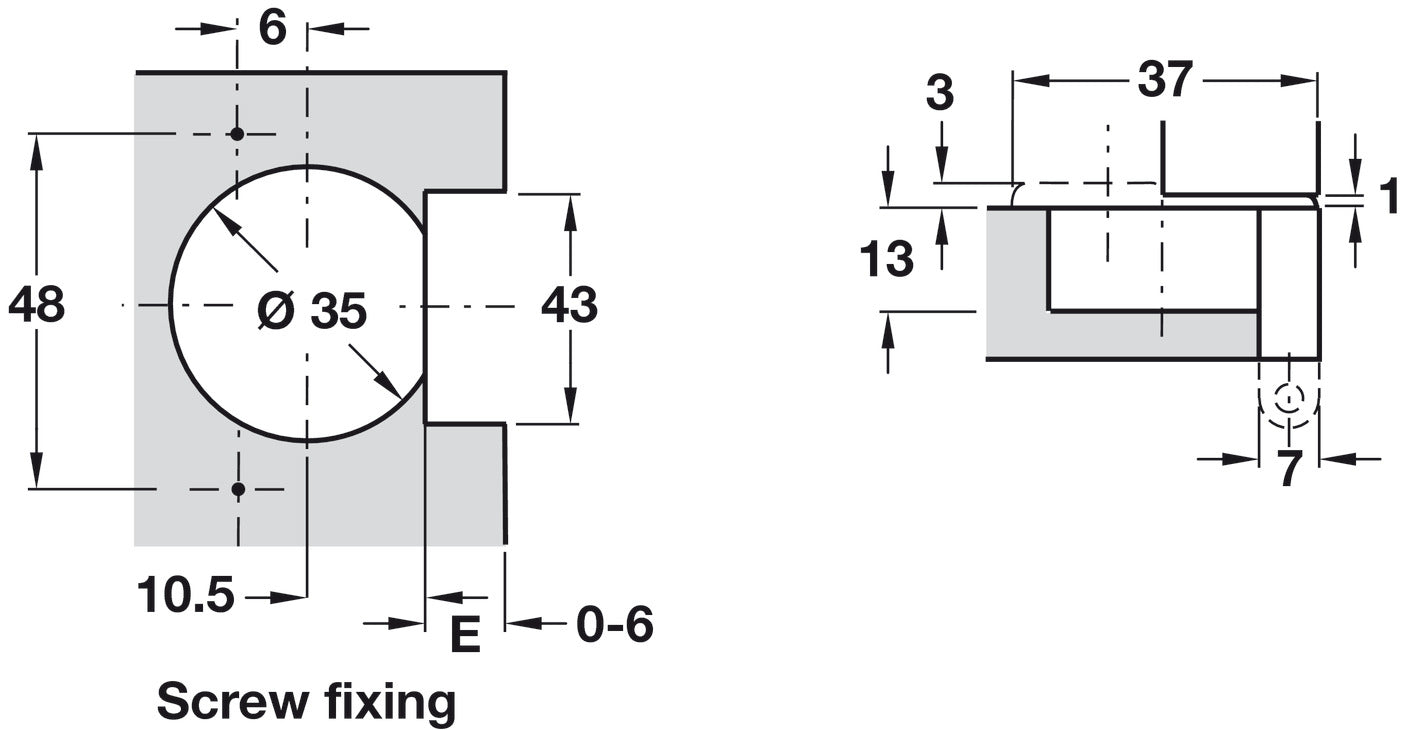

  • Door processing for assembly : cup drilling

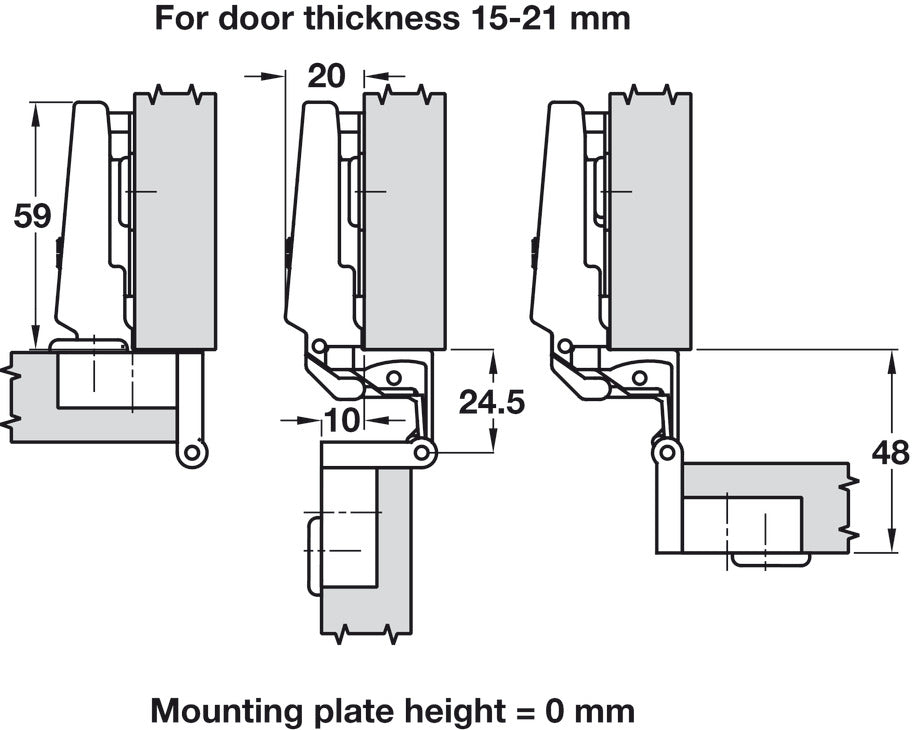

  • For wooden door thickness : 15 – 21 mm
  • Cup drilling depth : 13 mm
  • Order reference :

    Wider range of mounting plates available, please order separately
    Order Hospa ⌀ 3.5 mm raised head countersunk screws separately
