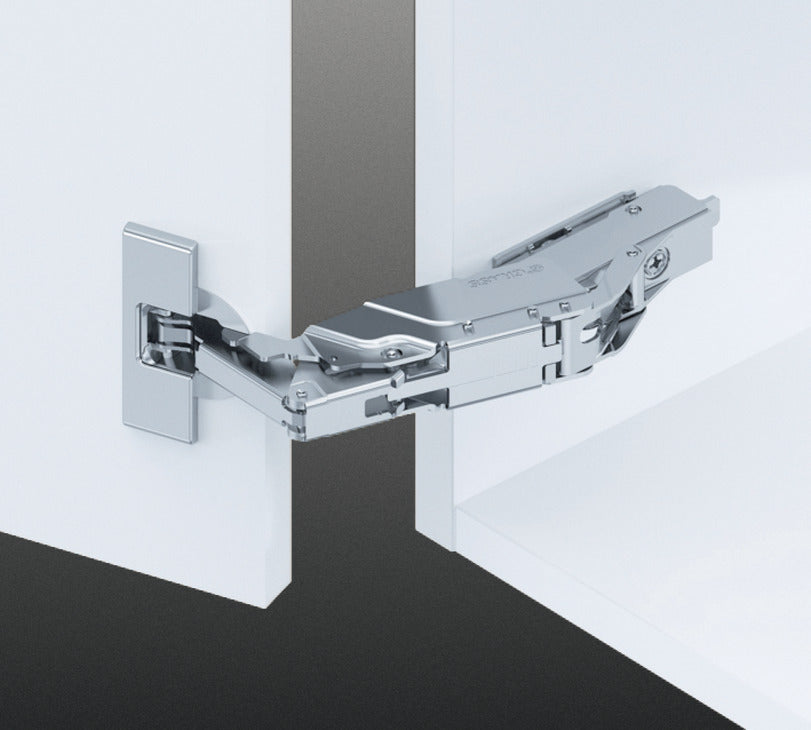

Concealed Hinge, Grass TIOMOS, 160º Opening Angle, Full Overlay

$12.72
$12.72
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • With or without soft closing mechanism integrated in hinge arm, with 3 settings (optional)
    No offset, for use with internal pull outs or extending trays
    Low cup depth 10 mm
    Surrounding mitred mounting possible

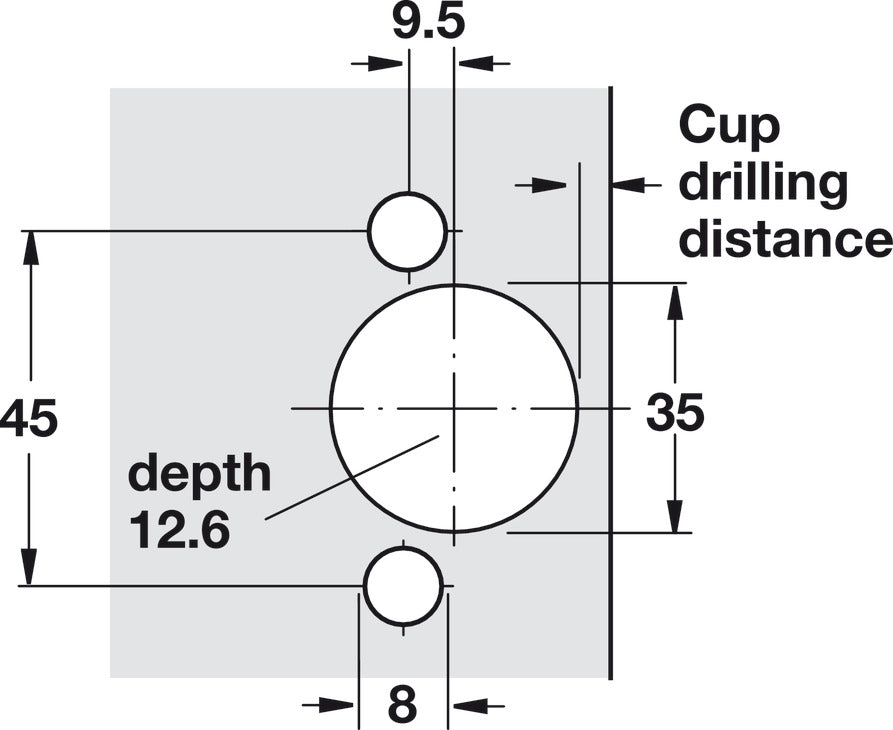

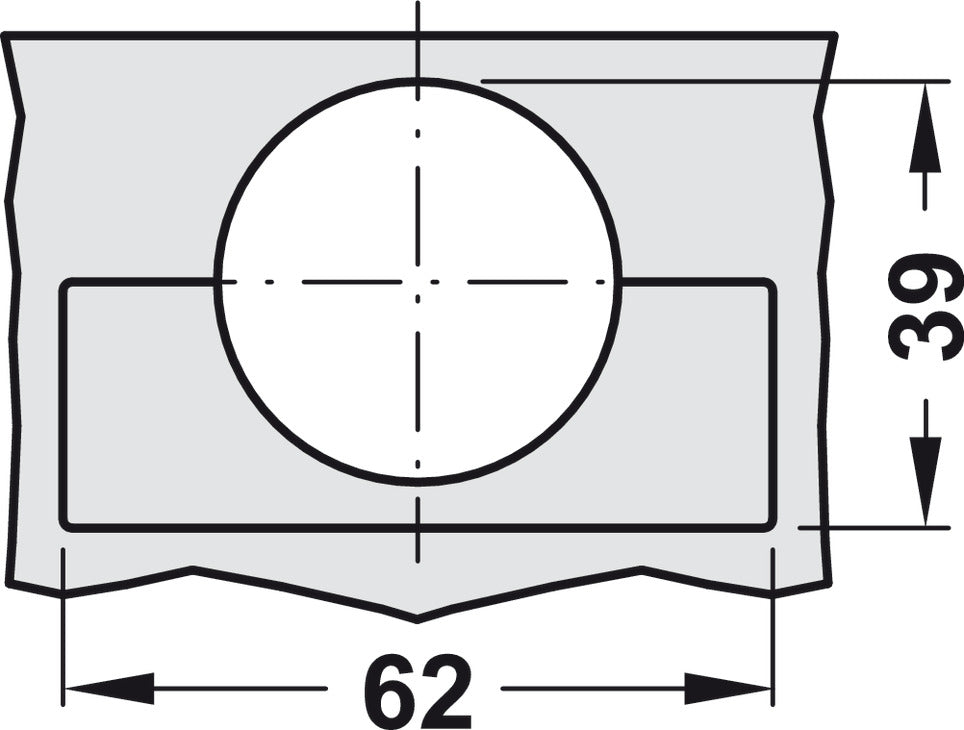

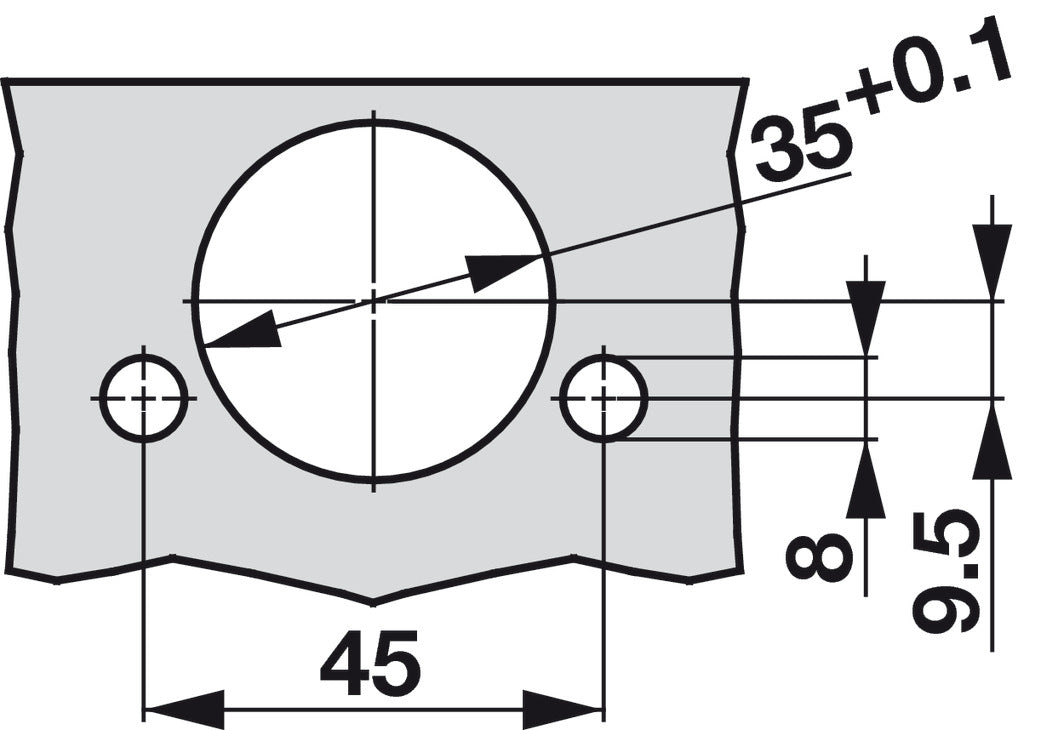

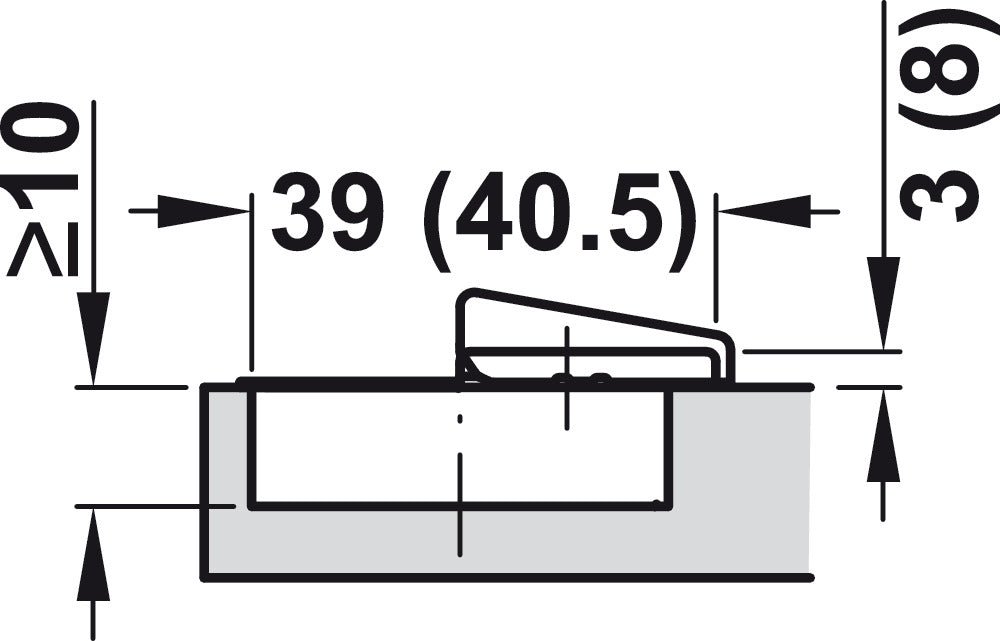

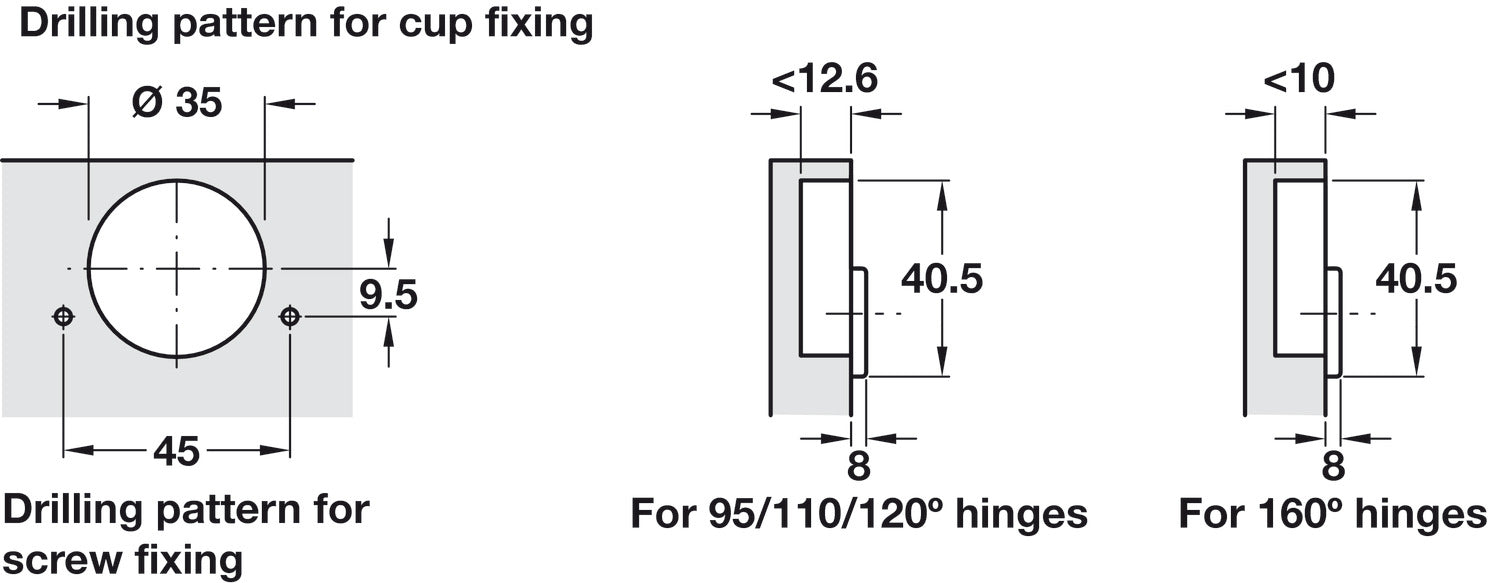

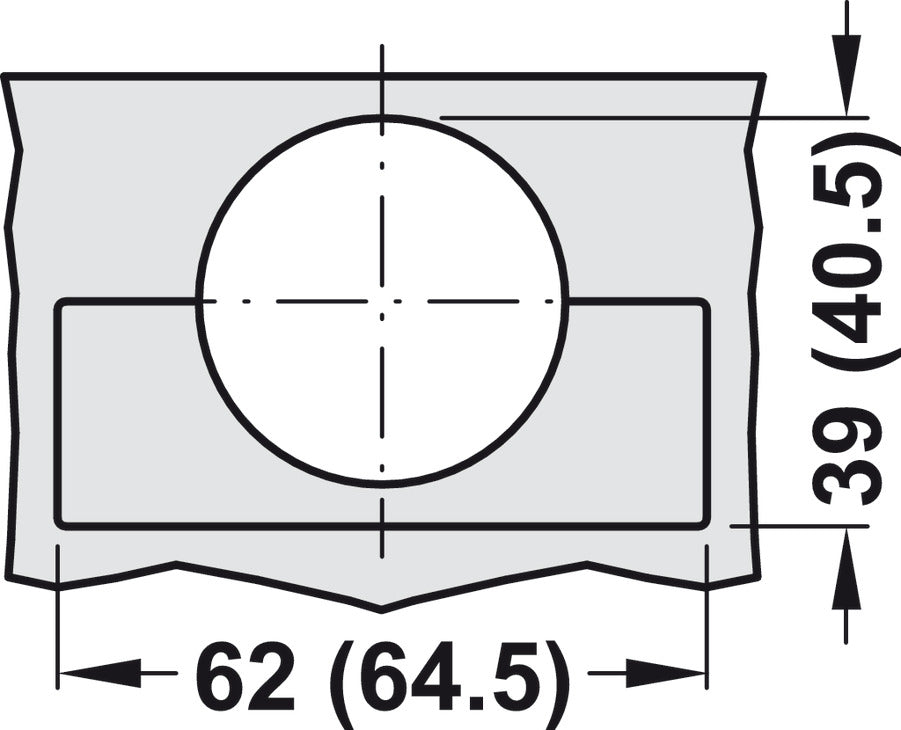

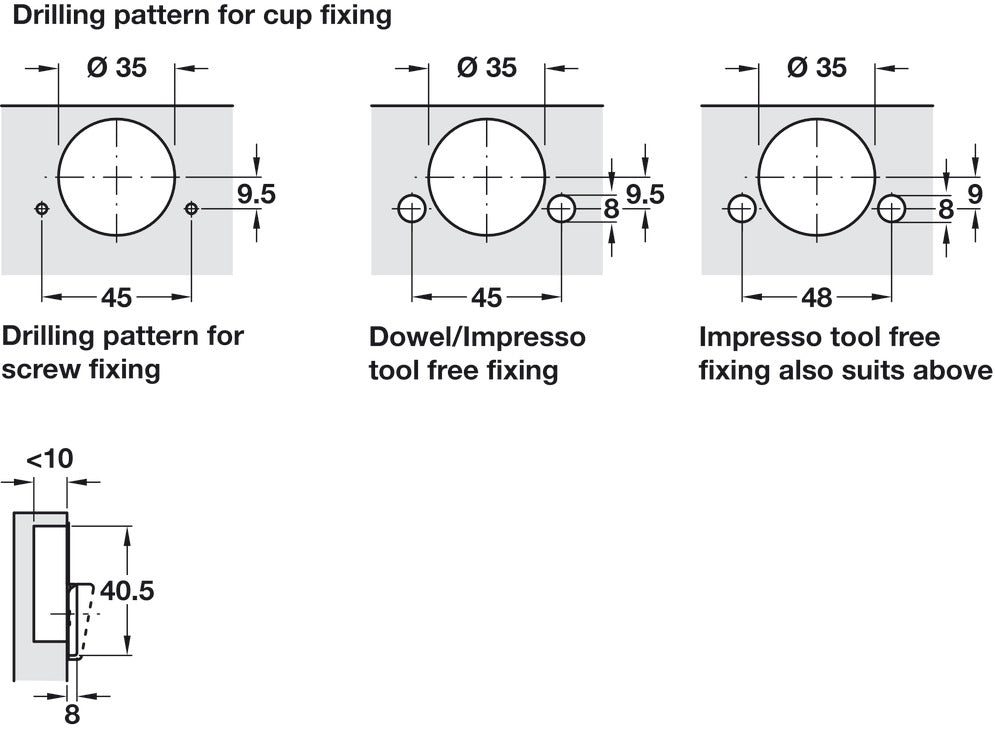

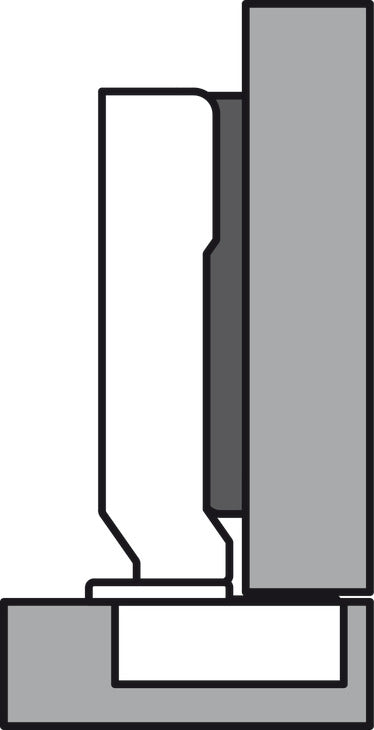

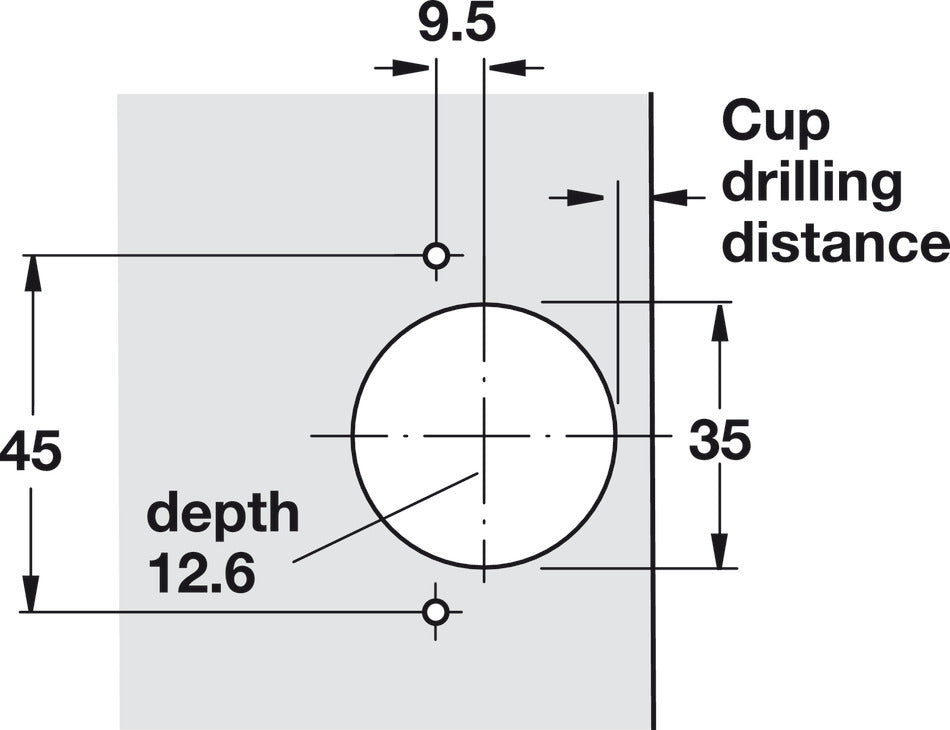

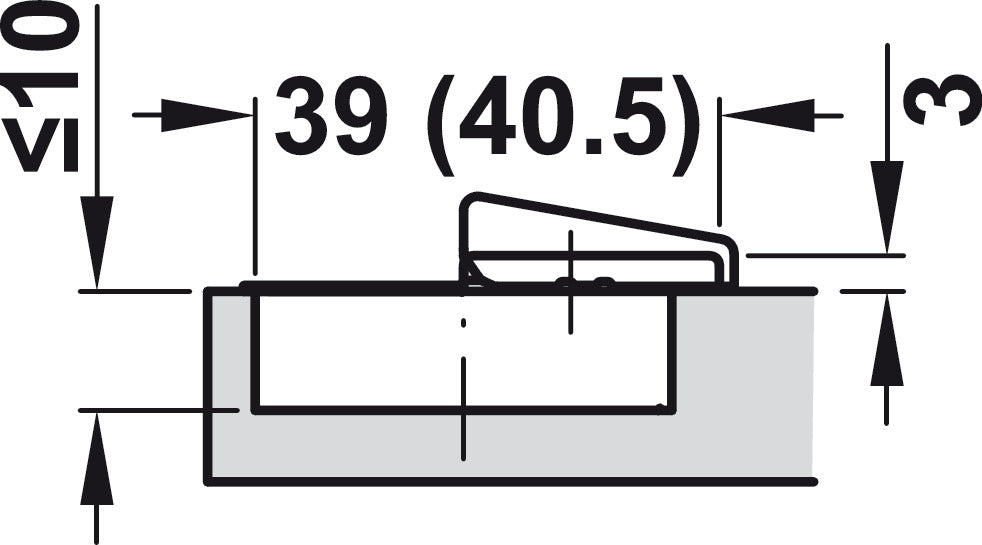

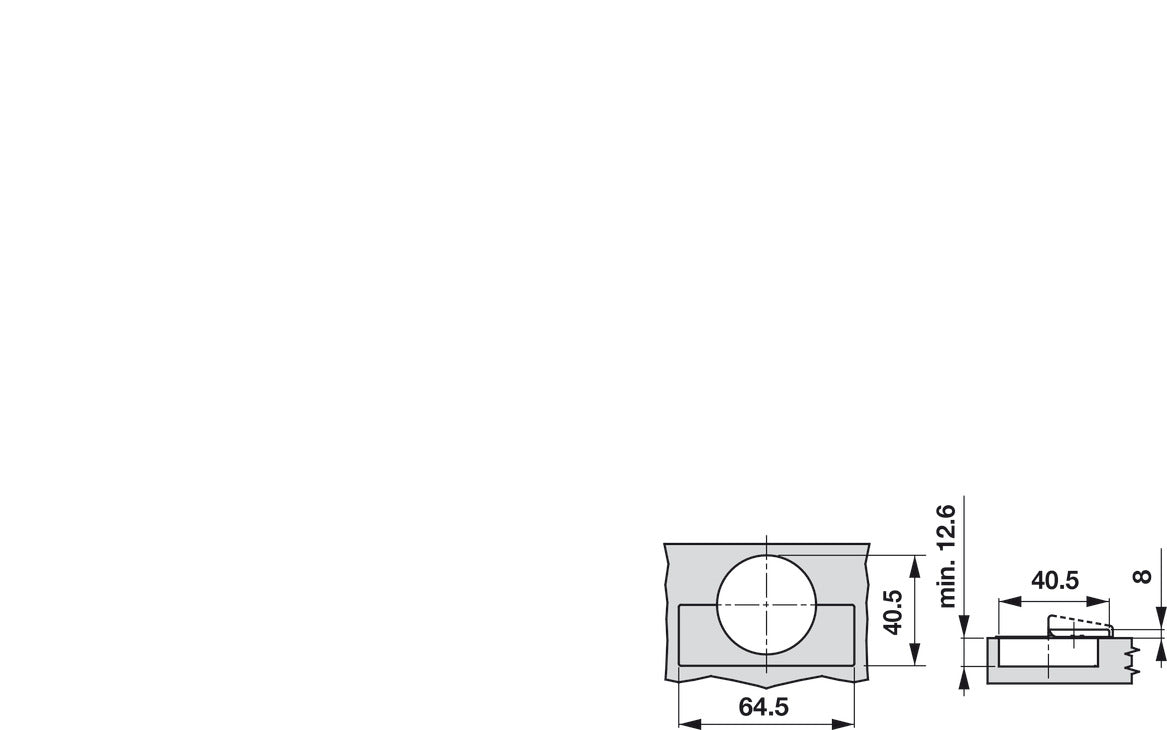

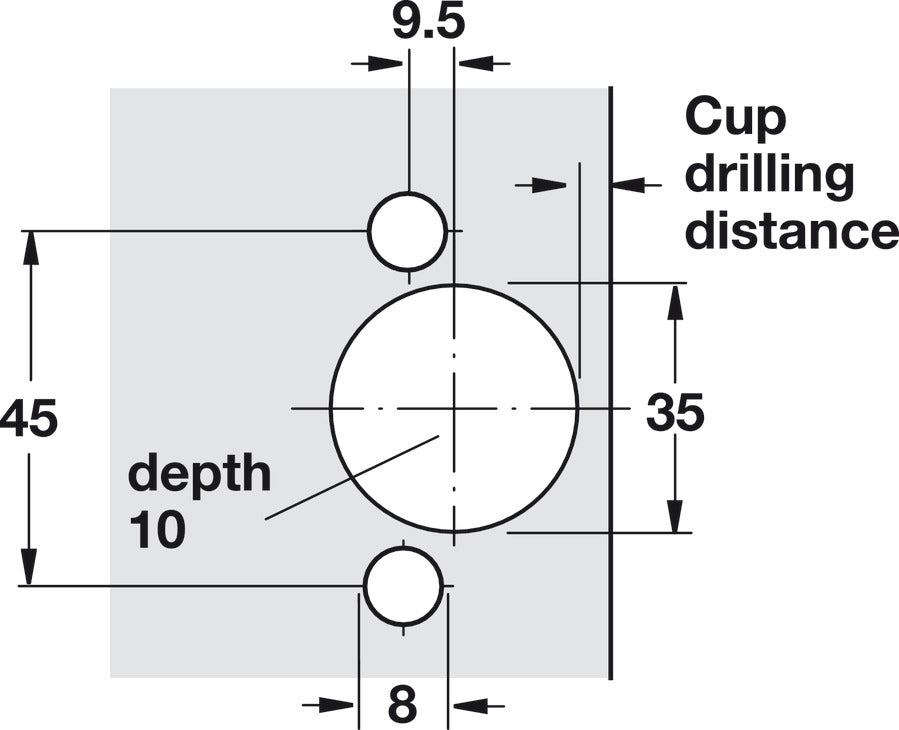

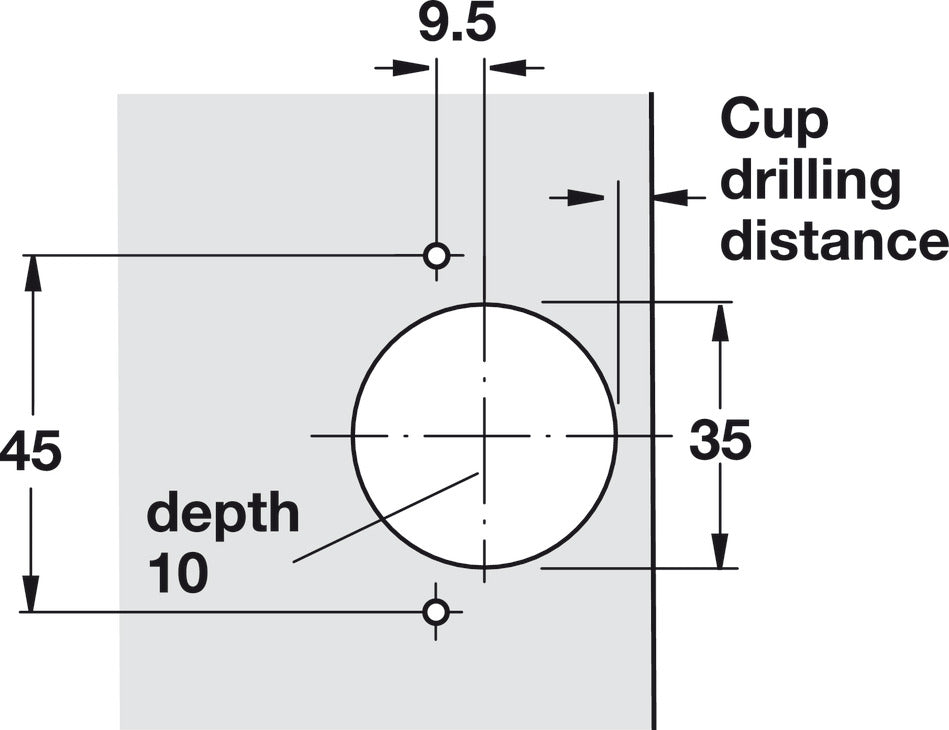

  • Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32”) 2 mm.

  • Cup fixing: for screw fixing
  • Mounting: mounting in drilled hole, screw fixing

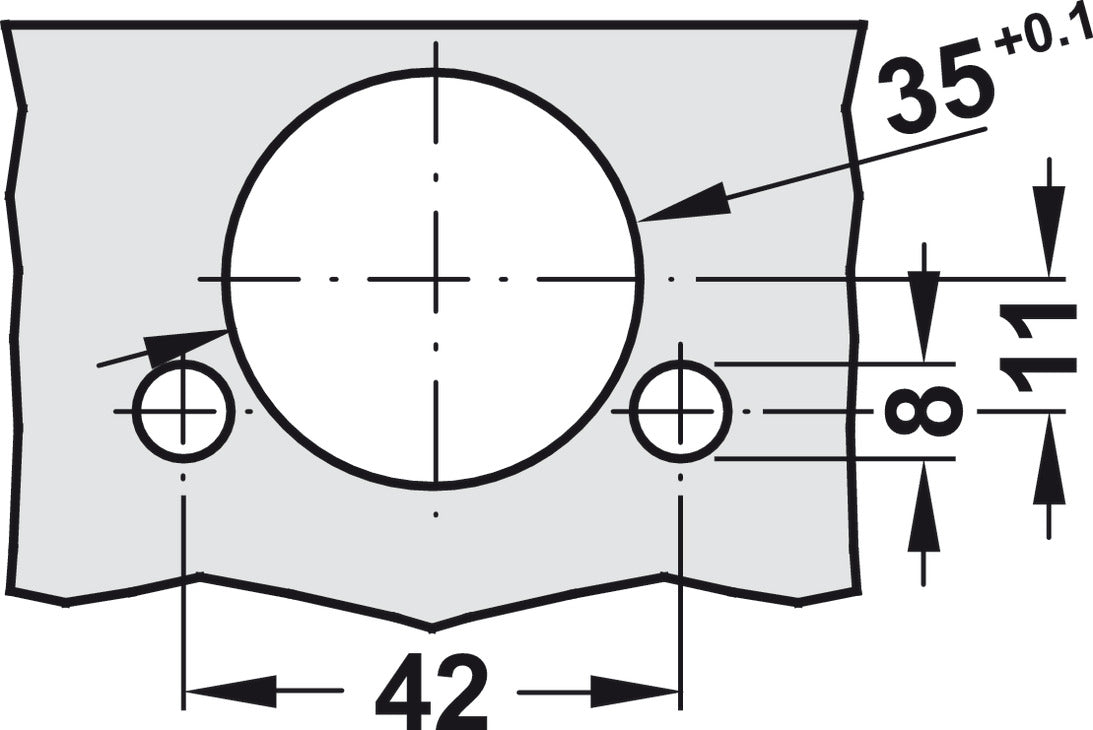

  • Drilling depth: 3/8"
  • Model series : Tiomos 160°
  • Concealed hinge version : full overlay plus
  • Crank type : Straight
  • Opening angle : 160 °
  • Material : Zinc alloy, Hinge arm: Zinc alloy
  • Door processing for assembly : cup drilling
  • For wooden door thickness : 29 – 32 mm
  • For door thickness min. : Max. 1 1/4"#For door thickness over 29mm, a trial fitting is recommended
  • Cup drilling depth : 10 mm
  • Note :

    The dimensions specified in the drawings are calculated with a mounting plate distance of 2 mm for full overlay mounting and half overlay mounting/twin mounting.
