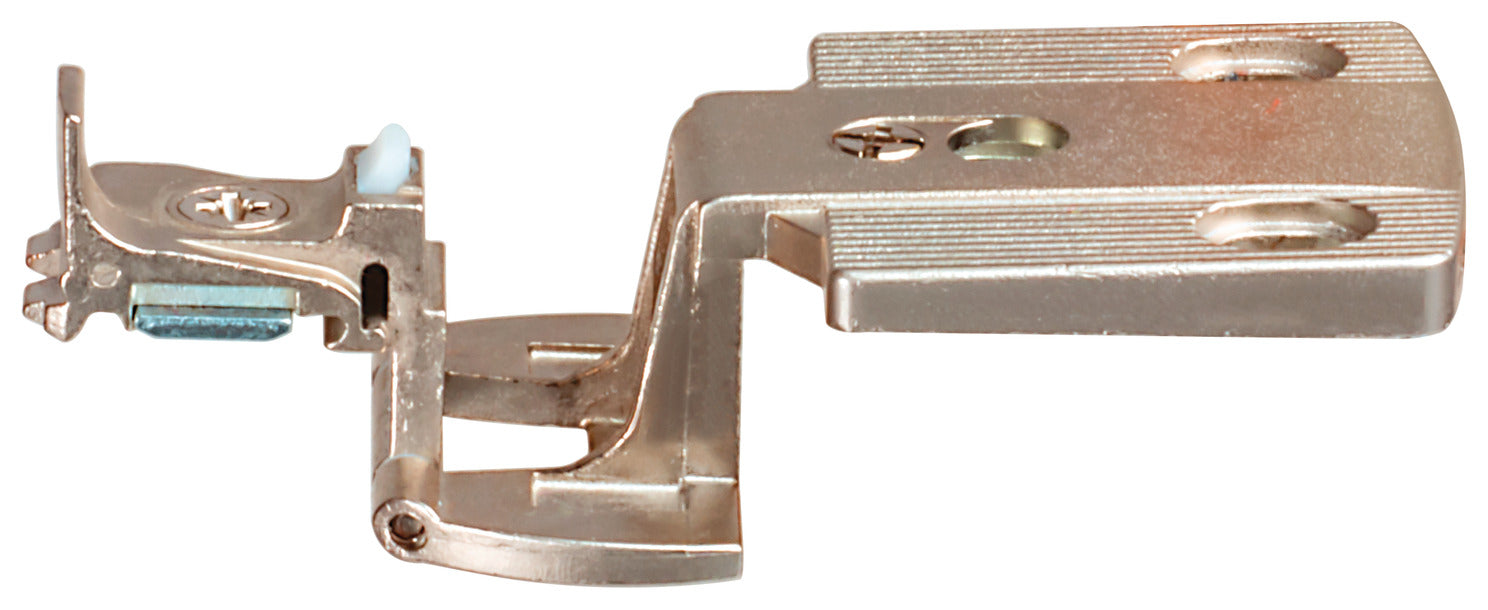

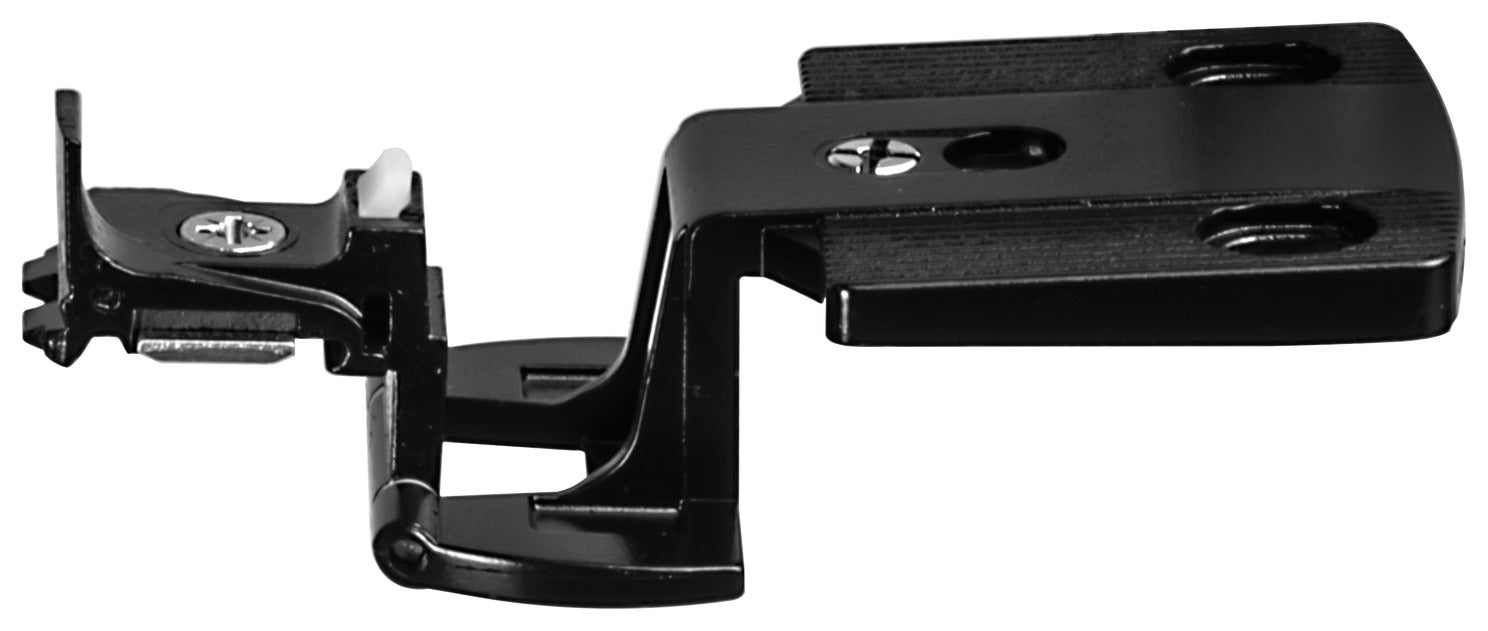

• Single Pivot Institutional Hinge Arm, Aximat® 300, Grade 1, Opening Angle 270°
1 11

Single Pivot Institutional Hinge Arm, Aximat® 300, Grade 1, Opening Angle 270°

$6.47
$6.47
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

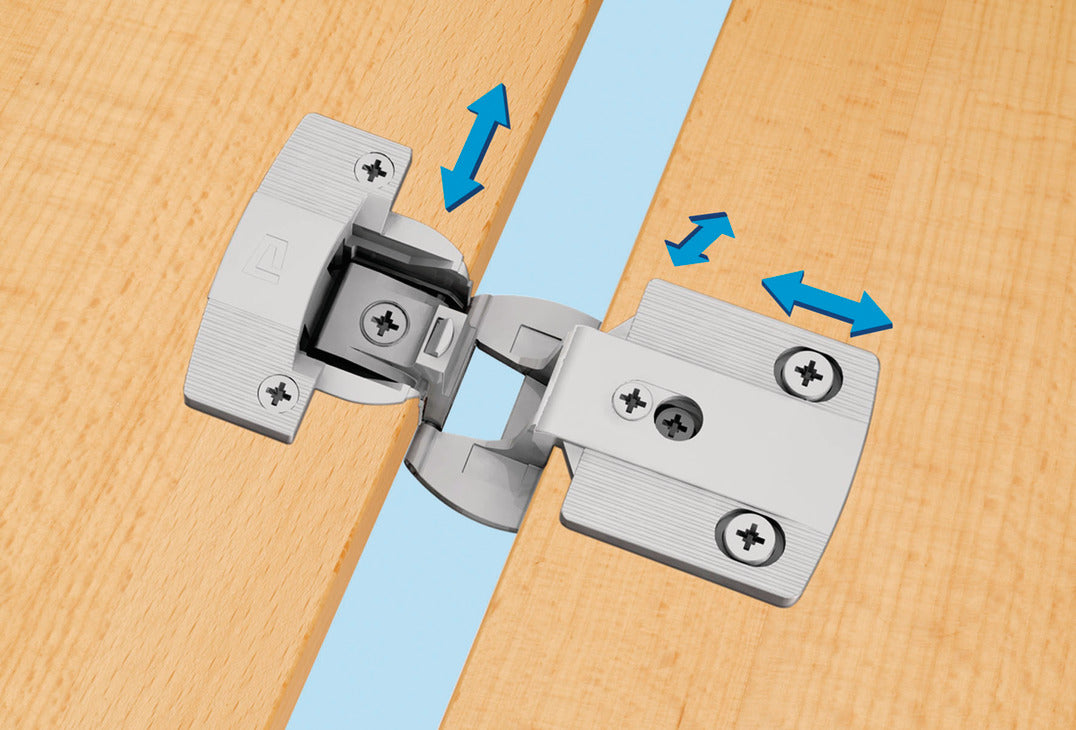

  • Side adjustement, hinge lies directly against the door.
    Rapid and precise height adjustment of door.

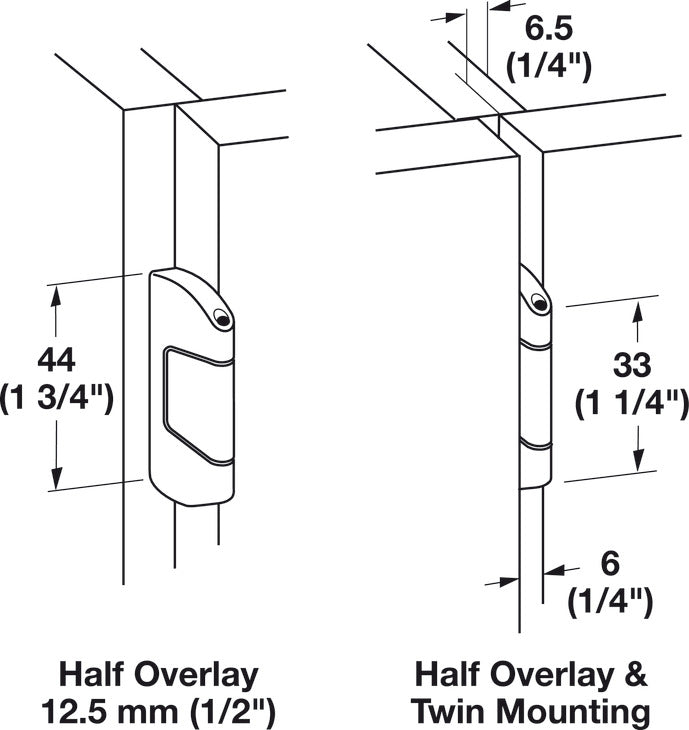

  • Available in Twin mounted version, 2 doors can be mounted on a single hinge on a single side panel

  • Color/finish: Black
  • Mounting: mounting in drilled hole, screw fixing
  • Model: Häfele Aximat 300
  • Side panel thickness min.: 3/4"
  • Model series : 300

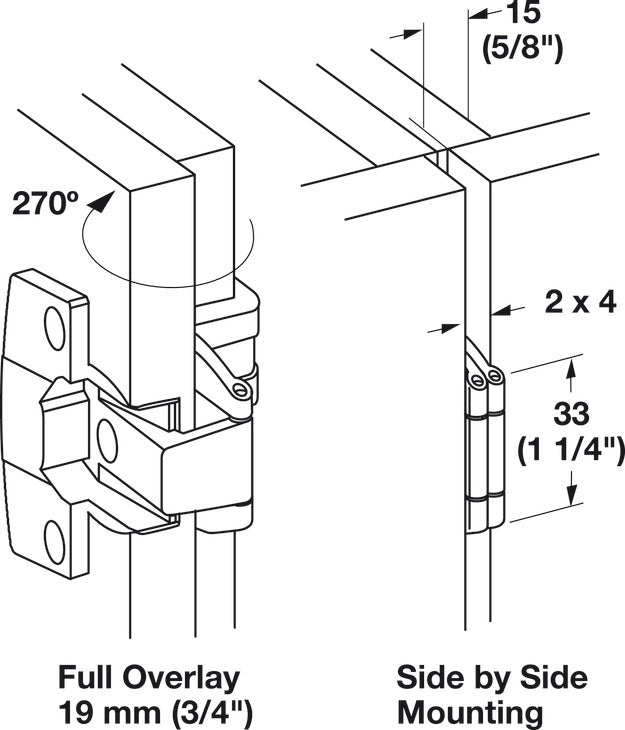

  • Concealed hinge version : full overlay
  • Opening angle : 270 °

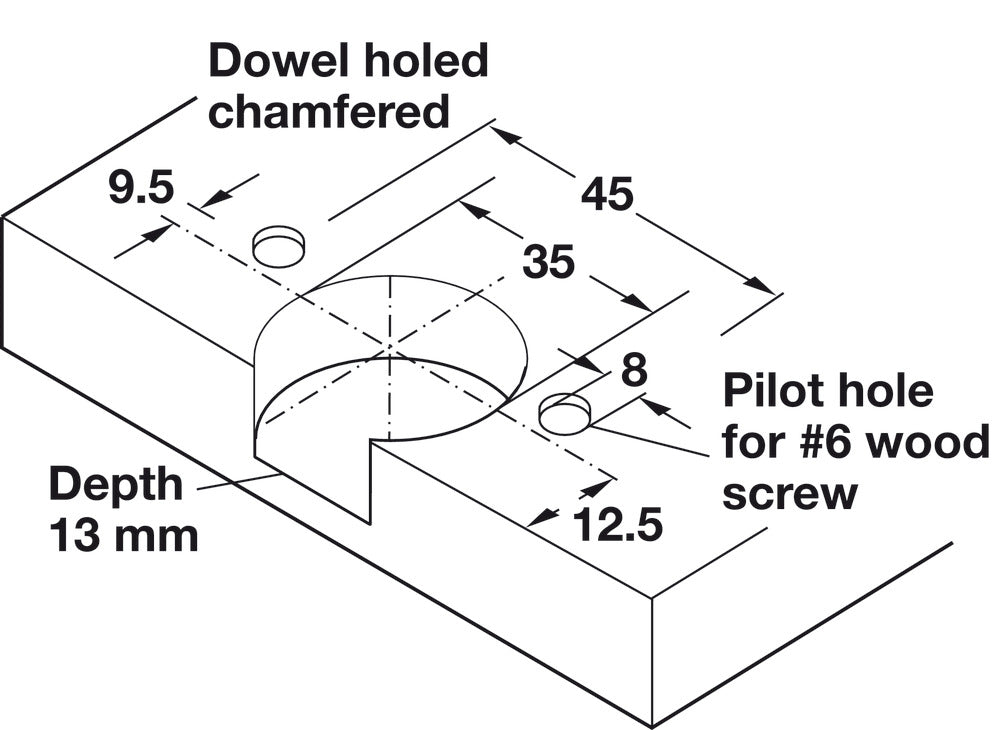

  • Door processing for assembly : cup drilling
  • For wooden door thickness : 21 mm
  • For door thickness min. : 13/16"
  • Cup drilling depth : 13 mm
  • Note :

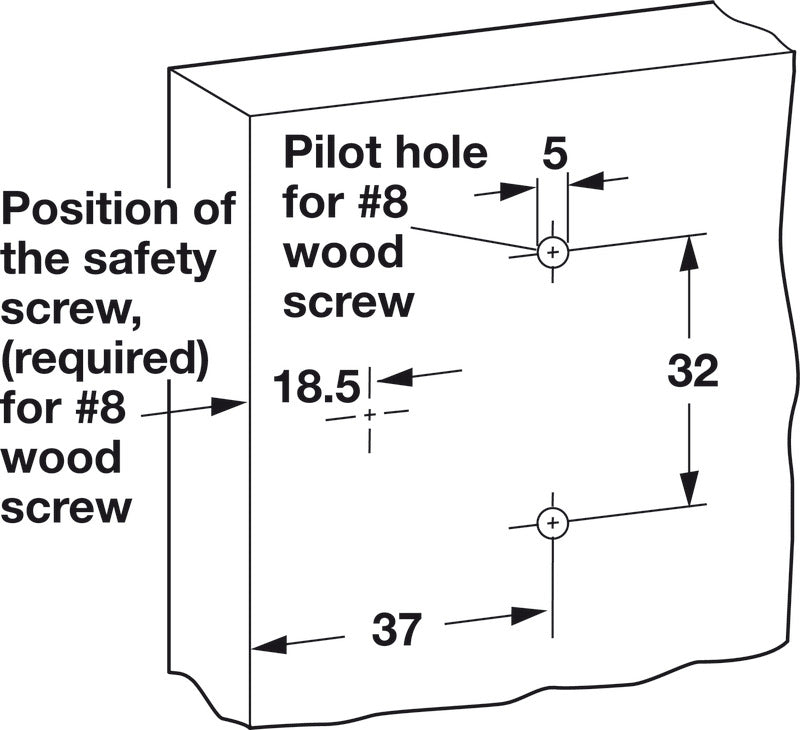

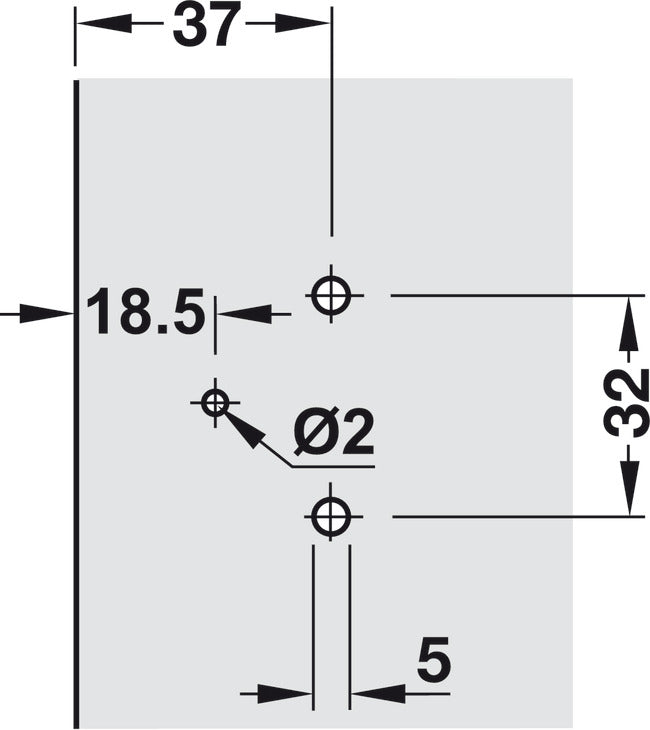

    Installation of safety screw in arm is required.

  • Order reference :

    #6 wood screws for hinge attachment are not included
