• Thin door concealed hinge
1 7

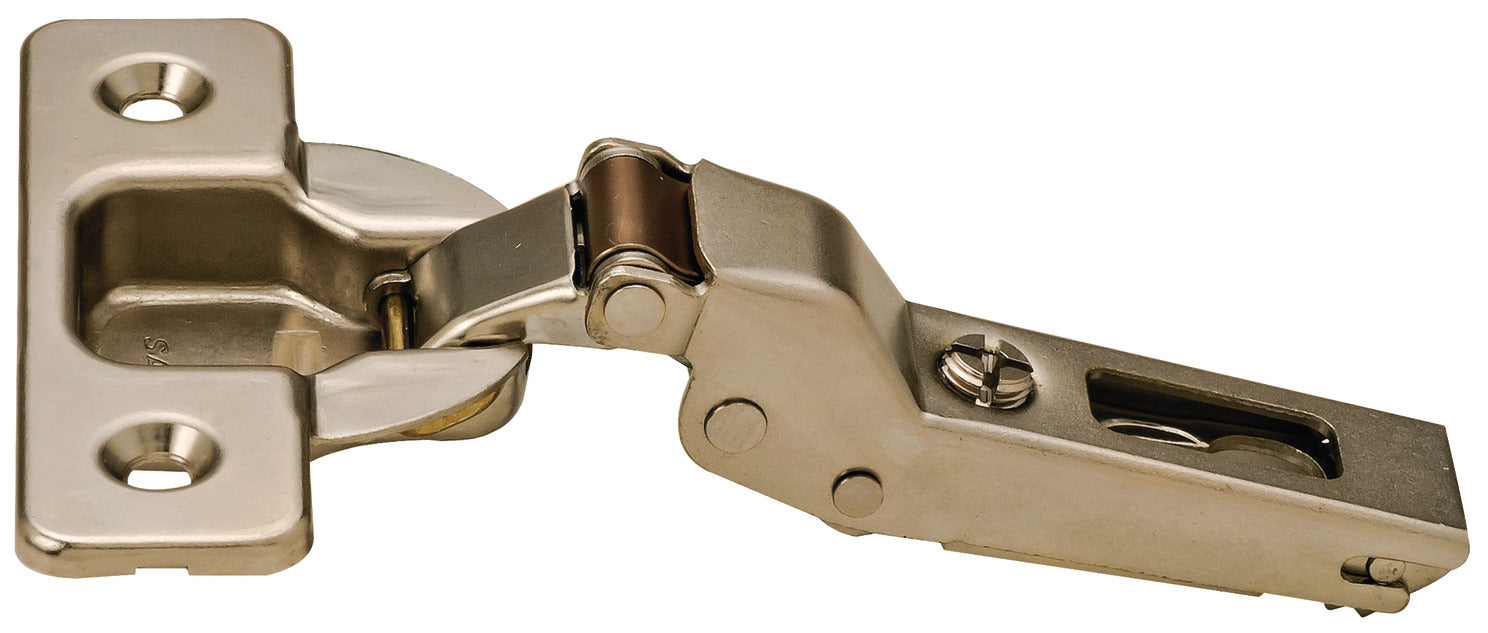

Thin door concealed hinge

$2.73
$2.73
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Required drilling depth for hinge cup only 8 mm

  • Distance to cup min.: 3 mm
  • Distance to cup max.: 6 mm
  • Model series : 100 Series
  • Crank type : Cranked
  • Opening angle : 105 °
  • Material : Steel, Hinge arm: Steel
  • Door processing for assembly : cup drilling
  • For wooden door thickness : 10 – 20 mm
  • For door thickness min. : 3/8"
  • Cup drilling depth : 8 mm
  • Note :

    Dimensions and gap specifications in drawings and tables are calculated:
    Using factory settings
    For mounting plate distance 0 mm
    For door offset with max. opening angle
