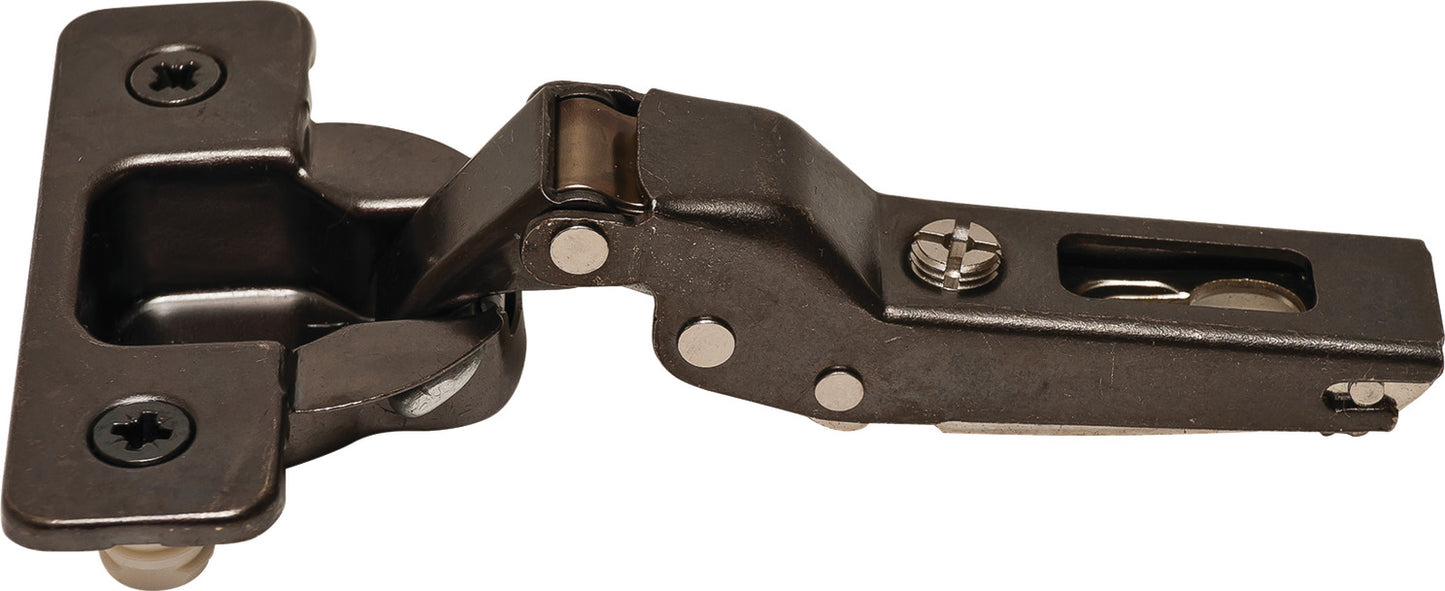

Concealed Hinge, Salice 200 Series/700 Series, 110° Opening Angle, Half Overlay, Titanium Finish

$2.58
$2.58
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Mounting: mounting in drilled hole, screw fixing
  • Side panel thickness min.: 5/8"
  • Distance to cup min.: 3 mm
  • Distance to cup max.: 6 mm
  • Model series : Salice
  • Concealed hinge version : half overlay
  • Crank type : Cranked

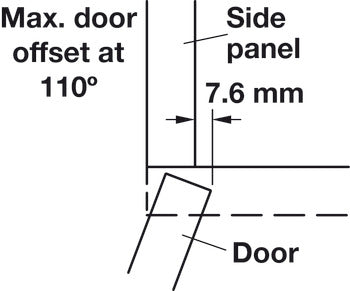

  • Opening angle : 110 °
  • Material : Steel, Hinge arm: Steel

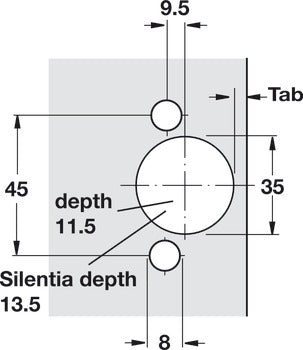

  • Door processing for assembly : cup drilling
  • For wooden door thickness : 16 – 26 mm
  • For door thickness min. : 5/8"
  • Cup drilling depth : 11.5 mm
