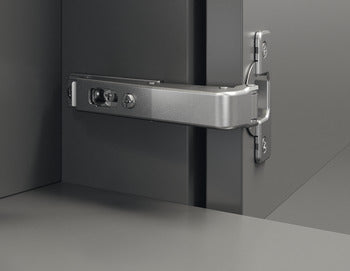

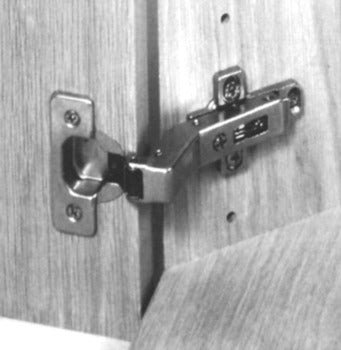

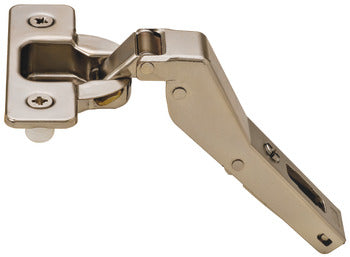

• + 45° Corner Hinge, Salice, 94° Opening Angle, Self-Close, Overlay
1 13

+ 45° Corner Hinge, Salice, 94° Opening Angle, Self-Close, Overlay

$4.79
$4.79
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

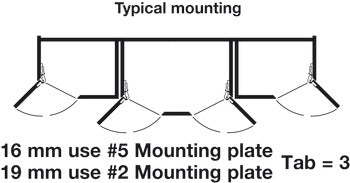

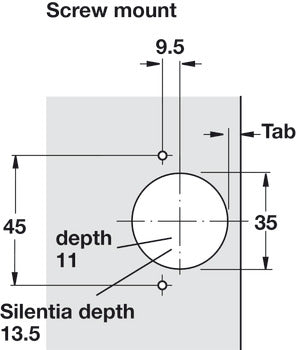

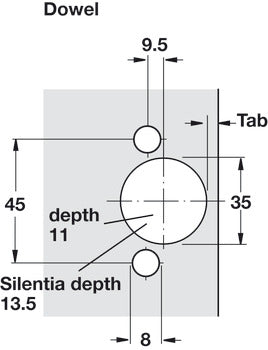

  • Mounting: mounting in drilled hole, screw fixing
  • Distance to cup min.: 3 mm
  • Distance to cup max.: 9 mm
  • Model series : Duomatic Premium
  • Opening angle : 94 °
  • Material : Steel, Hinge arm: Zinc alloy

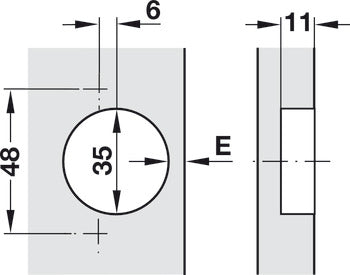

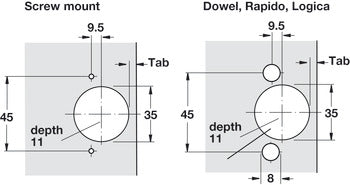

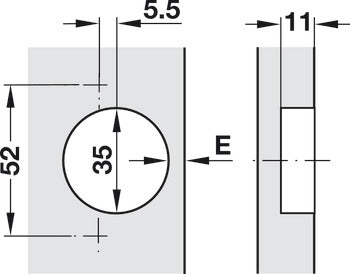

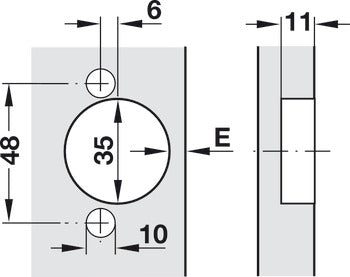

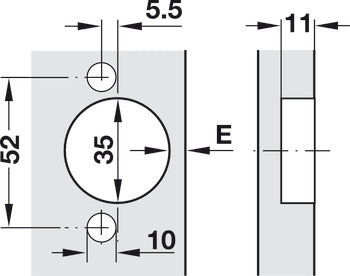

  • Door processing for assembly : cup drilling
  • Adjustment facility : Side adjustment facility: 4.5, Height adjustment facility: ±2 mm
  • For door thickness min. : 5/8"
  • Cup drilling depth : 11 mm
