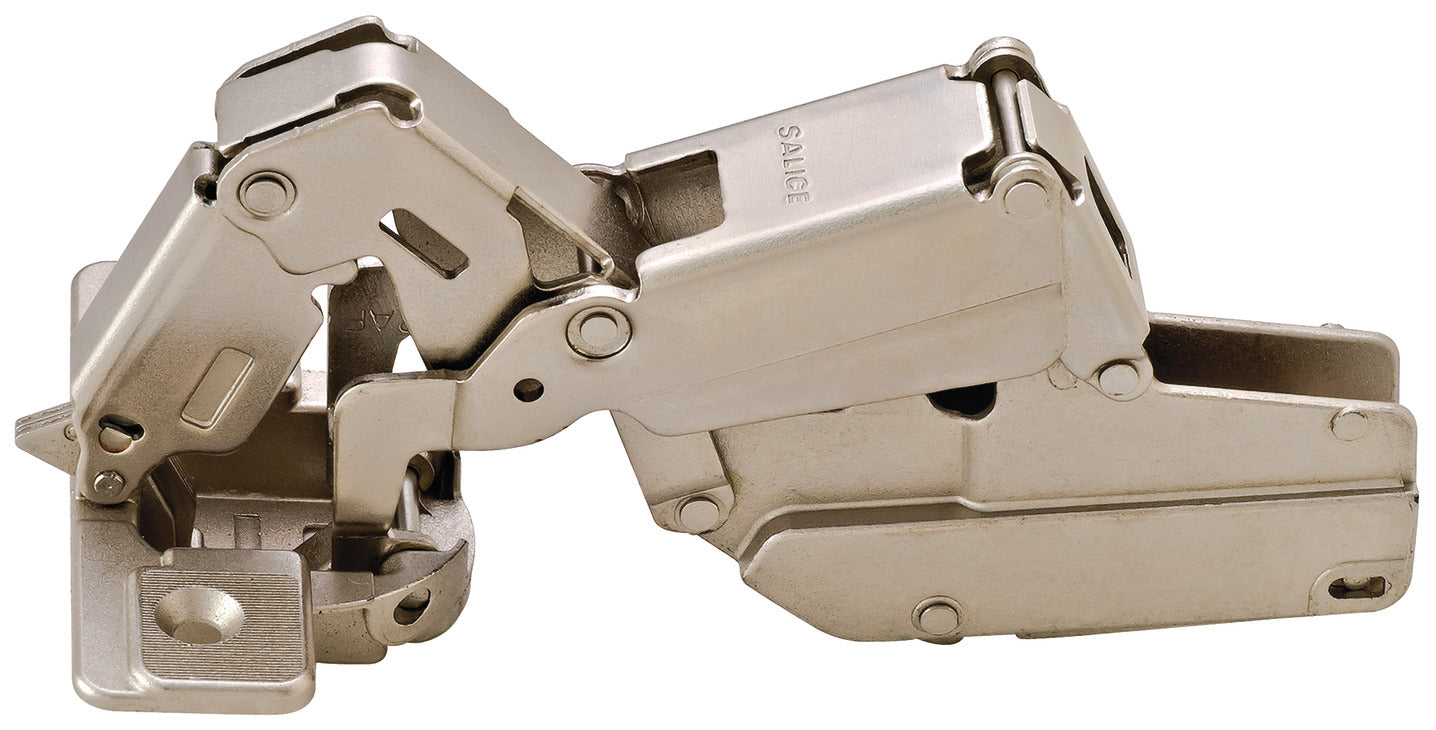

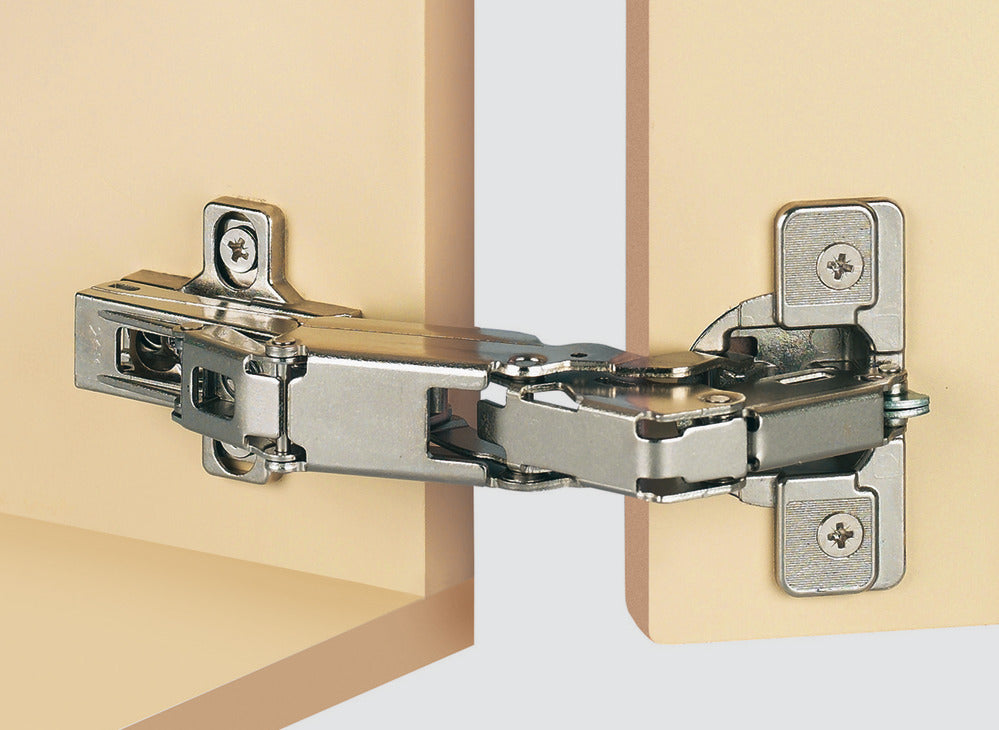

Concealed Hinge, Salice PUSH, 155°/165° Opening Angle, Self-Opening, Inset Overlay

$13.97
$13.97
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Automatic, almost complete opening of the door
    0-door offset for use with internal pull outs or extending trays

  • Mounting: mounting in drilled hole, screw fixing
  • Side panel thickness min.: 5/8"
  • Distance to cup min.: 3 mm
  • Distance to cup max.: 8 mm
  • Model series : Push 165°
  • Concealed hinge version : full overlay
  • Opening angle : 165 °
  • Material : Steel, Hinge arm: Steel

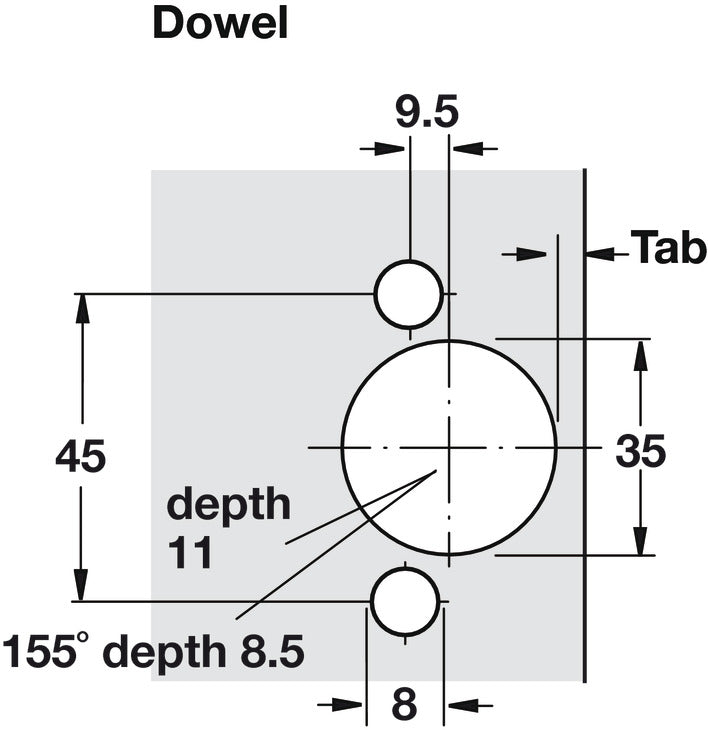

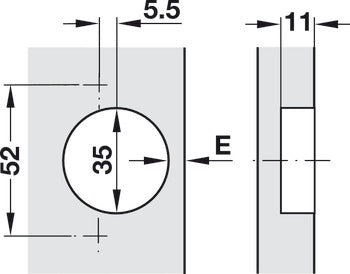

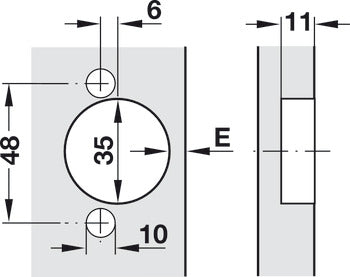

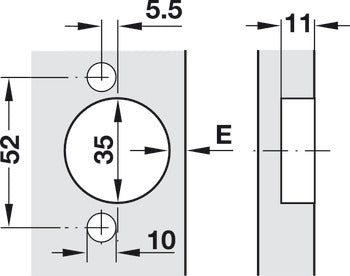

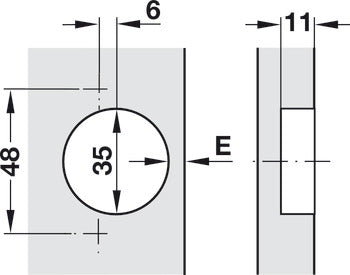

  • Door processing for assembly : cup drilling
  • For wooden door thickness : 16 – 28 mm
  • For door thickness min. : 5/8"
  • Note :

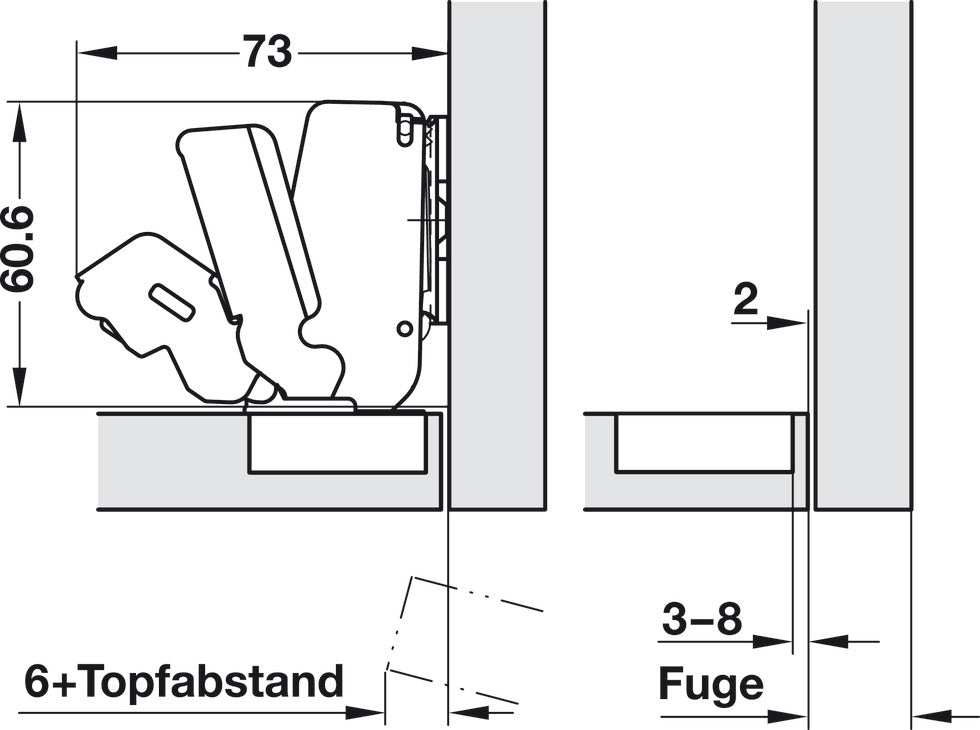

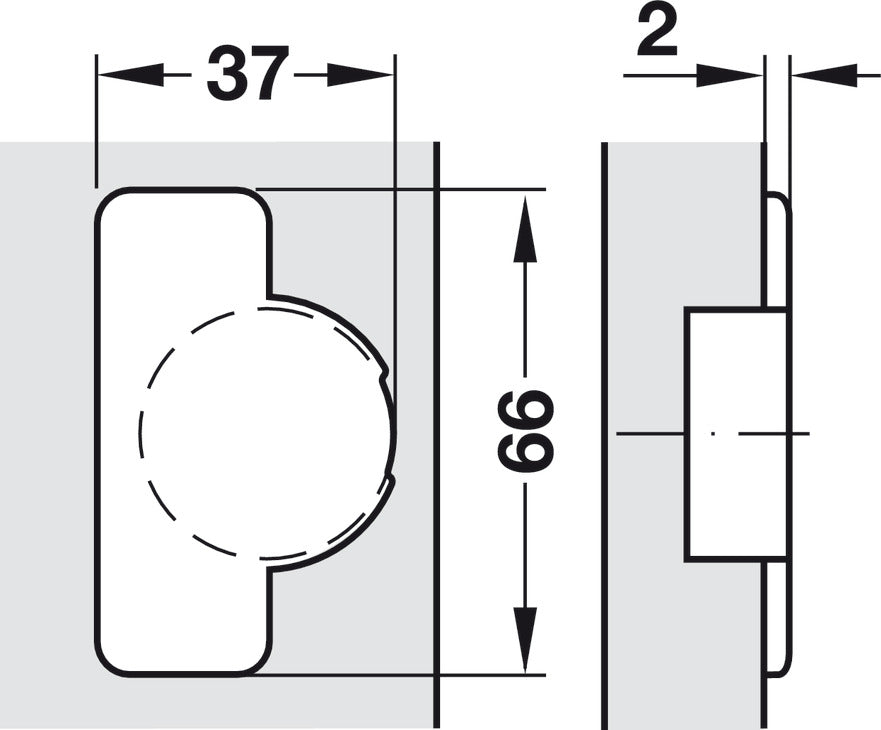

    Dimensions and gap specifications in drawings and tables are calculated:
    Using factory settings
    For mounting plate distance 0 mm
    For door offset with max. opening angle
