• Concealed Blind Corner Hinge, Grass TIOMOS, 110° Opening Angle, Overlay Mounting
1 11

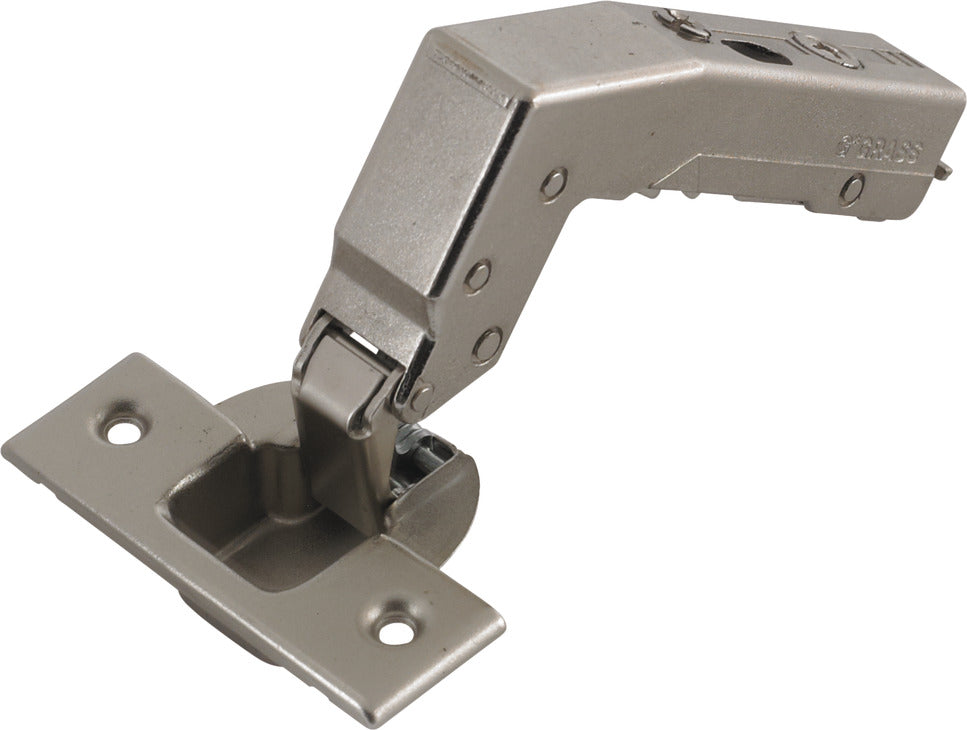

Concealed Blind Corner Hinge, Grass TIOMOS, 110° Opening Angle, Overlay Mounting

$11.54
$11.54
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

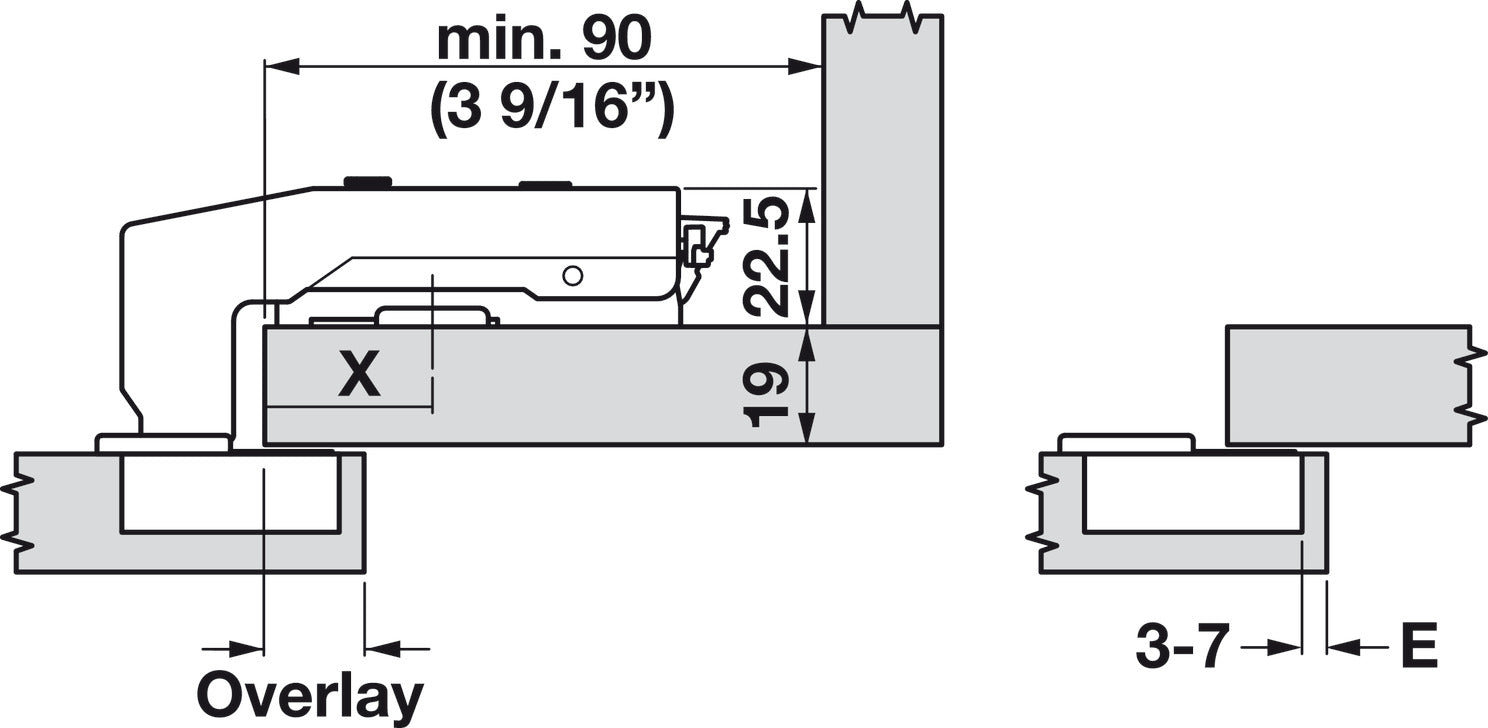

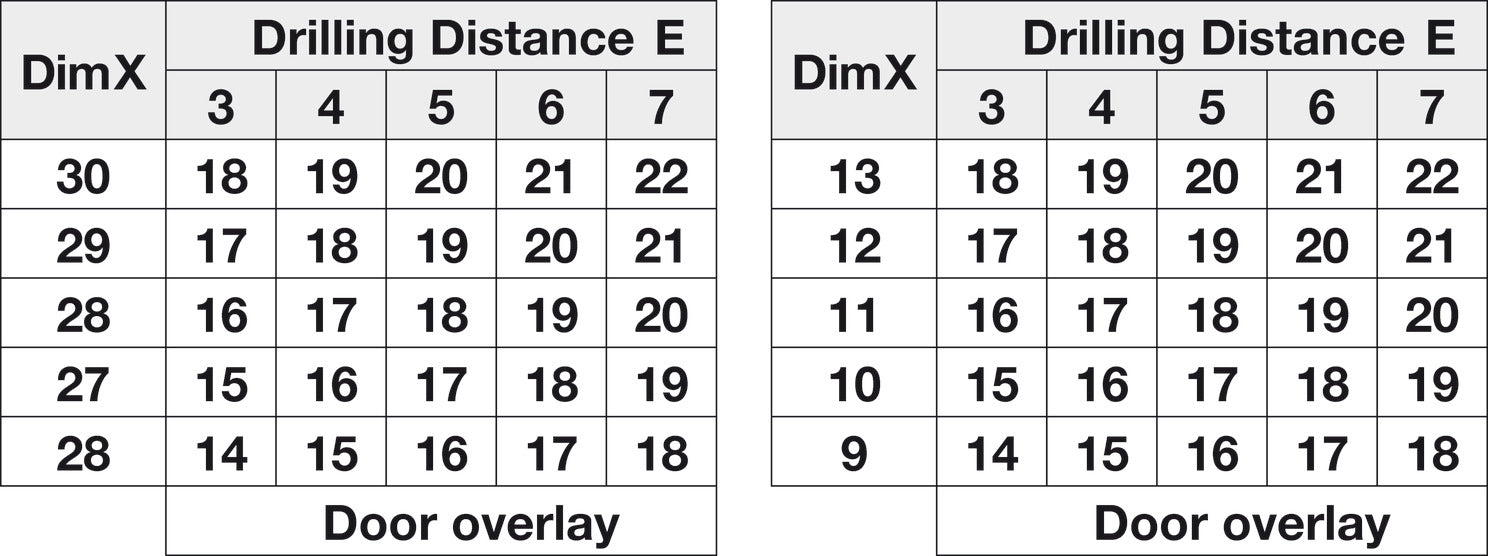

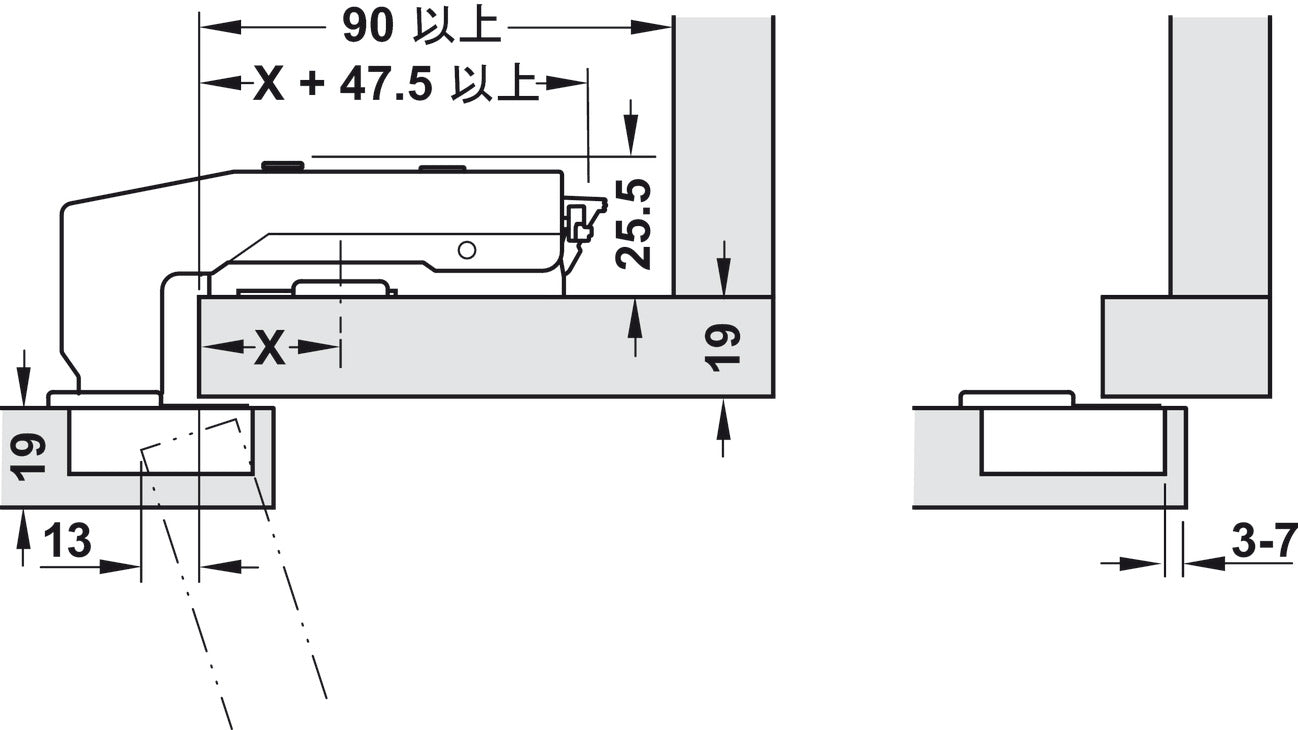

  • Dimensions in drawings and tables are calculated using factory settings and for mounting plate height 3 mm (1/8”).

  • Version: With soft closing mechanism
  • Cup fixing: without tools

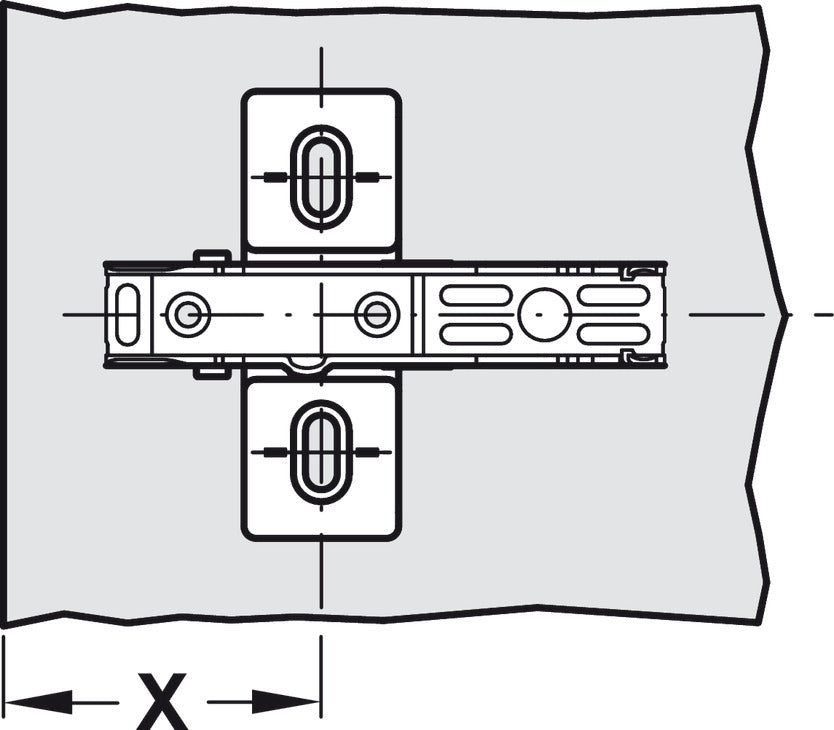

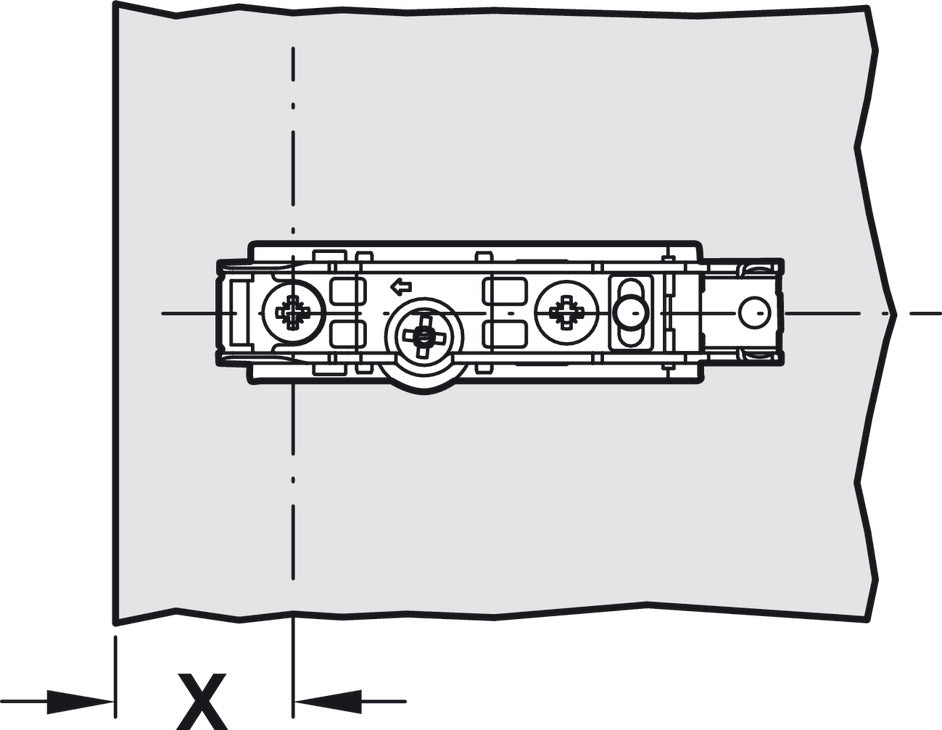

  • Mounting: mounting in drilled hole, screw fixing
  • Distance to cup min.: 3 mm
  • Distance to cup max.: 7 mm
  • Model series : Tiomos

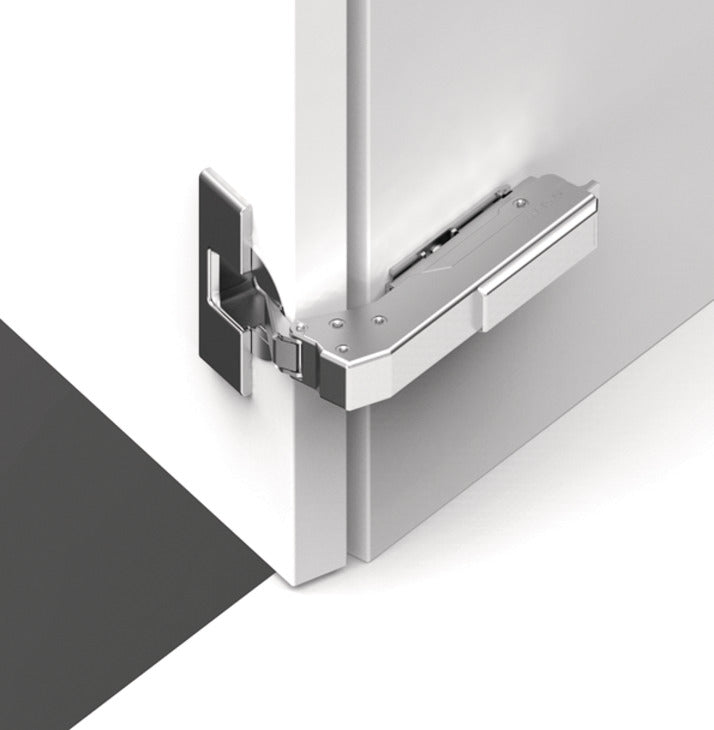

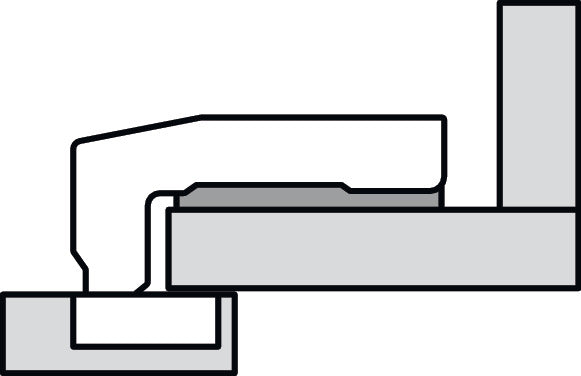

  • Concealed hinge version : blind corner application
  • Crank type : Straight
  • Opening angle : 110 °
  • Material : Steel, Hinge arm: Zinc alloy

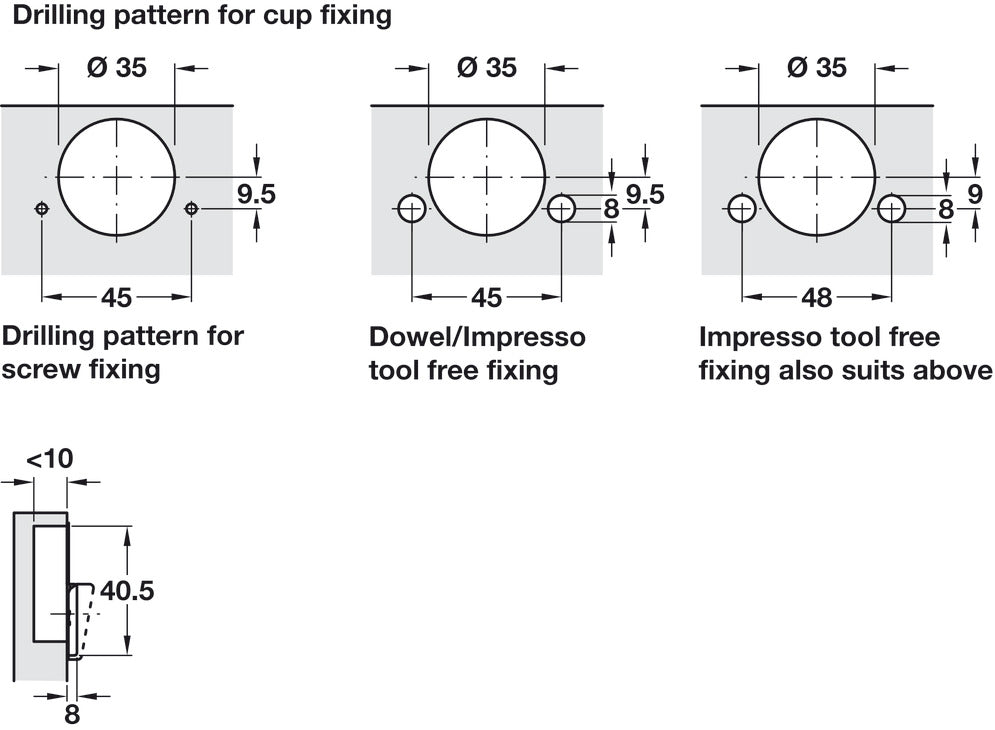

  • Door processing for assembly : cup drilling
  • Adjustment facility : Side adjustment facility: ±2 mm, Height adjustment facility: ±2.5 mm, Depth adjustment facility: -2 – 3 mm
  • For wooden door thickness : 16 – 24 mm
  • For door thickness min. : Max: (61/64")- Anything thicker, a trial mounting is recommended

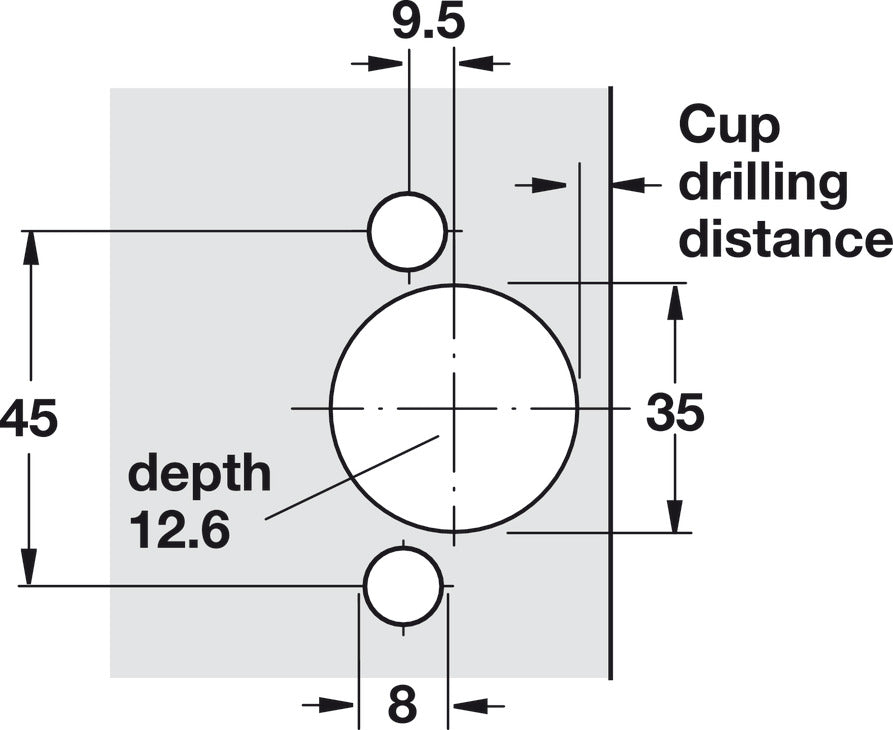

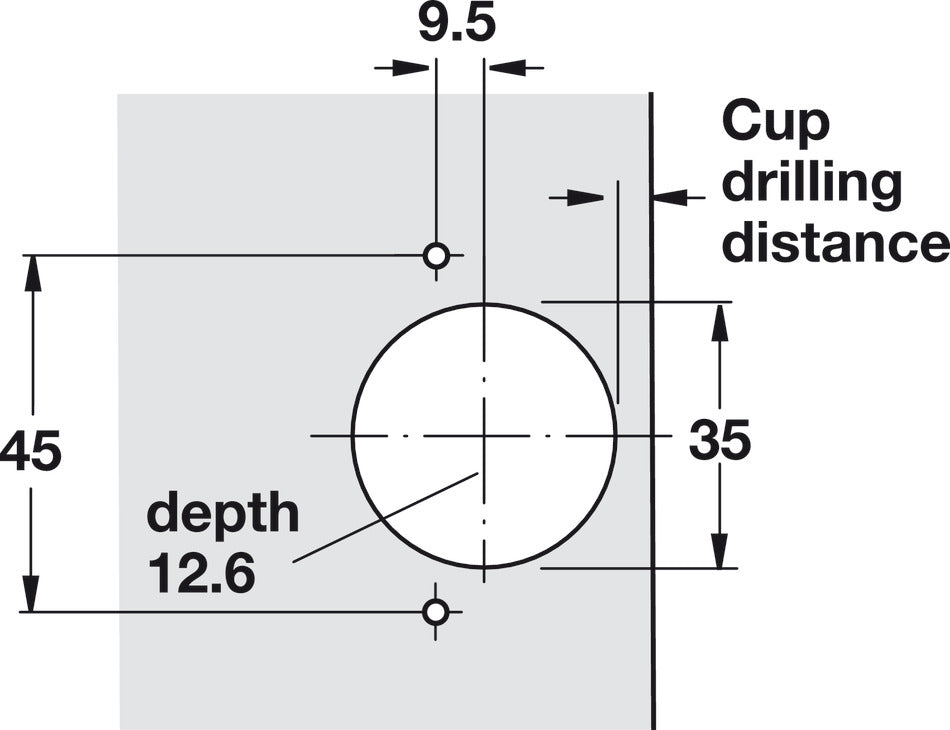

  • Cup drilling depth : 12.6 mm
