• Concealed Hinge, Easy Mount, 90° Opening Angle, Self Closing
1 5

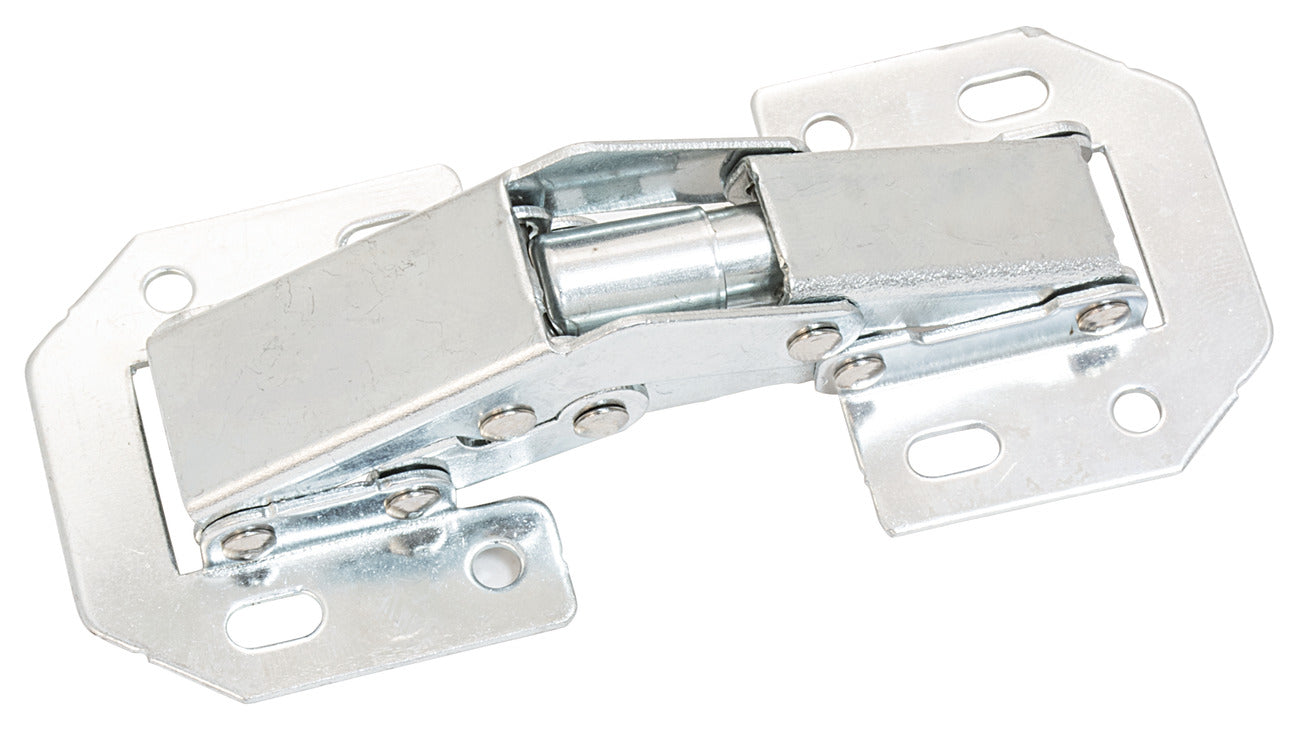

Concealed Hinge, Easy Mount, 90° Opening Angle, Self Closing

$2.15
$2.15
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Mounting: mounting in drilled hole, screw fixing
  • Side panel thickness min.: 5/8"
  • Side panel thickness max.: 7/8"
  • Material : Zinc alloy, Hinge arm: Zinc alloy
  • Door processing for assembly : without
  • For wooden door thickness : 16 – 20 mm
  • For door thickness min. : 5/8"
  • Cup drilling depth : 11 mm
