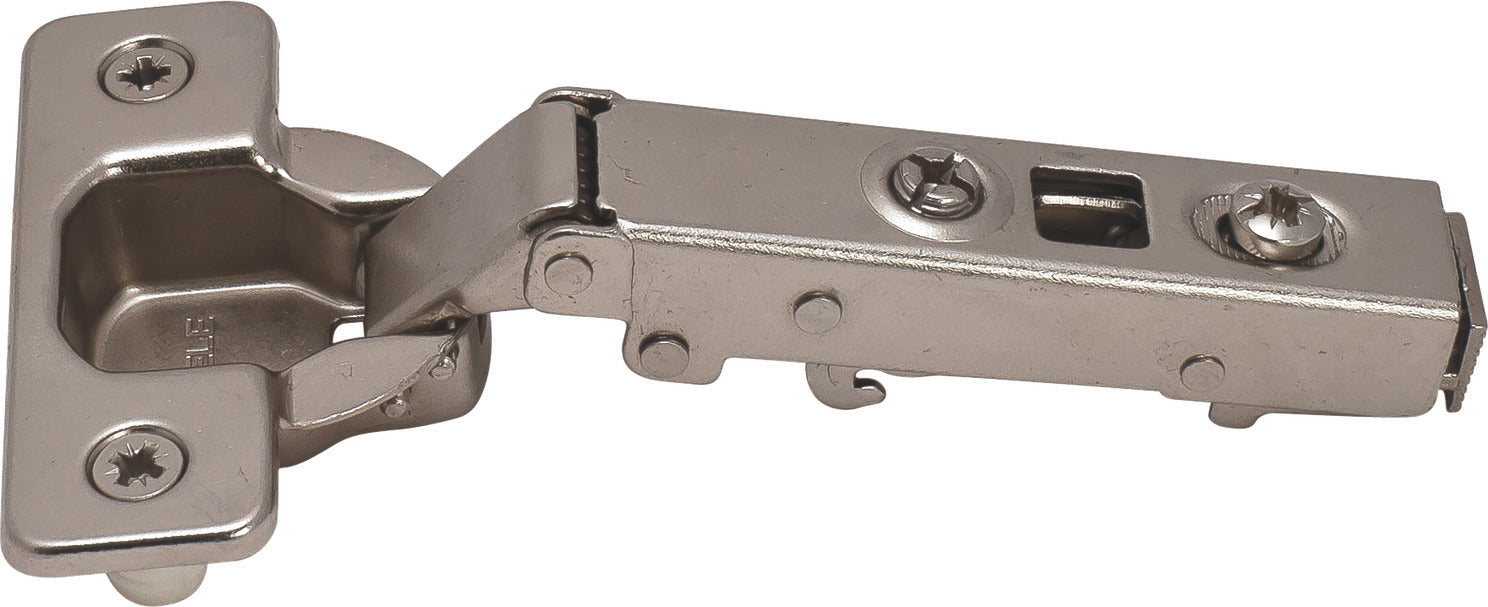

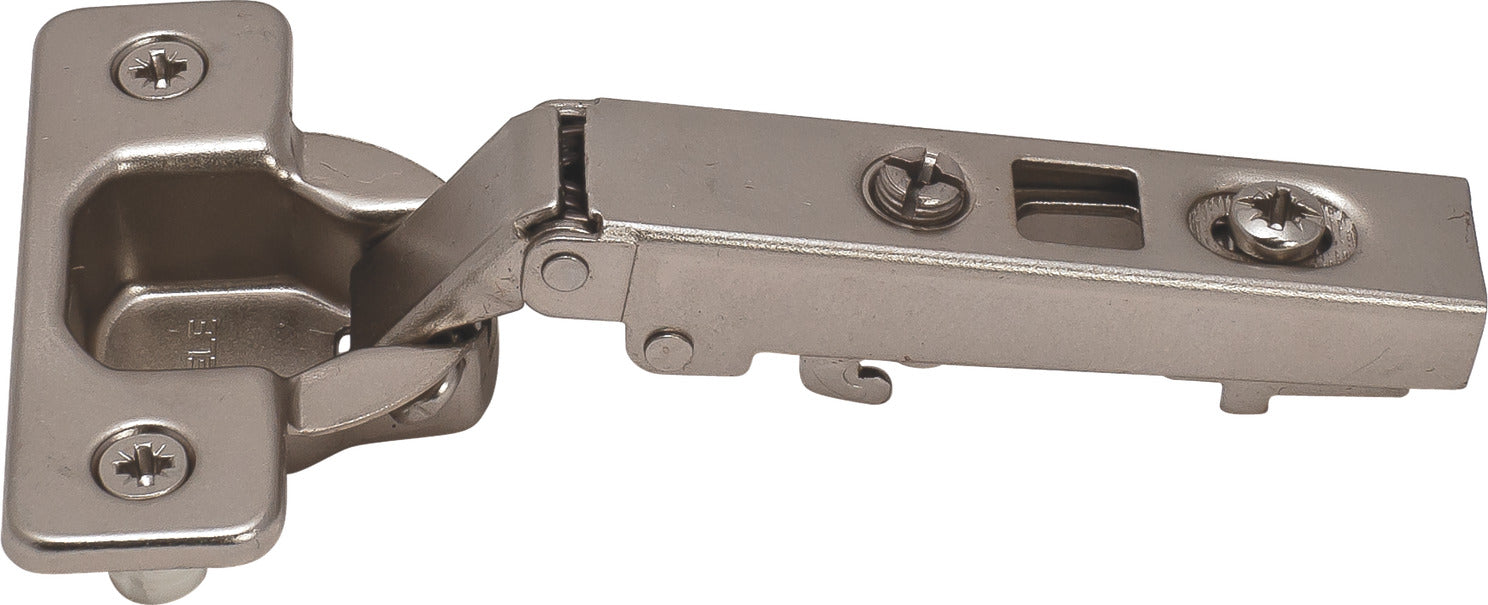

Clip Hinge, Opening Angle 110°, Full Overlay

$2.58
$2.58
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

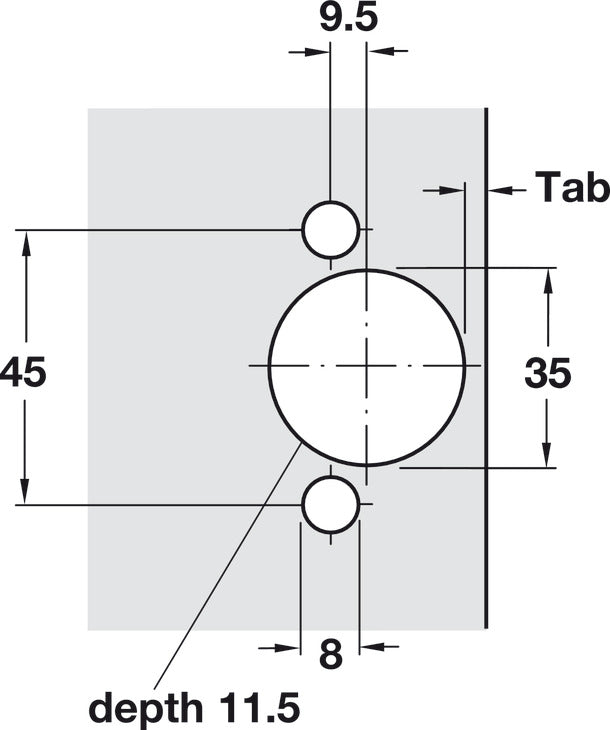

  • Drilling pattern:45/9.5
  • Mounting: mounting in drilled hole, screw fixing
  • Distance to cup min.: 3 mm
  • For min. panel thickness: Side: 5/8"
  • Distance to cup max.: 7 mm

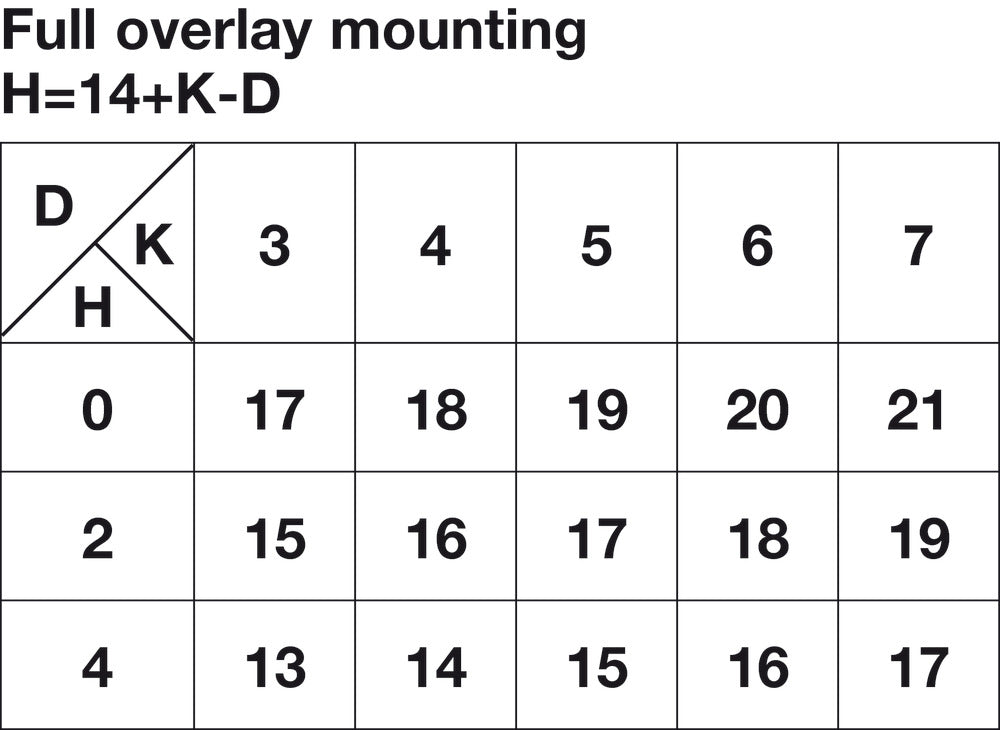

  • Concealed hinge version : full overlay
  • Crank type : Straight
  • Opening angle : 110 °
  • Material : Steel, Hinge arm: Steel
  • Installation :

    Press-fit

  • Door processing for assembly : cup drilling
  • For wooden door thickness : 14 – 20 mm
  • For door thickness min. : 9/16"
  • Cup drilling depth : 11.5 mm
  • Side panel thickness : 16 mm
