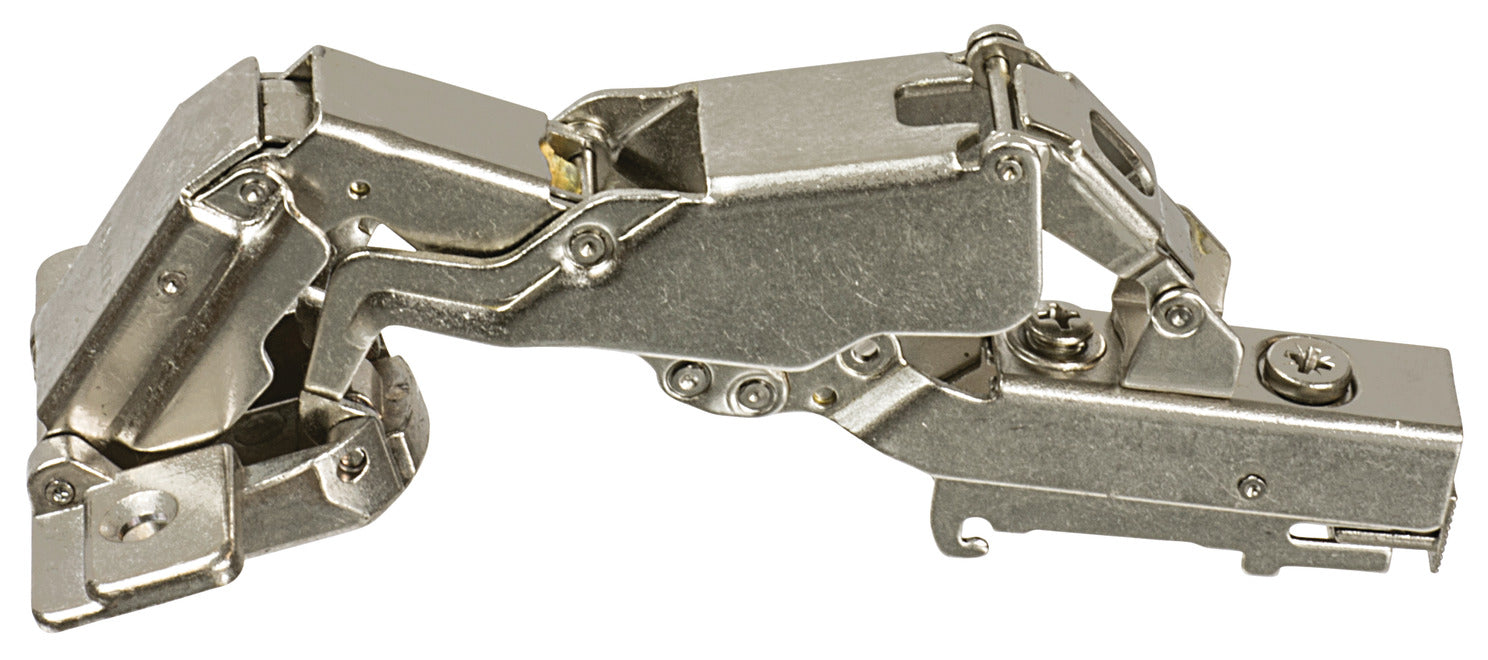

Wide Angle Clip-On Hinge, Opening Angle 165°, Inset Overlay
Regular price
$5.74
Regular price
Sale price
$5.74
Unit price
per
Shipping calculated at checkout.
*Free Standard Ground Shipping on Orders over $199
- Version: With automatic closing spring
- Mounting: mounting in drilled hole, screw fixing

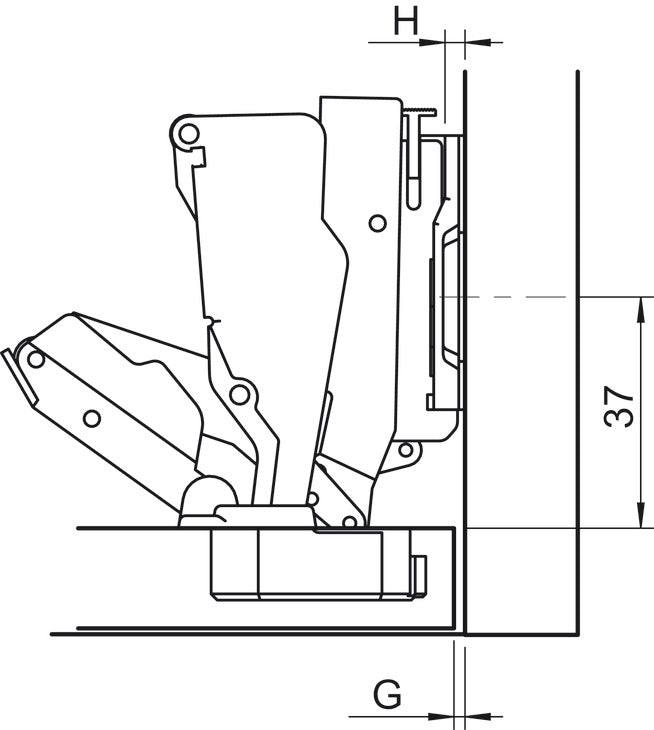

- Distance to cup min.: 3 mm
- For min. panel thickness: Side: 5/8"
- Distance to cup max.: 7 mm
- Model series : Metalla SM 165°
- Concealed hinge version : inset
- Crank type : High Cranked
- Opening angle : 165 °

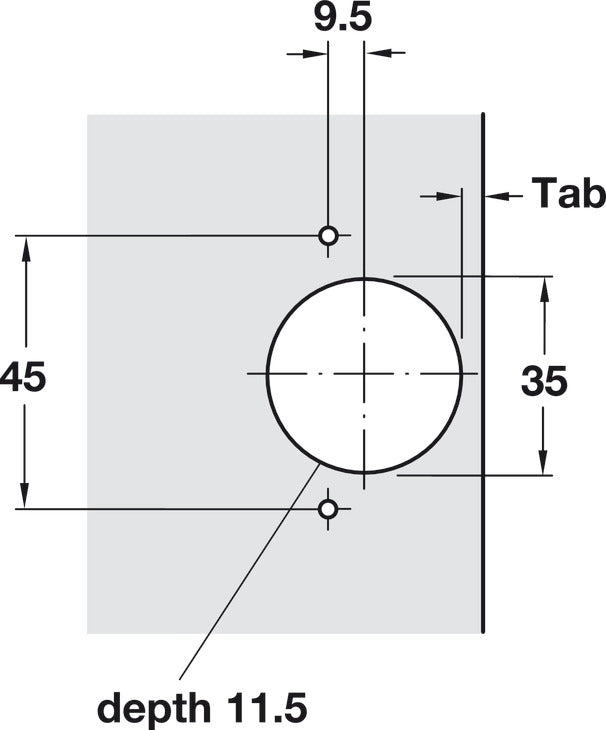

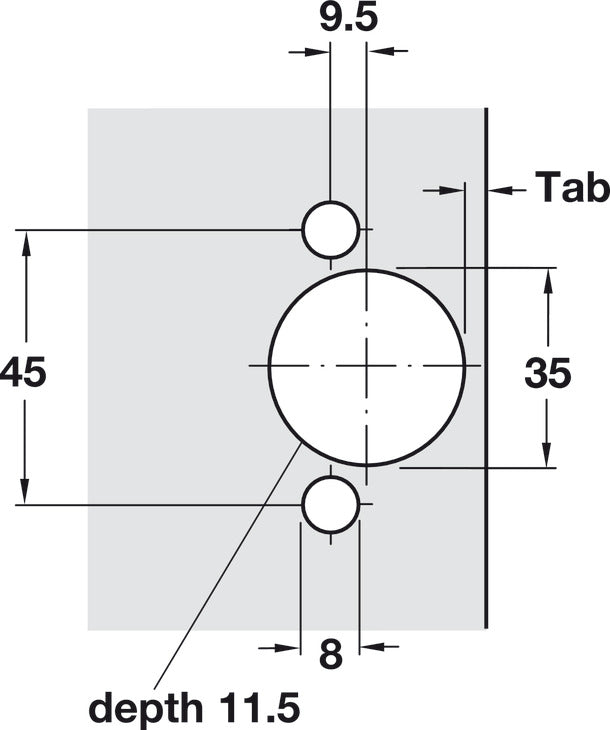

- Door processing for assembly : cup drilling
- Adjustment facility : 3-dimensional (with appropriate mounting plate)
- For wooden door thickness : 14 – 26 mm
- For door thickness min. : 9/16"
- Cup drilling depth : 11.5 mm
