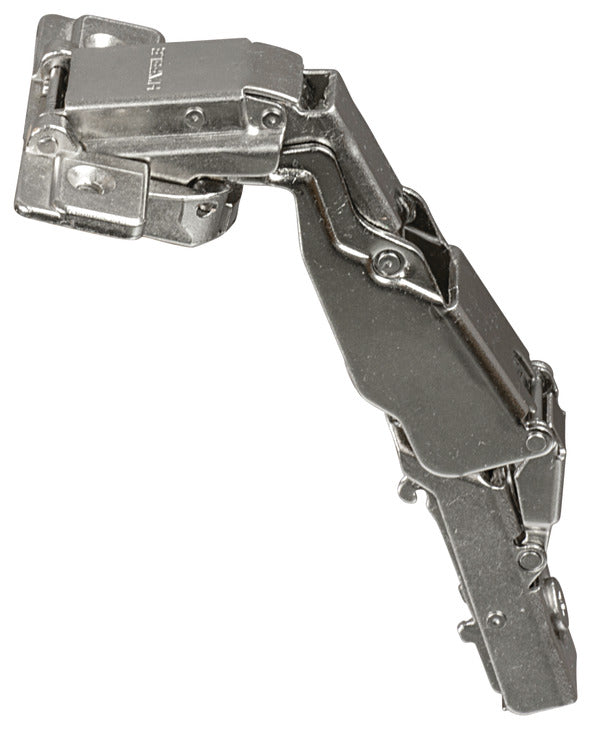

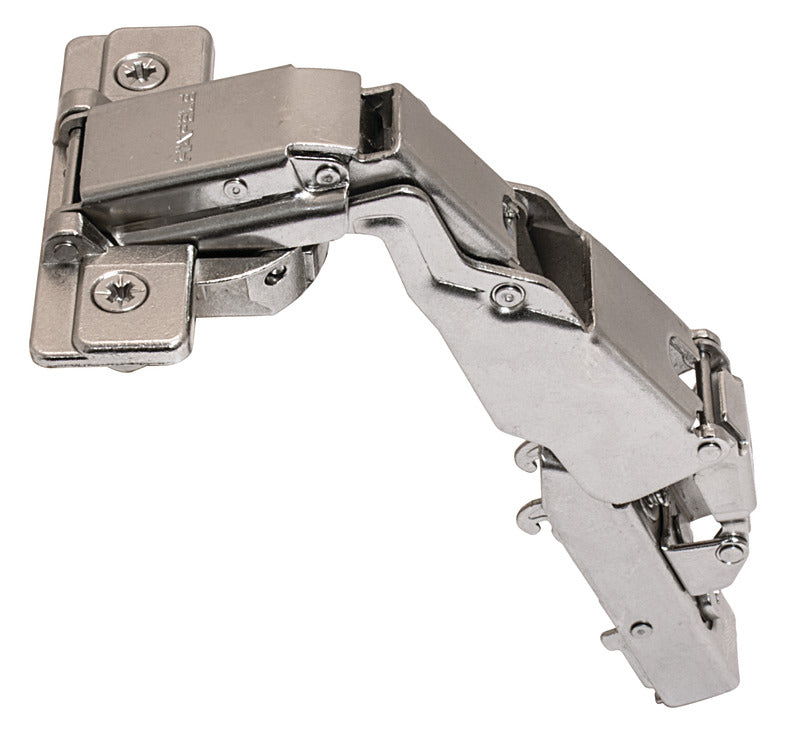

• Wide Angle Clip-On Hinge, Opening Angle 165°, Full Overlay
1 3

Wide Angle Clip-On Hinge, Opening Angle 165°, Full Overlay

$4.46
$4.46
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Mounting: mounting in drilled hole, screw fixing
  • Distance to cup min.: 3 mm
  • For min. panel thickness: Side: 5/8"
  • Distance to cup max.: 7 mm
  • Concealed hinge version : full overlay
  • Crank type : Straight
  • Opening angle : 165 °
  • Material : Steel, Hinge arm: Steel

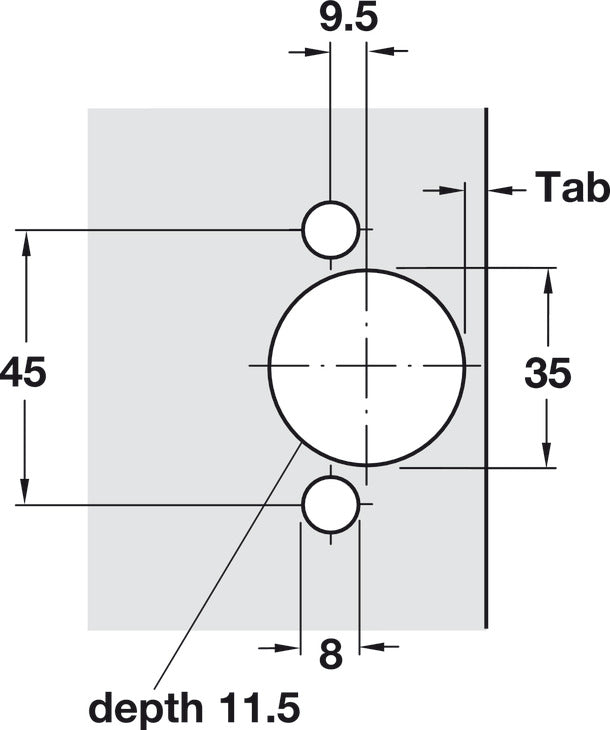

  • Door processing for assembly : cup drilling
  • For wooden door thickness : 14 – 26 mm
  • For door thickness min. : 9/16"
  • Cup drilling depth : 11.5 mm
