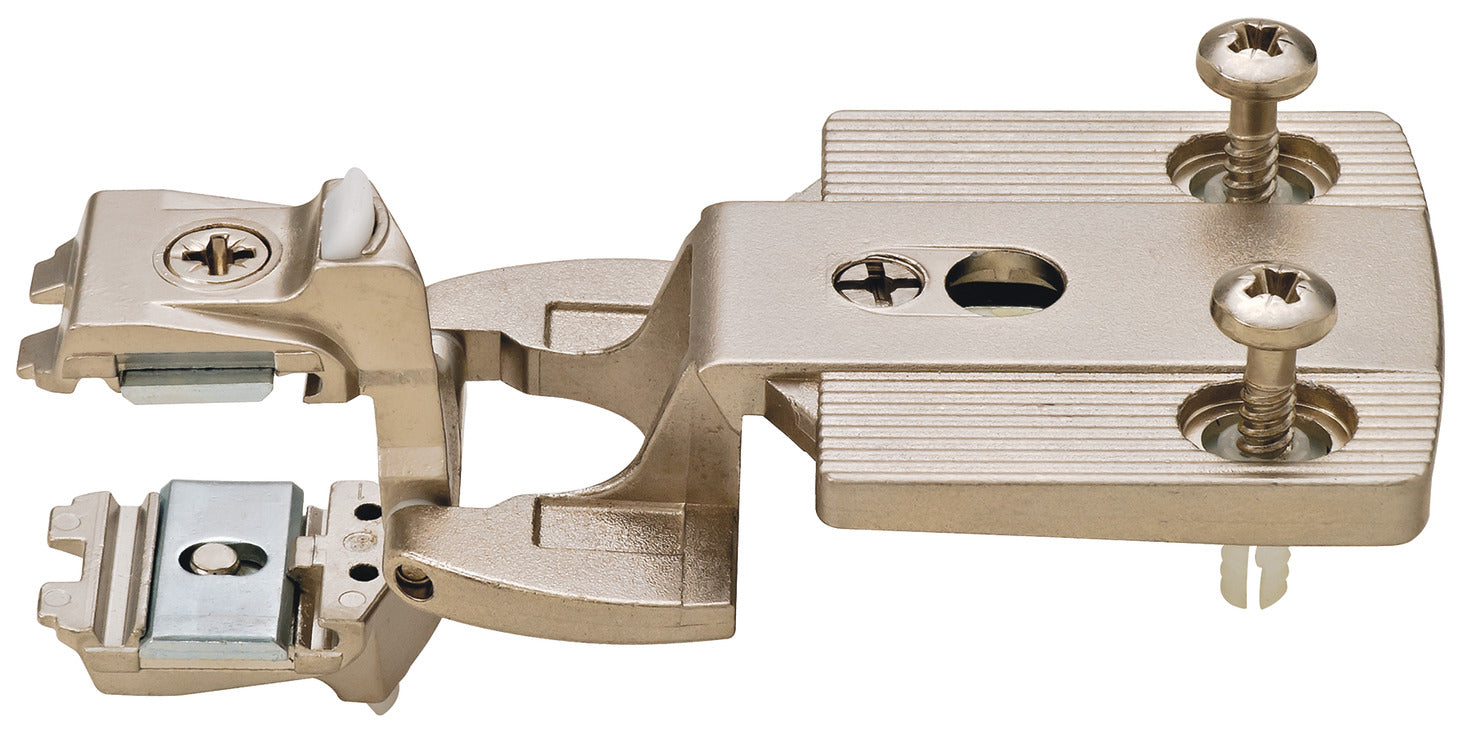

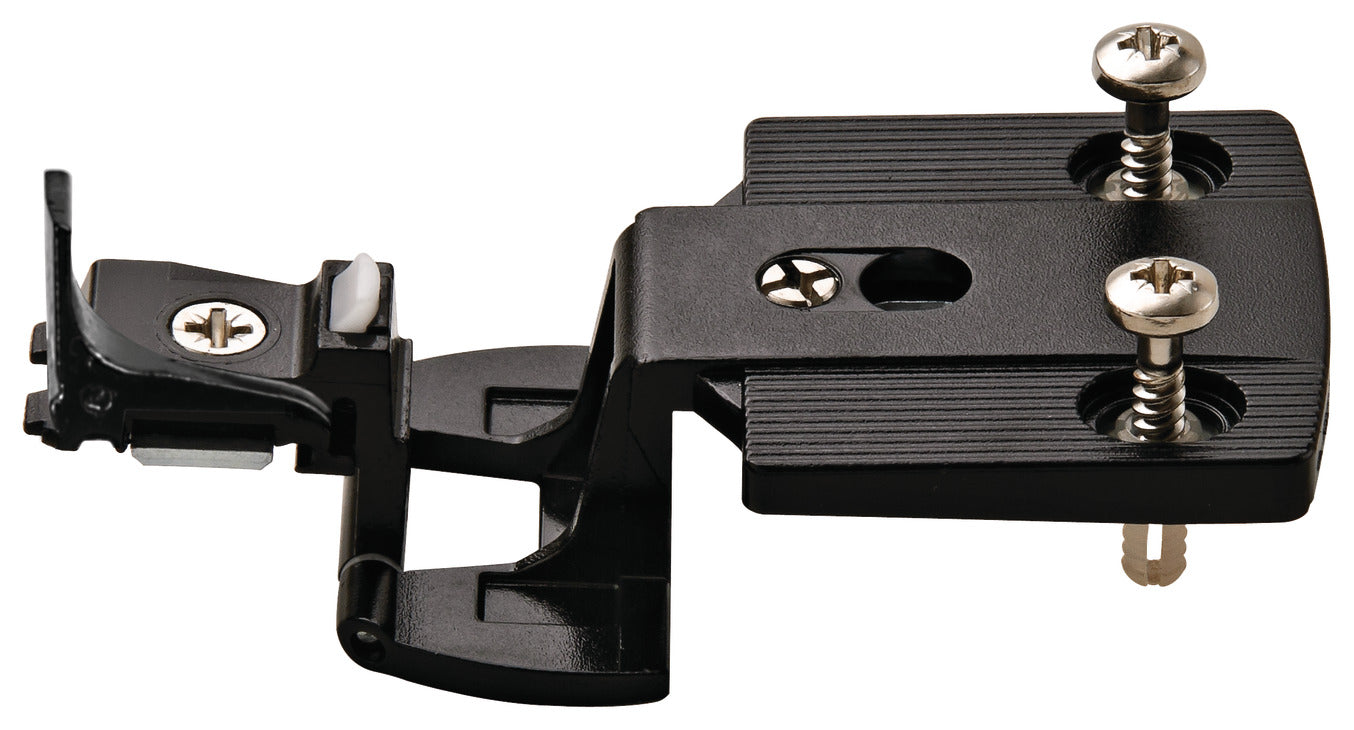

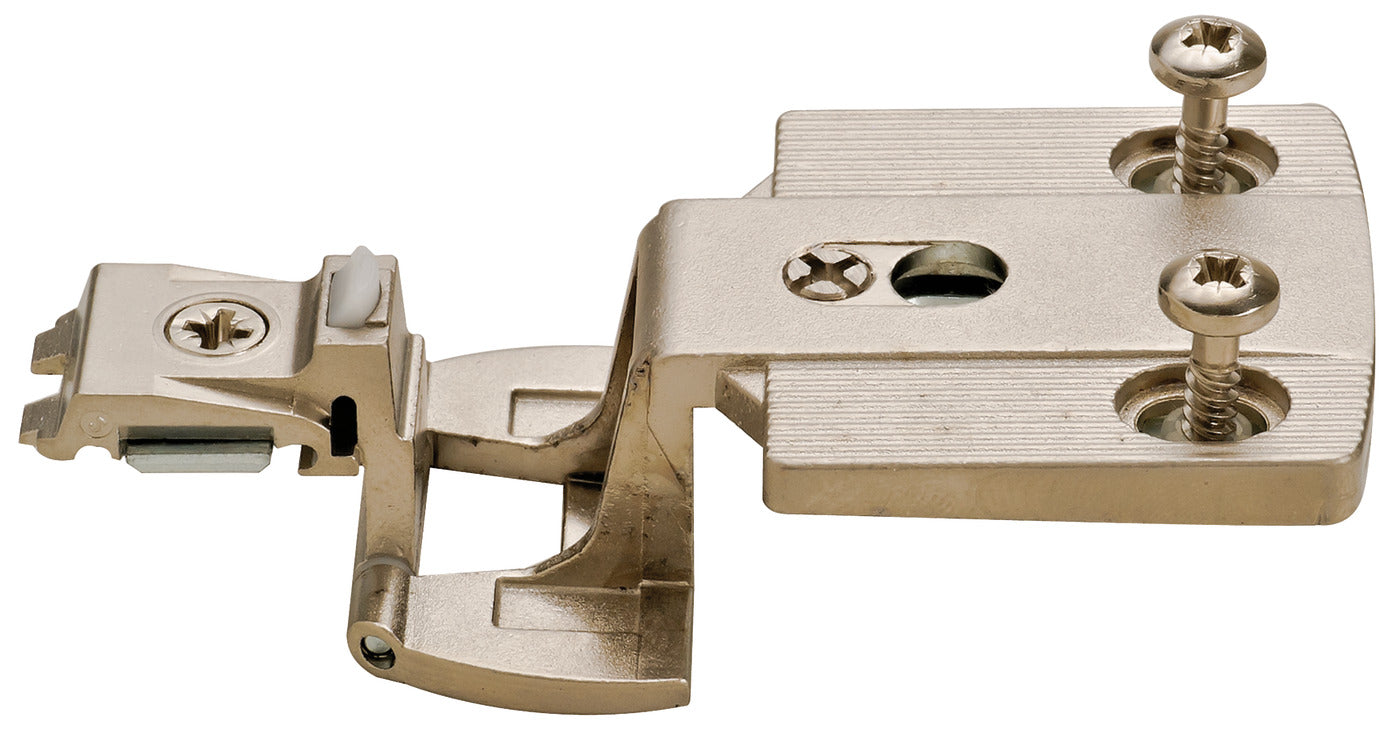

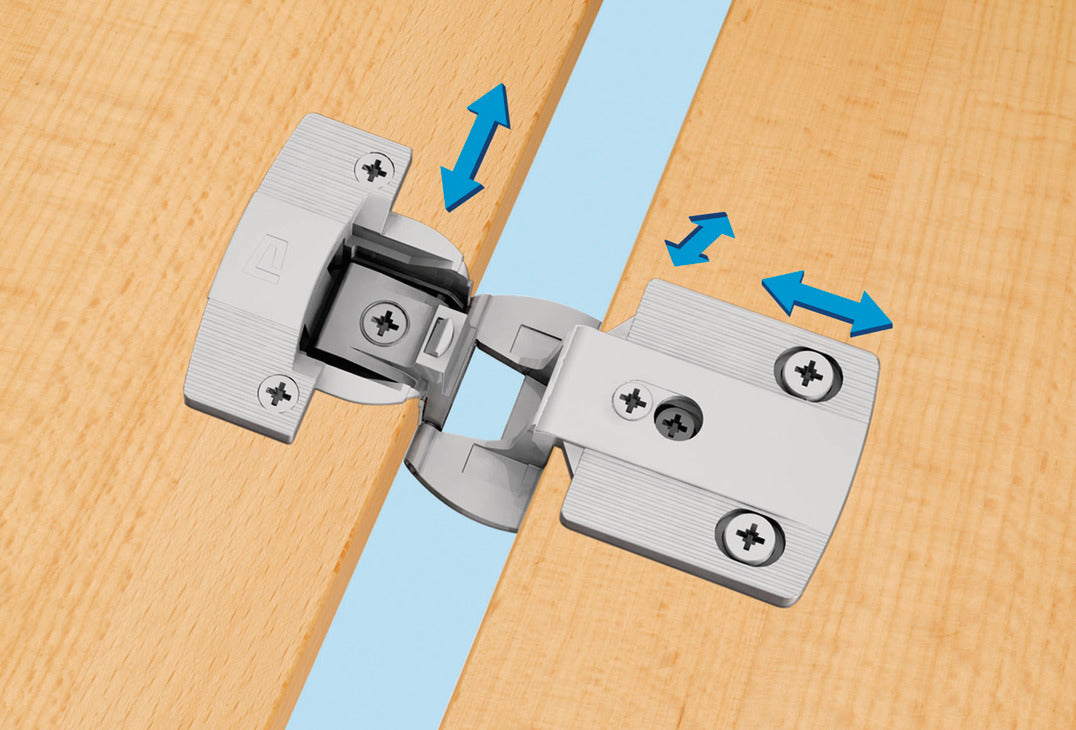

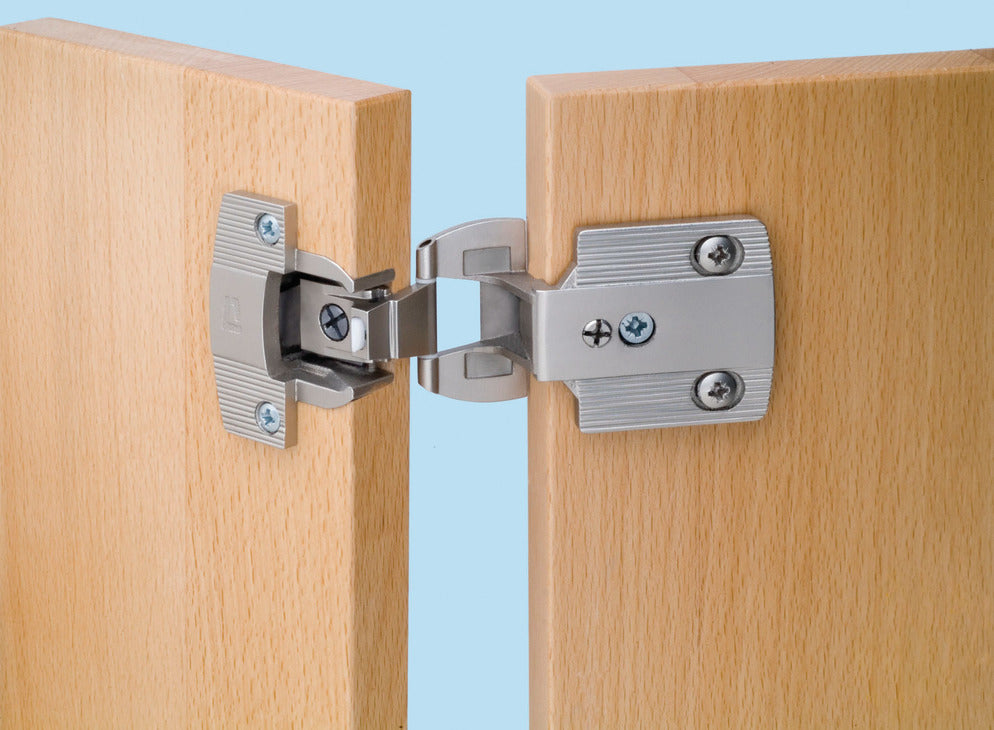

• Single Pivot Institutional Hinge Arm, Aximat® 300, Grade 1, with Expanding Dowels
1 12

Single Pivot Institutional Hinge Arm, Aximat® 300, Grade 1, with Expanding Dowels

$7.70
$7.70
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Hinge arm component available with pre-installed expanding dowels for 5 mm holes, or for screw attachment
    Hinge cup component available in screw-mount or dowel-mount
    Arm and cup clip-together, no tools required

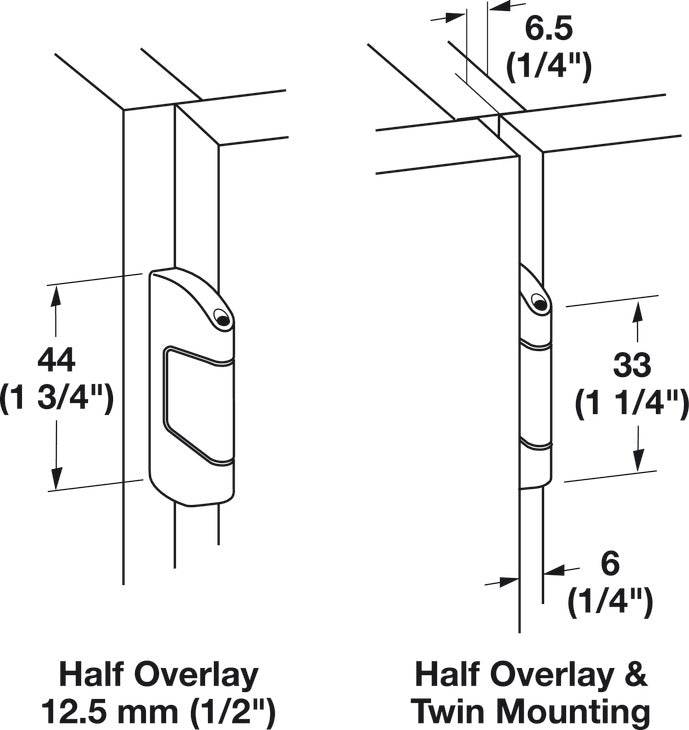

  • Available in Twin mounted version, 2 doors can be mounted on a single hinge on a single side panel.
    Twin-mounted version requires 2 cups.

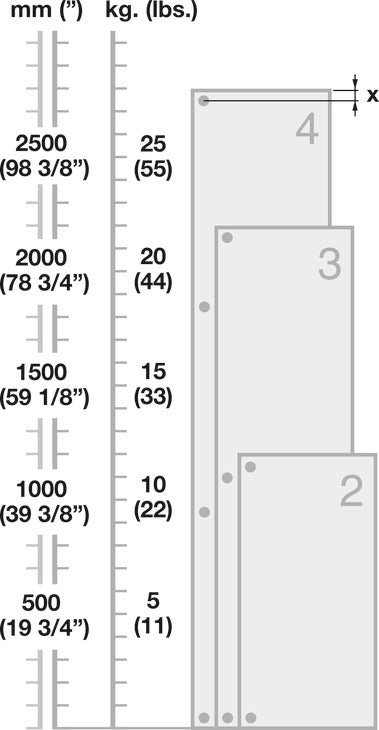

    Recommended number of hinges: Door widths up to 600 mm (23 5/8"), Door width should not exceed height.

  • Mounting: mounting in drilled hole, screw fixing
  • Model: Häfele Aximat 300
  • Side panel thickness min.: 3/4"
  • Model series : 300
  • Installation :

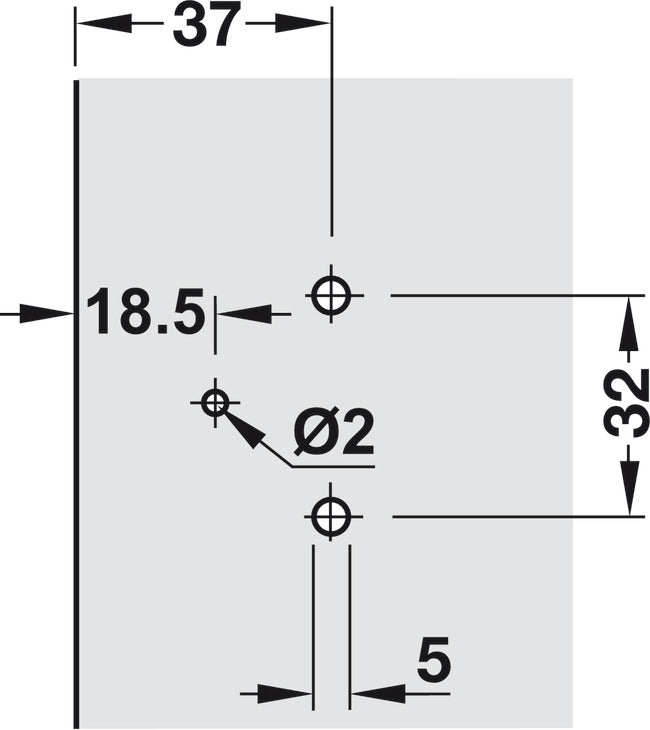

    With pre-mounted expanding dowels for 5mm holes

  • Door processing for assembly : without
  • For wooden door thickness : 21 mm
  • For door thickness min. : 13/16"

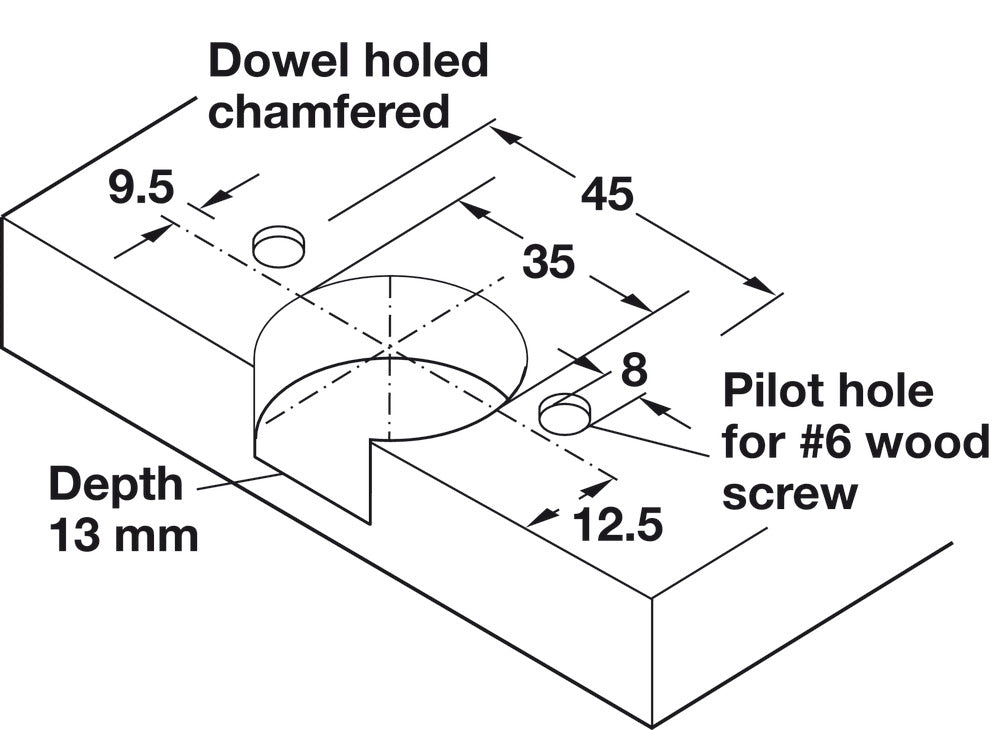

  • Cup drilling depth : 13 mm

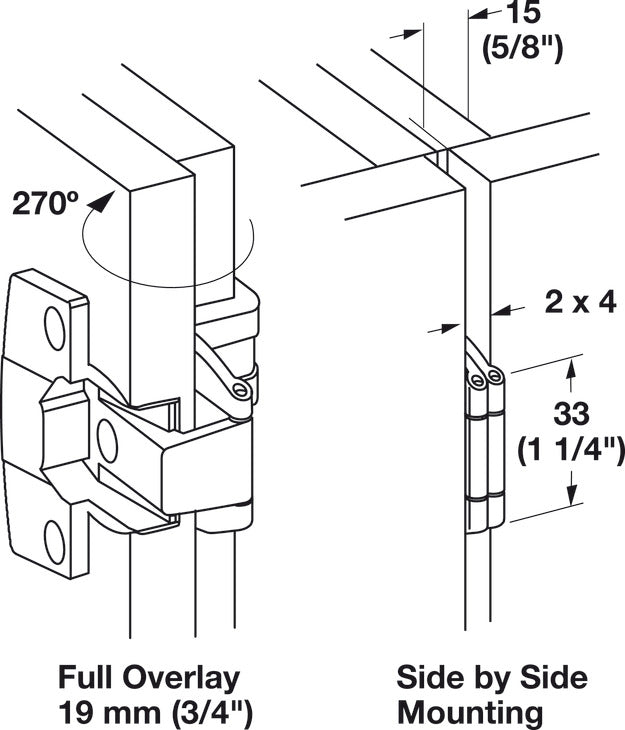

  • Door overlay : Full
  • Side panel thickness : 19 mm
  • Note :

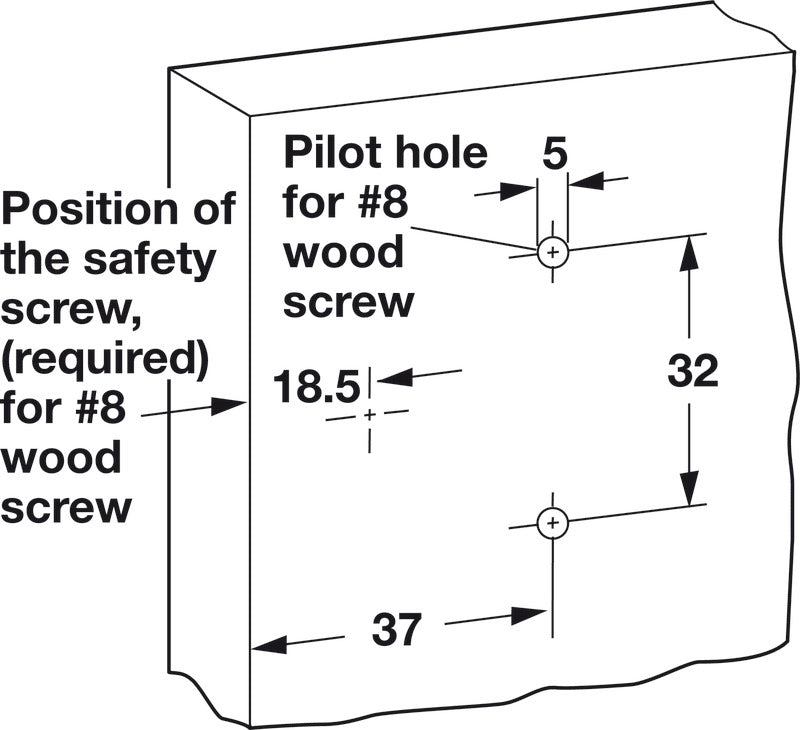

    Installation of safety screw in arm is required.

  • Order reference :

    #6 wood screws for hinge attachment are not included
