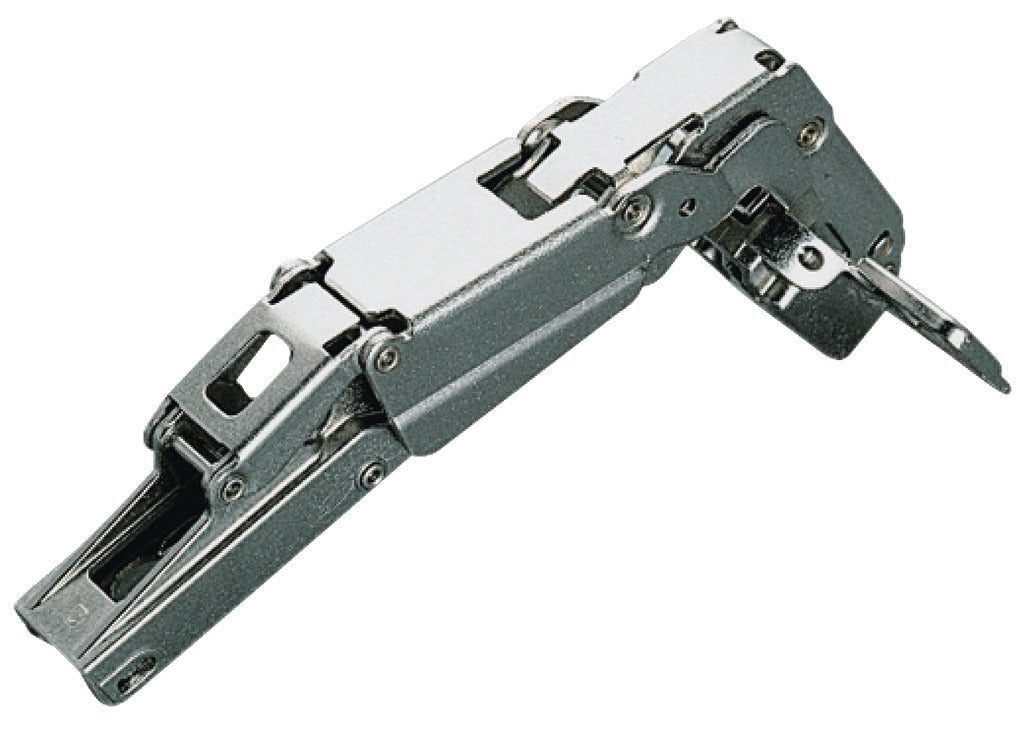

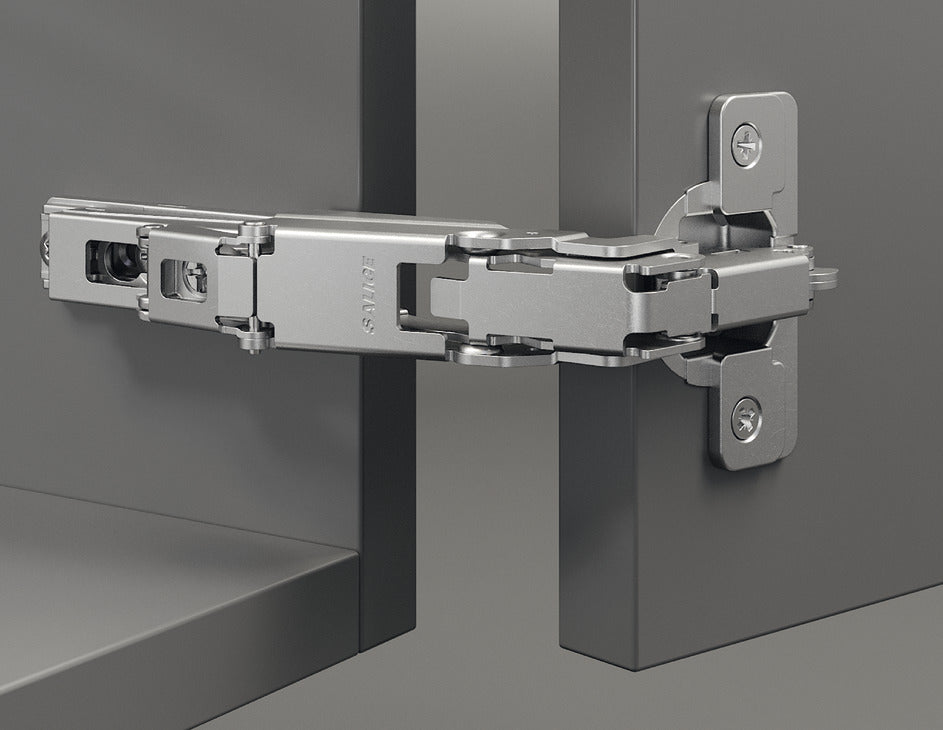

Concealed Hinge, Salice, 165° Opening Angle, Self Close, 1/2" Overlay

$6.72
$6.72
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • 0-door offset for use with internal pull outs î ‚or extending trays

  • Mounting: mounting in drilled hole, screw fixing
  • Model: C2RFD99
  • Side panel thickness min.: 5/8"

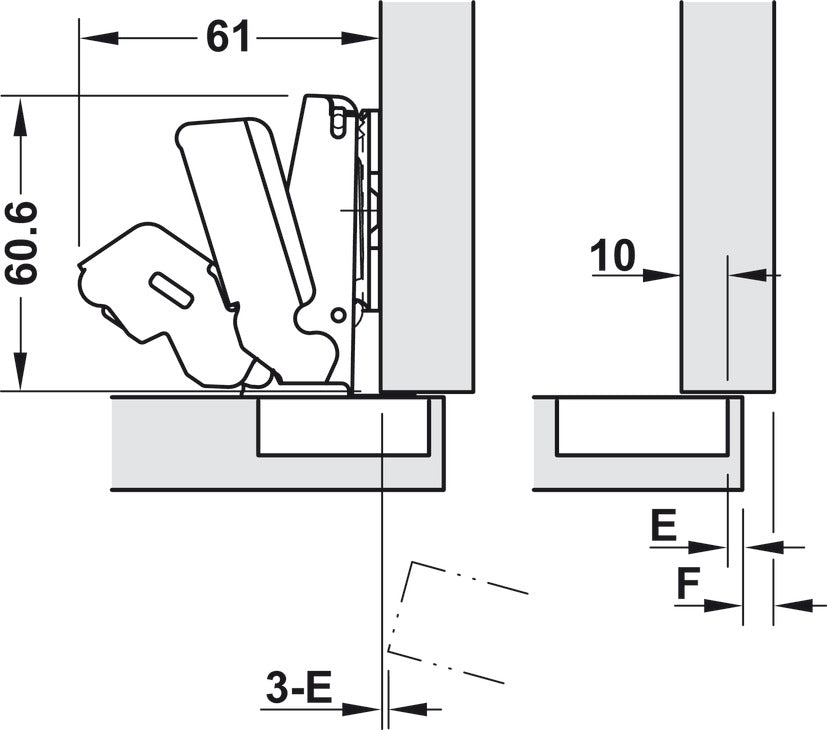

  • Distance to cup min.: 3 mm
  • Distance to cup max.: 8 mm
  • Model series : 200
  • Concealed hinge version : half overlay
  • Crank type : Cranked
  • Opening angle : 165 °
  • Material : Zinc alloy, Hinge arm: Steel
  • Door processing for assembly : cup drilling
  • Adjustment facility : Side adjustment facility: -1.5 – 4.5 mm, Height adjustment facility: ±2 mm, Depth adjustment facility: -0.5 – 2.8 mm
  • For wooden door thickness : 16 – 28 mm
  • For door thickness min. : 5/8"
  • Cup drilling depth : 11 mm
