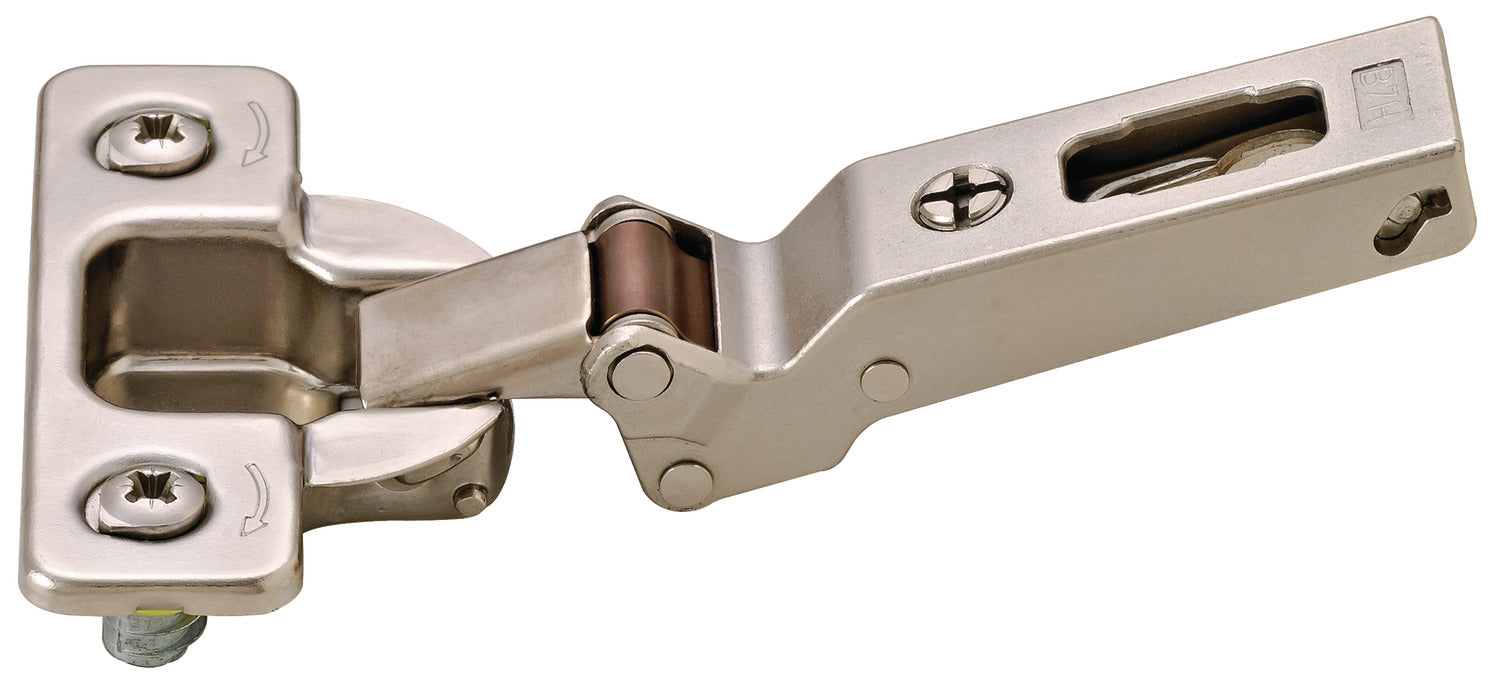

Concealed Hinge, Salice, - 45° Corner Special Application, Full Overlay
Regular price
$5.42
Regular price
Sale price
$5.42
Unit price
per
Shipping calculated at checkout.
*Free Standard Ground Shipping on Orders over $199
- Mounting: mounting in drilled hole, screw fixing
- Distance to cup min.: 3 mm
- Distance to cup max.: 6 mm
- Model series : Salice

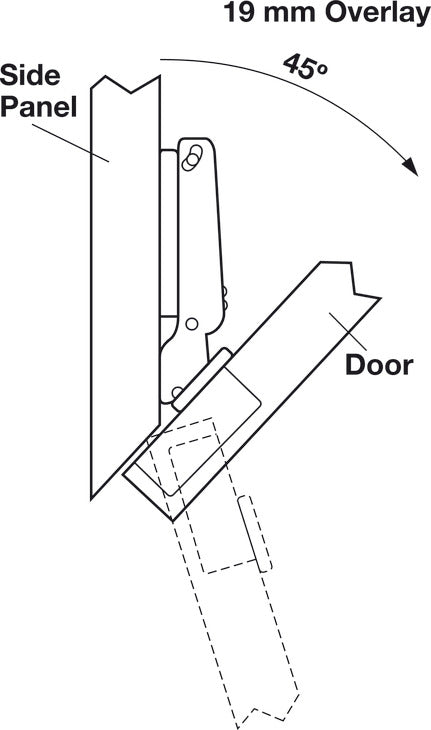

- Concealed hinge version : blind corner application
- Crank type : Straight
- Material : Steel, Hinge arm: Zinc alloy

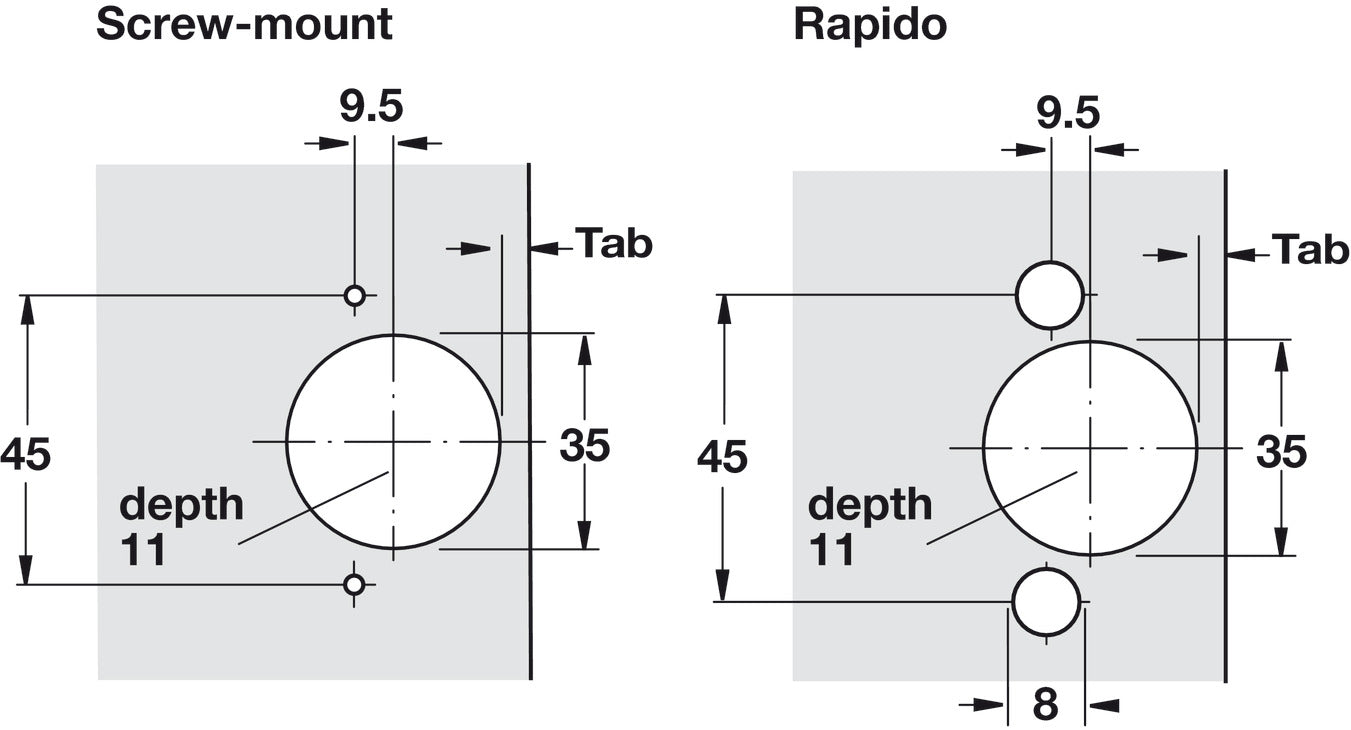

- Door processing for assembly : cup drilling
- For wooden door thickness : 16 – 26 mm
- For door thickness min. : 5/8"
- Cup drilling depth : 11 mm
