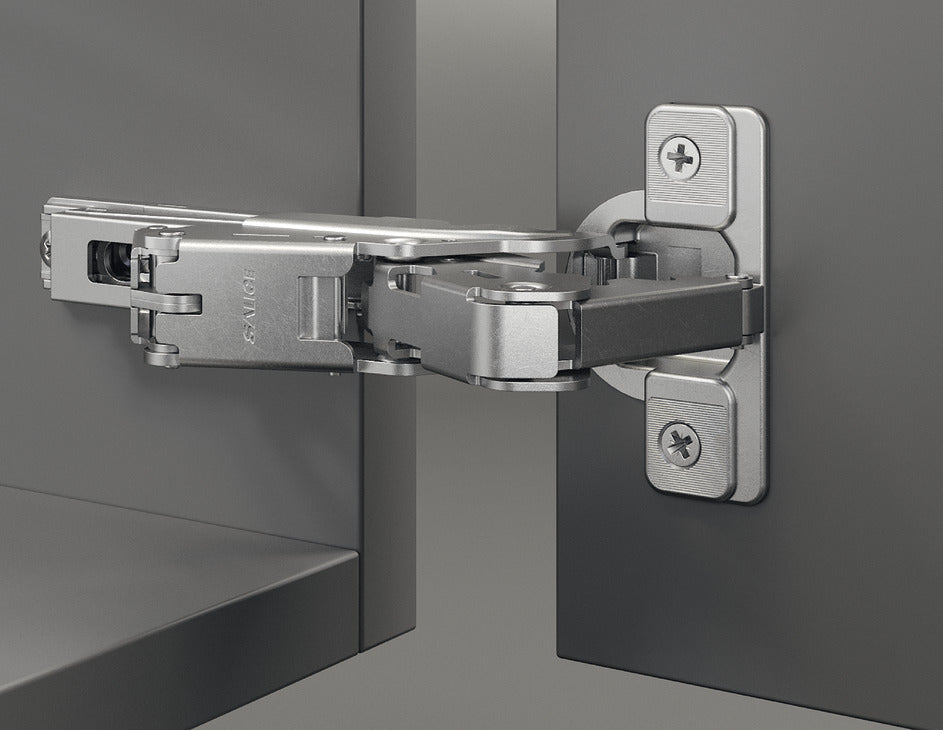

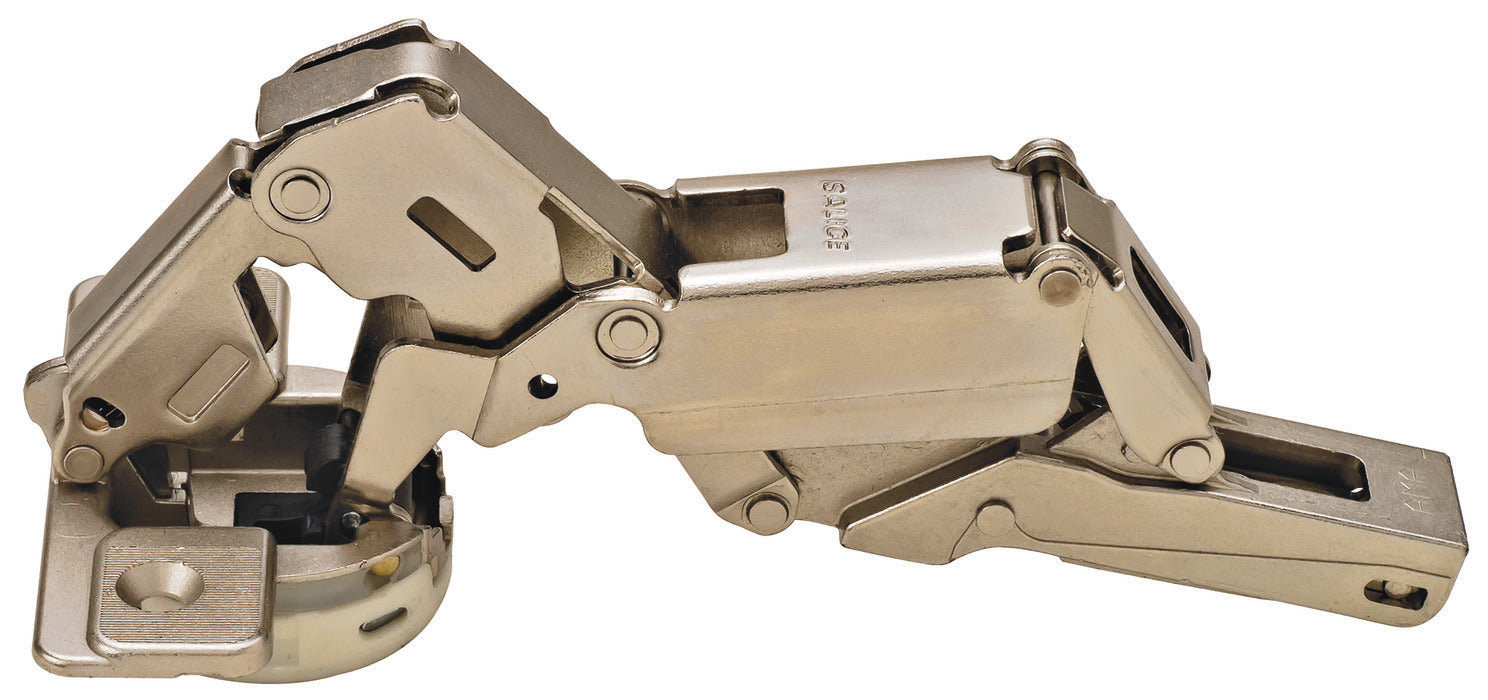

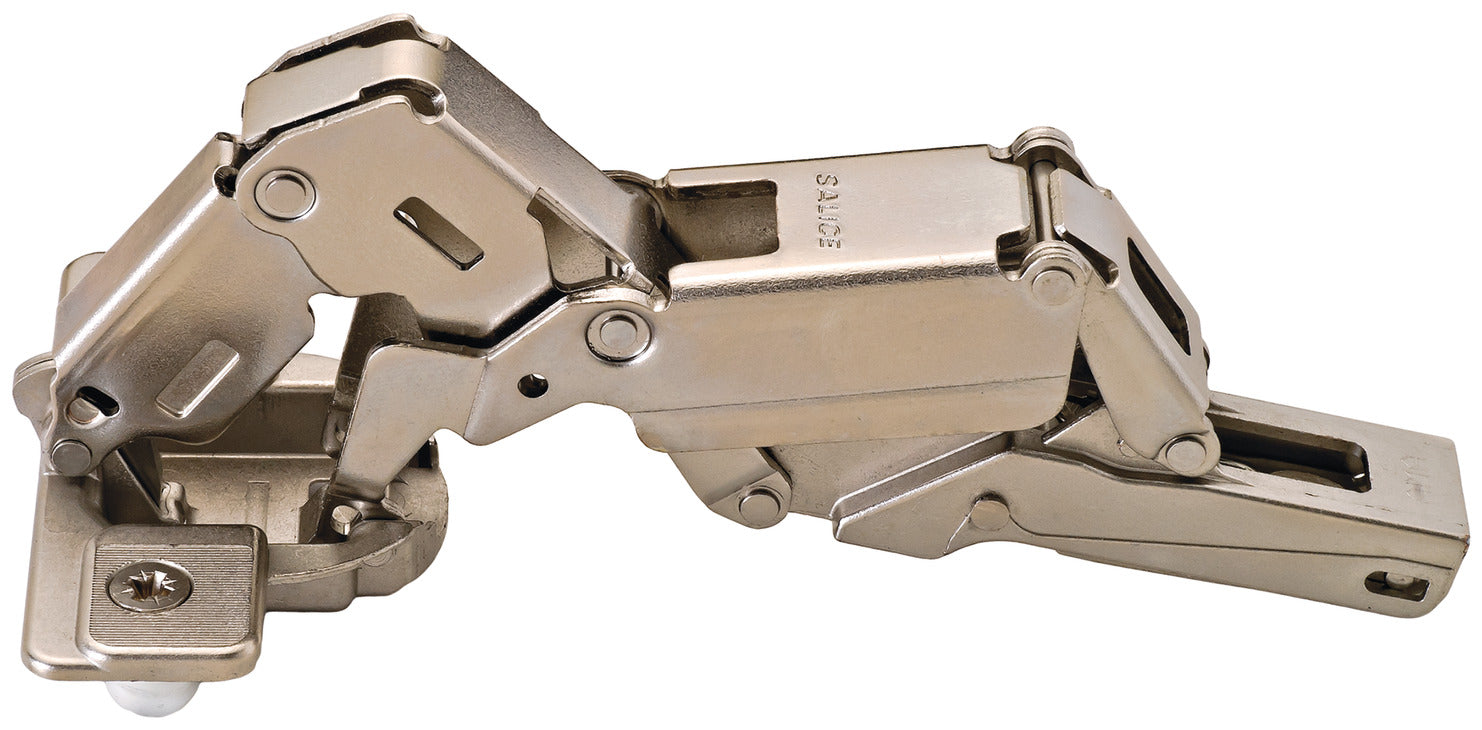

Concealed Hinge, Salice with Zero Protrusion, 155° Opening Angle

$8.10

$8.10

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

*Free Standard Ground Shipping on Orders over $199

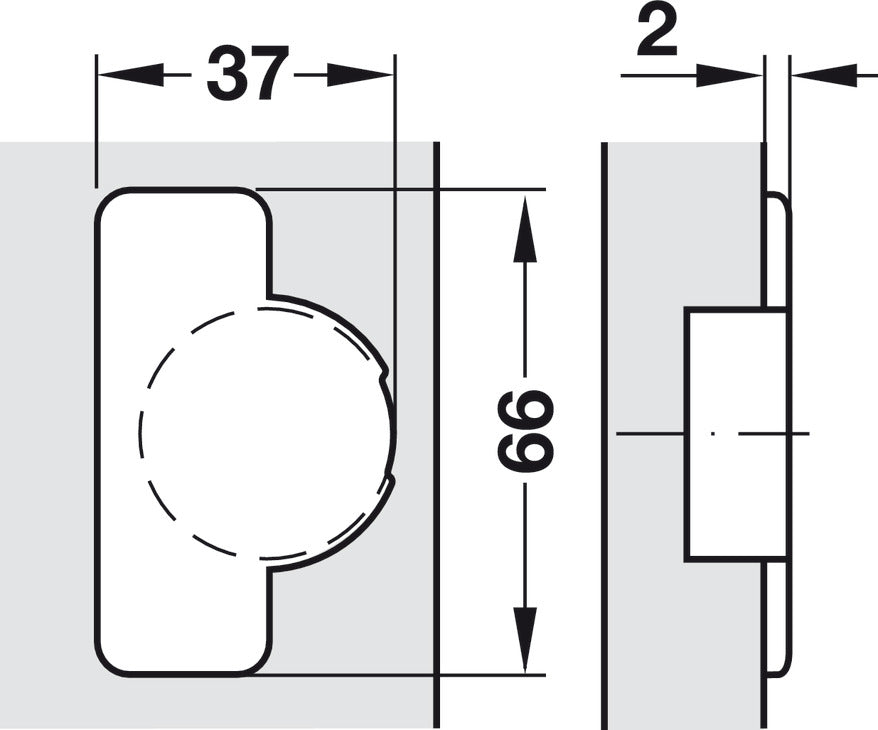

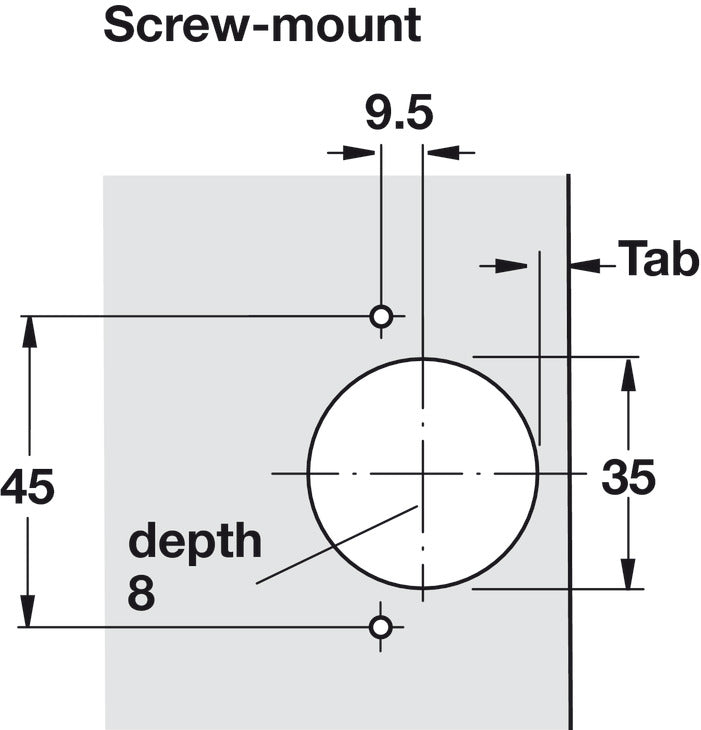

Required drilling depth for hinge cup only 8 mm

Mounting: mounting in drilled hole, screw fixing

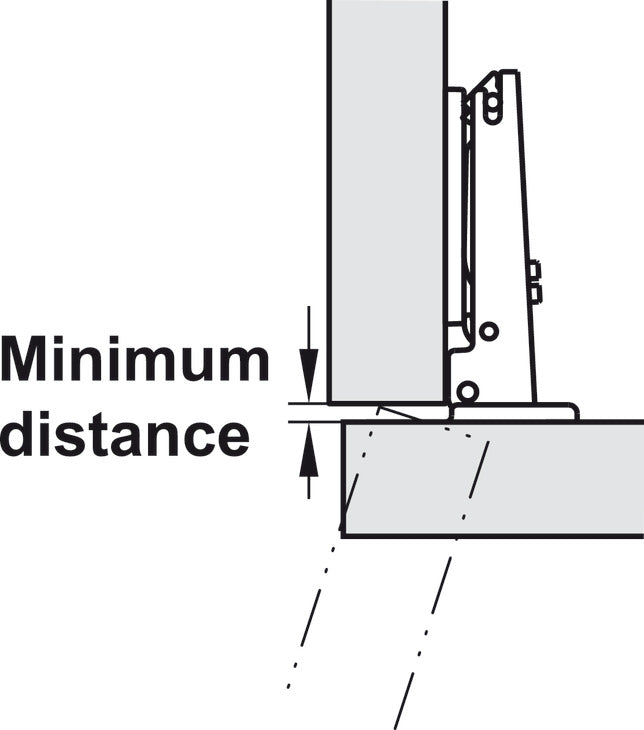

Distance to cup min.: 3 mm

Distance to cup max.: 9 mm

Model series : 100 Series

Concealed hinge version : concealed

Opening angle : 155 °

Material : Steel, Hinge arm: Steel

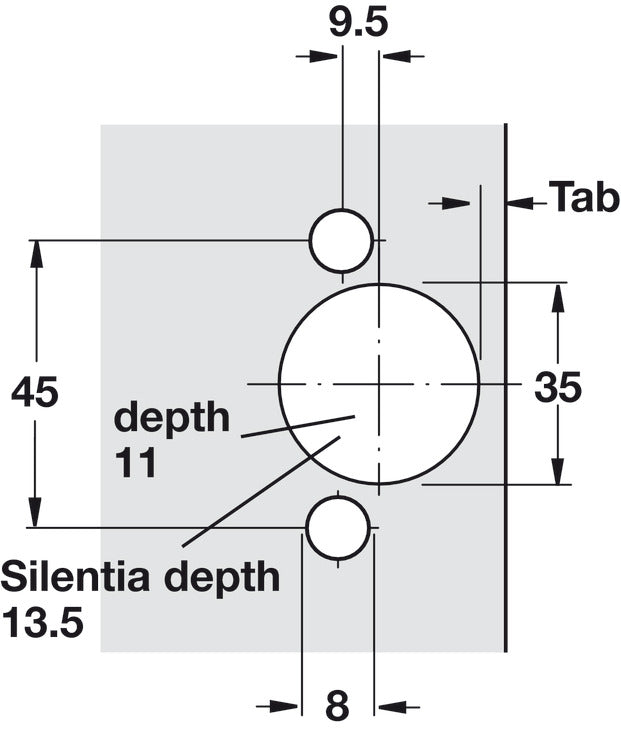

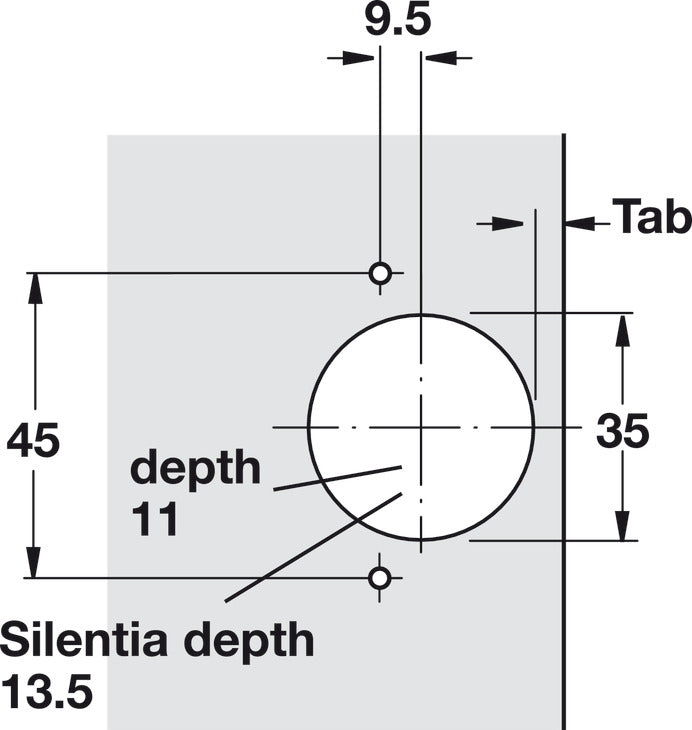

Door processing for assembly : cup drilling

For wooden door thickness : 16â€Šâ€“â€Š28 mm

Note :

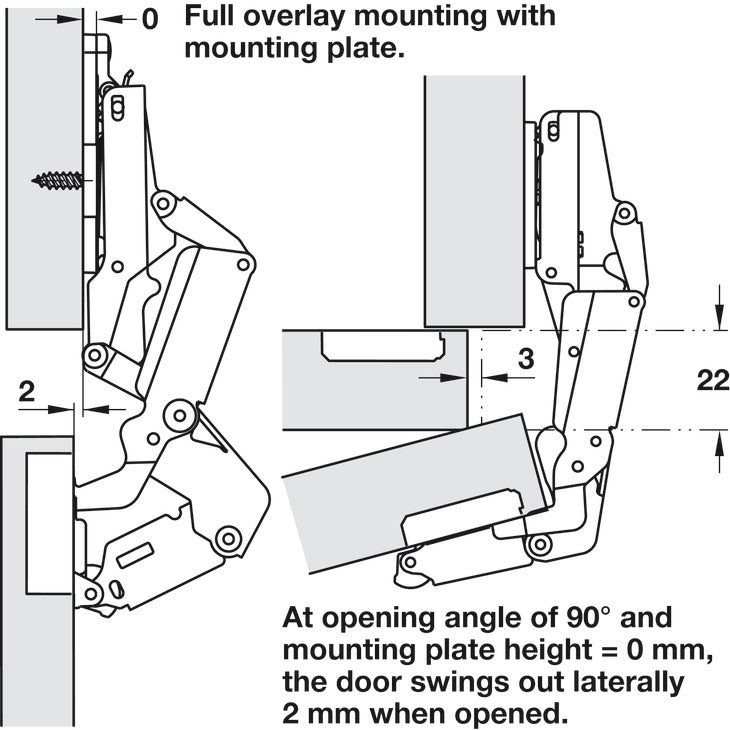

Dimensions and gap specifications in drawings and tables are calculated:
Using factory settings
For mounting plate distance 0 mm

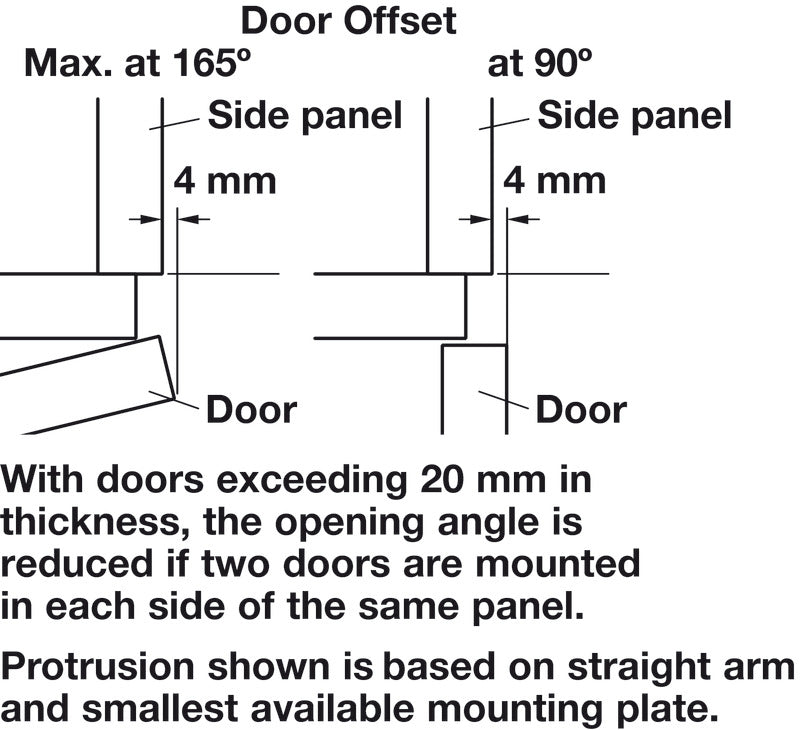

For door offset with max. opening angle

Order reference :

Mounting plates sold separately
