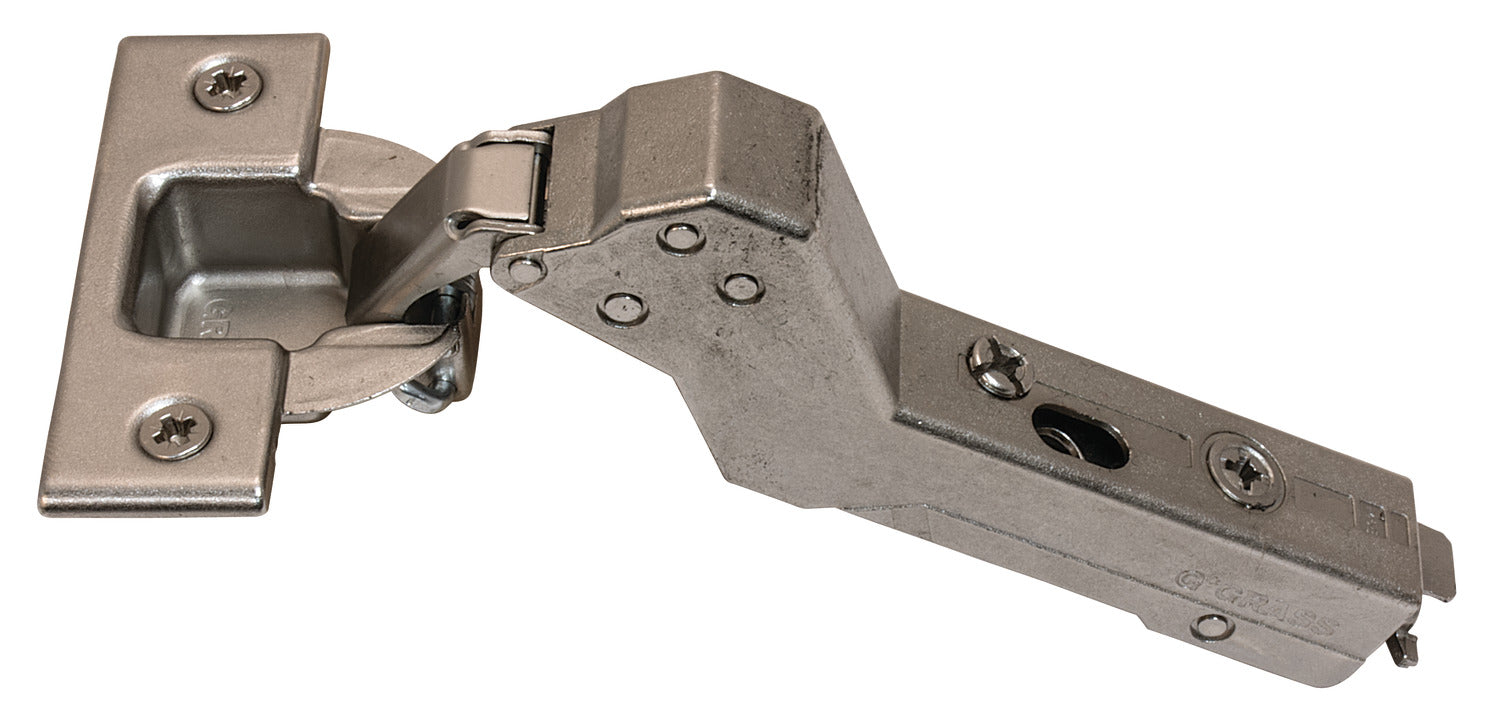

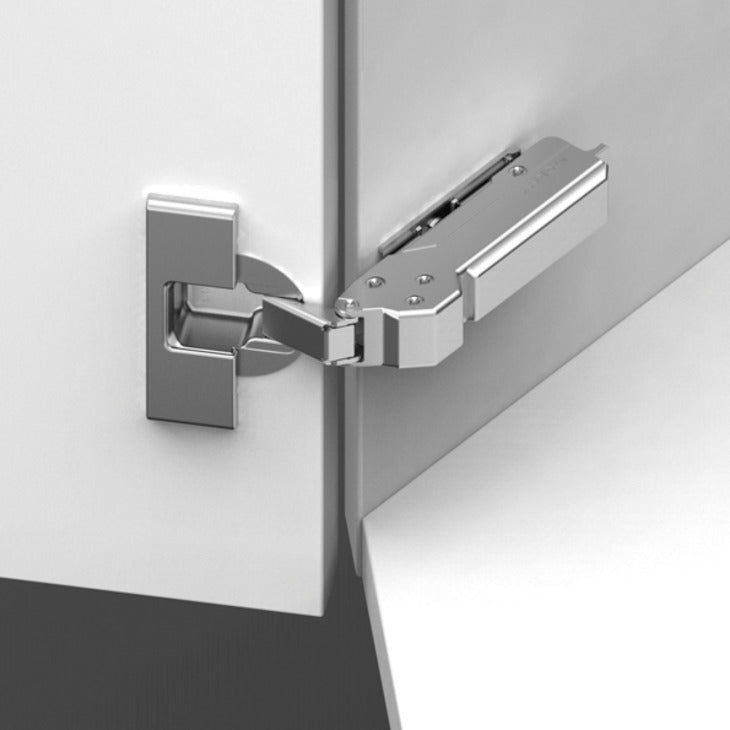

• Concealed Corner Hinge, 110° Opening Angle, Inset
1 10

Concealed Corner Hinge, 110° Opening Angle, Inset

$12.86
$12.86
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • With or without soft close integrated in hinge arm, with 3 settings (optional)

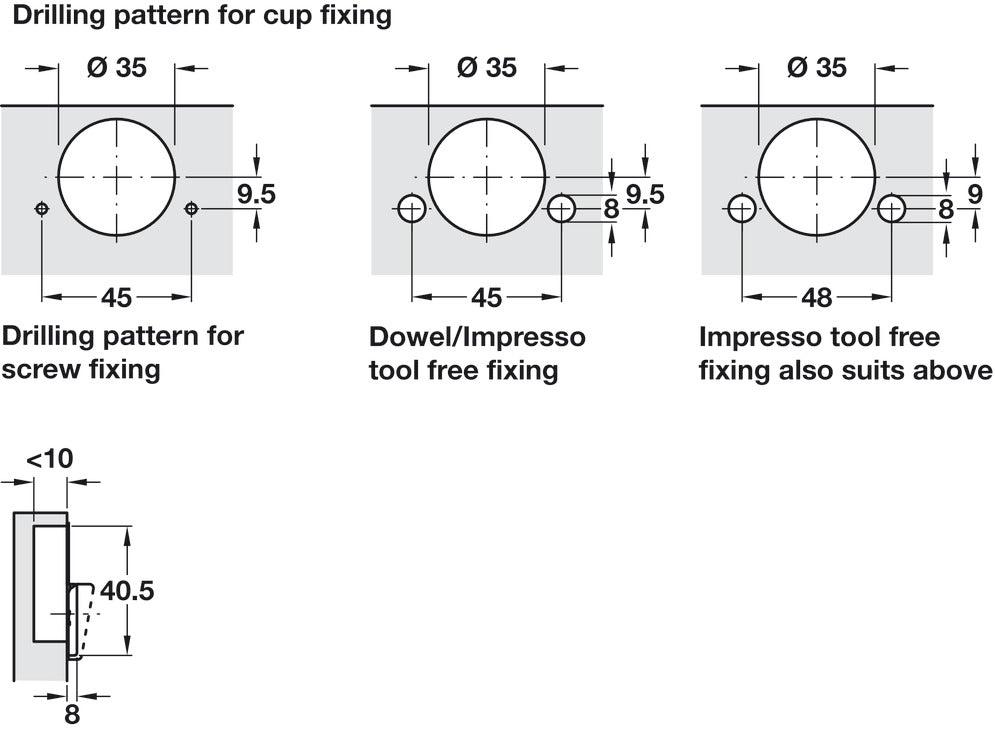

  • Mounting: mounting in drilled hole, screw fixing
  • Model series : Tiomos 110°
  • Concealed hinge version : inset
  • Crank type : High Cranked
  • Opening angle : 110 °
  • Material : Steel, Hinge arm: Zinc alloy

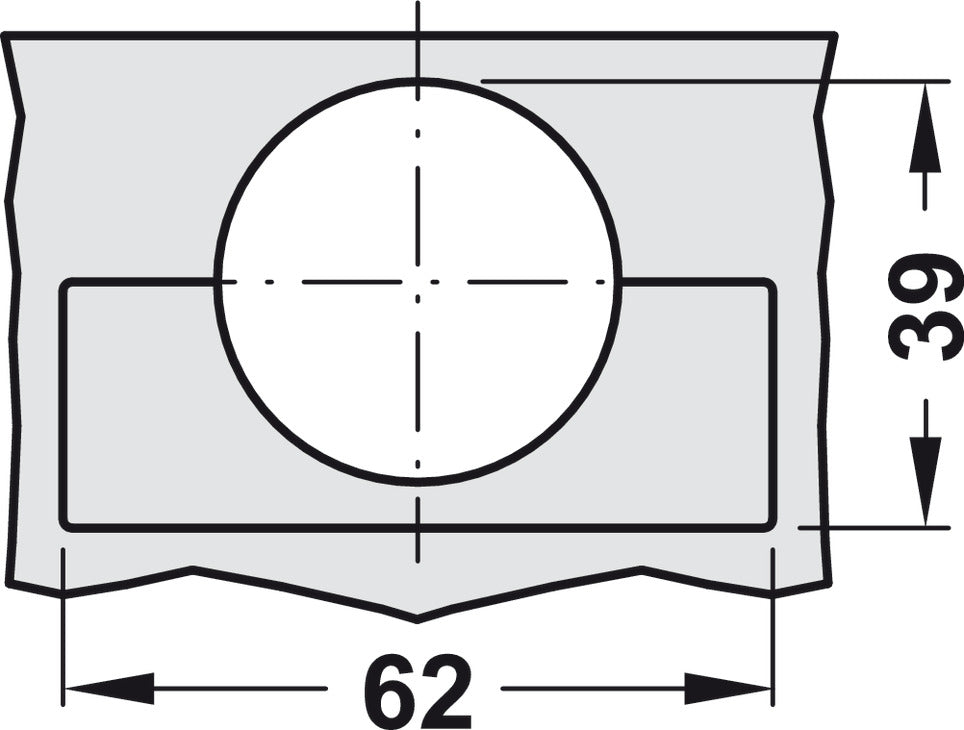

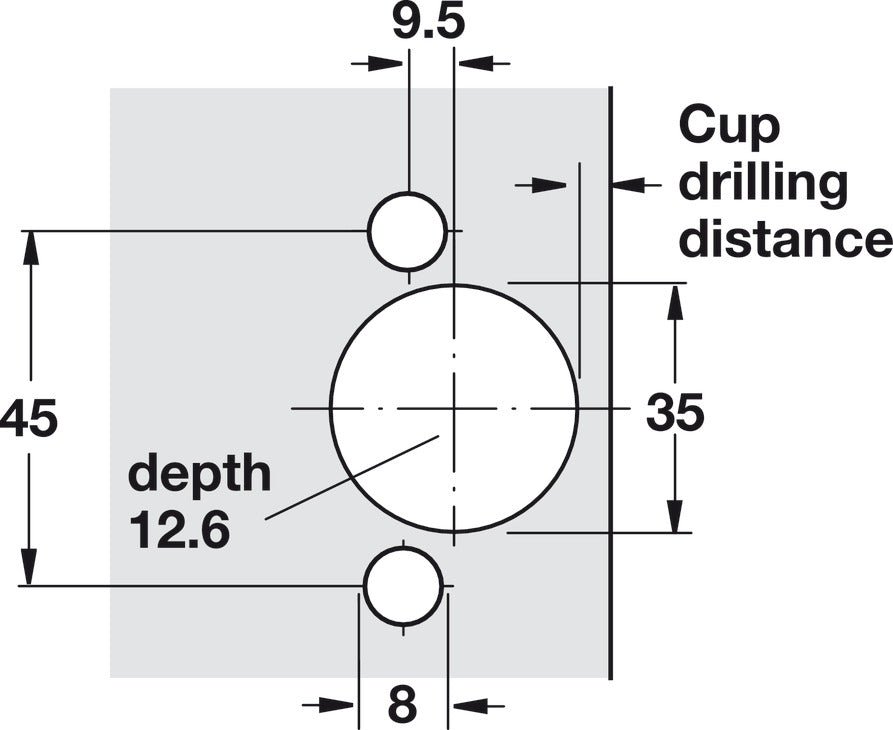

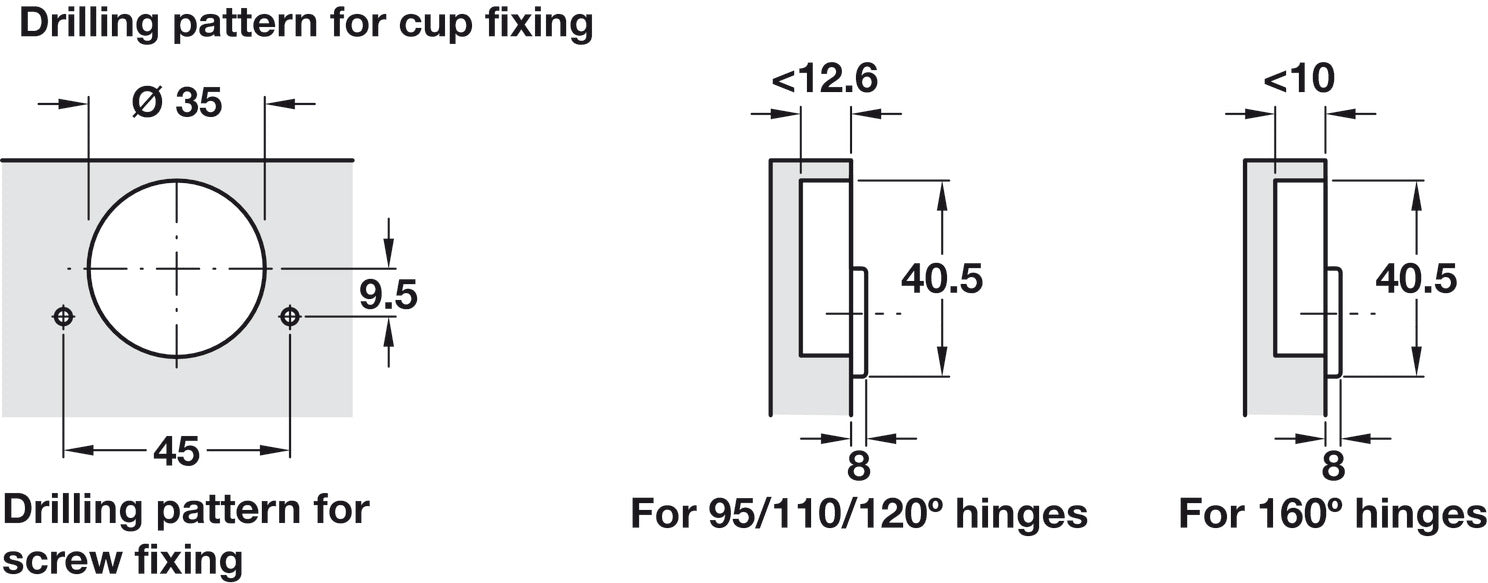

  • Door processing for assembly : cup drilling
  • For wooden door thickness : 24 mm
  • For door thickness min. : Max. 15/16"

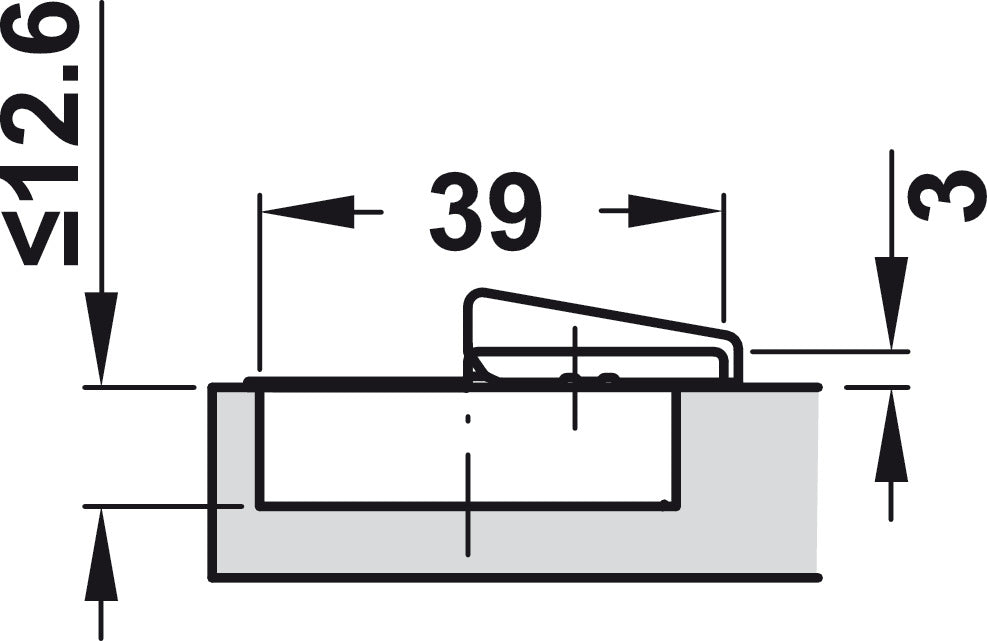

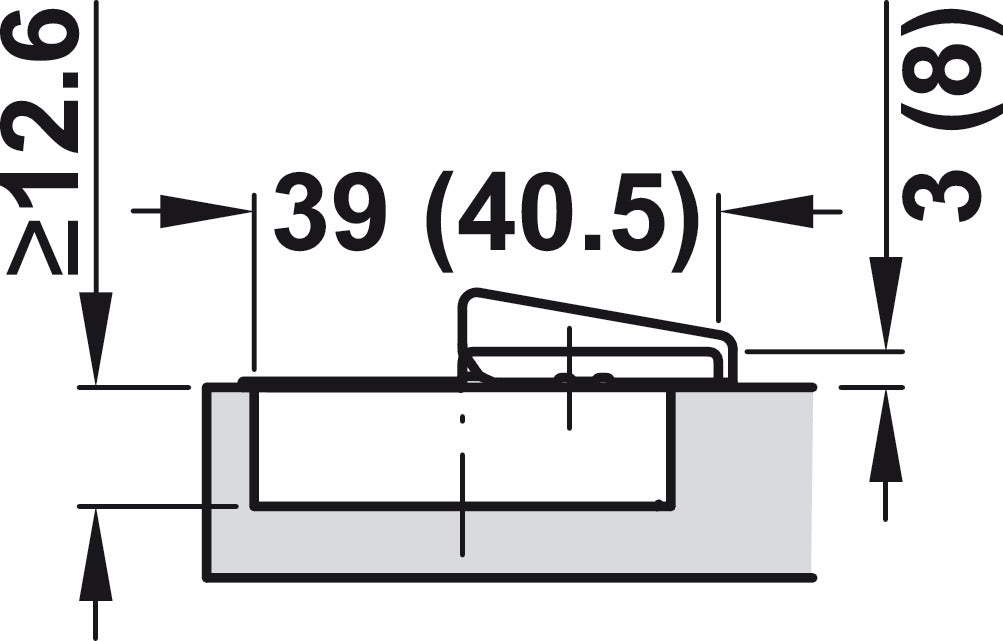

  • Cup drilling depth : 12.6 mm
  • Note :

    Trial mounting is recommended.
