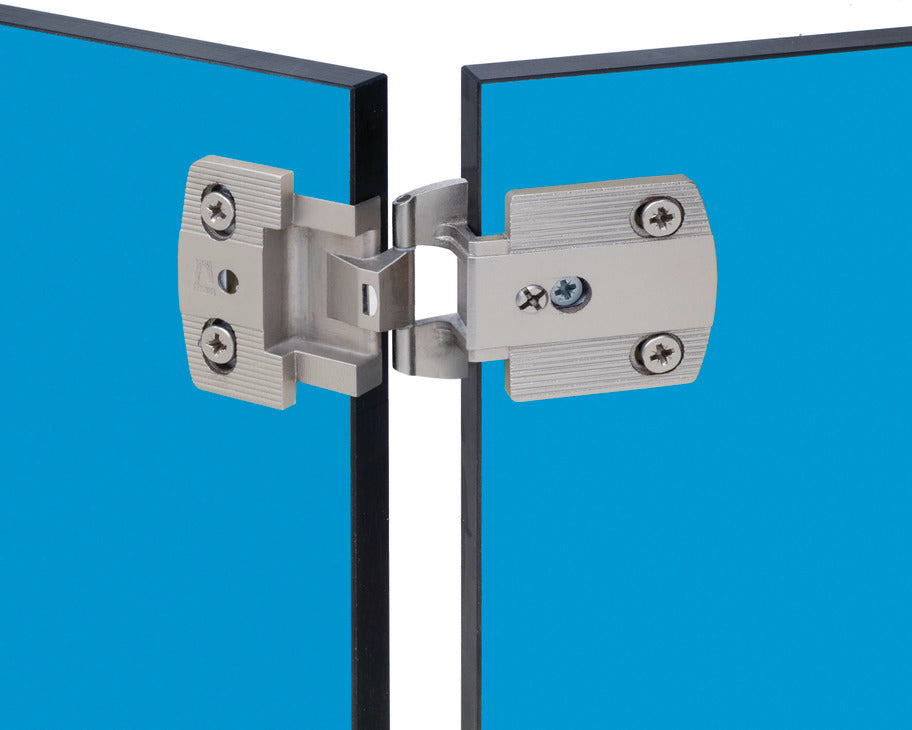

• Thin Panel Hinge, Grade 1, Screw Mounted
1 10

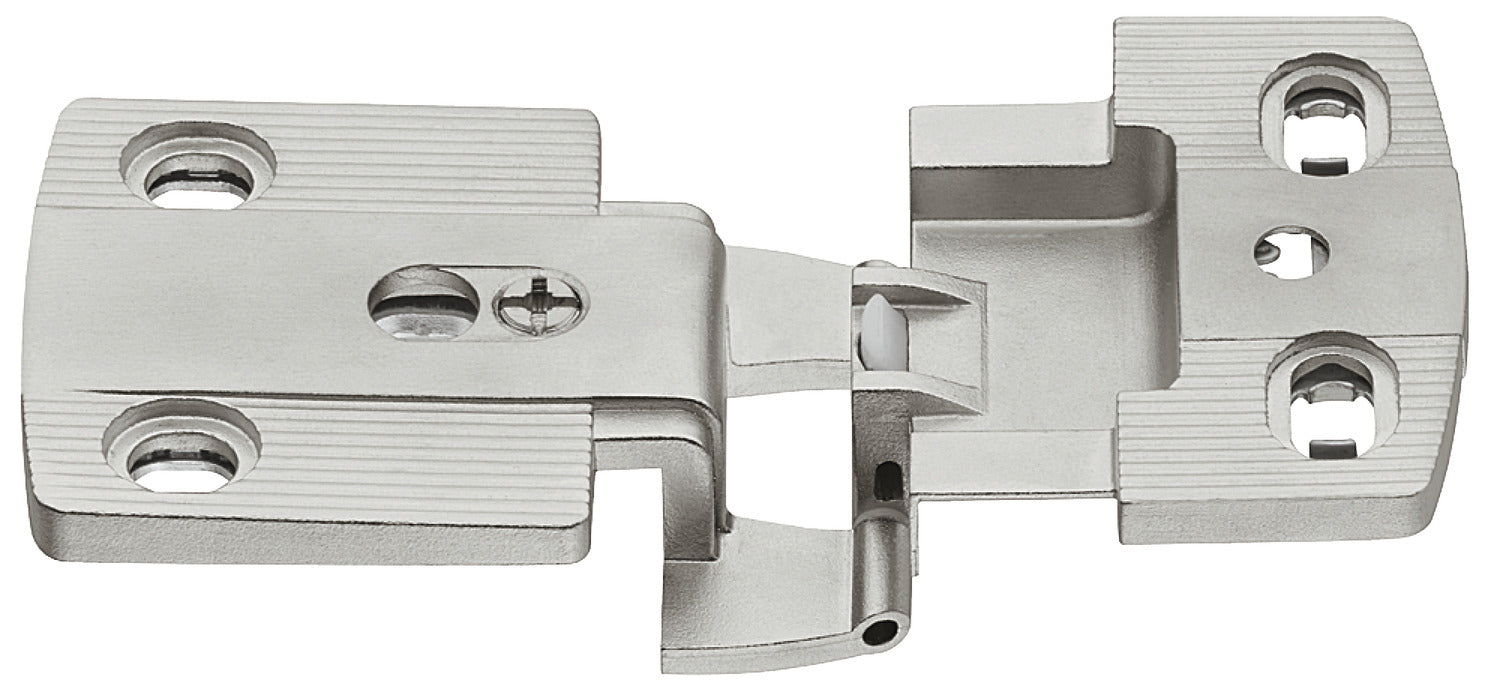

Thin Panel Hinge, Grade 1, Screw Mounted

$90.82
$90.82
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Ideal for MRI rooms and outdoor use
    Increased protection against corrosion
    Maximum project quality in compliance with ANSI grade 1 (100,000 cycles)

  • Version:

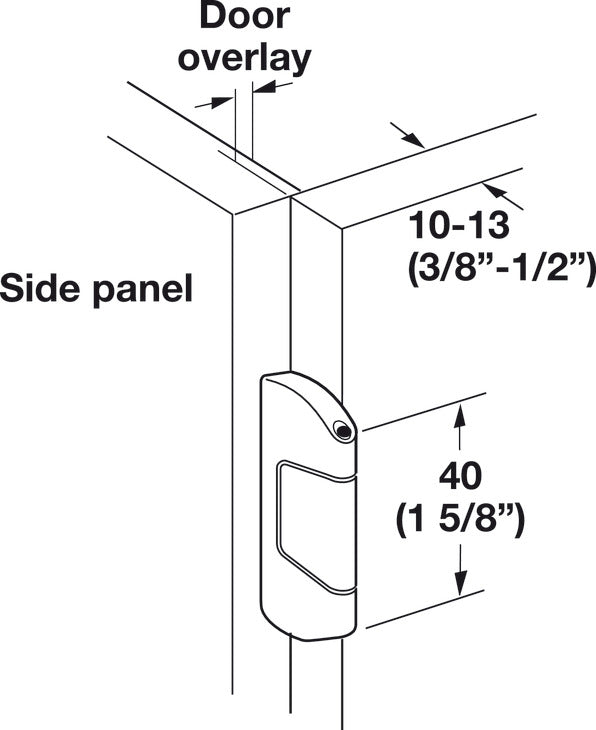

    Door overlay: 7.0 mm
    Full overlay mounting: Side panel thickness 13 mm
    Half overlay mounting: Side panel thickness 19 mm

  • Color/finish: matt
  • Mounting: screw fixing
  • For door material : wood, laminate, Metal
  • Concealed hinge version : Full overlay/half overlay mounting
  • Opening angle : 270 °
  • Suitable for :

    Thin doors, for metal/wood materials and laminated panels (HPL)

  • Material : Stainless steel, Hinge arm: Stainless steel
  • Installation :

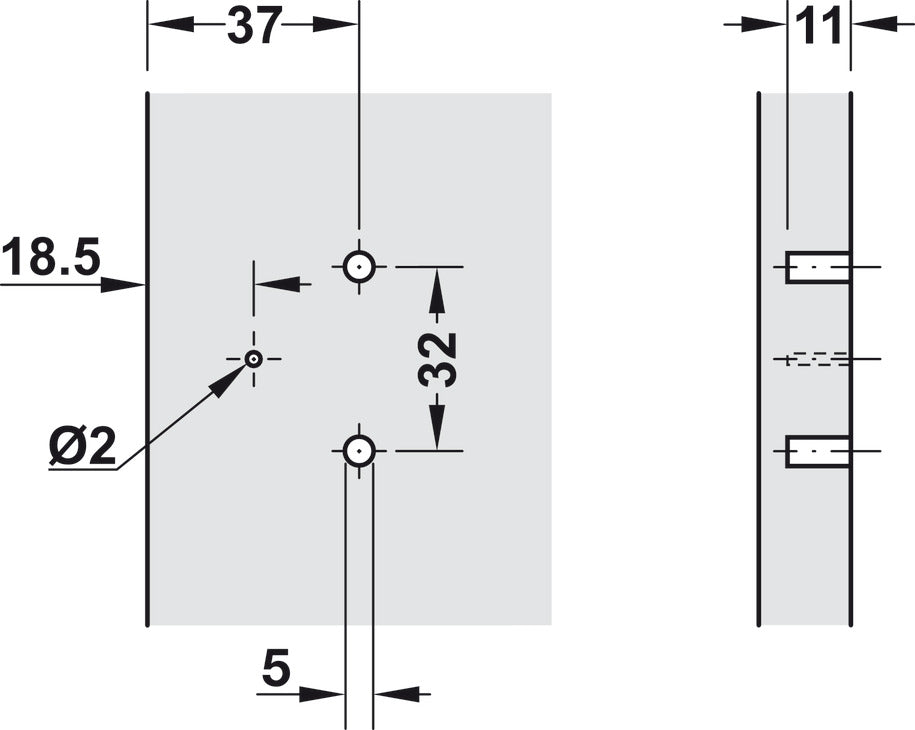

    For screw fixing

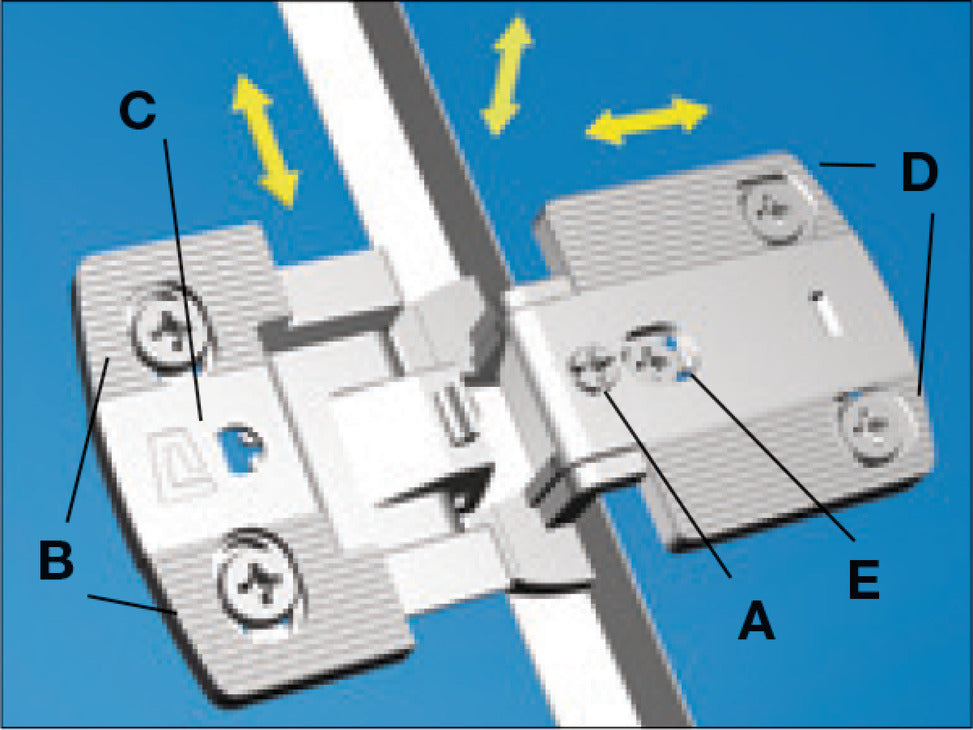

  • Adjustment facility : Side adjustment facility: -2 – 1 mm, Height adjustment facility: ±2 mm, Depth adjustment facility: ±1 mm, Height adjustment in cup part Depth adjustment via horizontal slots in side component

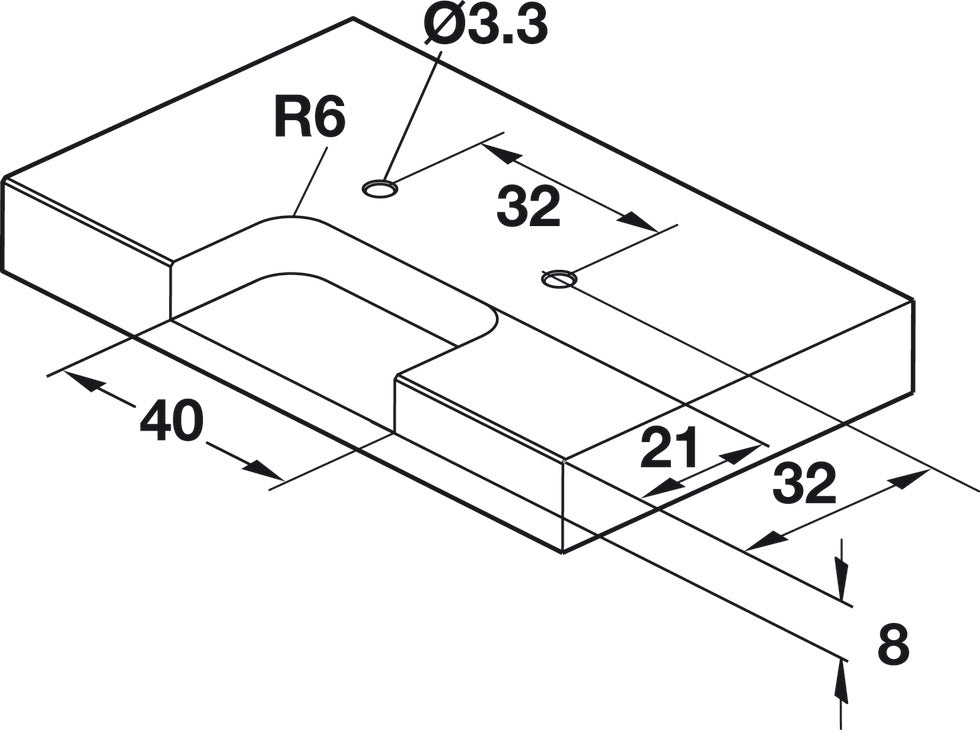

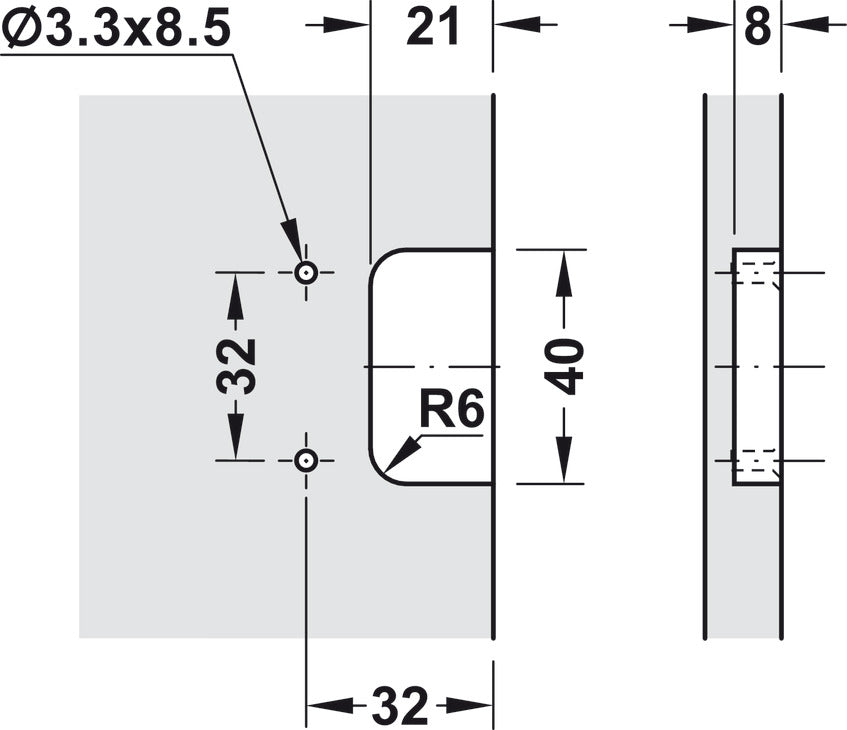

  • Cup drilling depth : 21 mm
  • Door overlay : 7 mm
  • Supplied with :

    Hinge
    Fixing material (stainless steel self-tapping screws)

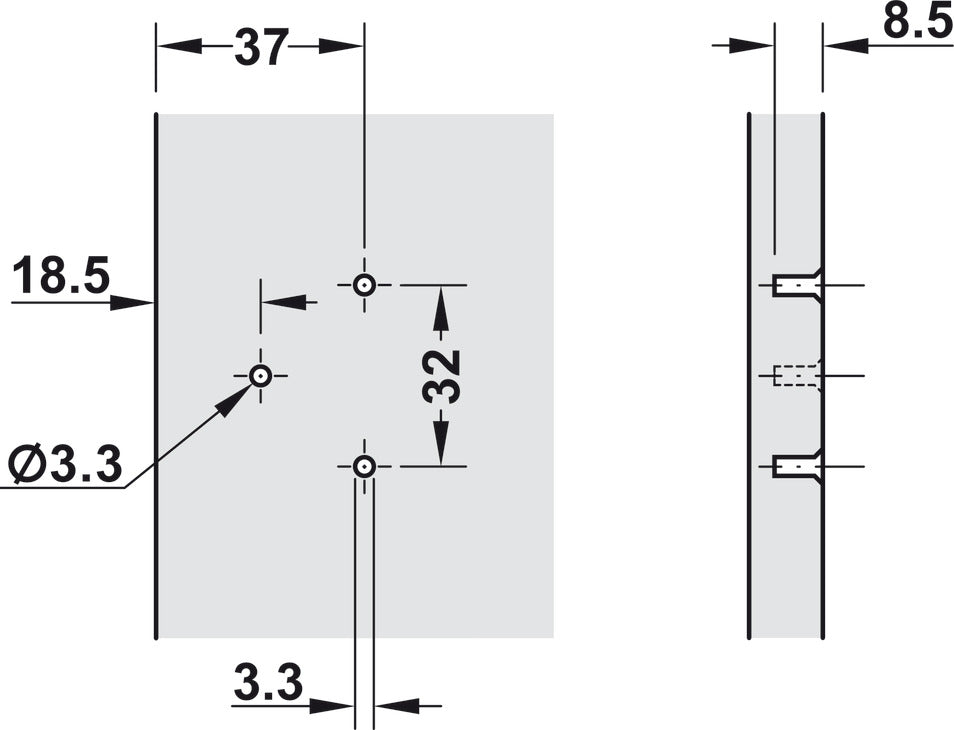

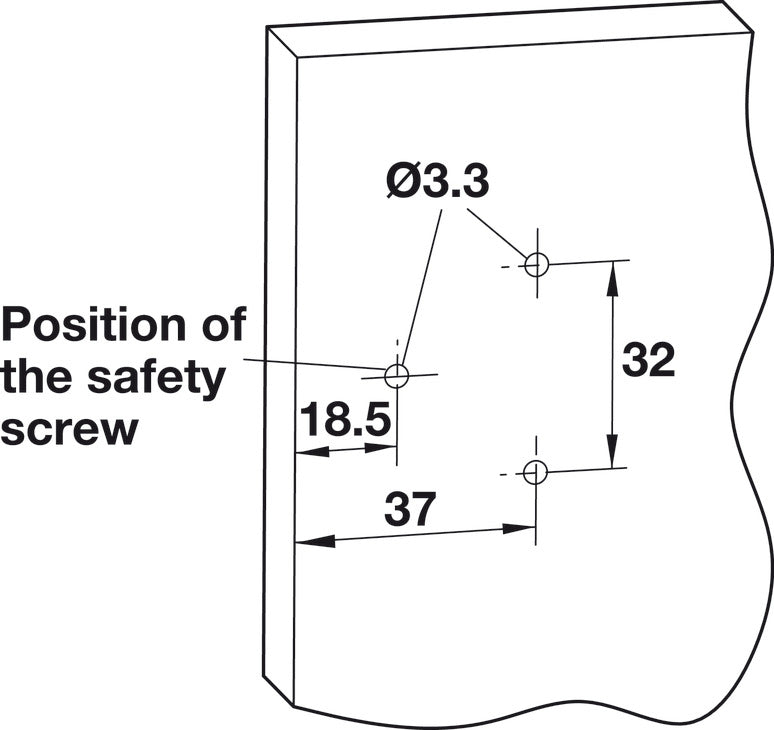

    1 twist drill bit ⌀3.3 mm, 20 pieces per packing unit
