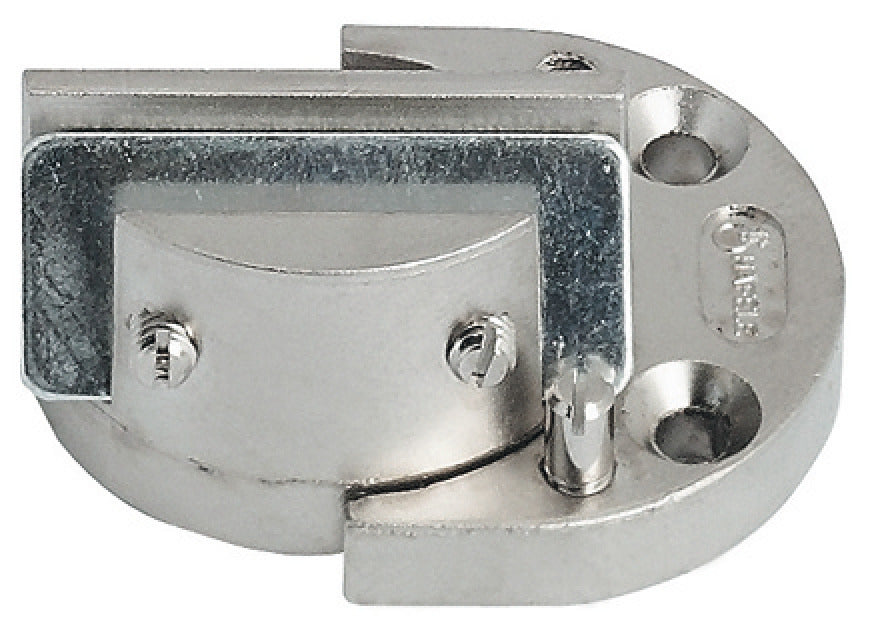

• Glass Door Hinge, Opening angle 95°, inset mounting
1 7

Glass Door Hinge, Opening angle 95°, inset mounting

$16.34
$16.34
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

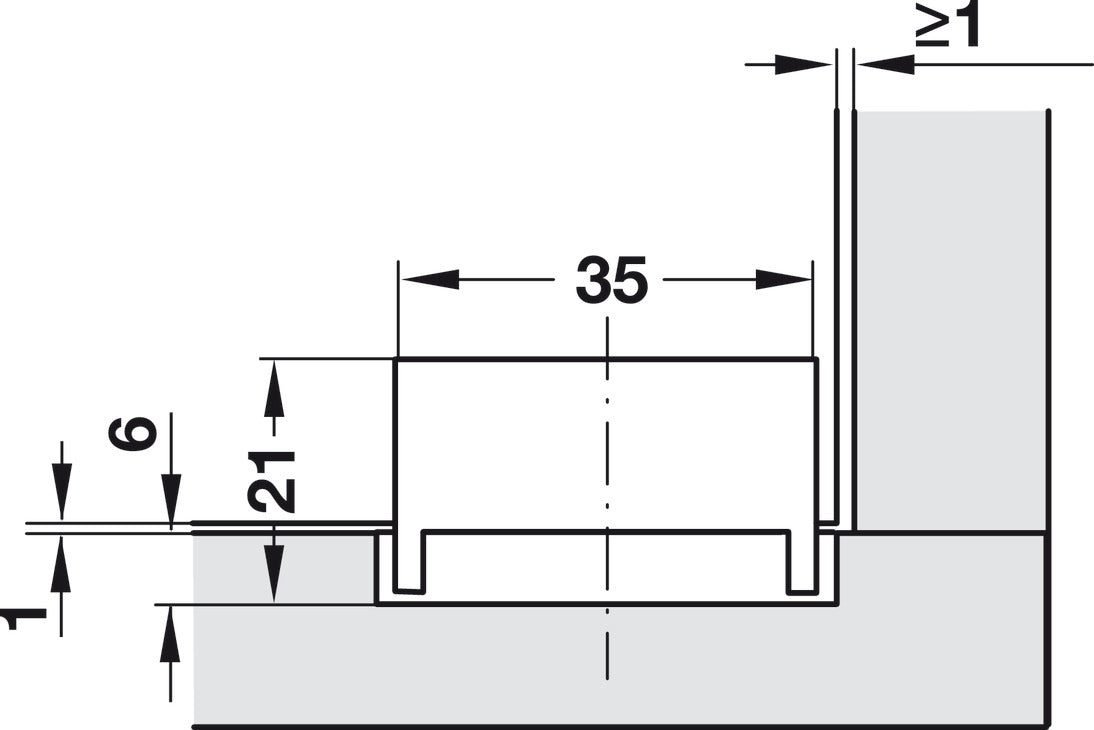

  • To determine the exact tab distance for your application, please make a trial mounting with 1/4” wood material.
    Reversible: can be used left or right

  • Product type: Glass Door Hinge
  • For max. glass thickness (inches): 1/4"
  • For door width (inches): Max. 13 3/4"
  • For door height (inches): Max. 31 1/2"
  • Opening angle : 95 °
  • Area of application :

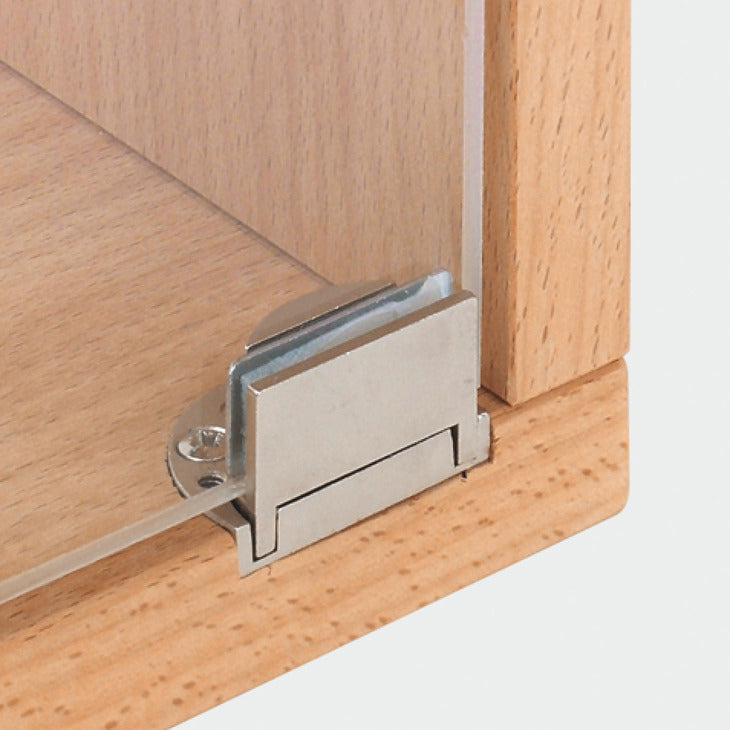

    For inset glass doors

  • Material : Zinc alloy
  • Installation :

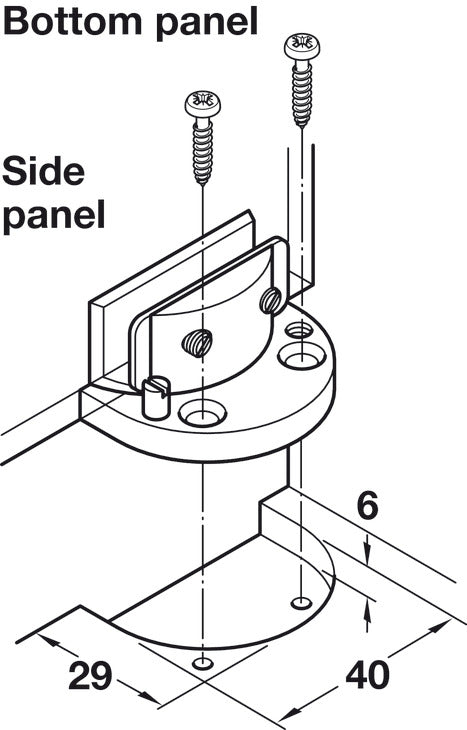

    For screw fixing to cabinet base panel/cabinet top panel
    For clamping to glass door

  • For glass thickness : ≤6 mm
  • For glass thickness (inches) : 1/4"
  • Door width max. : 350 mm
  • Door height max. : 800 mm
  • Equipped with : Without catch

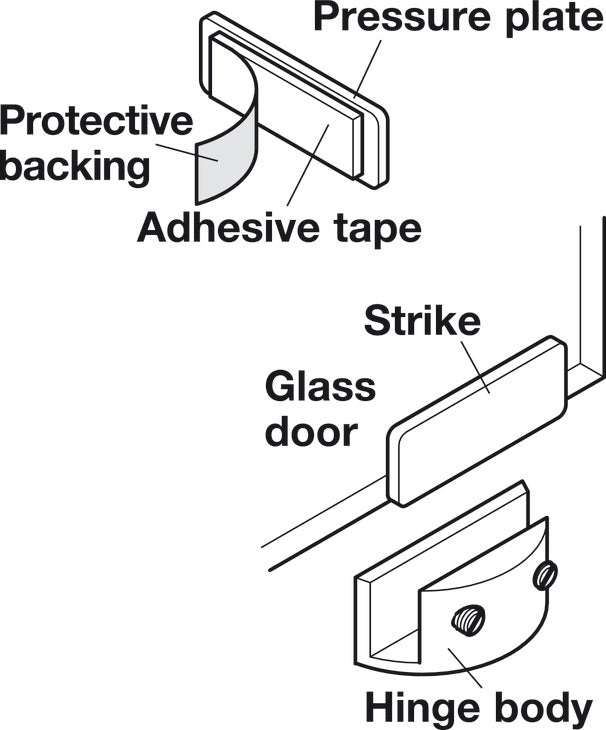

  • Supplied with :

    Pressure plate
