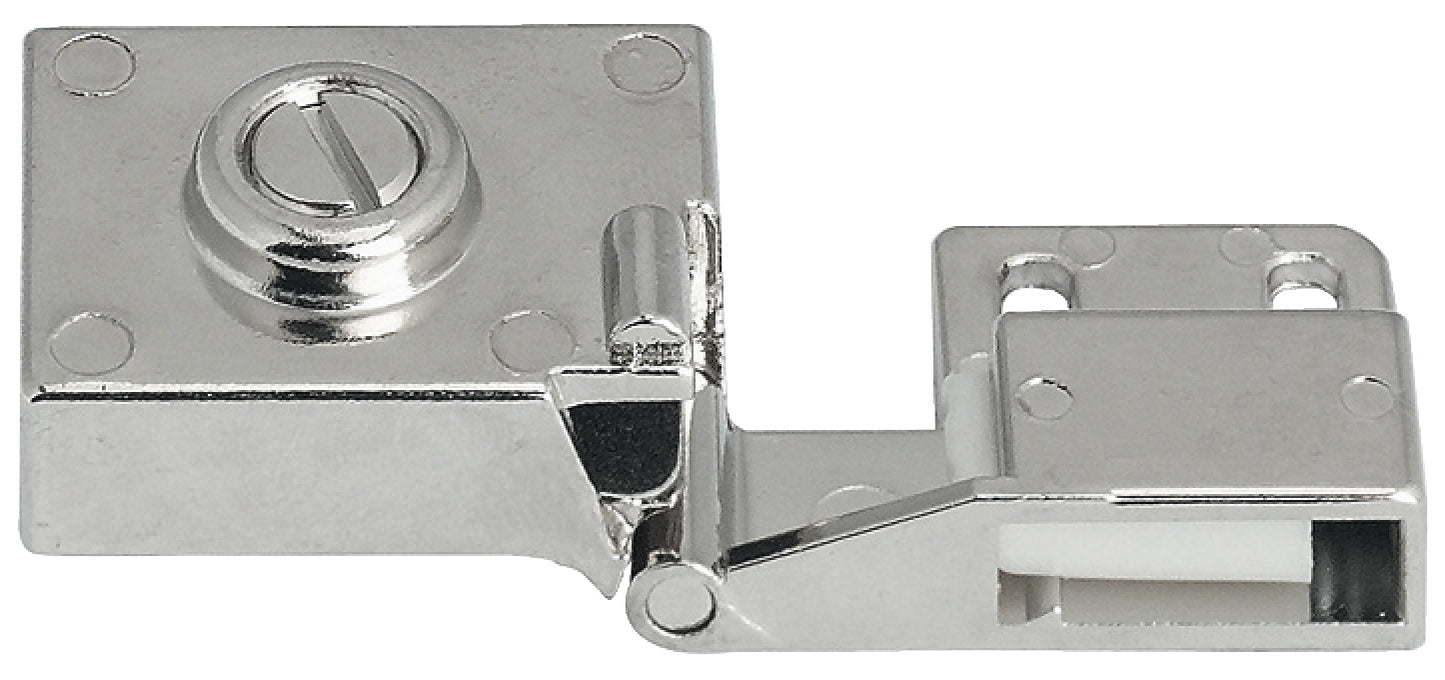

• Hinge, Opening angle 170°, inset mounting
1 7

Hinge, Opening angle 170°, inset mounting

$16.62
$16.62
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Product type: Hinge
  • For max. glass thickness (inches): 1/4"
  • For door width (inches): Max. 13 3/4"
  • For door height (inches): Max. 31 1/2"
  • Opening angle : 170 °
  • Area of application :

    For inset glass doors

  • Material : Zinc alloy

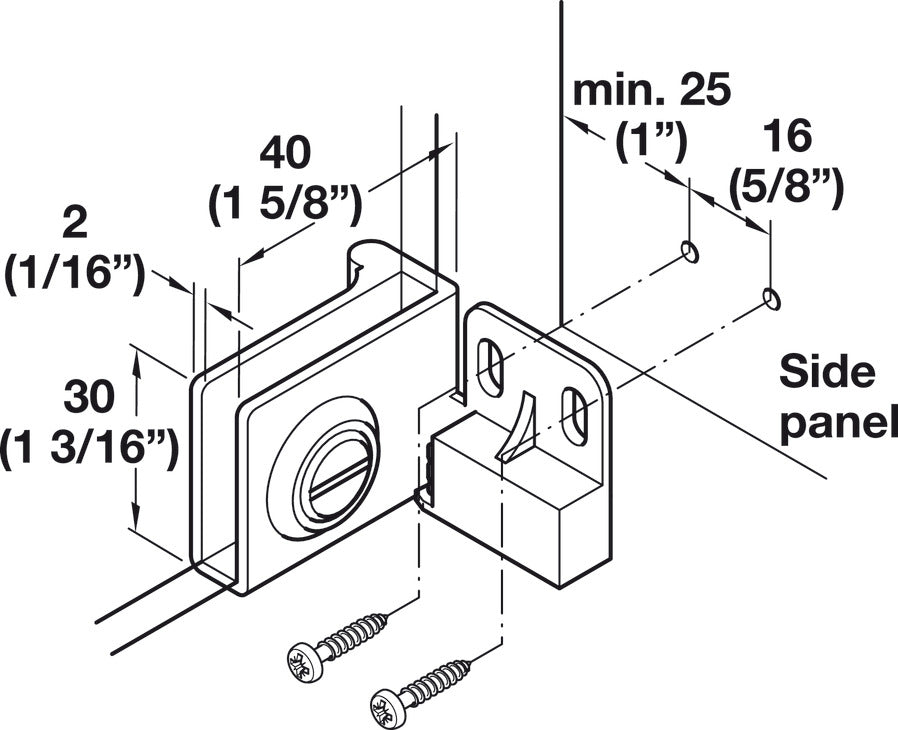

  • Installation :

    For screw fixing to side panel
    For clamping to glass door

  • For glass thickness (inches) : 1/4"
  • Door width max. : 450 mm
  • Door height max. : 600 mm
  • Equipped with : Catch
  • Order reference :

    From door height >600 mm a centre hinge must be ordered.

  • Supplied with :

    Left hinge/Right hinge
