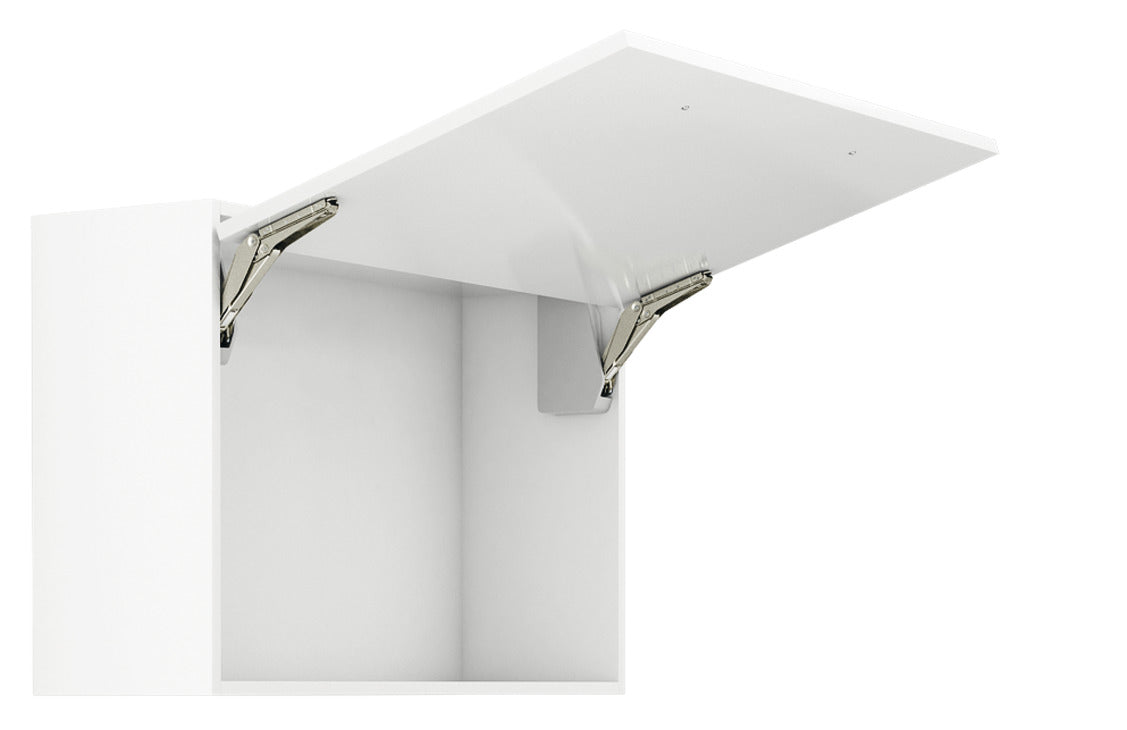

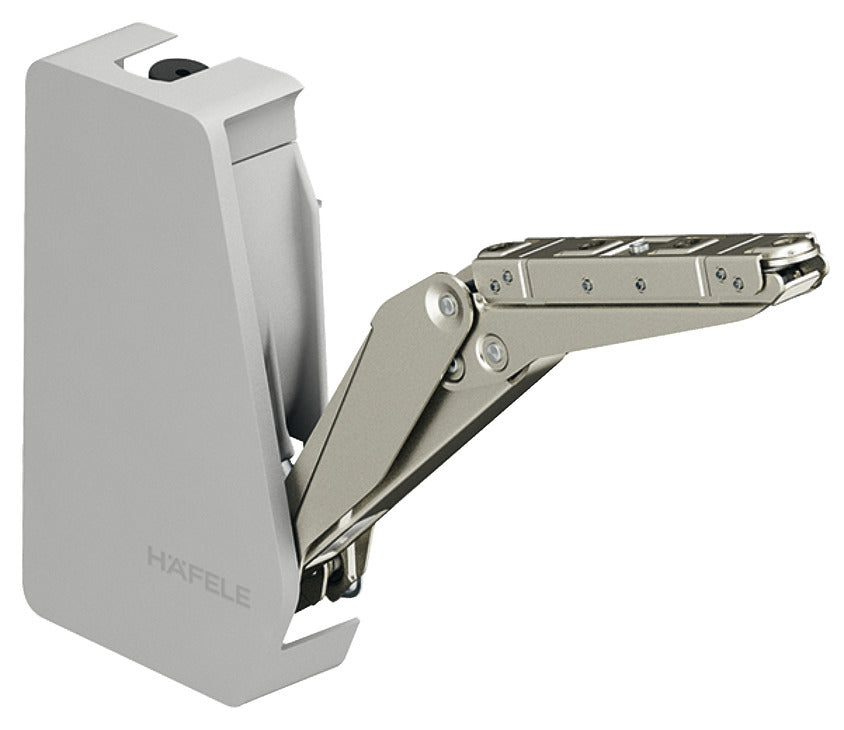

• Swing Up Fitting, Free Flap 1.7, Set
1 7

Swing Up Fitting, Free Flap 1.7, Set

$87.65
$87.65
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Set type: Set
  • For cabinet height: 200 – 450 mm
  • For lid height:

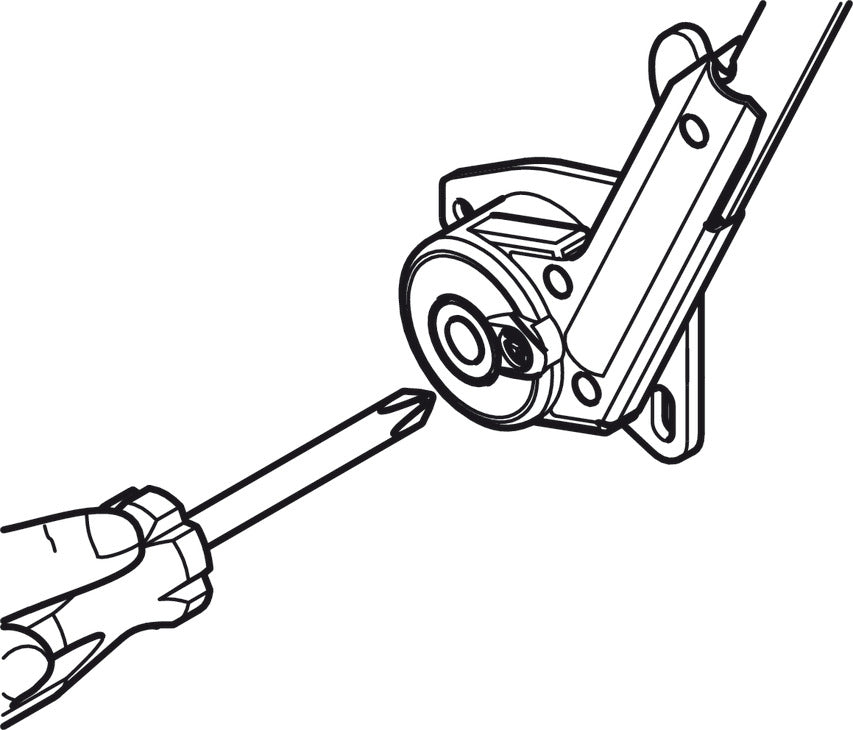

  • Installation:

    Fitting for screw fixing with pre-mounted Euro screws
    front panel without tools (clip system) onto pre-mounted screw-on brackets

  • Cover color/finish: Grey, Fitting: Nickel-plated, cover caps: gray, RAL 7035
  • Color/finish: Fitting: nickel plated, Fitting: Nickel-plated, cover caps: gray, RAL 7035
  • For door height (inches): 8 – 18”
  • Flap fitting type : Stay flap fitting
  • Area of application :

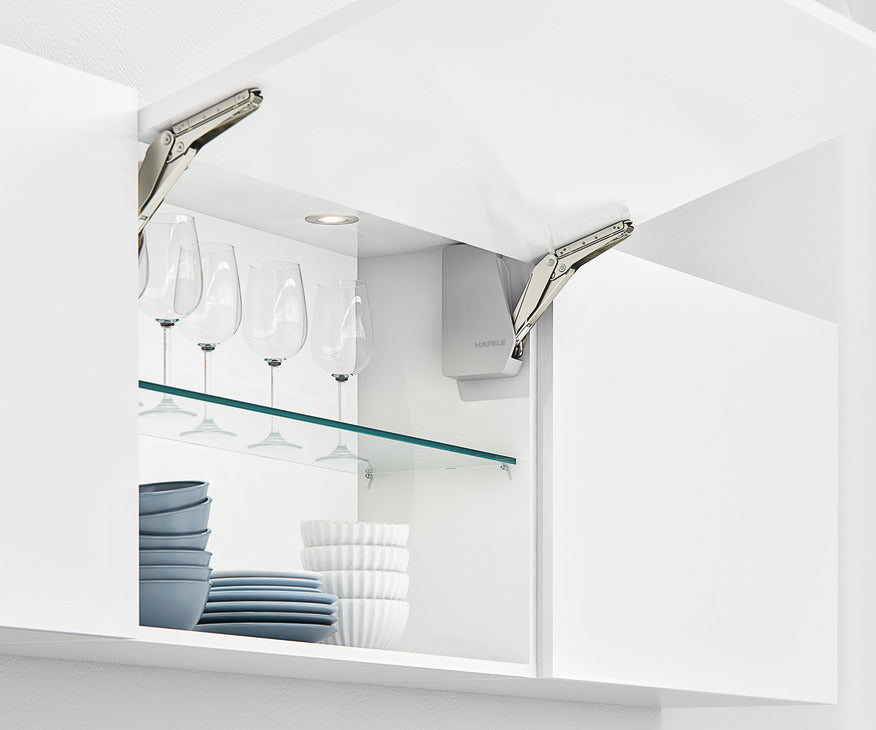

    For stay flap front panels with or without handle (push-to-open)

  • Model series : Free flap 1.7
  • Material :

    Fitting: Steel
    cover cap: Plastic

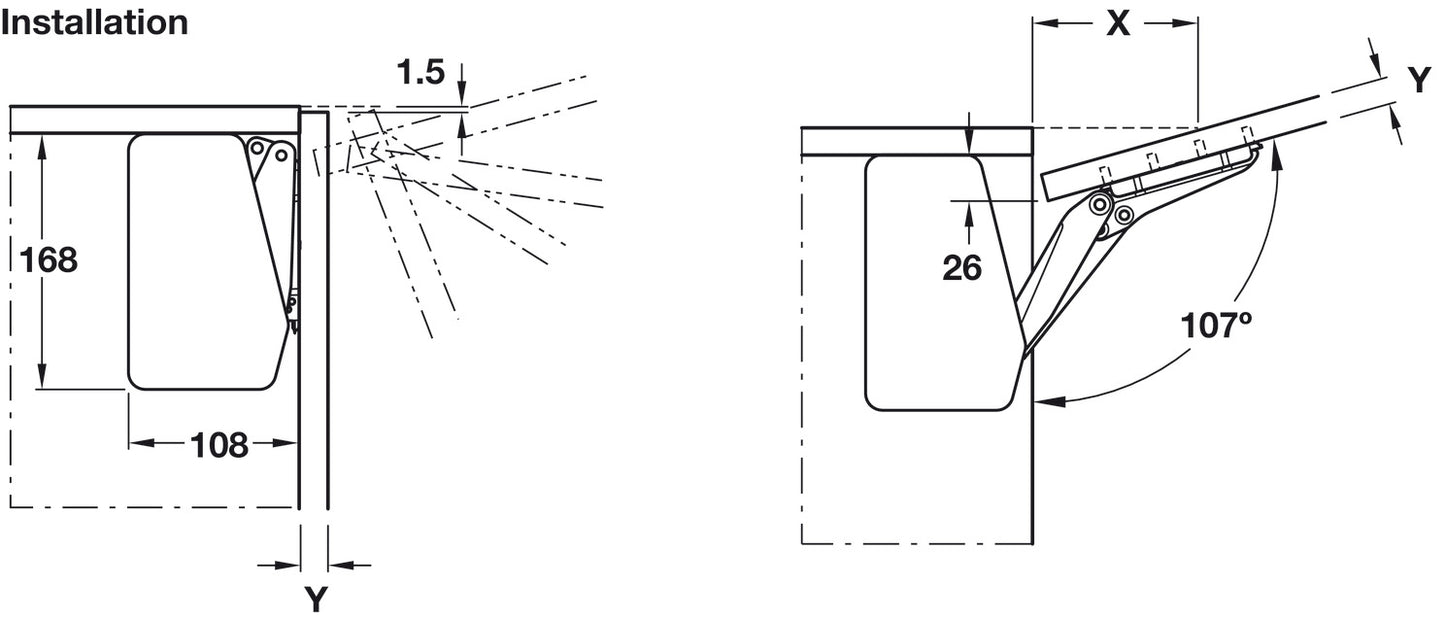

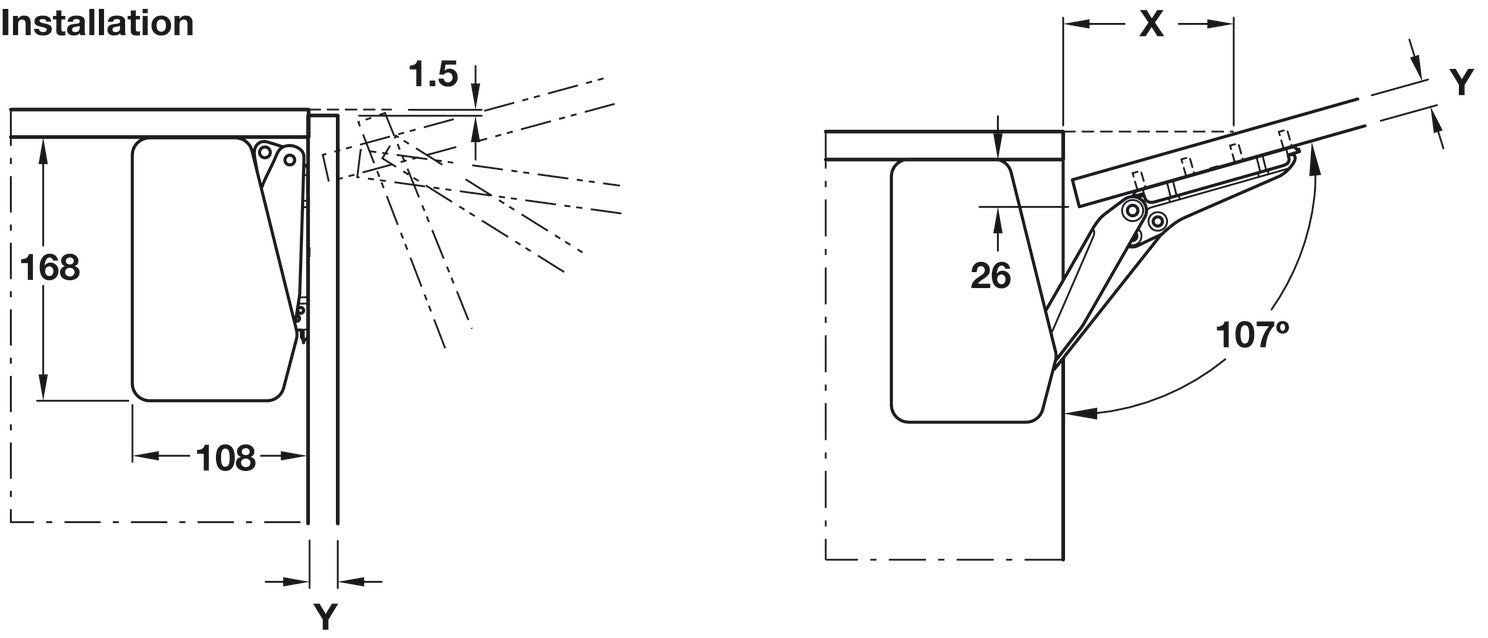

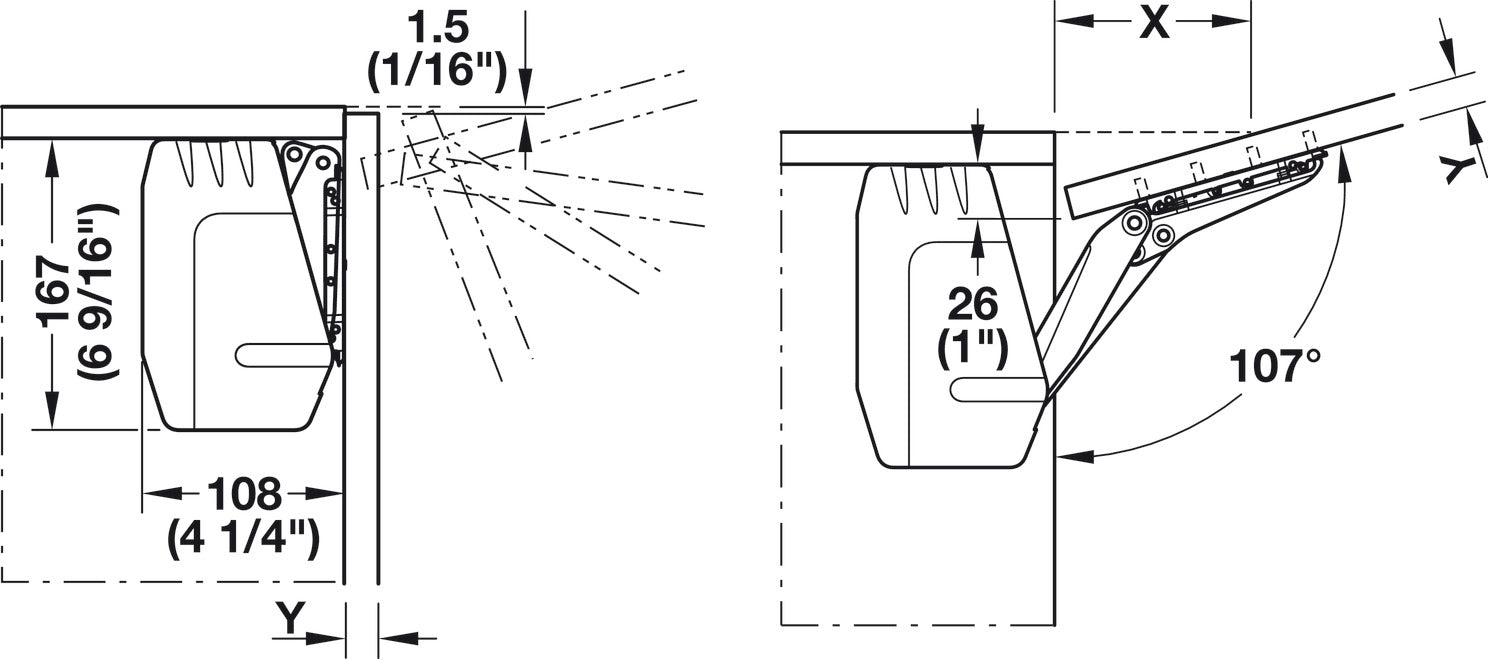

  • Opening angle : 107 °
  • Lid material : Wood, Aluminum frame
  • Order reference :

    The model selection of the stay flap fitting and push catch for front panels without handle depends on the cabinet height and flap weight. Model selection see sample measurements table.
    Please order adapter for flaps with 20 mm aluminium frame separately.
    Please order glass gluing adapter for all-glass front panels separately.

  • Supplied with :

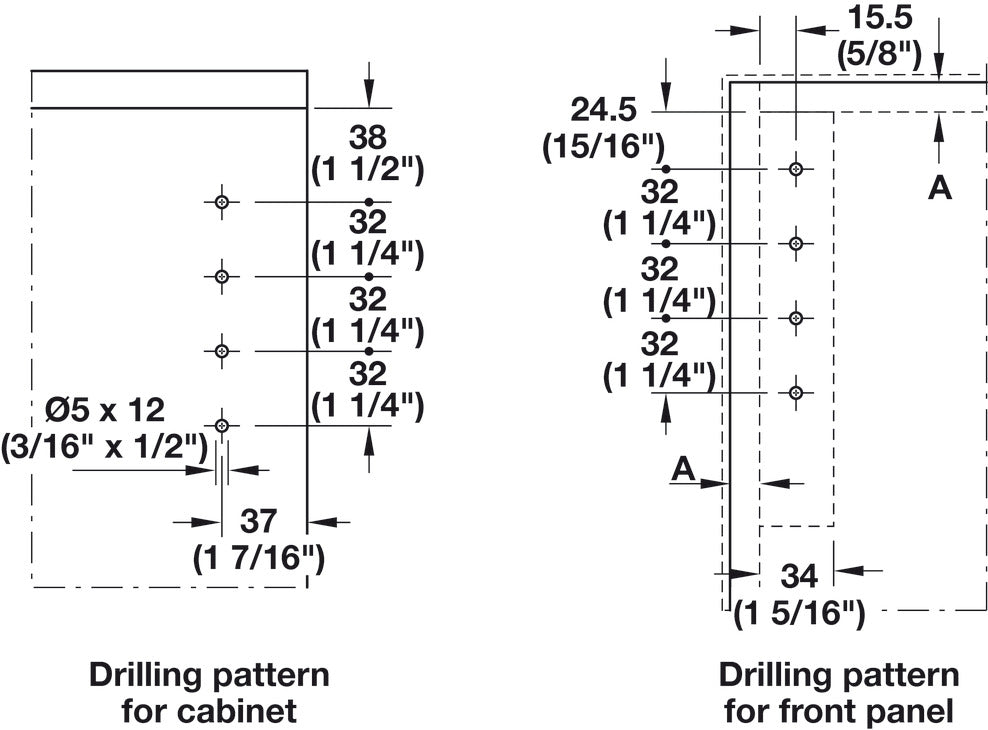

    1 stay flap fitting set (1 piece each left/right, 2 front fixing brackets for wooden flaps or flaps with wide aluminium frame from frame width 45 mm, installation instructions and paper drilling template)
    1 set of gray cover caps
