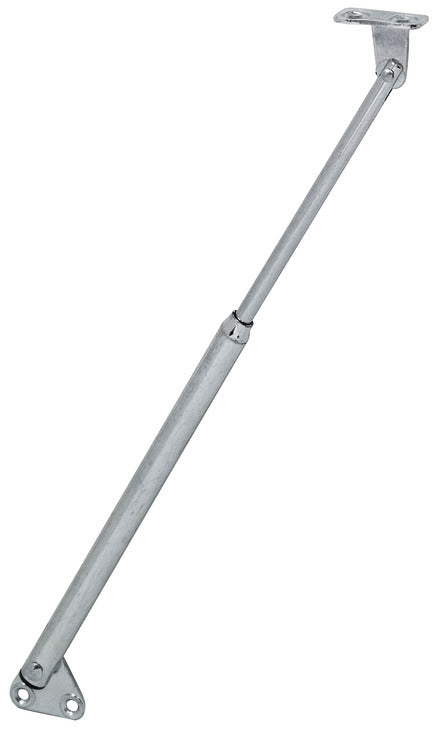

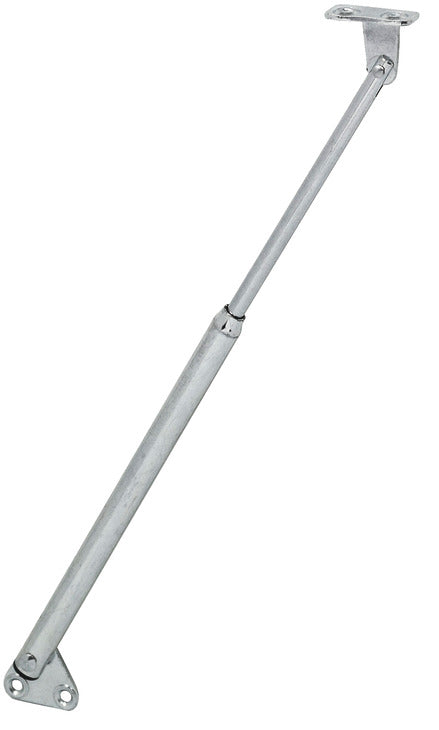

• Lid Stay, Firmatop
1 8

Lid Stay, Firmatop

$15.34
$15.34
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Version:

    With locking mechanism in the open position
    Without braking effect

  • For lid height:

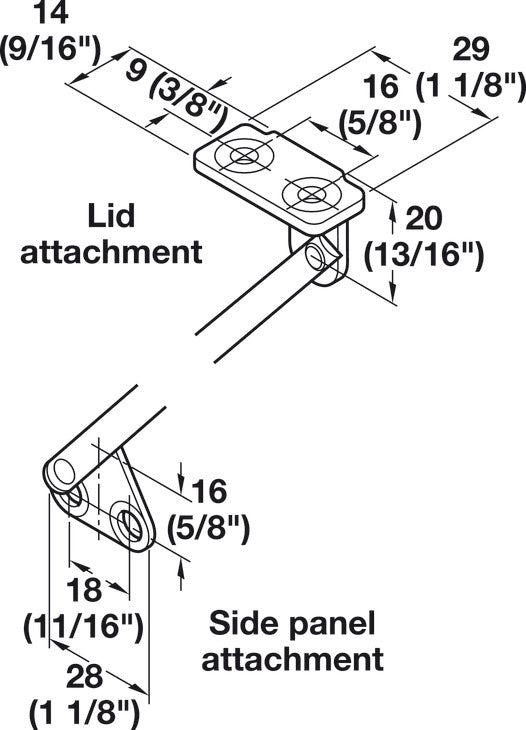

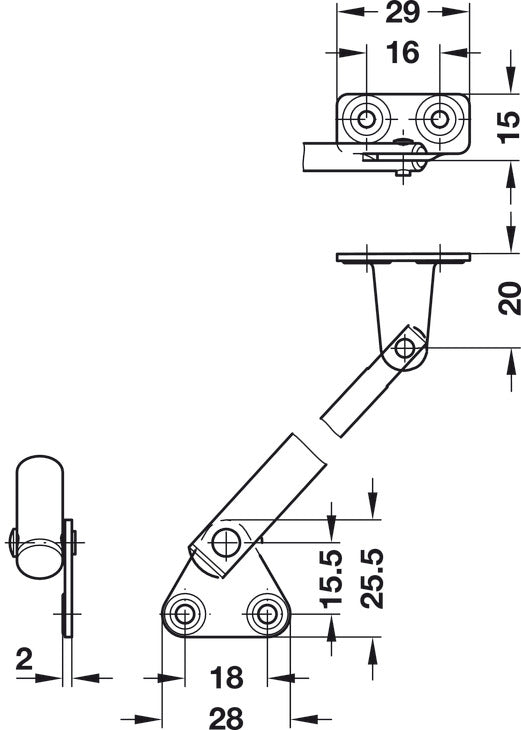

  • Mounting:

    Reversible, can be installed left or right

  • Installation:

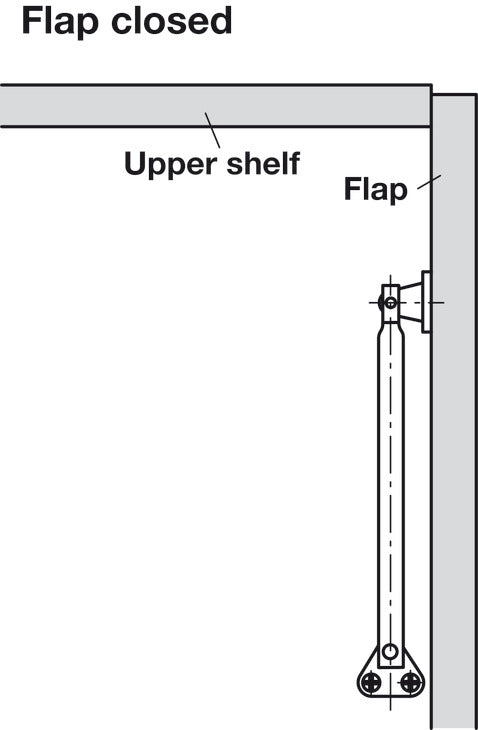

    Dual-purpose integrated spring
    holds lid securely in open or
    closed position. Use one or two
    stays, depending on lid weight.

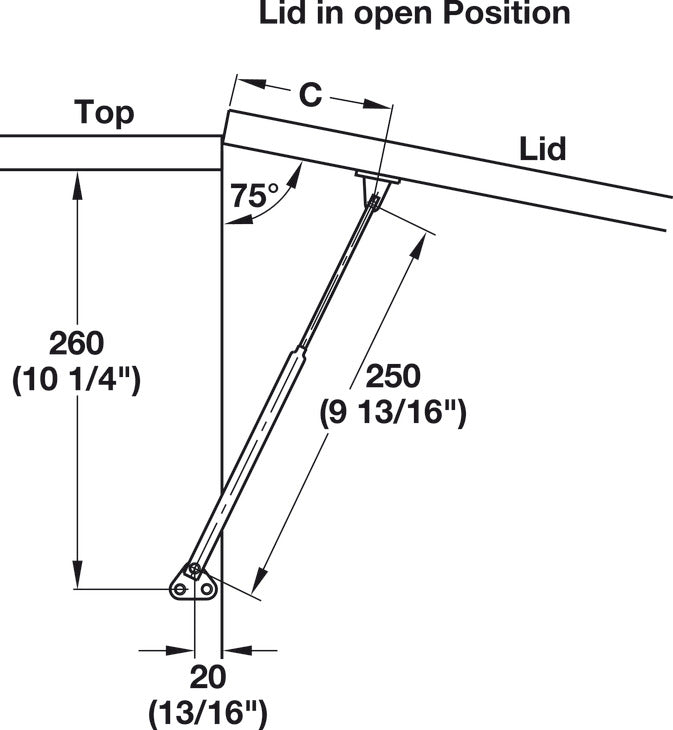

  • Length: 250 mm
  • Dim. A: 260 mm
  • Cover color/finish: Chrome plated
  • Color/finish: Chrome plated, Chrome plated
  • Flap fitting type : Blanket box lid stay, Lid stay
  • Area of application :

    for wooden flaps

  • Model series : Firmatop
  • Material :

    Steel

  • Functionality :

    A lid stay supports a maximum weight of approx. 5 kg. The locking mechanism releases if the load is heavier.

  • Opening angle : 75 °
  • Required release force : 55 N

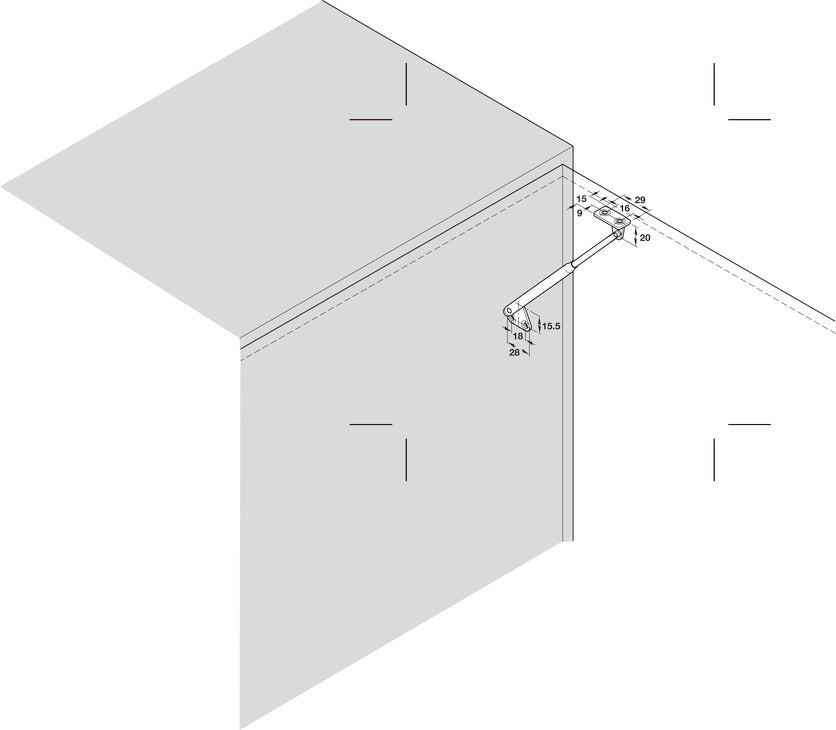

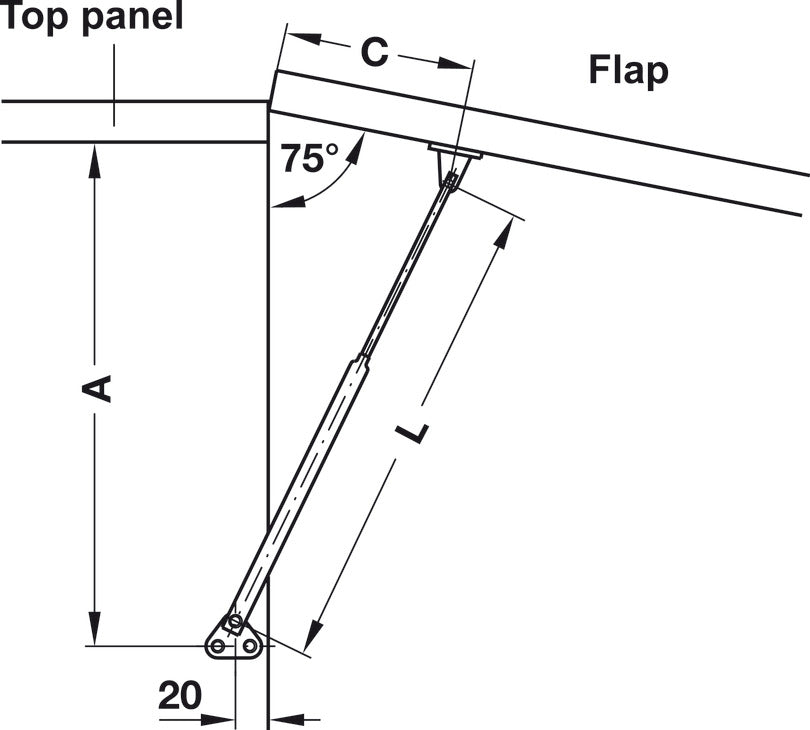

  • Installation reference :

    Determine dim. C by trial mounting
