Flap Ex Flap Hinge, for Laundry Hampers

$23.86
$23.86
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Completely assembled
    The door is opened under spring tension by approximately 27° by applying pressure directly to the door
    When the door is closed, the flap is pushed back into the cabinet and secured by the Mini Latch
    The hinge with the coil springs is designed to support a particle board front with the maximum dimensions 590 mm (23 1/4”) high, 400 mm (15 3/4”) wide and 19 mm (3/4”) thick and a maximum weight when full of 5 kg (11 lbs).

  • Version:

    with spring bearing in opening and closing direction
    for max. filling weight of 5 kg

  • For lid height:
  • Mounting:

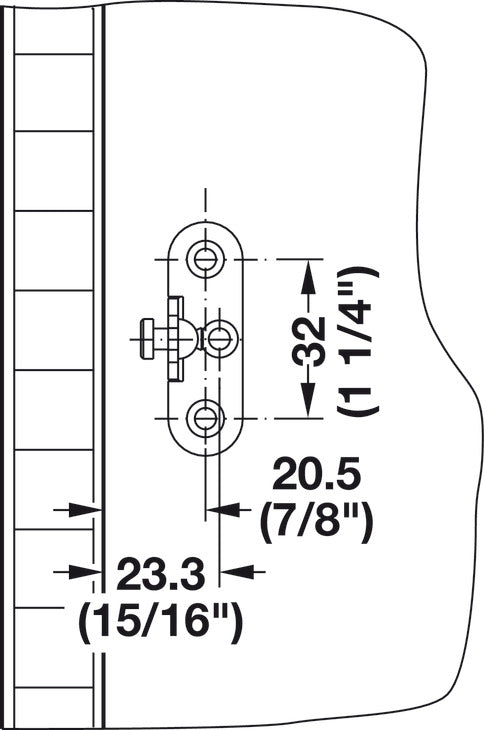

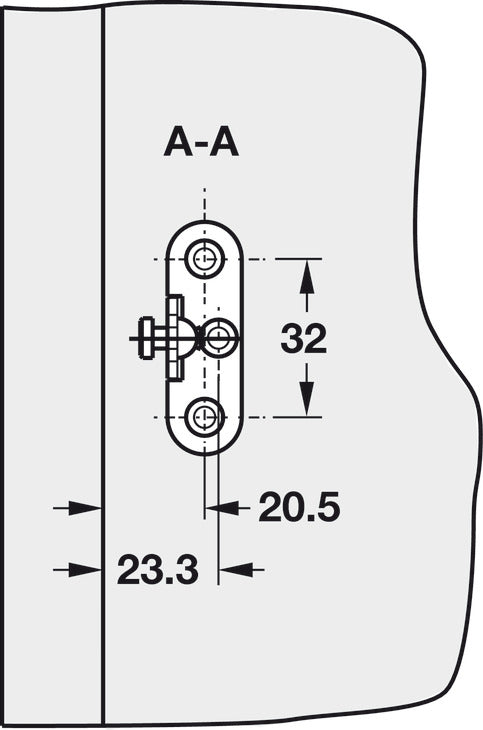

    Screw the angle bracket to front panel and screw-mount
    bearing to cabinet side panel; see mounting drawing on the
    right. Push round rod into the screw-on bearing between
    the two coil springs.

  • Installation:

    For installation of the front flap, 2 cup hinges and a Mini Latch are
    required

  • Cover color/finish: Nickel plated
  • Color/finish: Sleeve and screw-on bearing: White, Nickel plated, Nickel plated
  • Flap fitting type : Tilting fitting
  • Area of application :

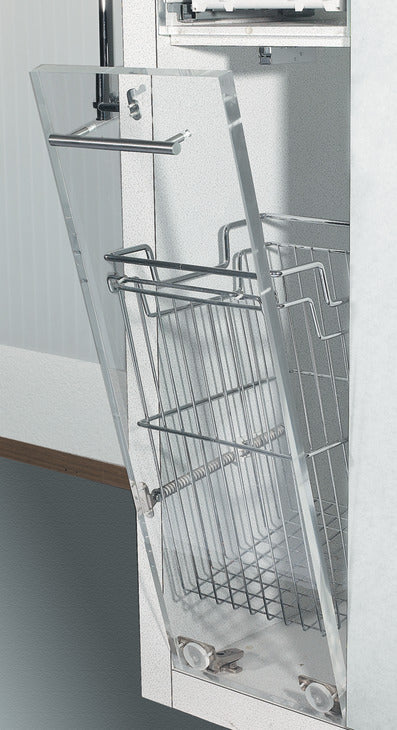

    Particularly suitable for installation in bathroom and laboratory cabinets with front flaps

  • Model series : Flap-Ex
  • Material :

    Steel
    Sleeve and screw-on bearing: Plastic

  • Opening angle : 27 °
  • Installation reference :

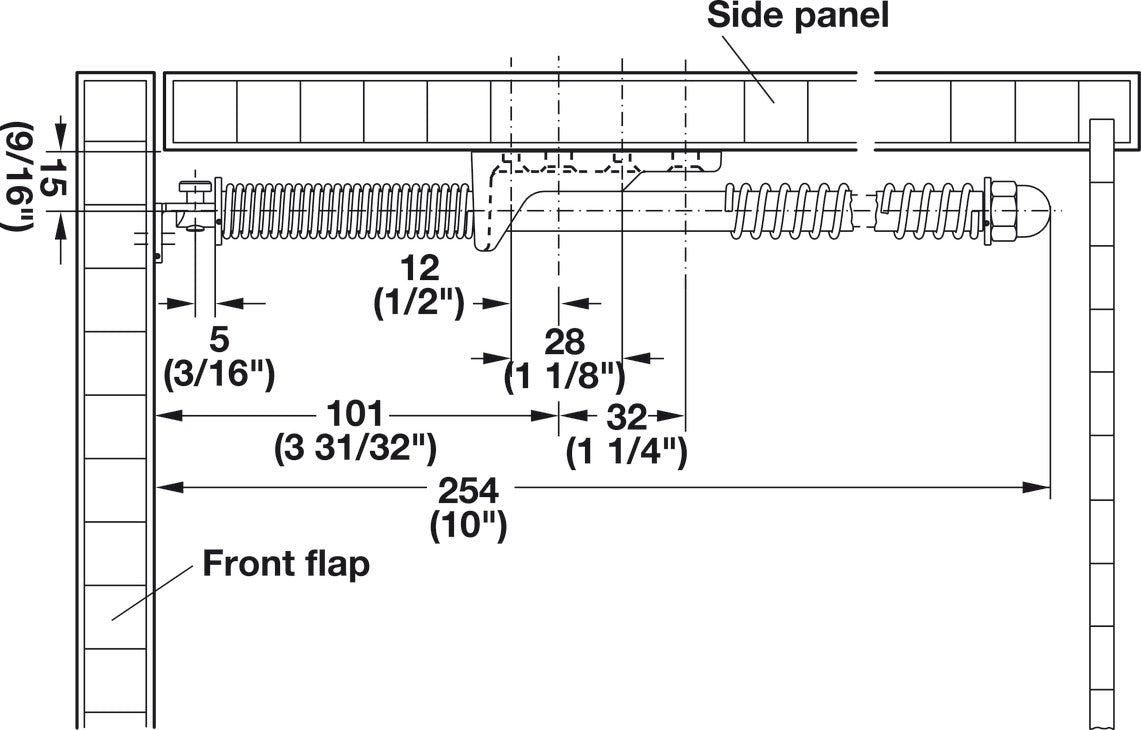

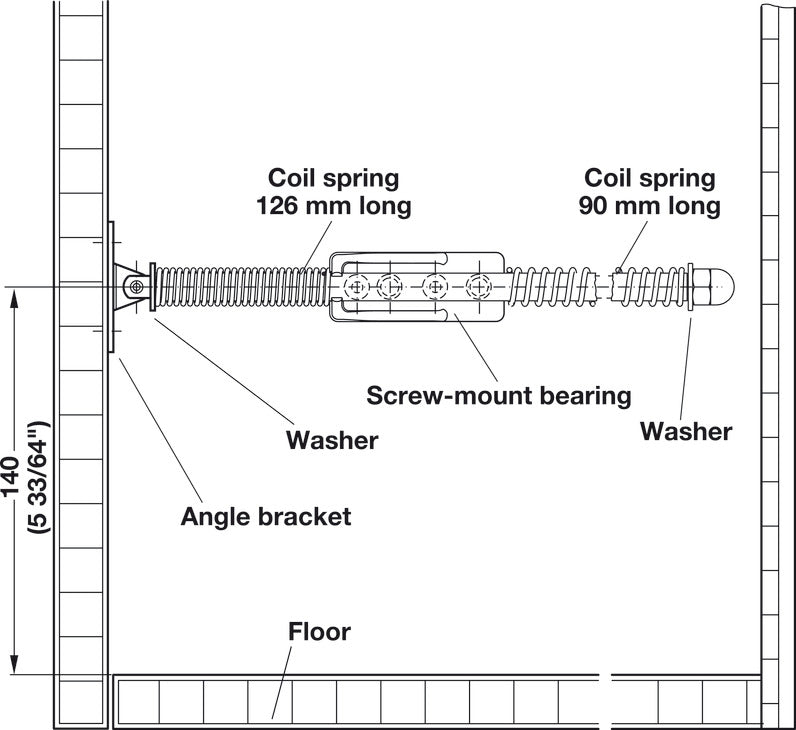

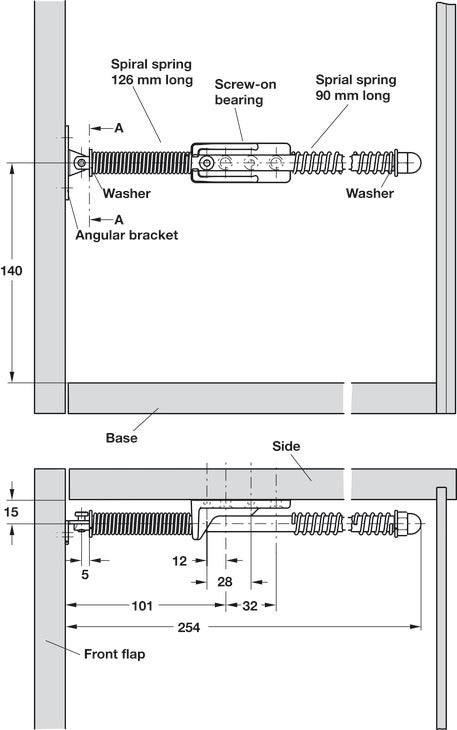

    Assembly
    Screw angular bracket to front panel.
    Screw screw-on bearing to cabinet side panel.
    Push round bar between the two spiral springs into the screw-on bearing.
    â‘  Spiral spring, length 126 mm
    â‘¡ Spiral spring, length 90 mm
    â‘¢ Angular bracket
    â‘£ Washer
    ⑤ Screw-on bearing
    â‘¥ Washer
    ⑦ Floor
    ⑧ Side panel
    ⑨ Front flap

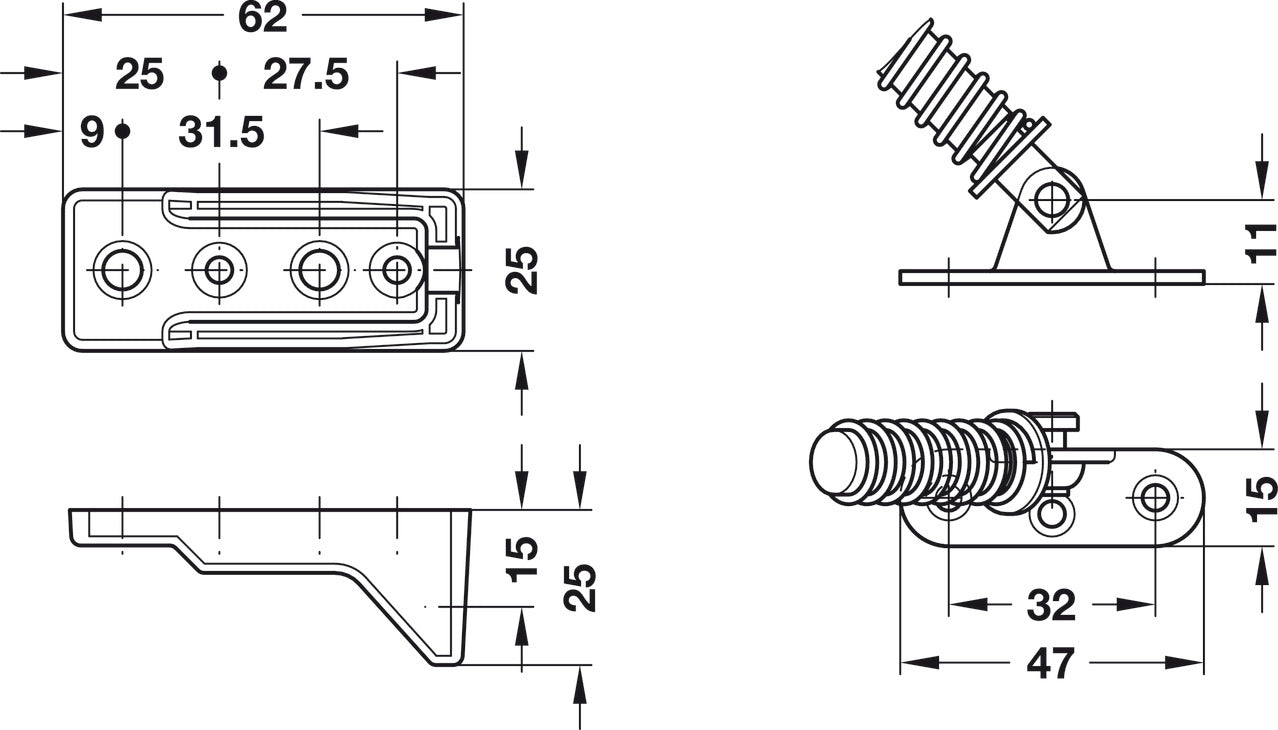

  • Dimensions :

    Front dim. for 1 Flap-Ex max. 400 x 590 x 19 mm (W x H x D)

  • Order reference :

    Please order concealed hinges and Mini‐Latch catch separately.

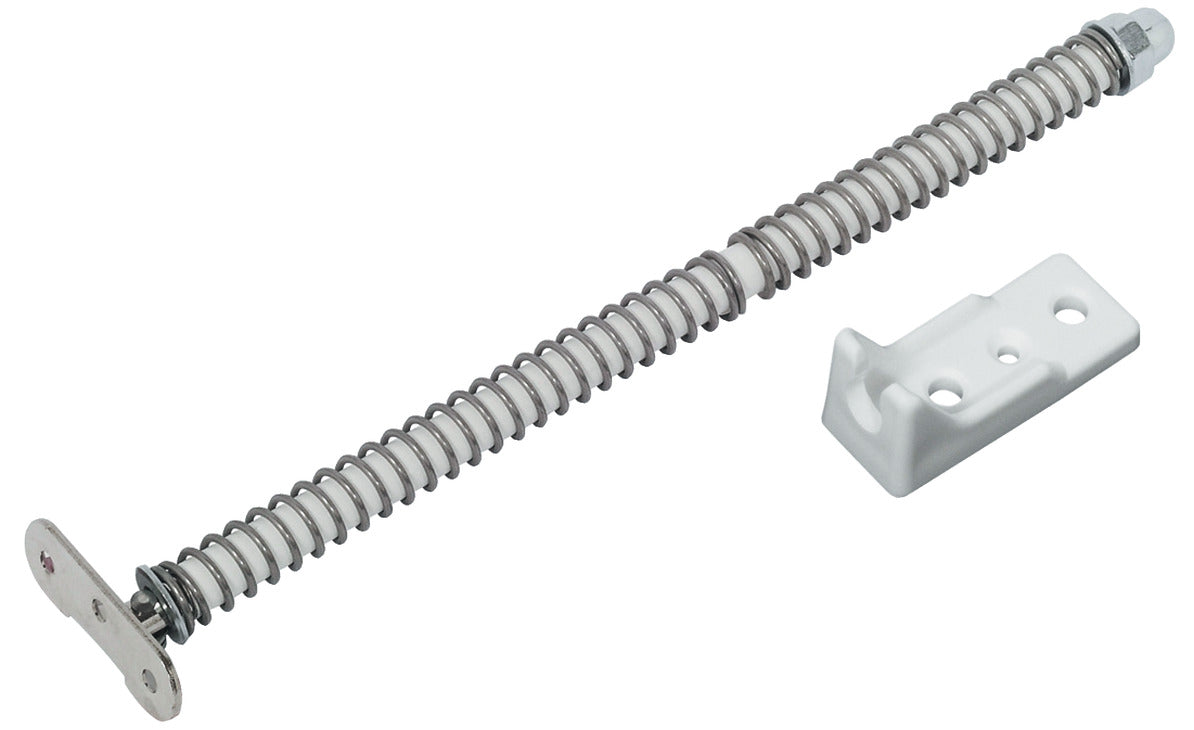

  • Supplied with :

    1 Angular bracket
    1 Round rod with sleeve
    2 Washers
    2 Spiral springs
    1 Screw-on bearing
