• Swing-Up Fitting, Maxi, Complete Set
1 17

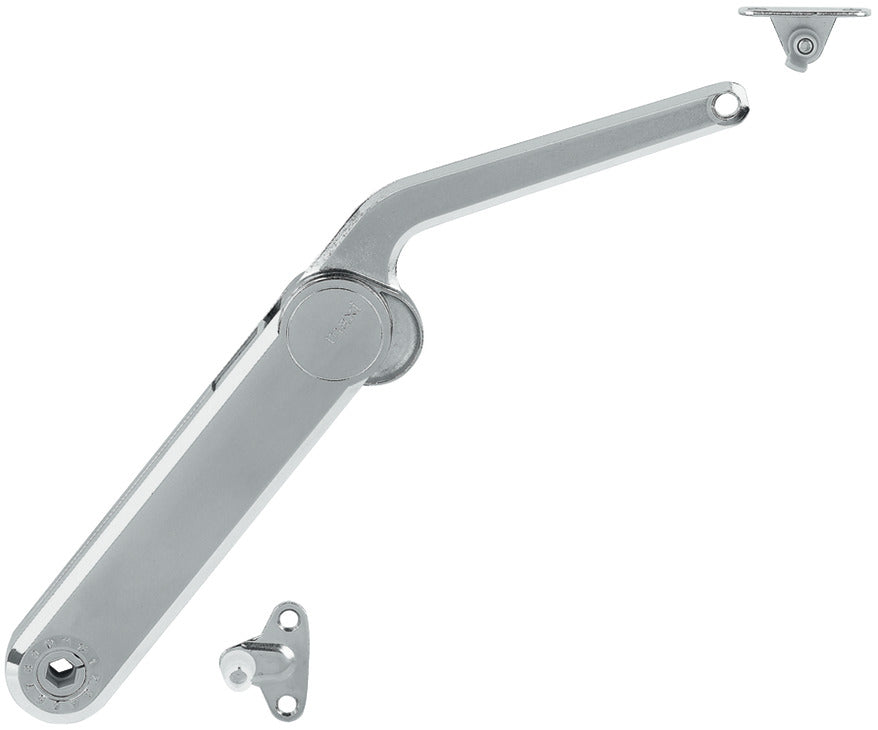

Swing-Up Fitting, Maxi, Complete Set

$50.75
$50.75
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

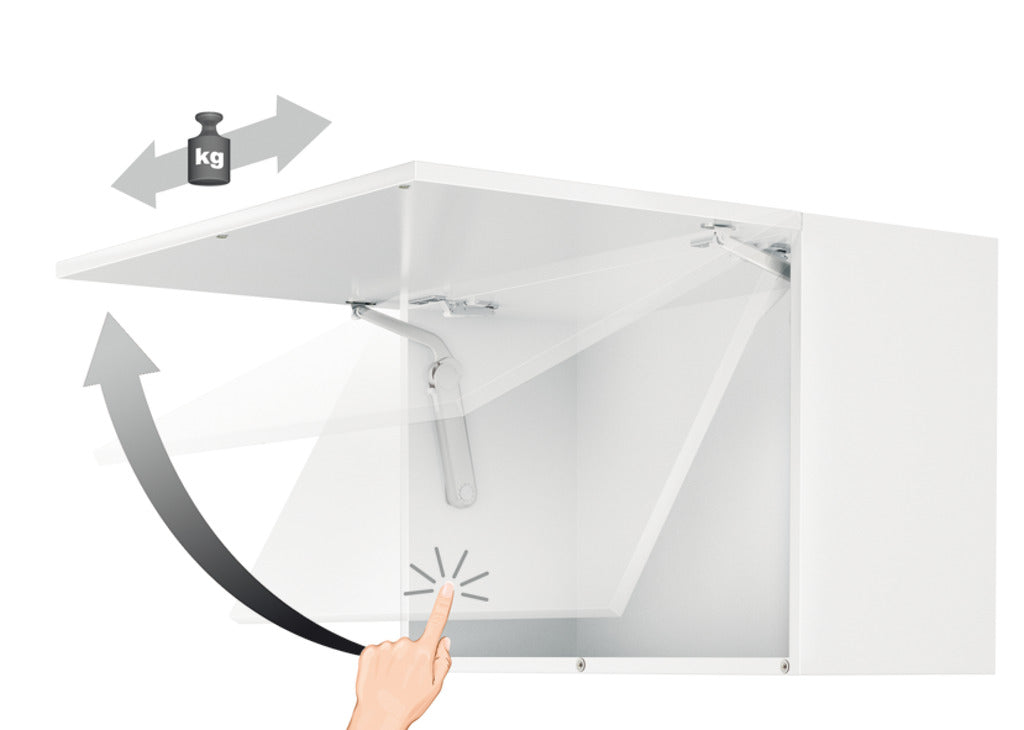

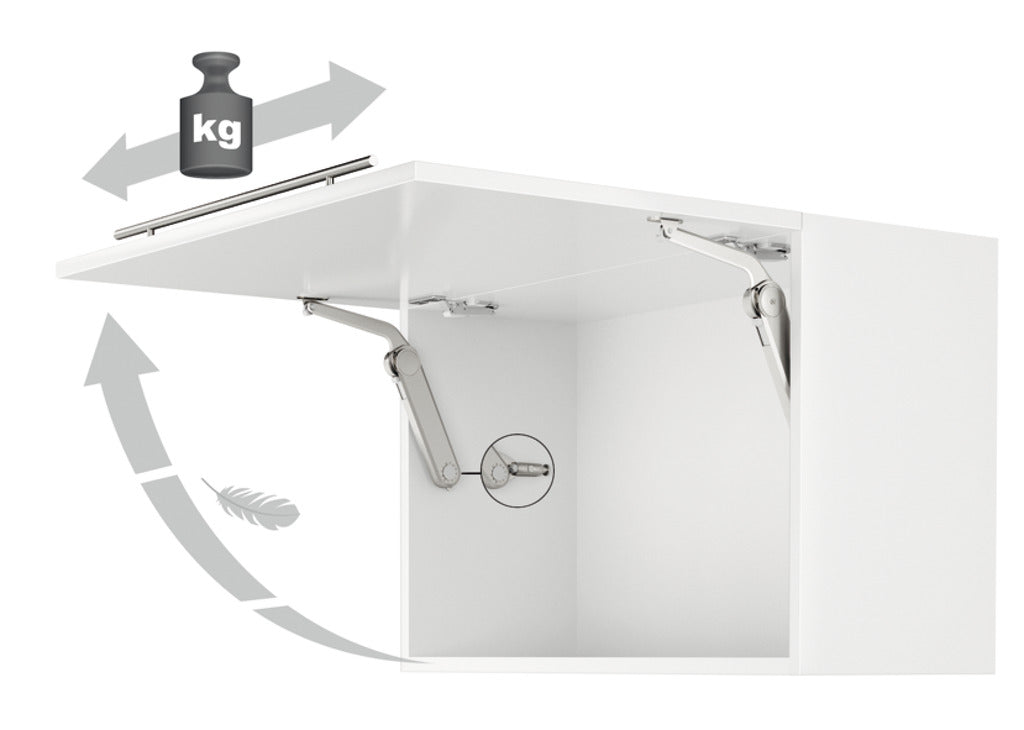

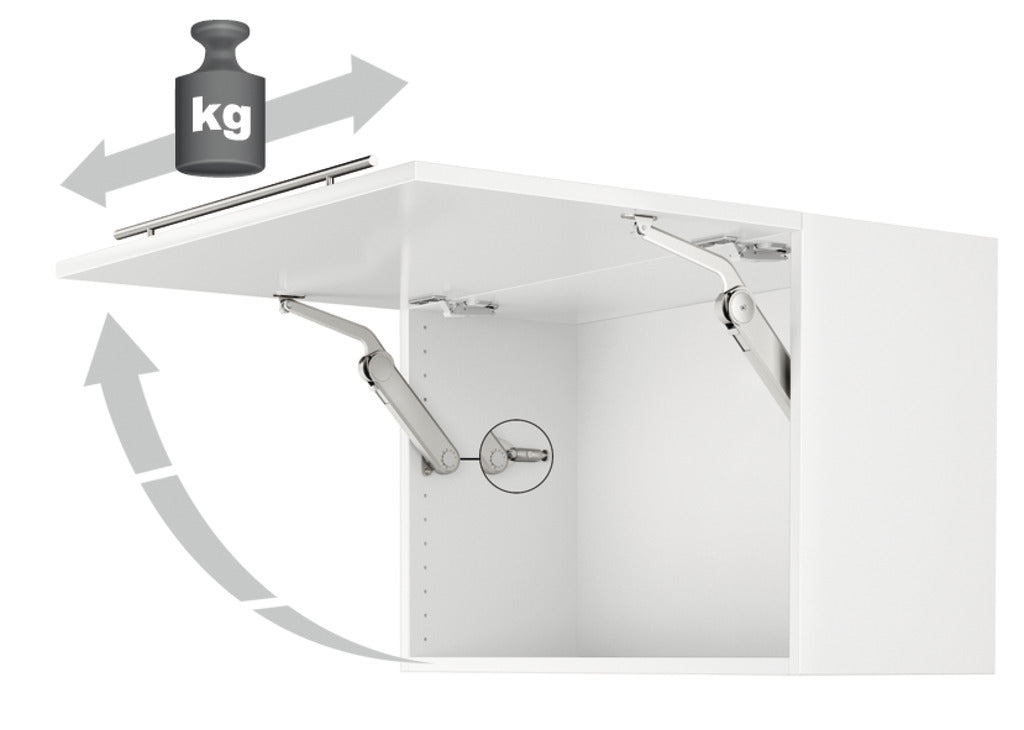

  • MAXImal-Talent: Many different applications can be achieved by varying the mounting point of just a single fitting, e.g. front panels without handles or effortless opening of even large and heavy front panels up to 50 kg (depending on flap height and mounting situation)
    Multi position stop function: The fitting can be adjusted so that it reliably holds the flap in any position
    Separate soft closing mechanism available as accessory

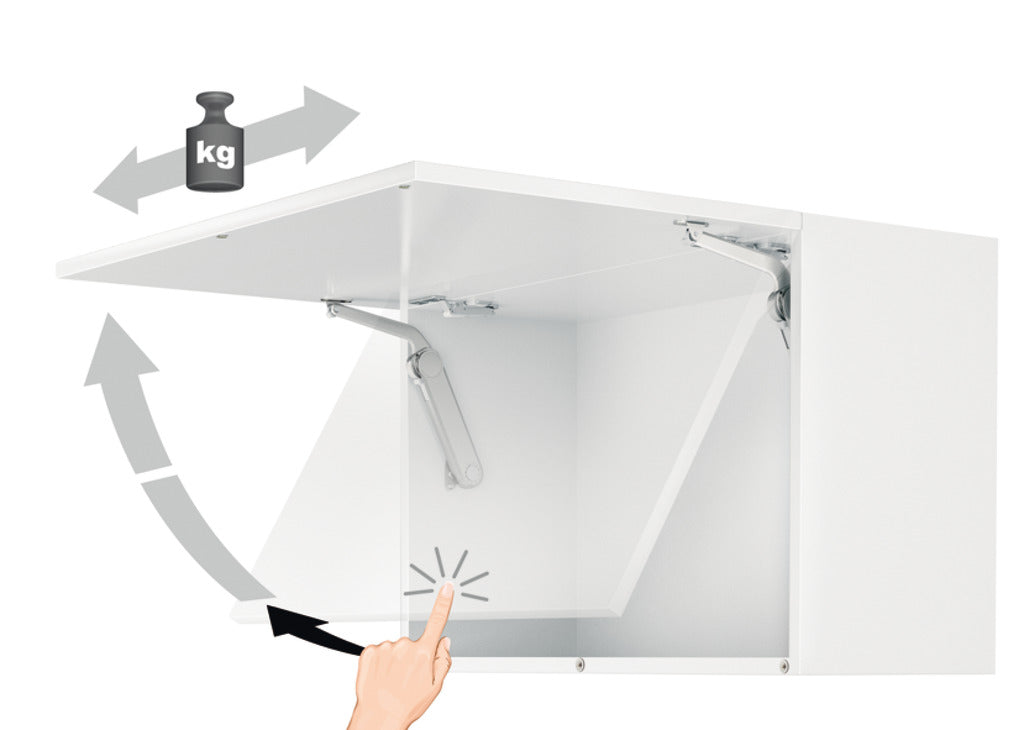

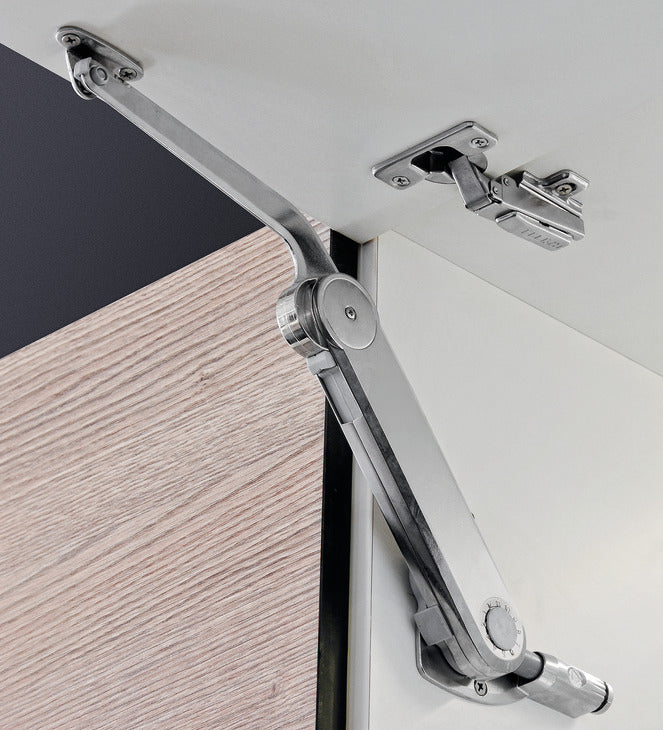

    Can also be used in combination with Duomatic Push self-opening concealed hinges or concealed hinges with integrated soft closing mechanism (trial mounting required)

  • Set type: Complete set
  • For lid height:

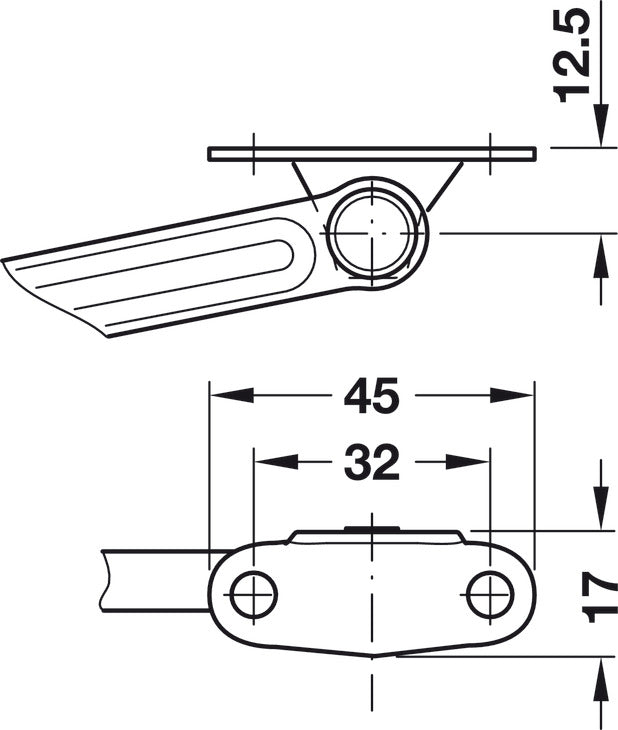

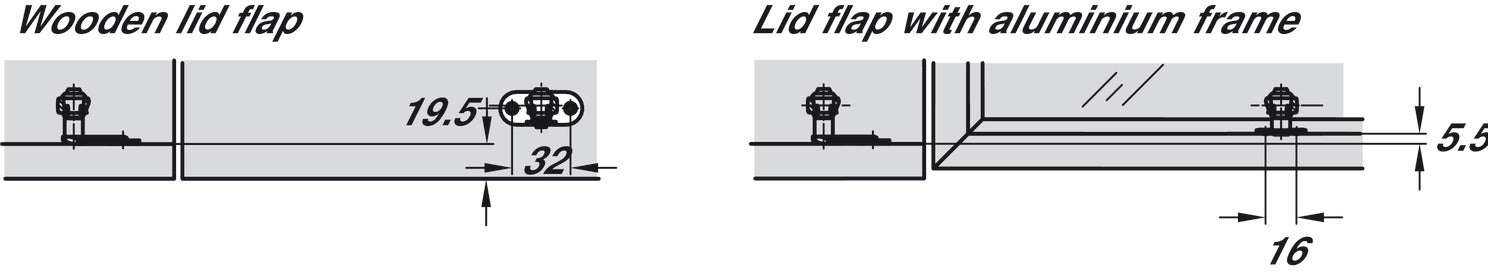

  • Edge distance: 37 mm
  • Mounting:

    For left and right hand use

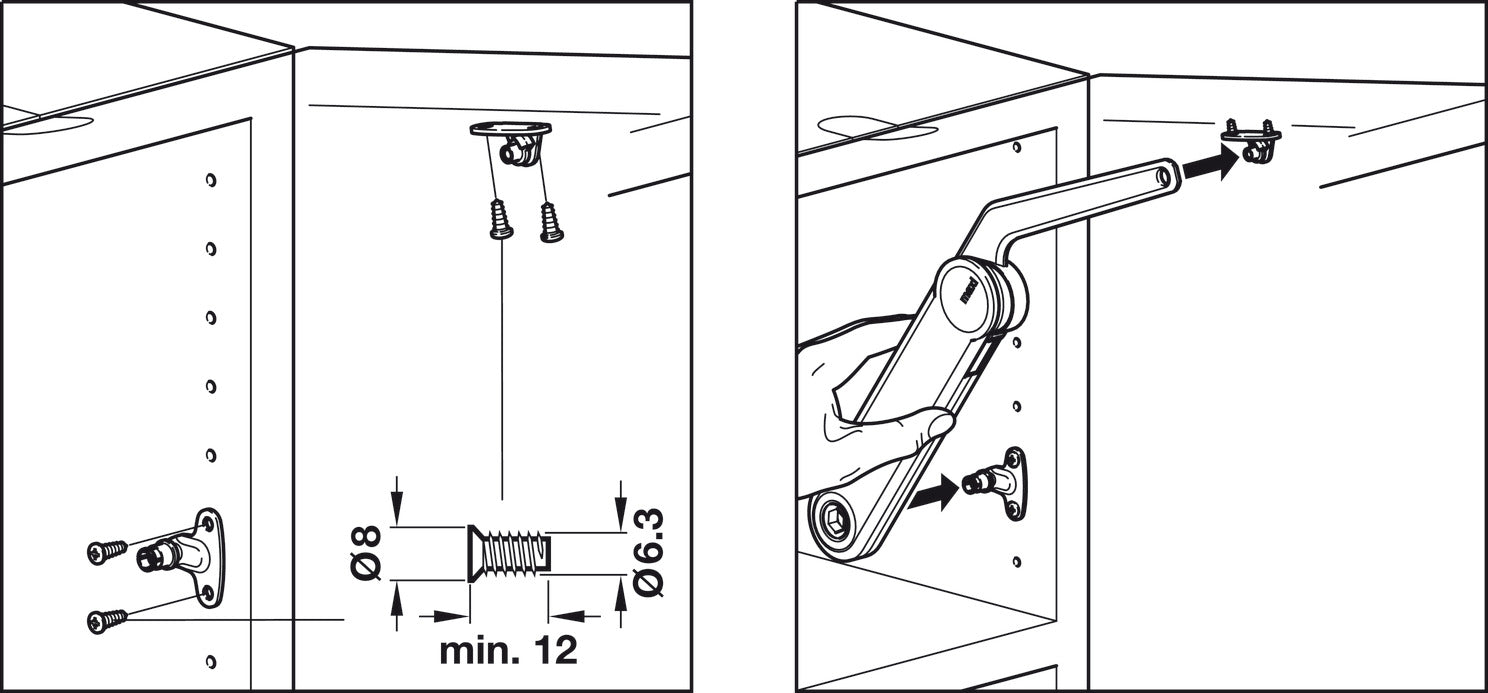

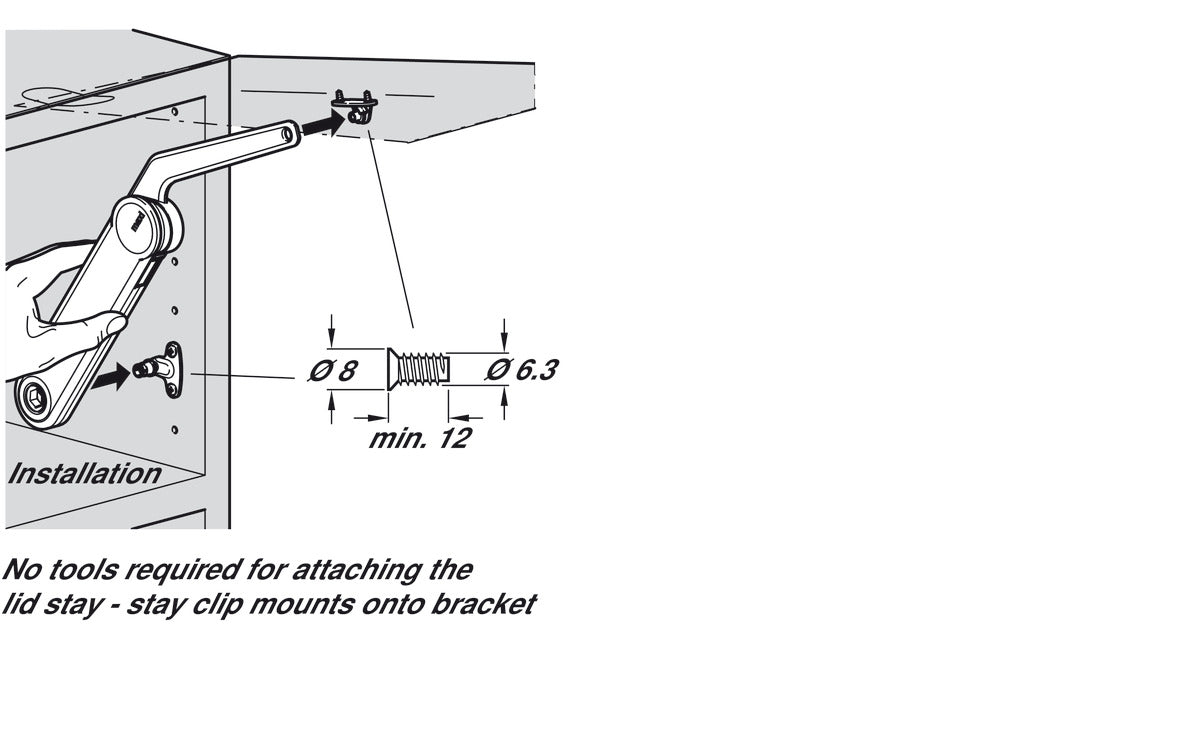

  • Installation:

    Without tools (clip system)

  • Cover color/finish: Nickel plated
  • Color/finish: Fitting: Nickel plated Mounting brackets and screw-on brackets: Nickel plated, Nickel plated
  • Flap fitting type : Stay flap fitting
  • Model series : Maxi
  • Material :

    Fitting: Zinc alloy
    mounting and screw-on bracket: Steel
    cover cap for adjusting screw: Plastic

  • Adjustment facility :

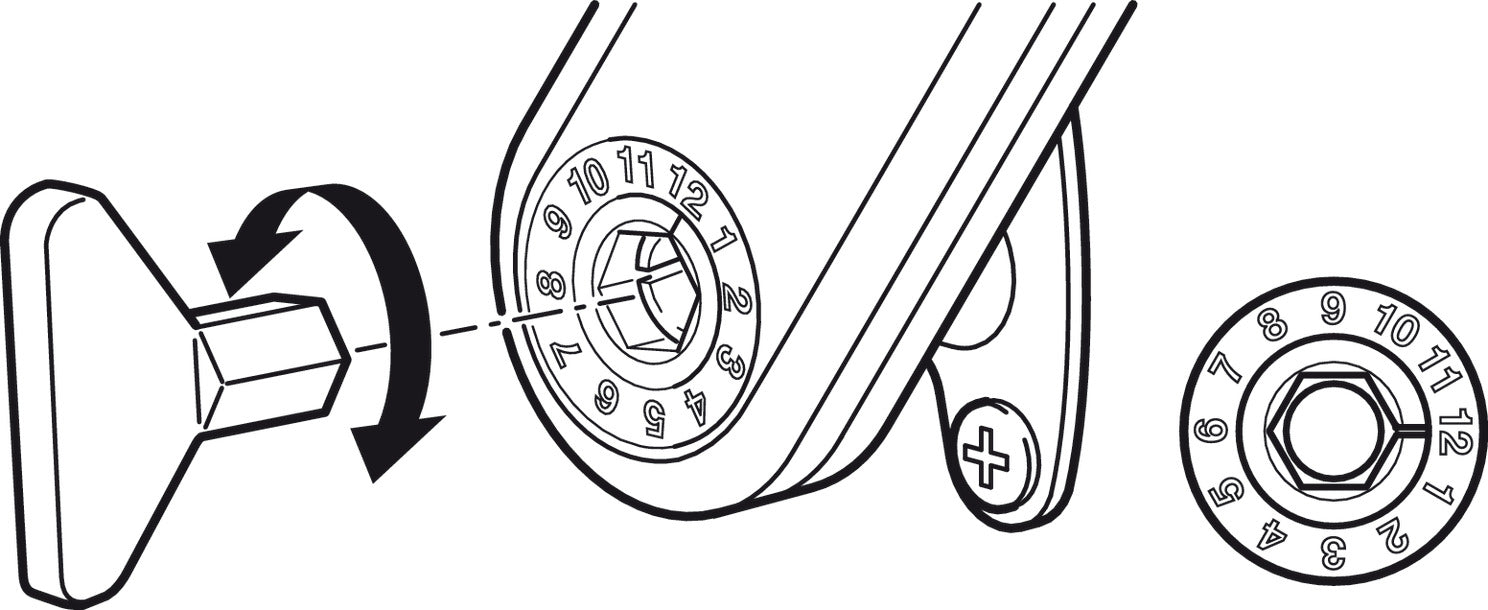

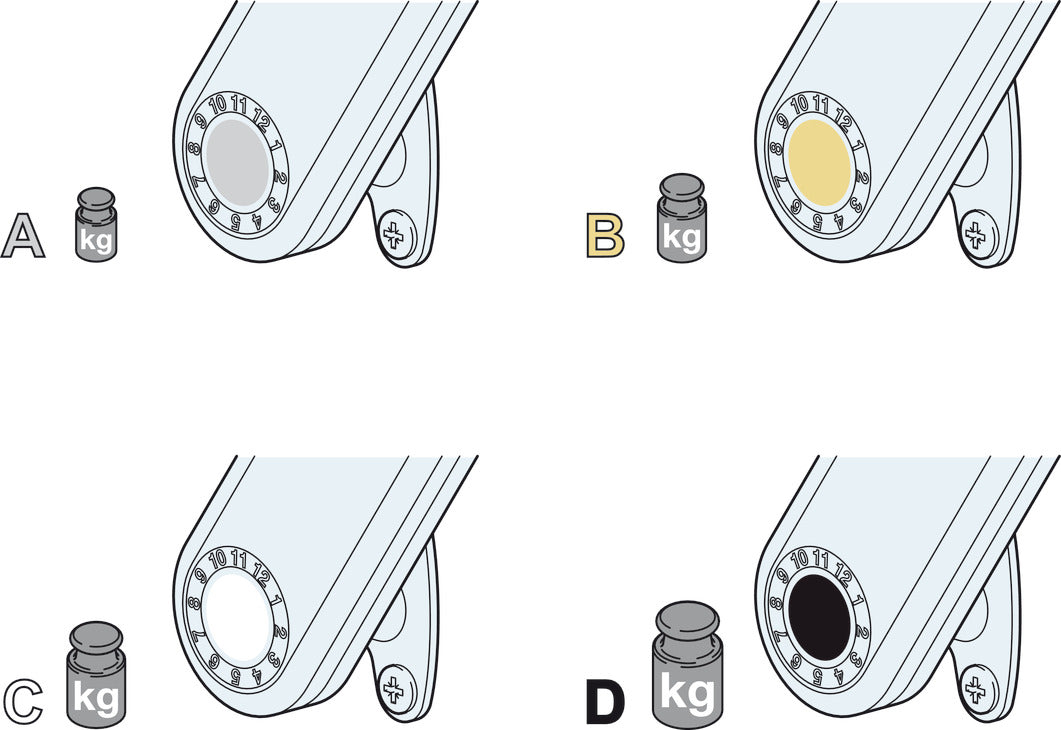

    Height ±2 mm side +3/-1 mm tilt ±1.5 mm and holding power adjustment with SW10 Allen key facility

  • Opening angle : 75 – 110 °
  • Order reference :

    Use two Maxi fittings for flap widths from 600 mm (23 5/8”) and above.

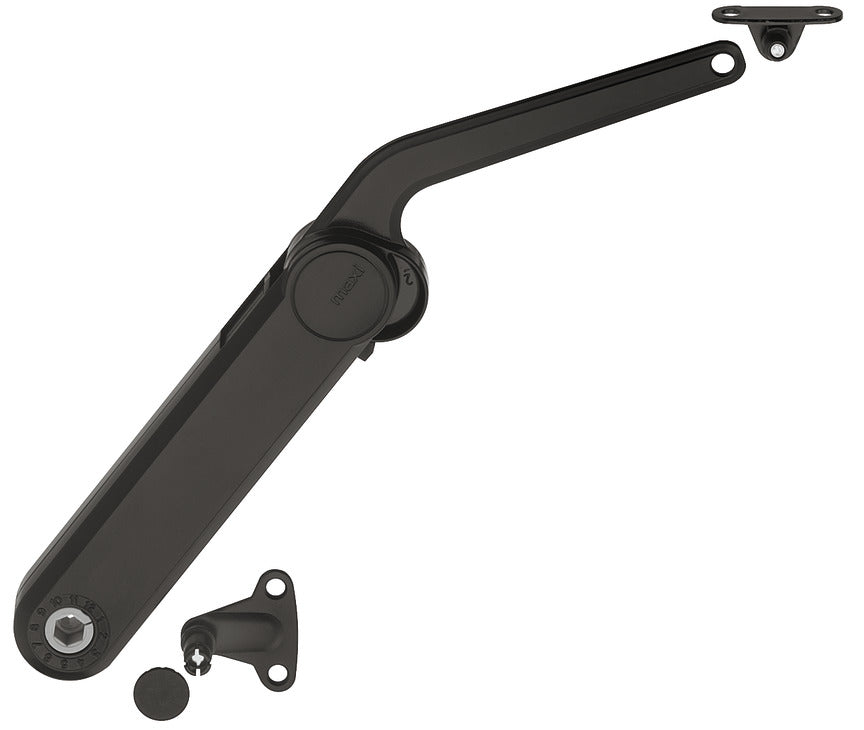

  • Supplied with :

    1 flap stay
    1 mounting bracket for cabinet

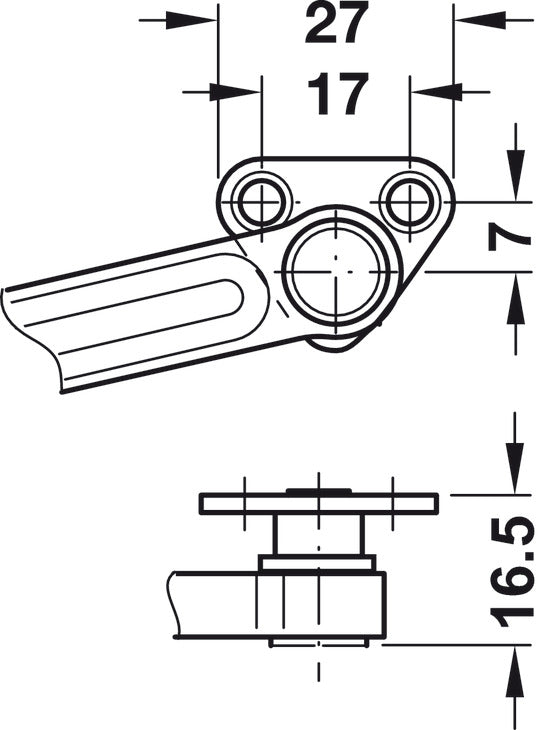

    1 screw-on bracket for flap (for Euro screws)
