Lift-Up Table Top Fitting, Tavoflex

$144.29
$144.29
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

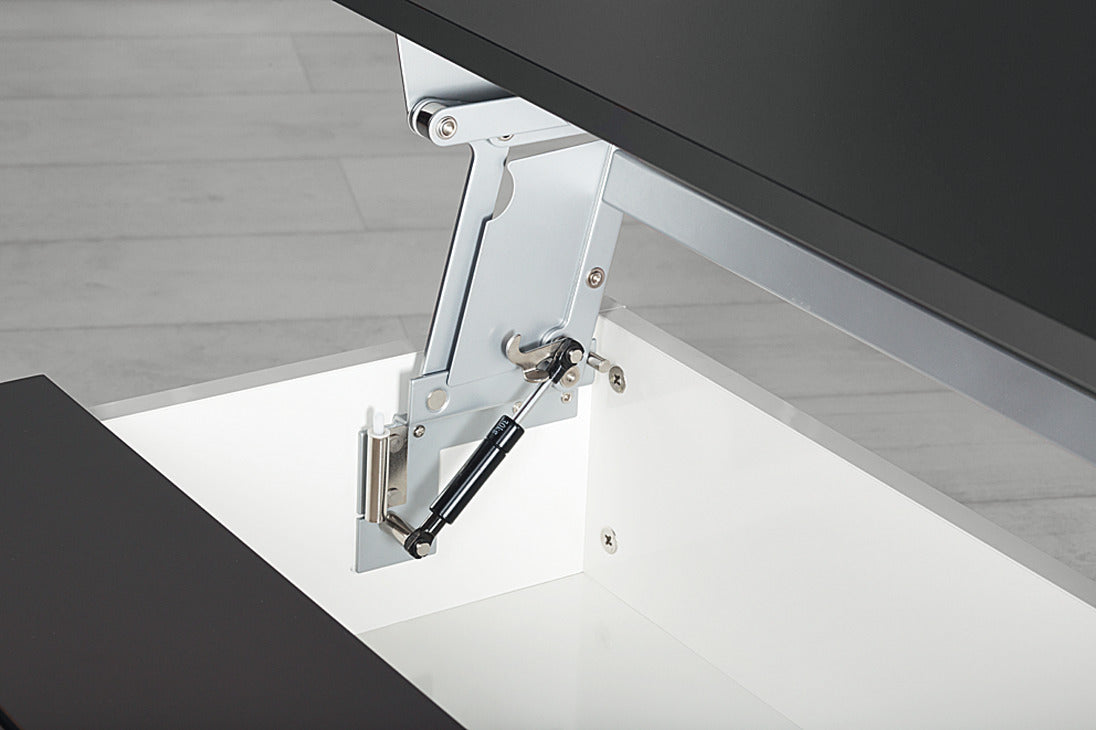

  • The table top is lifted easily using gas-filled struts.
    The integrated soft closing mechanism provides gentle, silent closing.
    With safety catch to prevent unintentional closing.

  • Cross bar cannot be cut down
    Min. gap between a fixed table top 6 mm (1/4”)

  • Color/finish: White aluminium, similar to RAL 9006, White aluminium, similar to RAL 9006
  • Installation width max.: 698 mm
  • Recommended panel thickness: 16 mm
  • For min. panel thickness: 5/8"
  • Area of application :

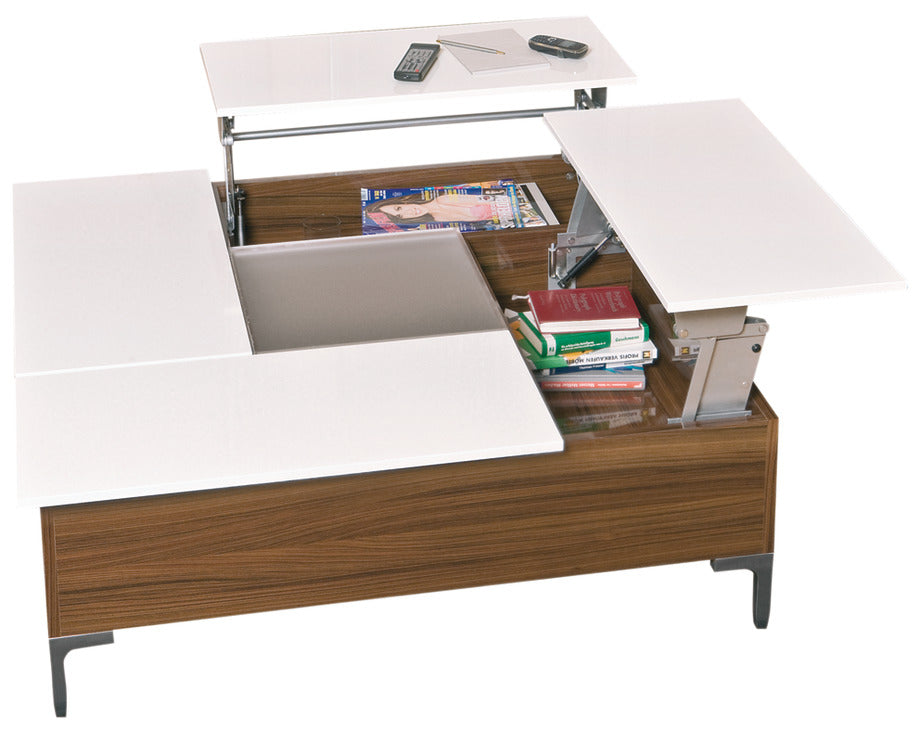

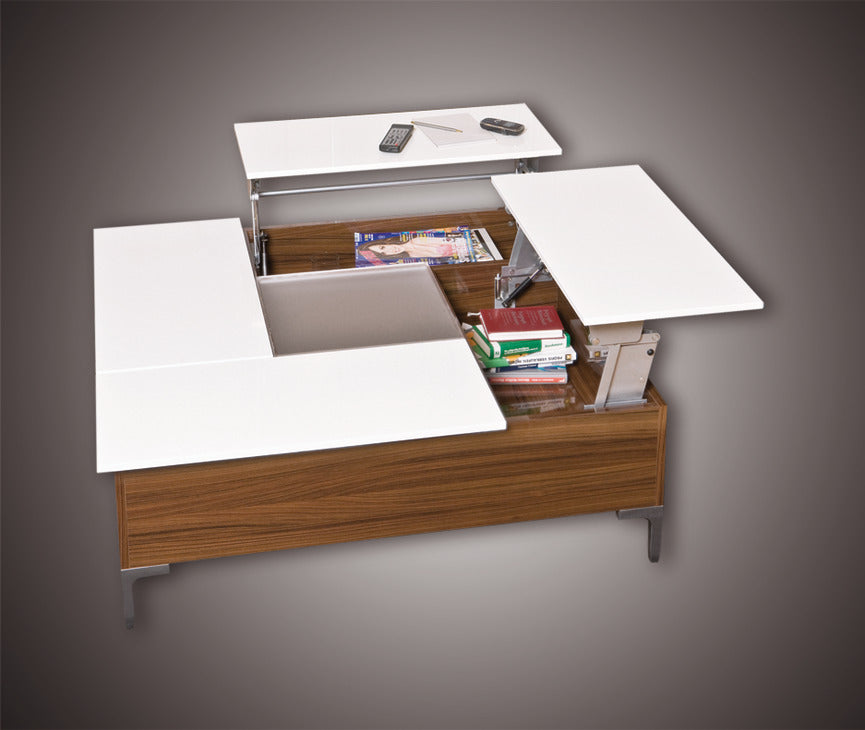

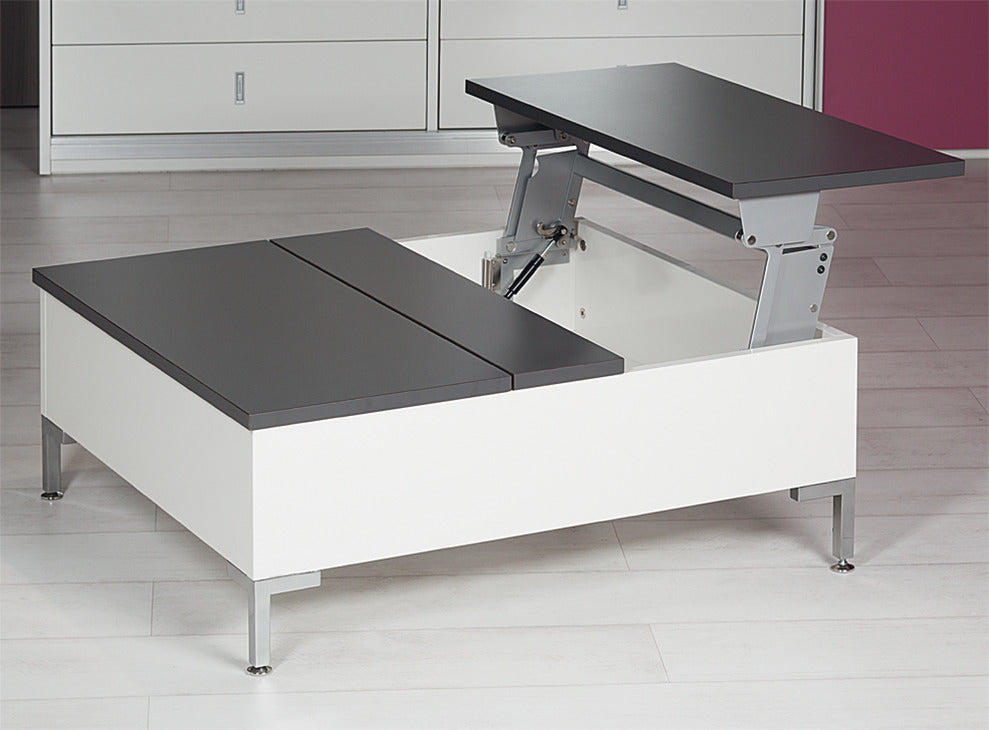

    For raising and forward swivelling of table tops and worktops, e.g. for coffee tables

  • Version :

    With side finger protection

  • Material :

    Steel

  • Load bearing capacity : 5 kg
  • Installation :

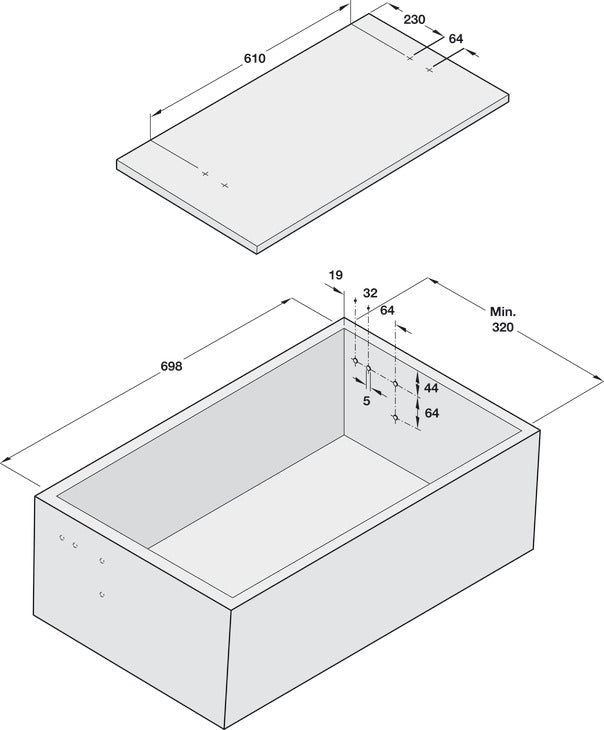

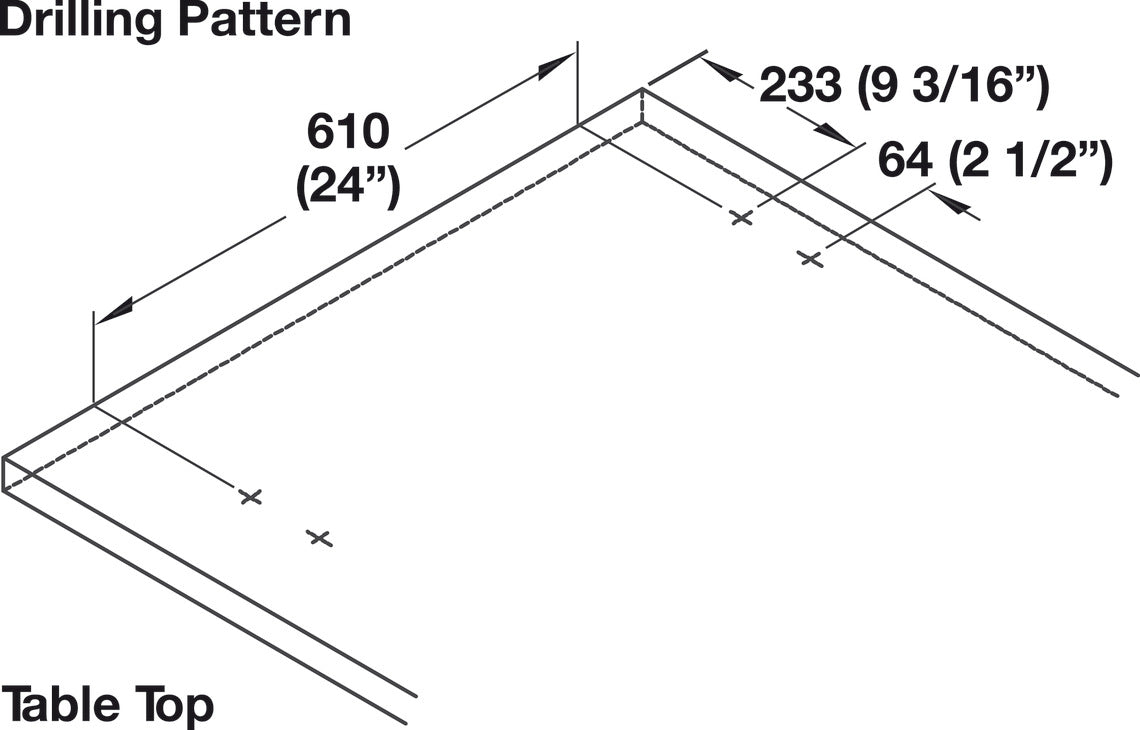

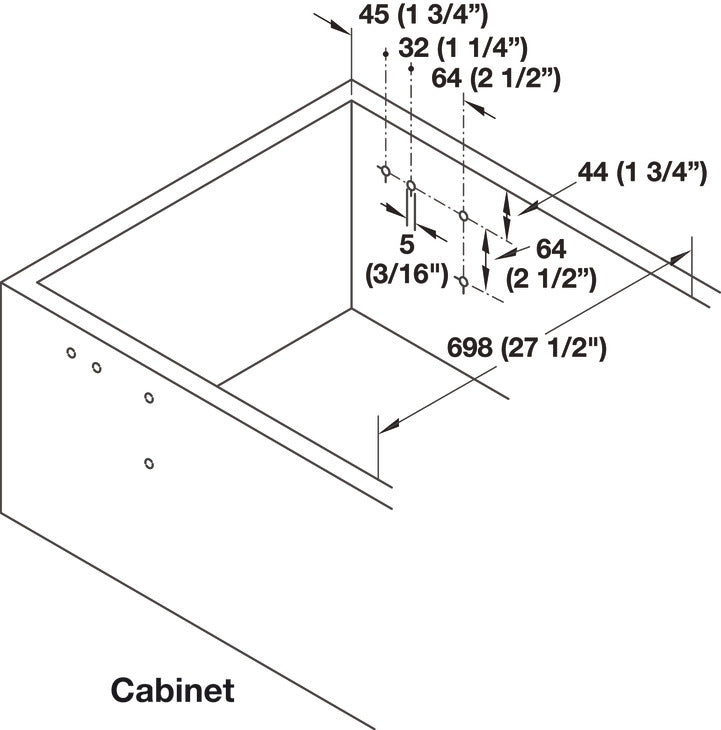

    For screw mounting into pre-drilled 32 mm (1 1/4") series drilled holes

  • Supplied with :

    2 Swing-up table top fittings
    Cross bar
    Installation instructions
