Sliding Door Hardware, Slido F-Line21 20A, set

$47.15
$47.15
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Number of doors: 1
  • For door thickness: 16 – 19 mm
  • For door weight: ≤20 kg
  • Running position: top
  • Number of rollers: 4
  • Running gear guided by: Friction bearing
  • For door material: wood
  • For door thickness max.: 3/4"

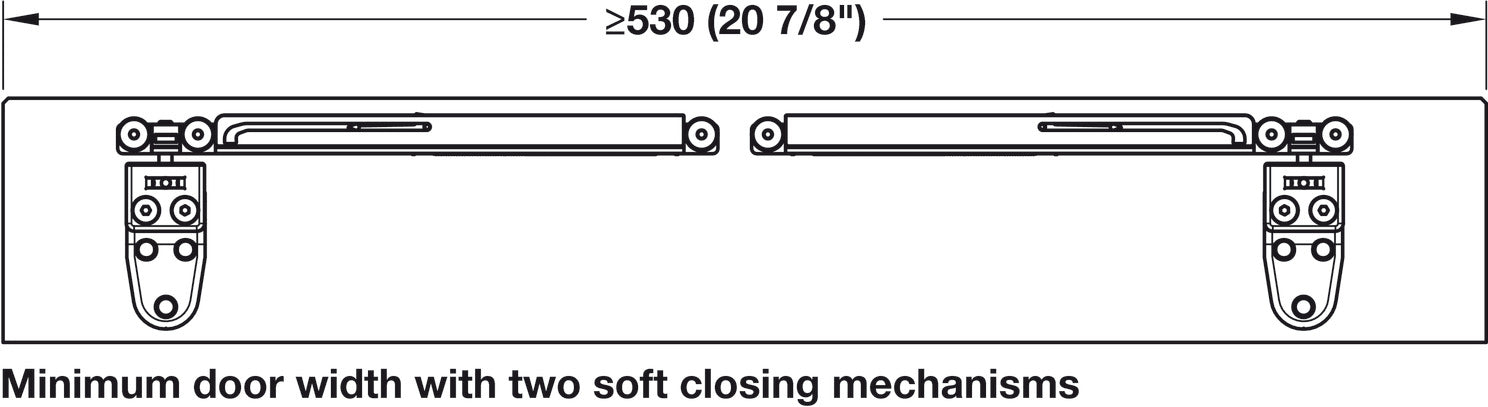

  • Door width max.: Max: 4' 1 3/16"
  • For door thickness min.: 5/8"
  • Length (inch): 2' 1 19/32"
  • Model series : F-Line21
  • Set : Set without tracks
  • For door height : ≤1,400 mm
  • Door stopper :

    Top clip-in door stopper or soft and self closing mechanism, for sliding into running track

  • Material/finish : Laufwerk: Plastic Guide: Plastic Mounting plate: Zinc alloy Rollers: Plastic Axis: Steel
  • Adjustment facility : Height ±2 mm on running gear using adjusting wheel
  • Door adjustment via : adjusting wheel

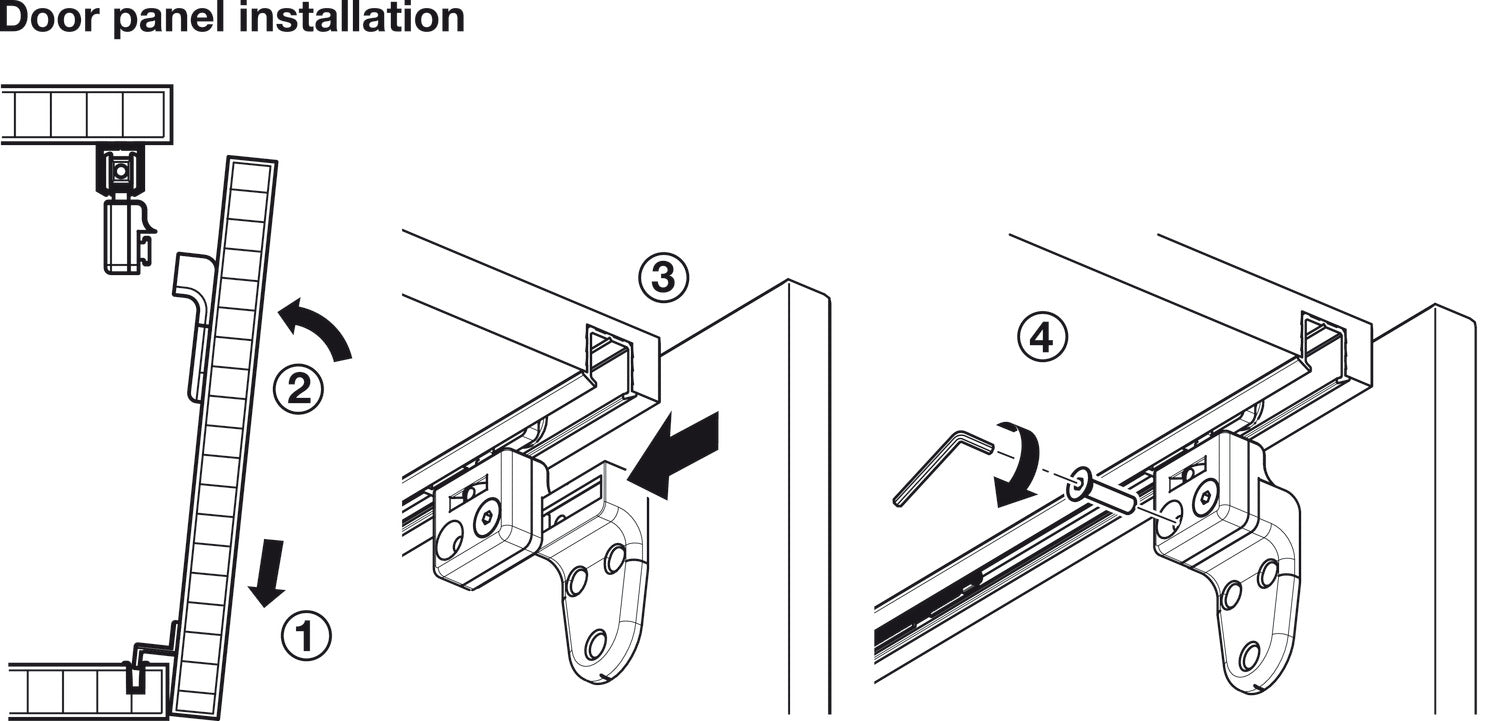

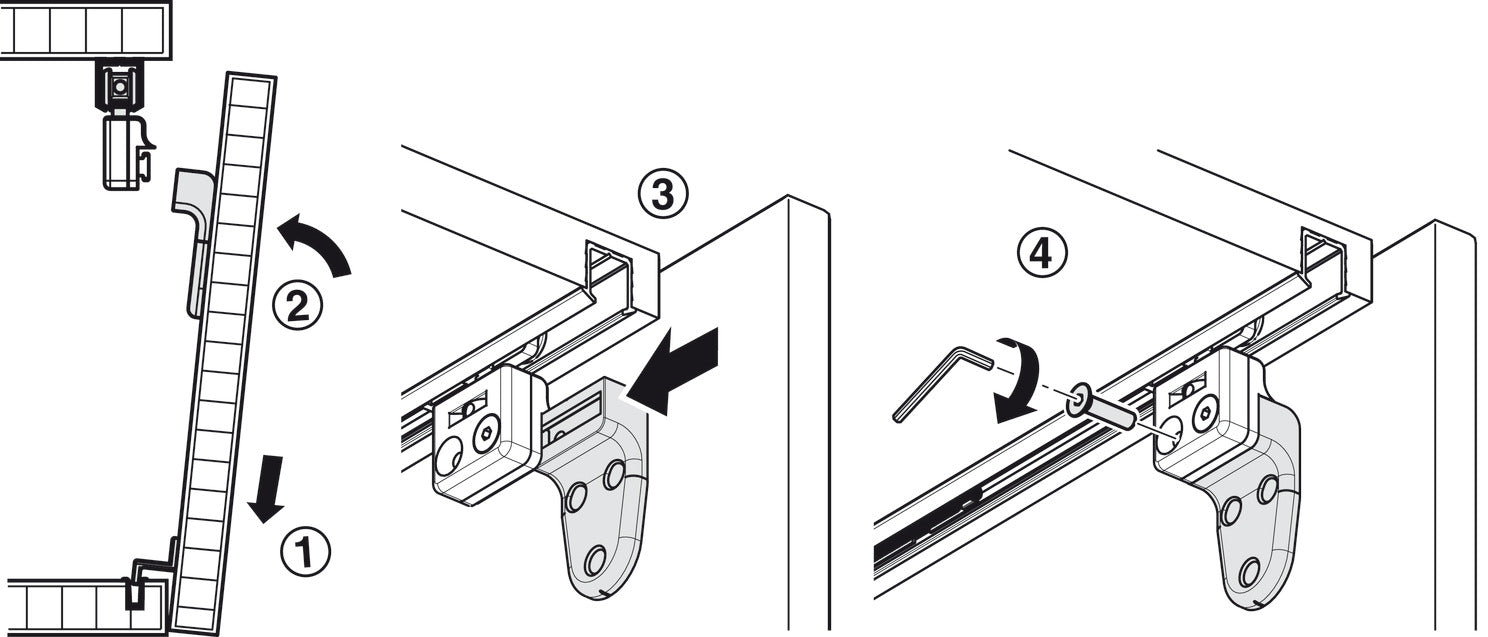

  • Installation : Guide for screwing to door wing, Running gear for slide-in and screw fixing, Mounting plate for screw fixing

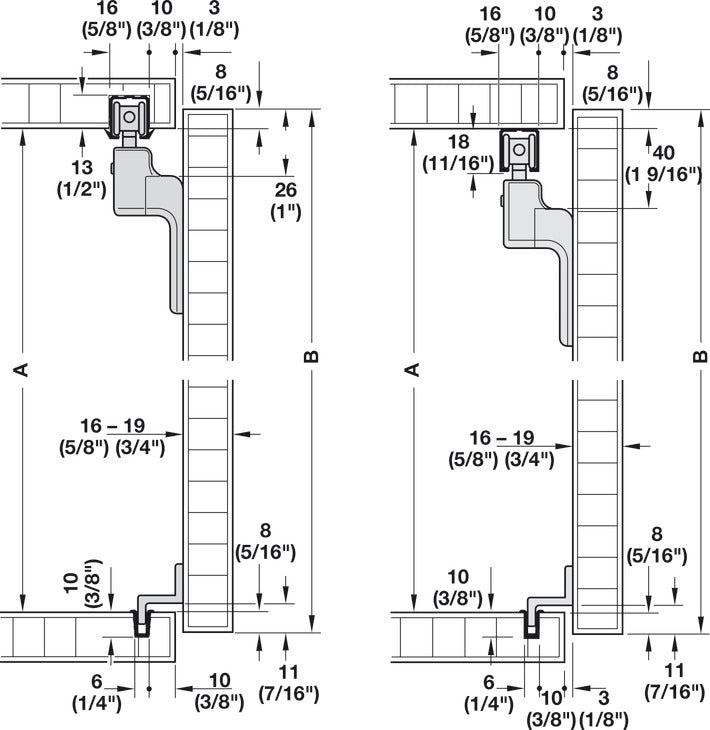

  • Installation reference :

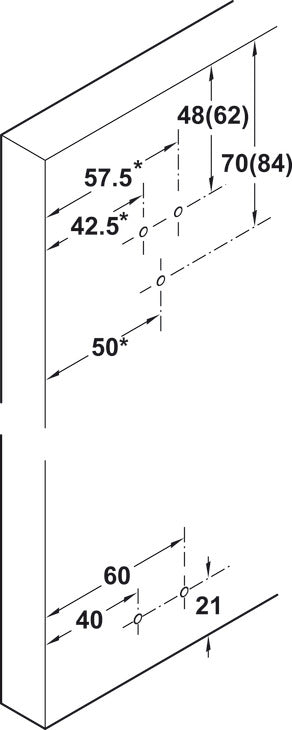

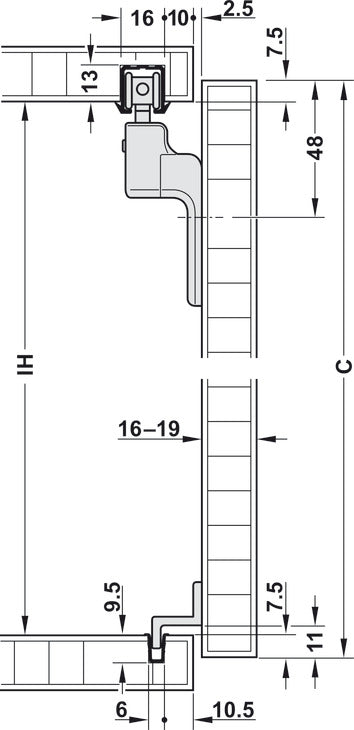

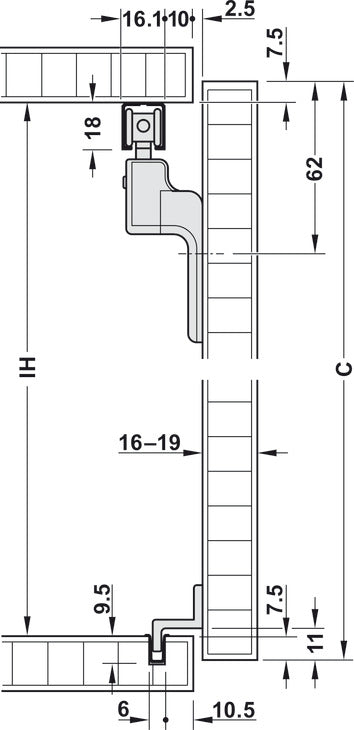

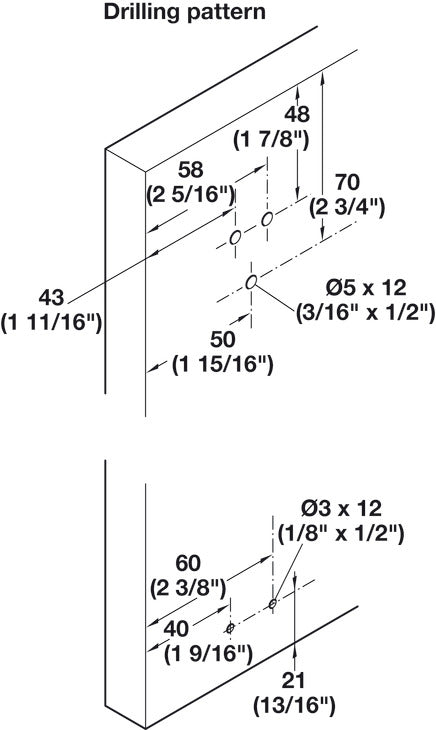

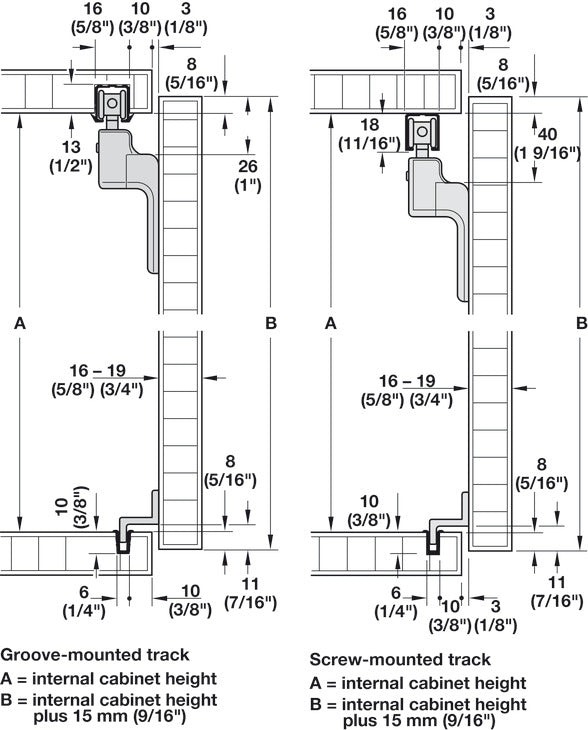

    The dimensions 48/70 are increased by 14 mm when mounting tracks for screw fixing.
    Dimensions that are measured from the outer edge of the door must be adapted accordingly where doors overlap the side panel.

  • Brand : Slido
  • Type of opening : linear
  • Number of doors per system max. : 1
  • Note :

    The dimensions 48/70 are increased by 14 mm when using tracks for screw fixing.
    Dimensions that are measured from the outer edge of the door must be adapted accordingly where doors overlap the cabinet side panel.

  • Order reference :

    Please order running and guide tracks separately.
