• Sliding Door Hardware, Slido F-Line21 20C, set
1 15

Sliding Door Hardware, Slido F-Line21 20C, set

$131.58
$131.58
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Smooth running action
    Ideal for small doors

  • Number of doors: 2
  • For door thickness: 16 – 19 mm
  • For door weight: 13 – 20 kg
  • Running position: top
  • Number of rollers: 4
  • Height adjustment facility: ±2 mm
  • Running gear guided by: Friction bearing
  • For door material: wood
  • For door thickness max.: 3/4"
  • Door width max.: Max: 4' 1 3/16"
  • For door thickness min.: 5/8"
  • Length (inch): 2' 1 19/32"
  • Cabinet version : with small door wings
  • Model series : F-Line21
  • Set : Set without tracks
  • Area of application :

    For small doors

  • Door stopper :

    Top clip-in door stopper or as soft and self closing mechanism, for sliding into running track

  • Material/finish : Housing: Plastic Laufwerk: Plastic Guide: Plastic Rollers: Plastic Axis: Steel
  • Adjustment facility : Height adjustment facility: ±2 mm, ±2 mm on running gear using adjusting wheel
  • Door adjustment via : adjusting wheel

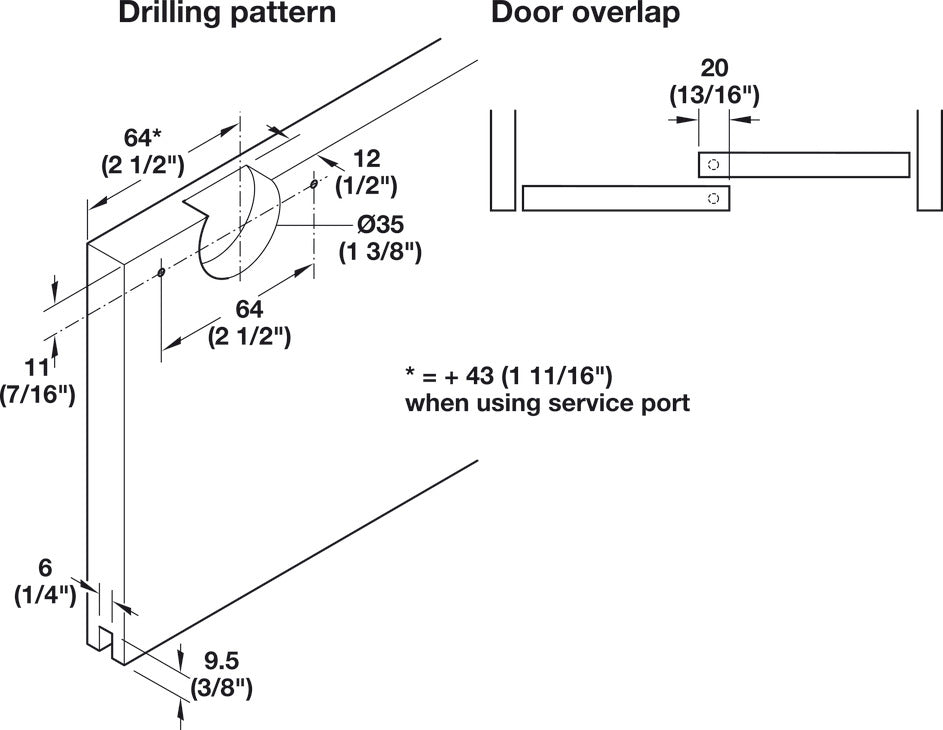

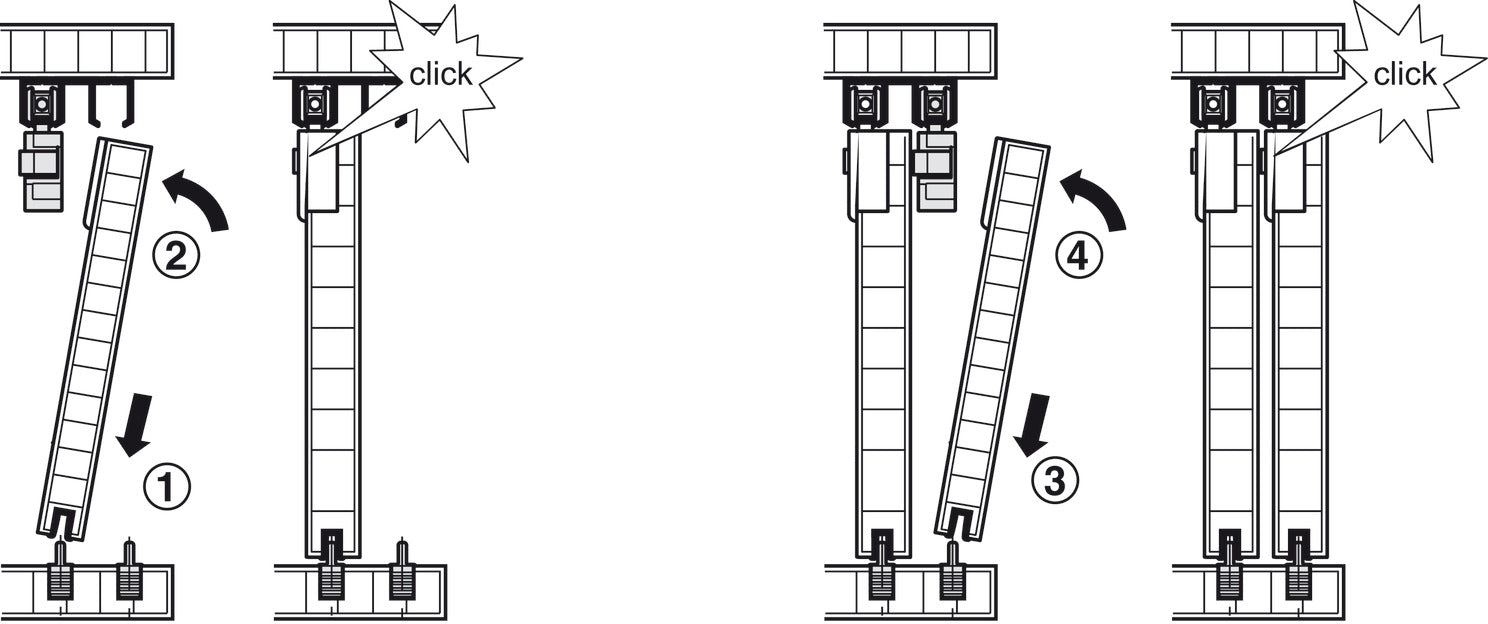

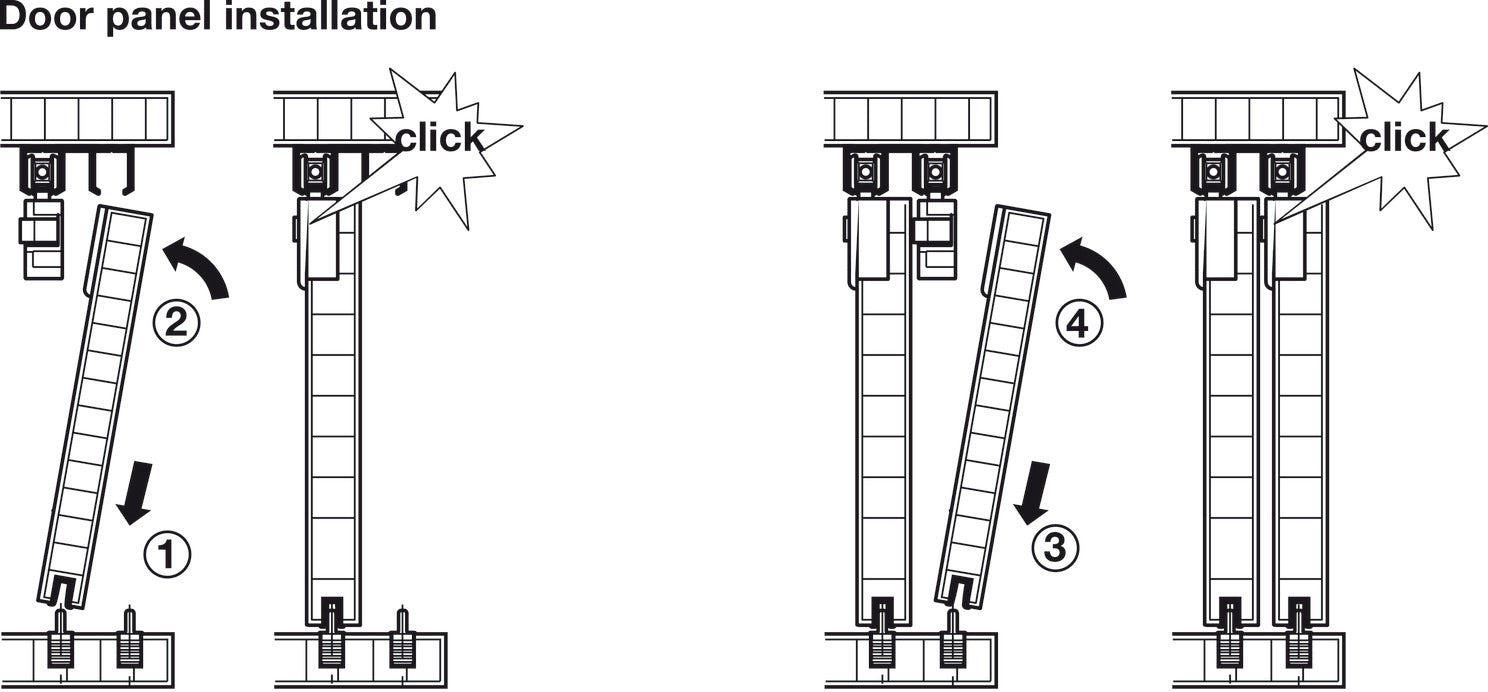

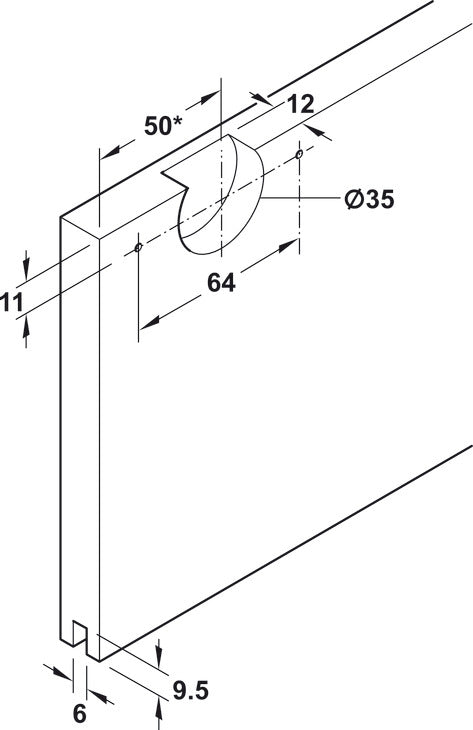

  • Installation : Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)
  • Note on door weight :

    We recommend that you adhere to the minimum door weight.

  • Brand : Slido
  • Type of opening : linear
  • Number of doors per system max. : 1 to 3
  • Note :

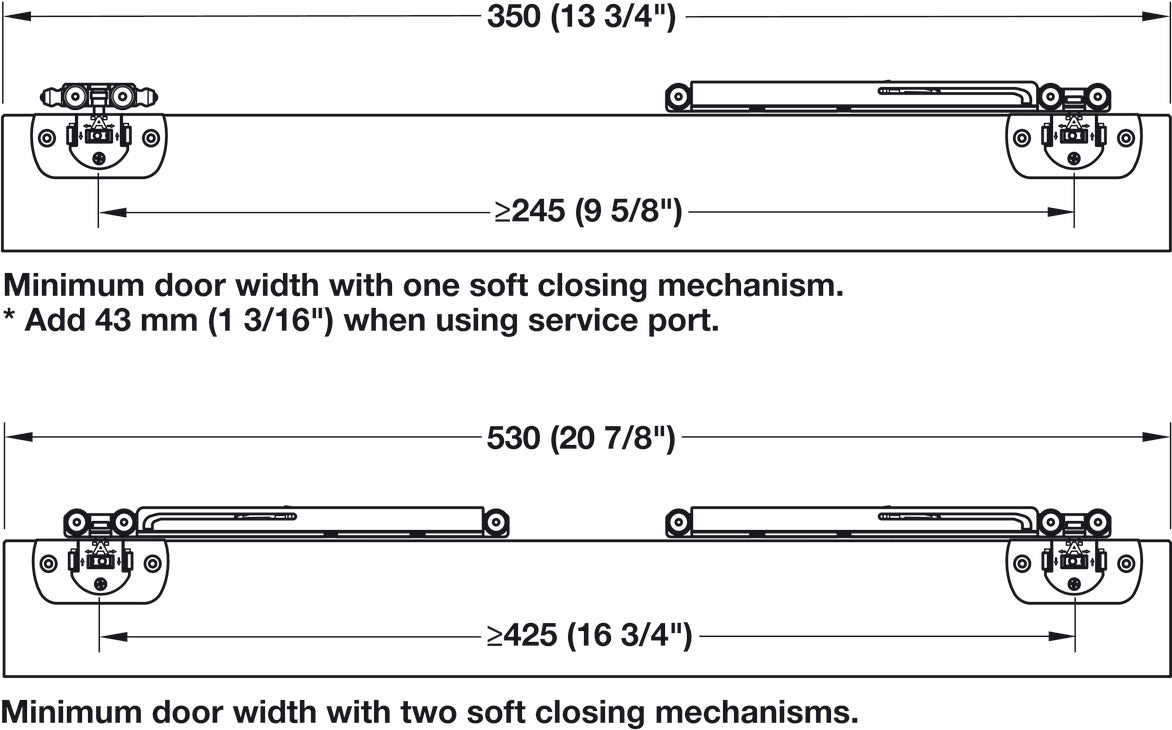

    The pitch length of the running gears must be min. 245 mm wit soft closing mechanism on one side and min. 425 mm with soft closing mechanism on both sides.Inspection support cannot be used in combination with running gear with soft and self closing mechanism.

  • Order reference :

    Please order running and guide tracks separately.
