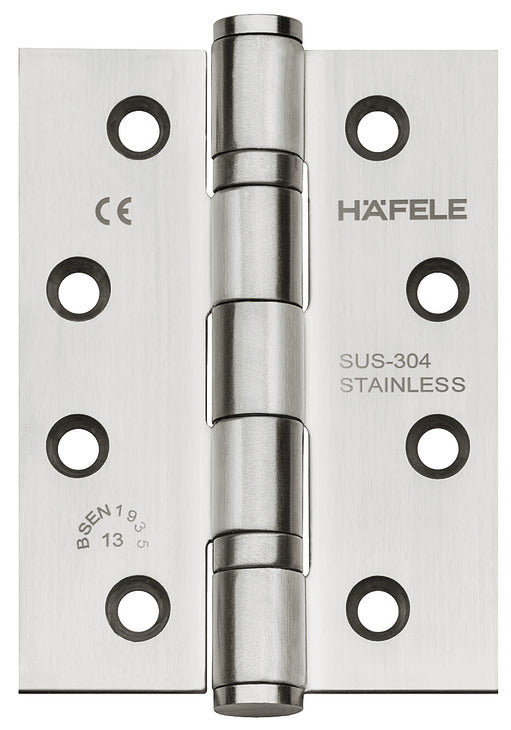

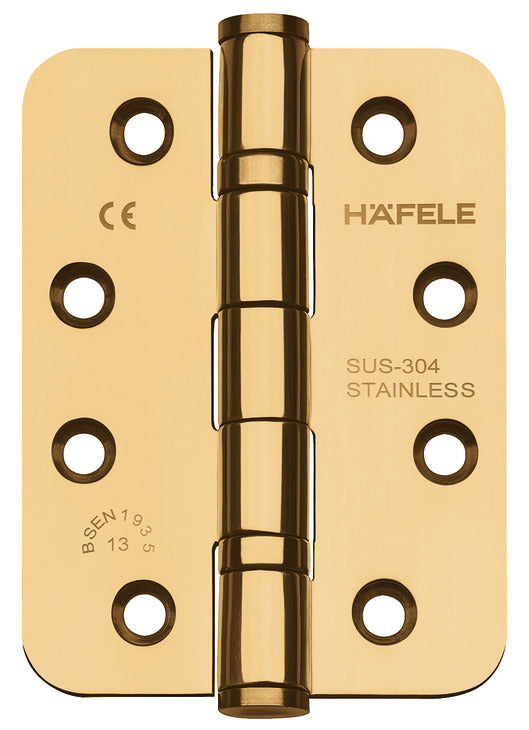

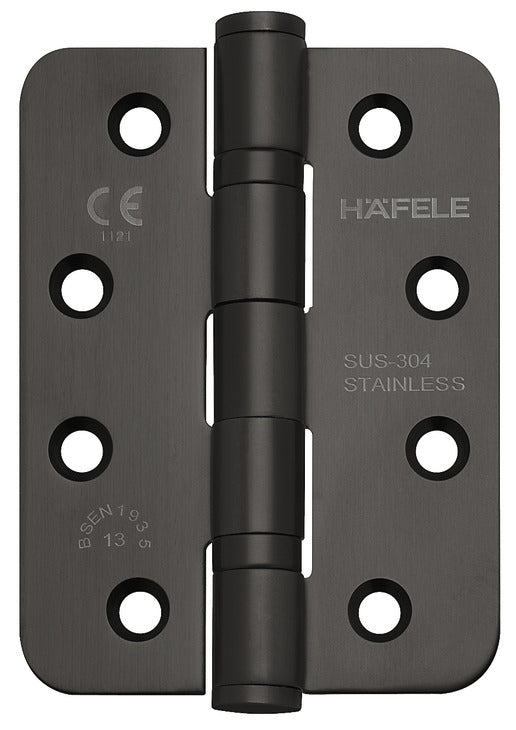

• Butt Hinge, Startec, Stainless Steel, 4" x 3"
1 10

Butt Hinge, Startec, Stainless Steel, 4" x 3"

$16.61
$16.61
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

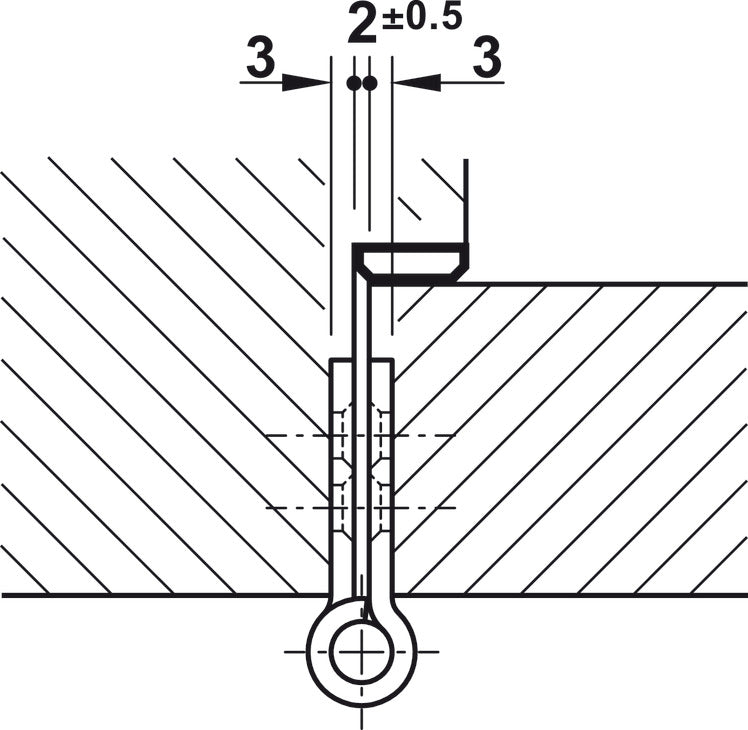

  • Mounting: For DIN left and DIN right hand use

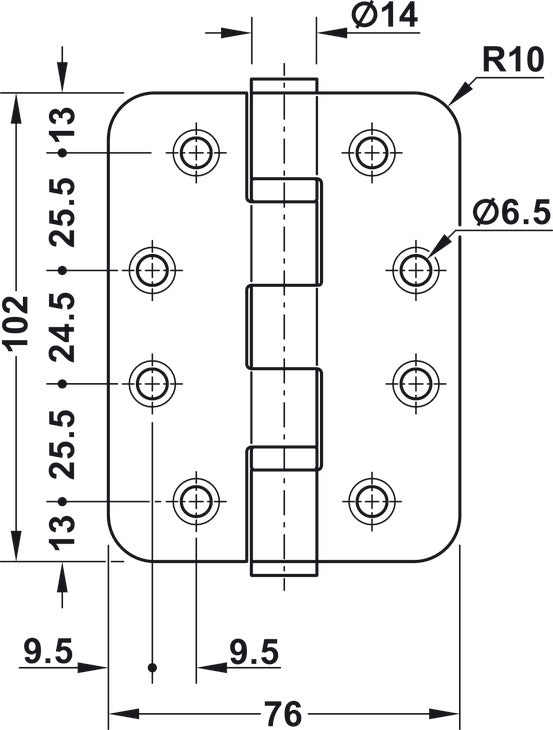

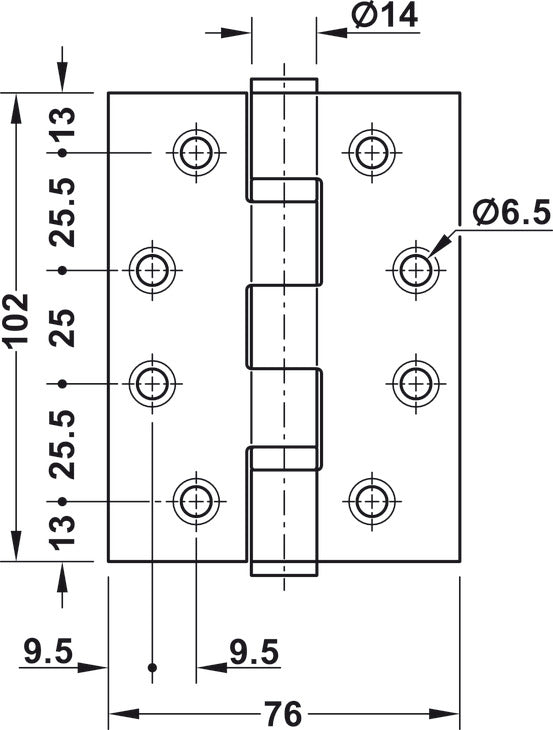

  • Total width: 76 mm
  • Material: Stainless steel, quality 1.4301/AISI 304

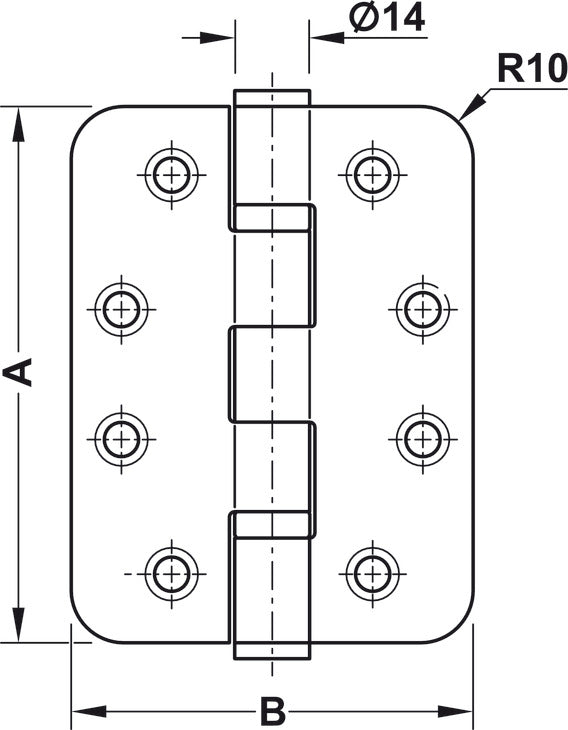

  • Knuckle diameter: 14 mm
  • Knuckle diameter: 9/16"
  • Flange thickness: 3.5 mm
  • Flange thickness: 1/8"
  • Flange height: 102 mm
  • Radius: 10 mm

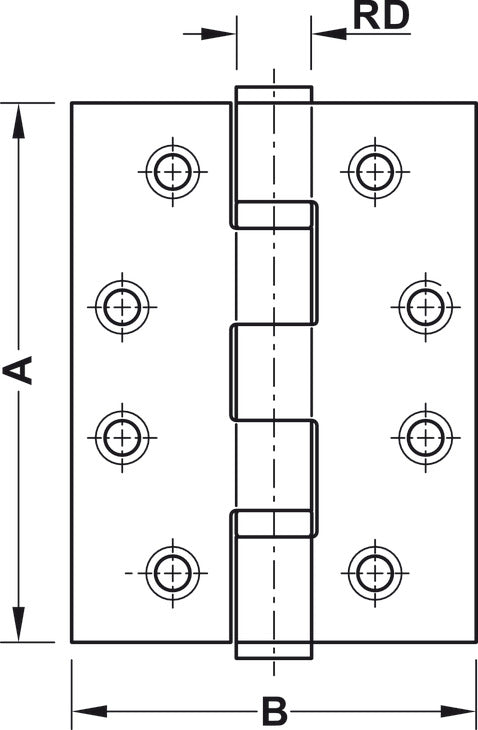

  • Dim. A: 4"
  • Dim. B: 3"
  • Area of application :

    For flush interior doors with wood or steel frame

  • Max. door weight for 2 hinges : 120 kg
  • Bearing type : With fixed pin, Knuckle with two ball bearings
  • Grade : 4|7|6|1|1|4|0|13
  • Order reference :

    Fixing screws for wooden frames and doors supplied.
    Please order fixing screws for metal frames and doors 020.00.136 separately.
