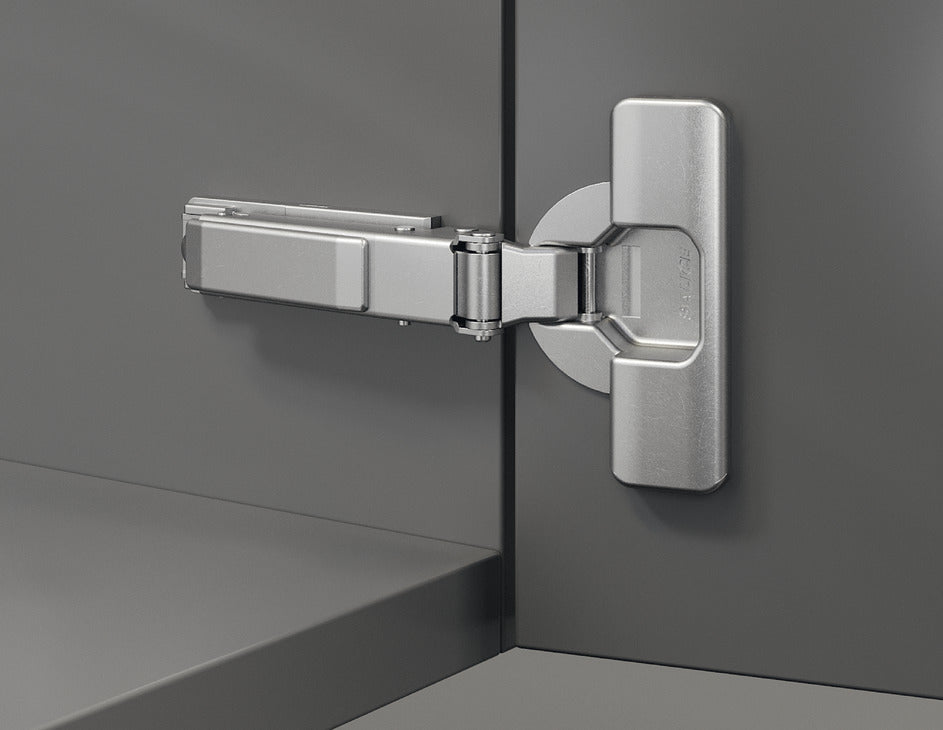

Concealed Hinge, Salice 200 Series, 94° Opening Angle, Silentia+, Nickel Plated

Regular price $5.42
Regular price Sale price $5.42
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

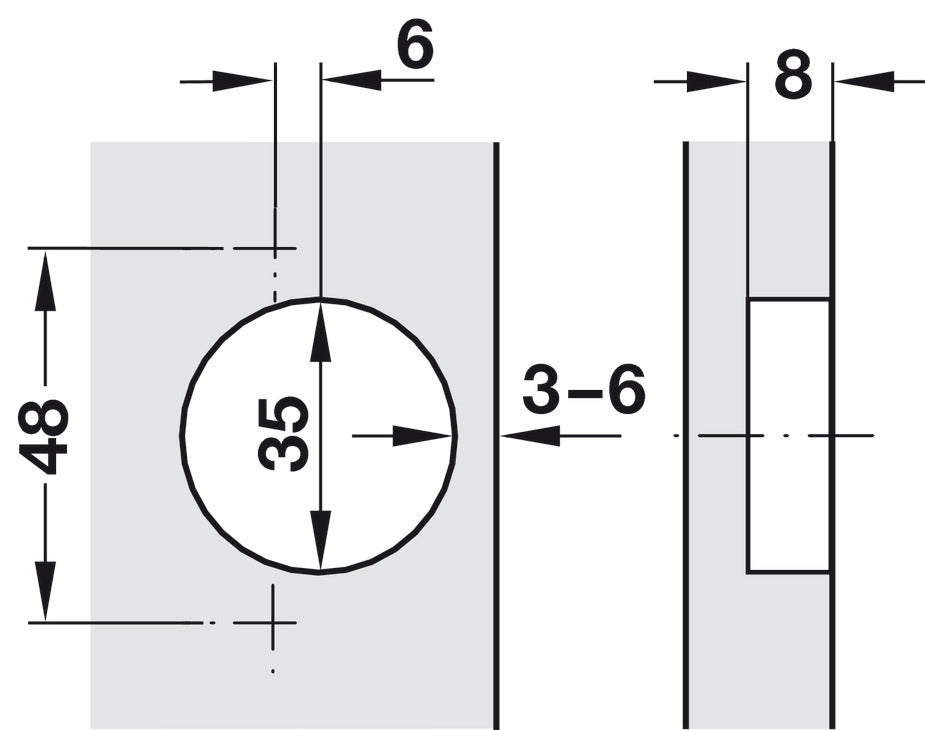

  • Required drilling depth for hinge cup only 8 mm

  • Model series : 100 Series
  • Opening angle : 94 °
  • For door thickness min. : 11/16"
  • Note :

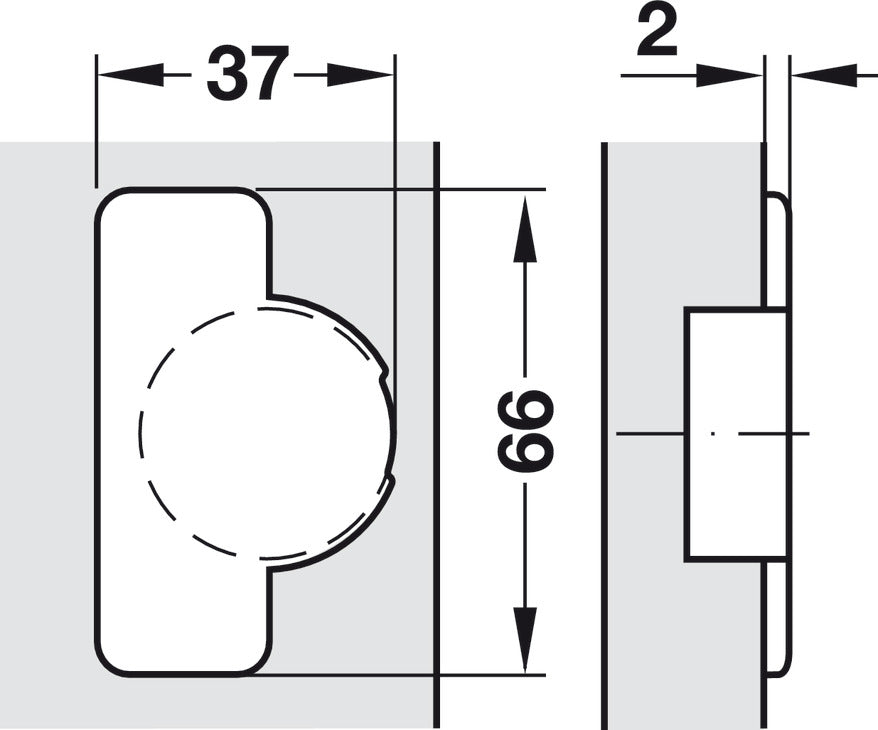

    Dimensions and gap specifications in drawings and tables are calculated:
    Using factory settings
    For mounting plate distance 0 mm

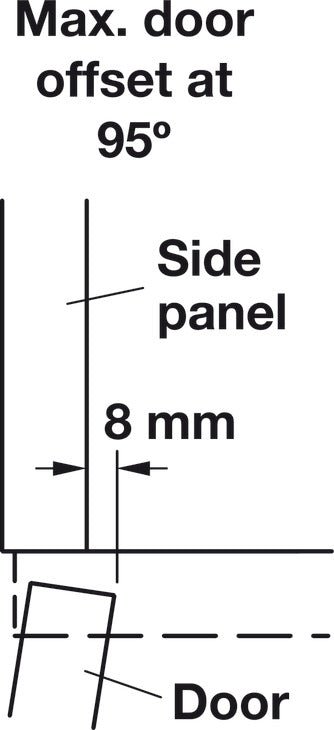

    For door offset with max. opening angle

  • Order reference :

    Mounting plates sold separately
