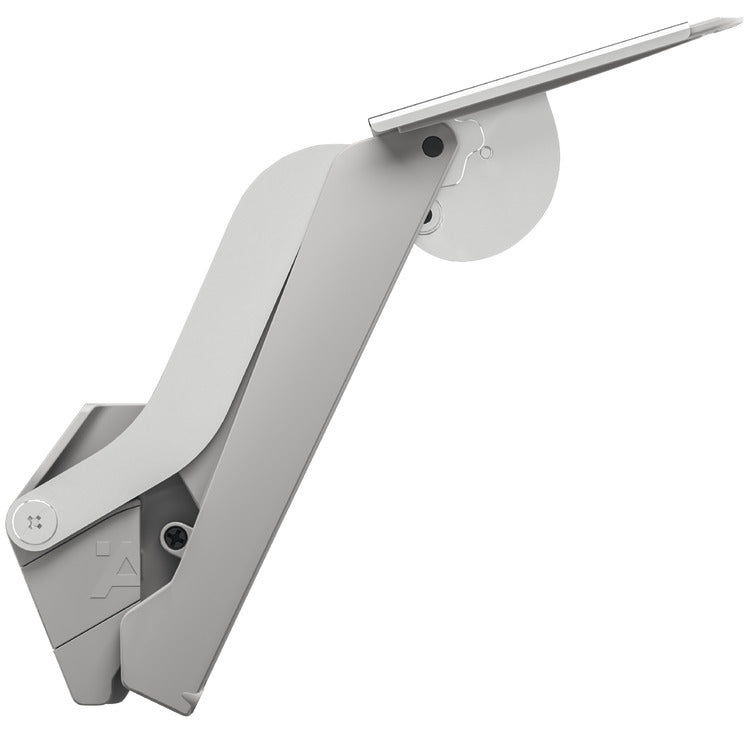

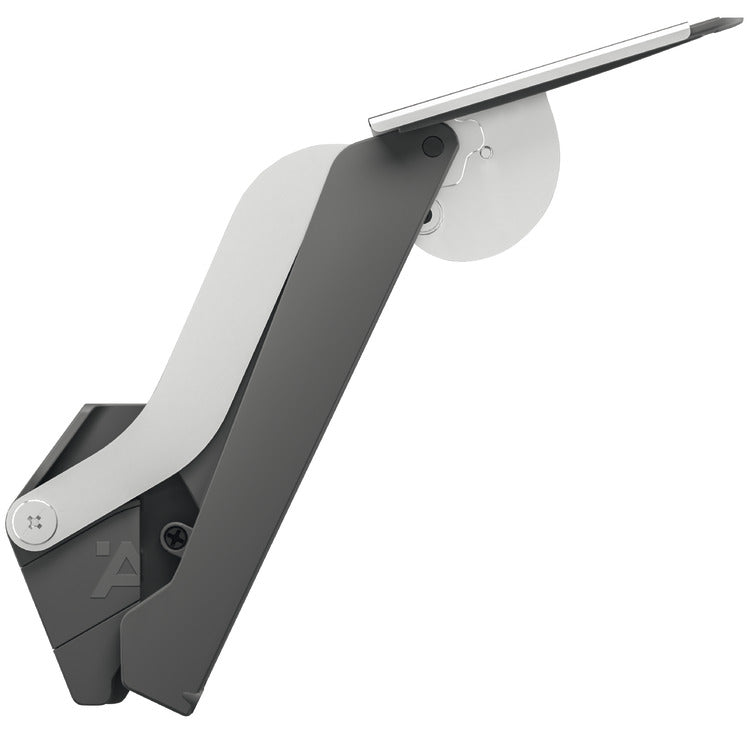

Swing-Up Fitting, Häfele Free space 1.11

$42.56
$42.56
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • For cabinet height: 225 – 650 mm
  • For lid height: 650 mm

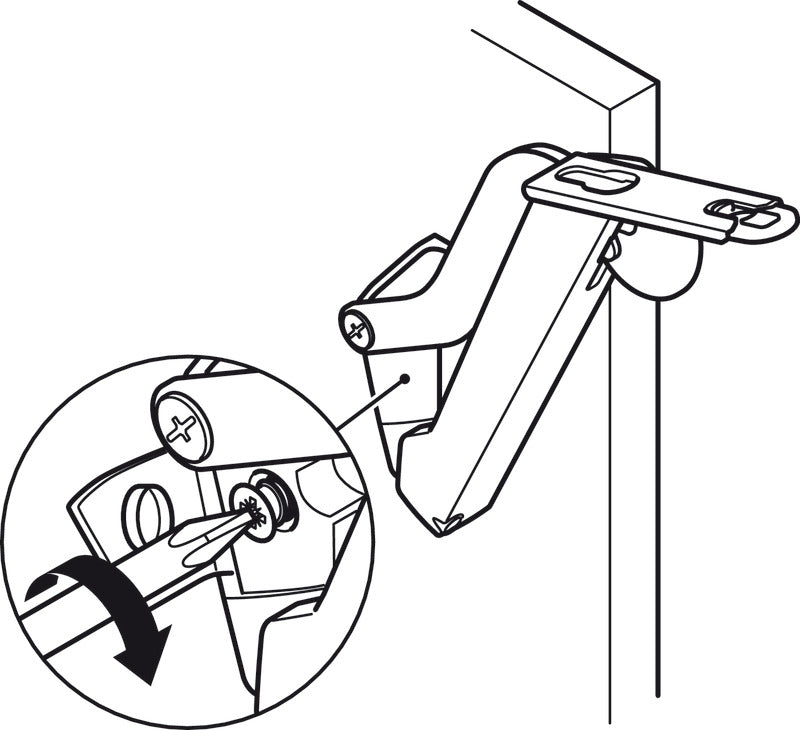

  • Installation:

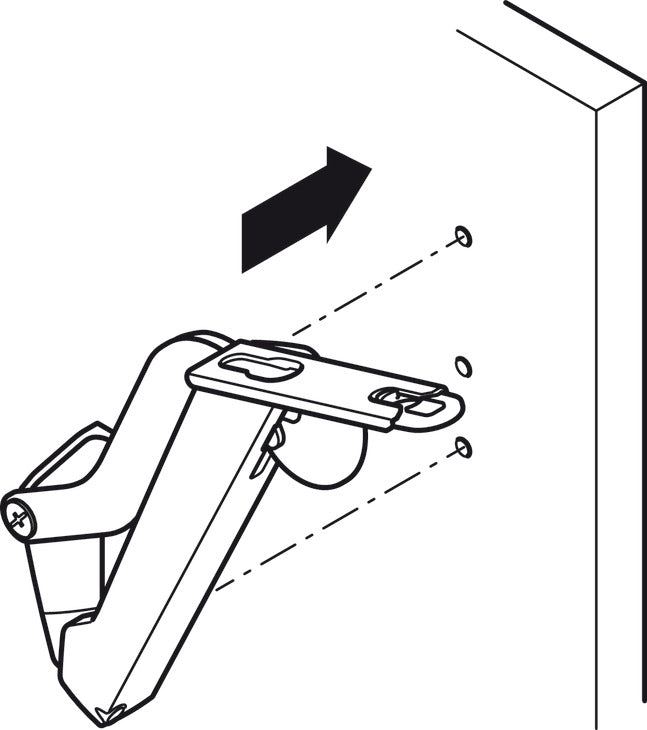

    Fitting for screw fixing with pre-mounted Euro screw,

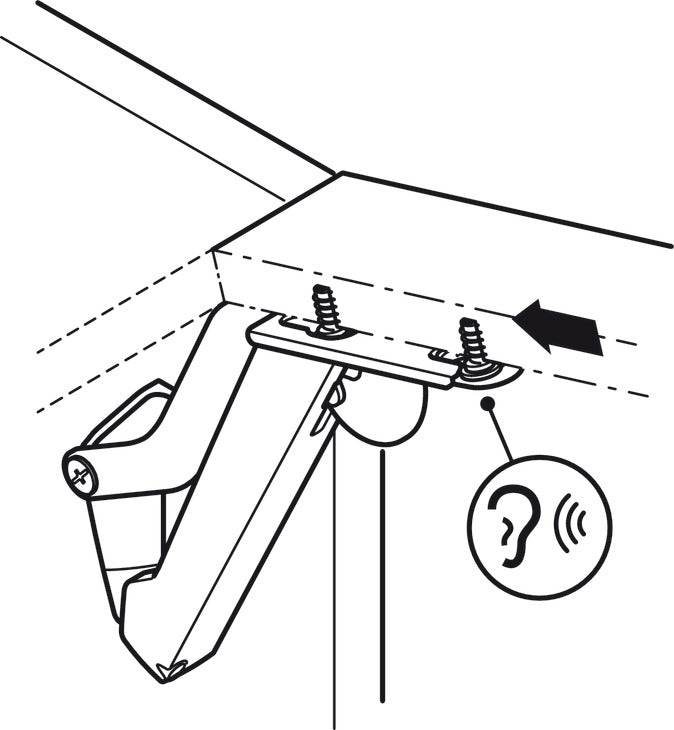

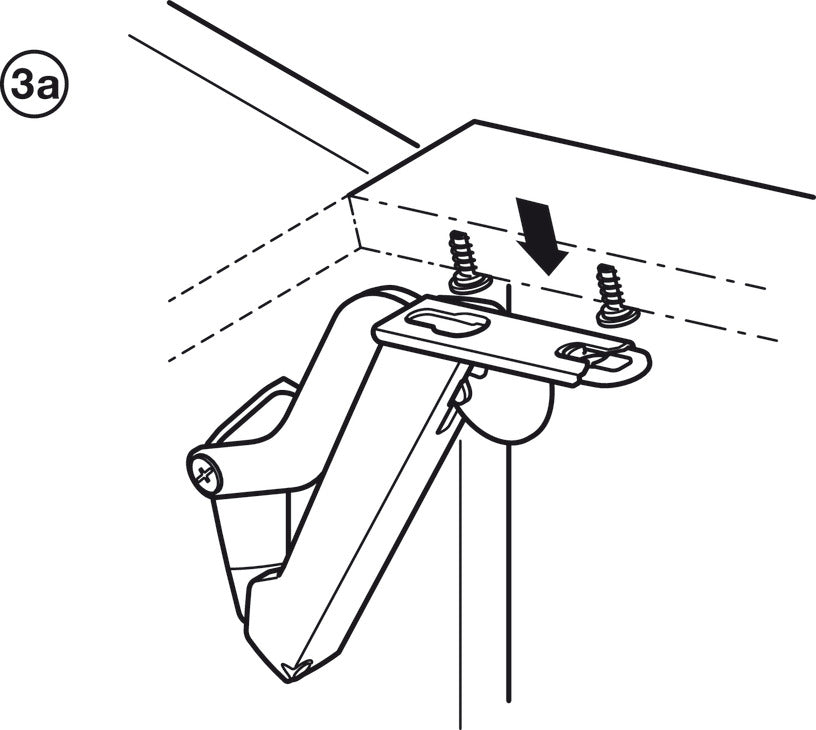

    Front panel without tools, for sliding onto pre-mounted fixing screws

  • Flap fitting type : Stay flap fitting

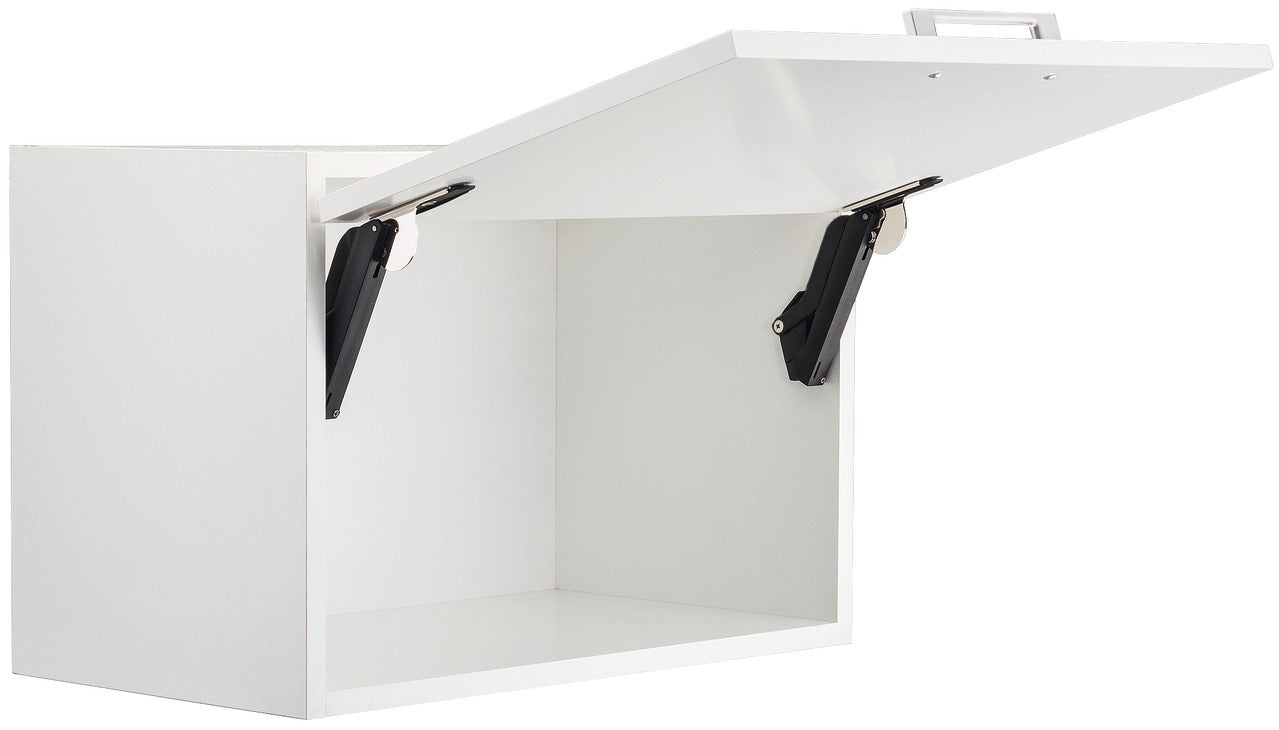

  • Area of application :

    for standard stay flap applications with front height up to 650 mm,
    for standard applications with handle,
    for one-piece flaps made from wood or with aluminium frame, from frame width of 45 mm

  • Model series : Free Space 1.11
  • Material :

    Housing: Plastic,
    Front fixing brackets and support lever: Steel

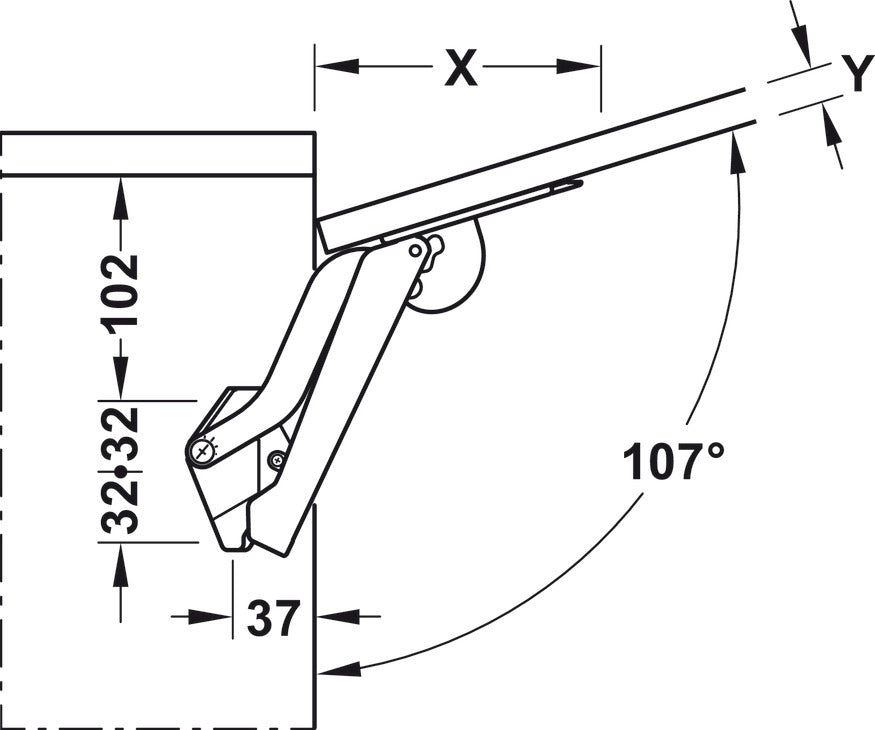

  • Opening angle : 90 – 107 °
  • Lid material : Wood, Aluminum frame
  • Order reference :

    The choice of stay flap fitting for front panels with handle depends on the cabinet height and flap weight including handle.
    See sample measurements table for model selection.
    Please order matching screw set 372.27.600 for aluminium frame front panels from a width of 45 mm.
    We recommend using the stronger fitting model in the overlap area.

  • Supplied with :

    1 stay flap fitting set (1 piece each left/right)
    4 fixing screws for front panel
    1 set of installation instructions with paper drilling template for side panel
