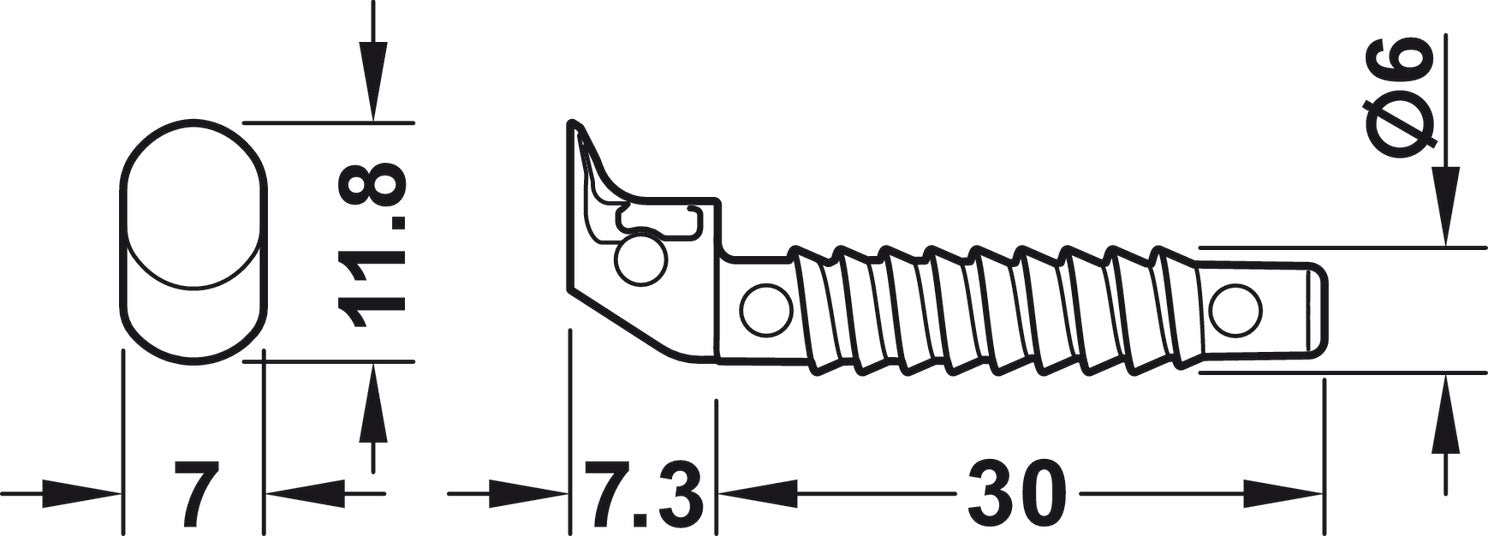

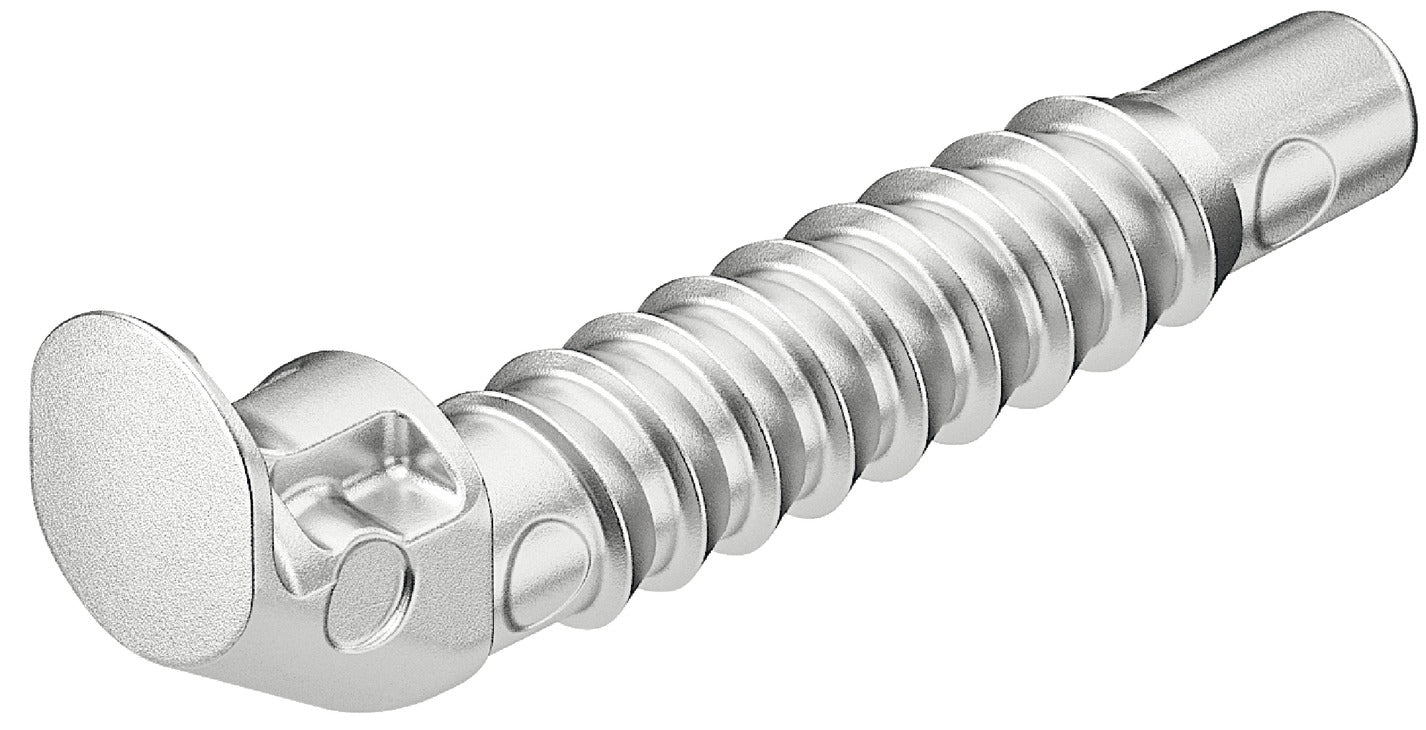

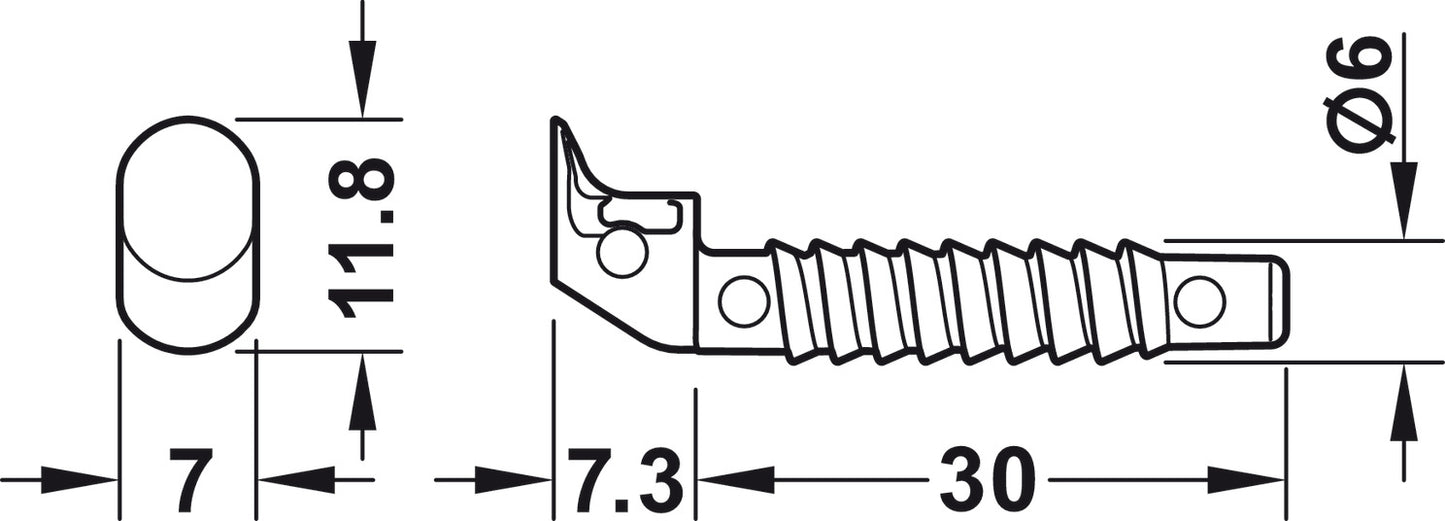

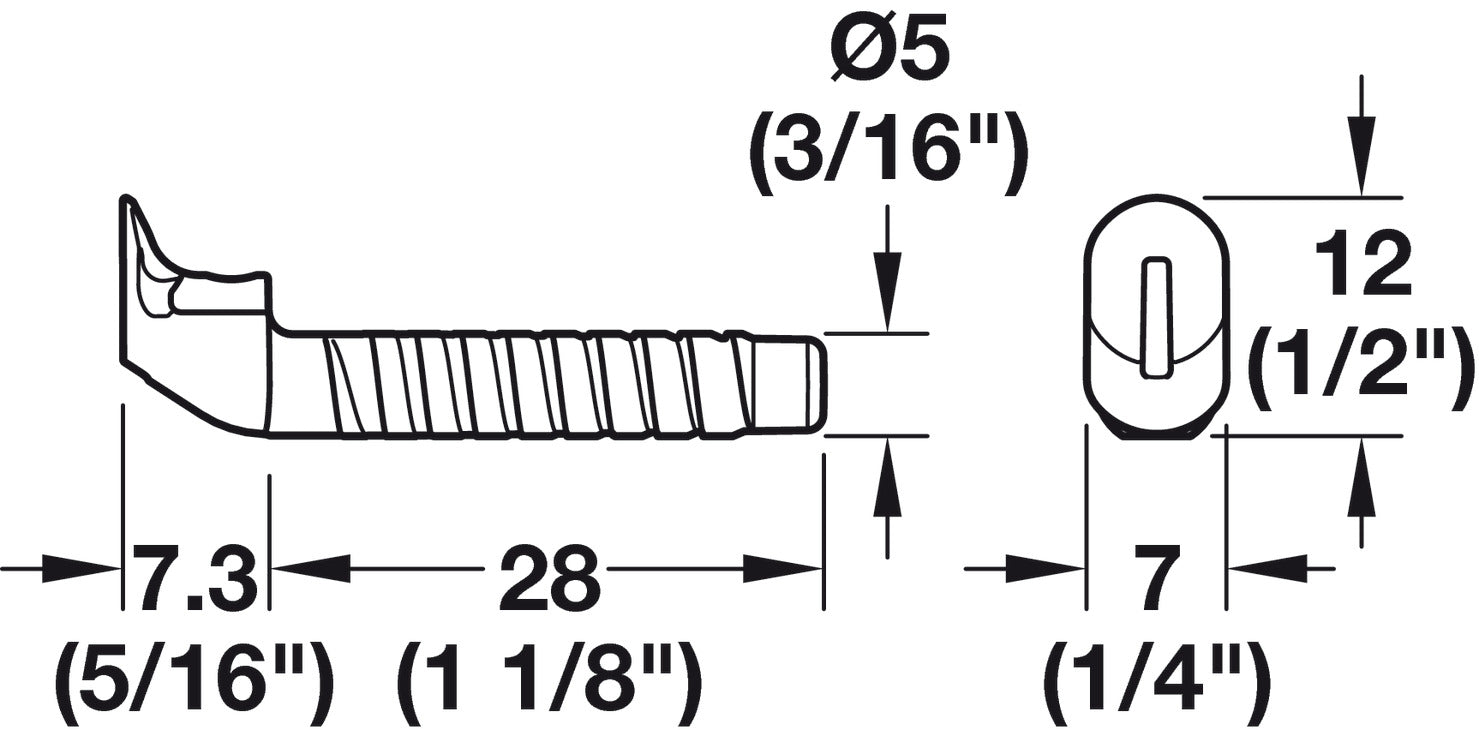

• Claw connector, Häfele Ixconnect CC 8/5/30, Zinc alloy
1 13

Claw connector, Häfele Ixconnect CC 8/5/30, Zinc alloy

$0.14
$0.14
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Material: Zinc alloy
  • For wood thickness: Front panel and drawer sides: From 1/2"
  • For drill hole Ø: 3/16"; 5/16"
  • Area of application :

    For fixing front panels of wooden drawers
    for use with chipboard

  • For wood thickness min. : 12 mm

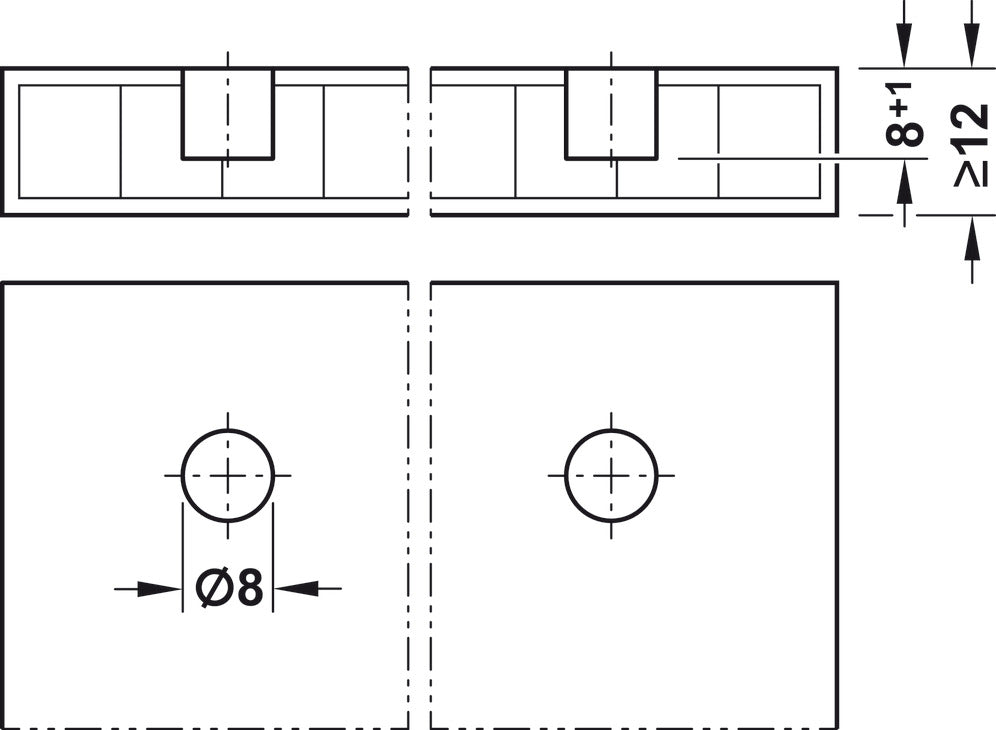

  • Drill hole Ø : 5 mm, 8 mm
  • Installation :

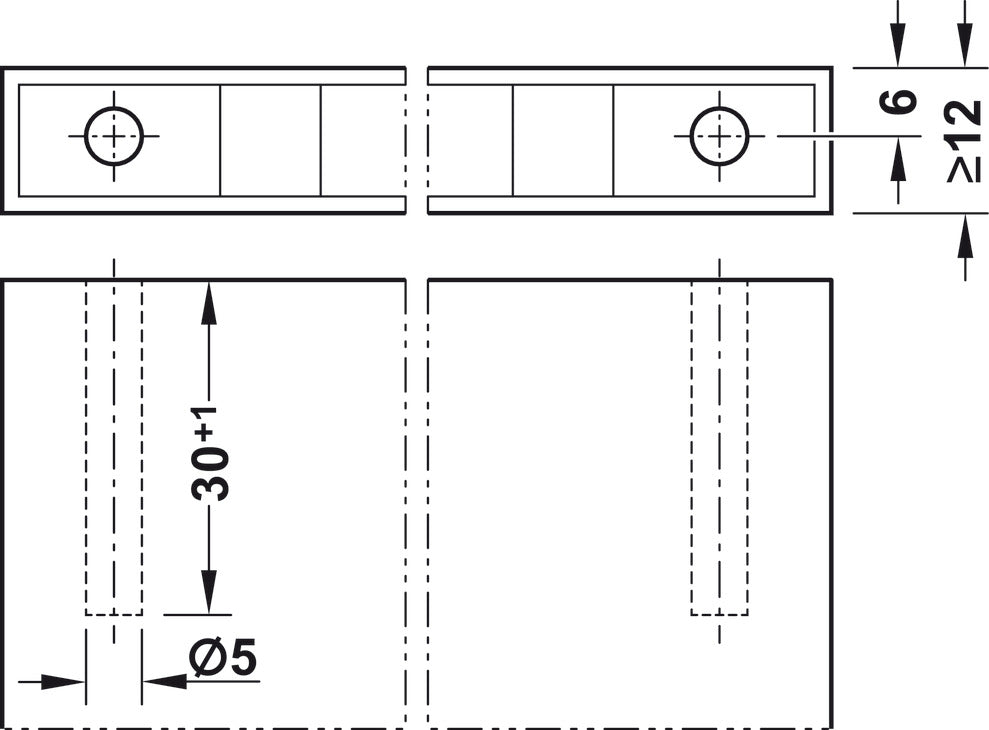

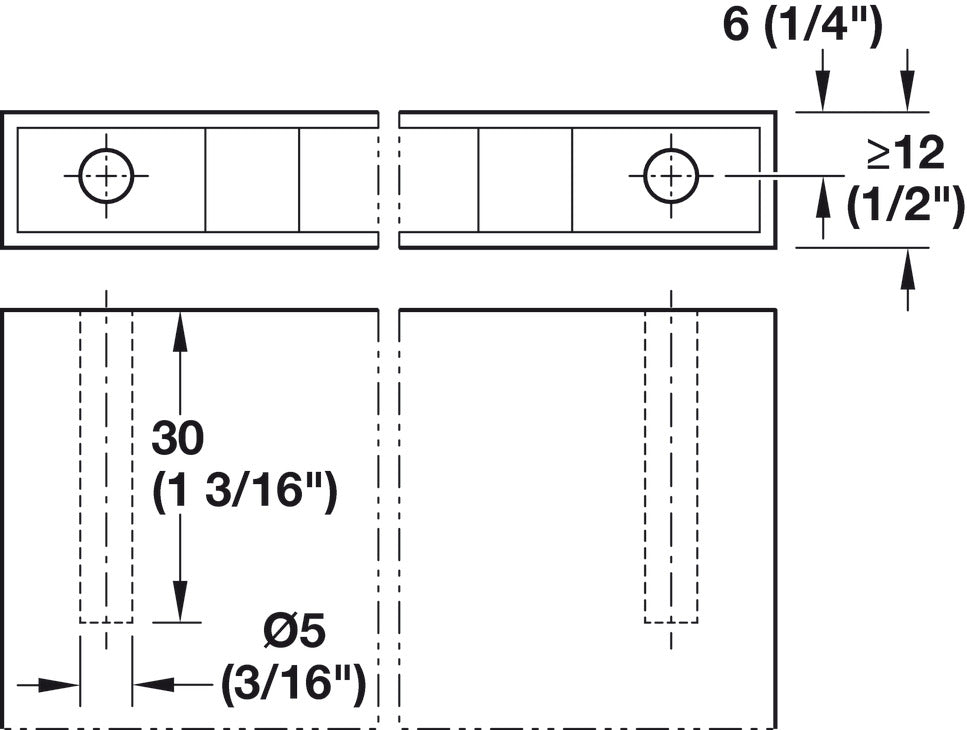

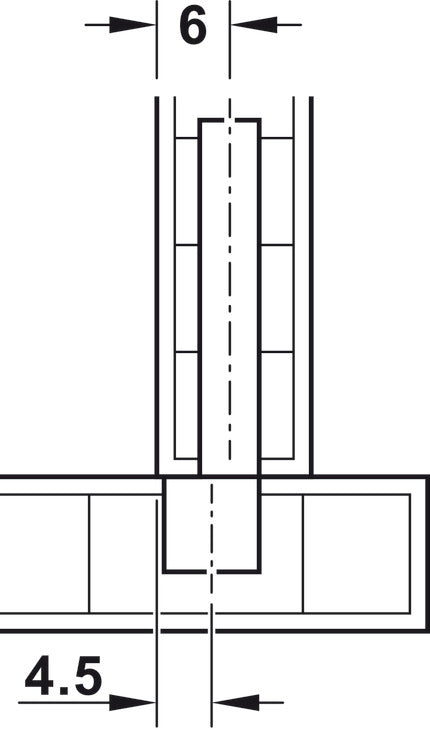

    Pre-assembly in the drawer side by knocking or press fitting the connector into the 5 mm drill hole

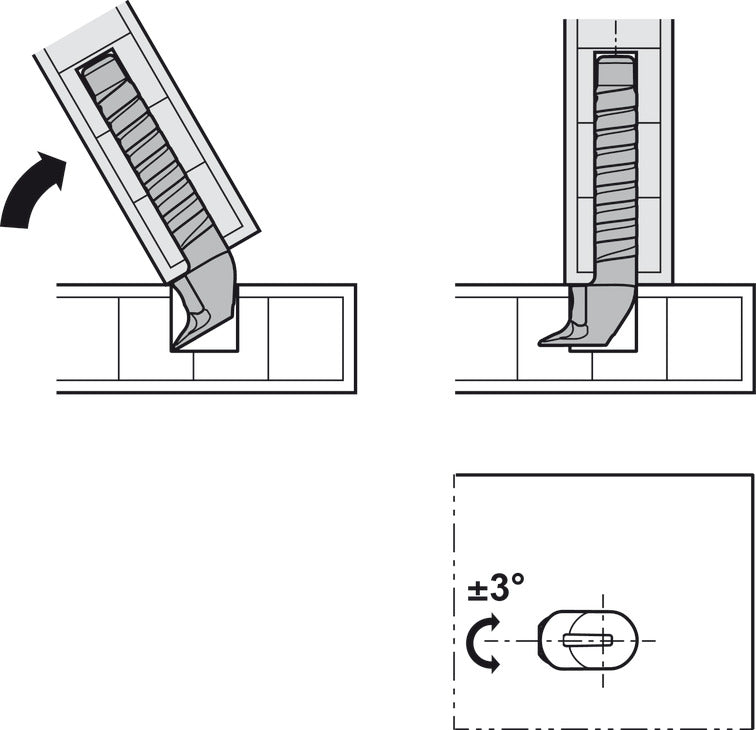

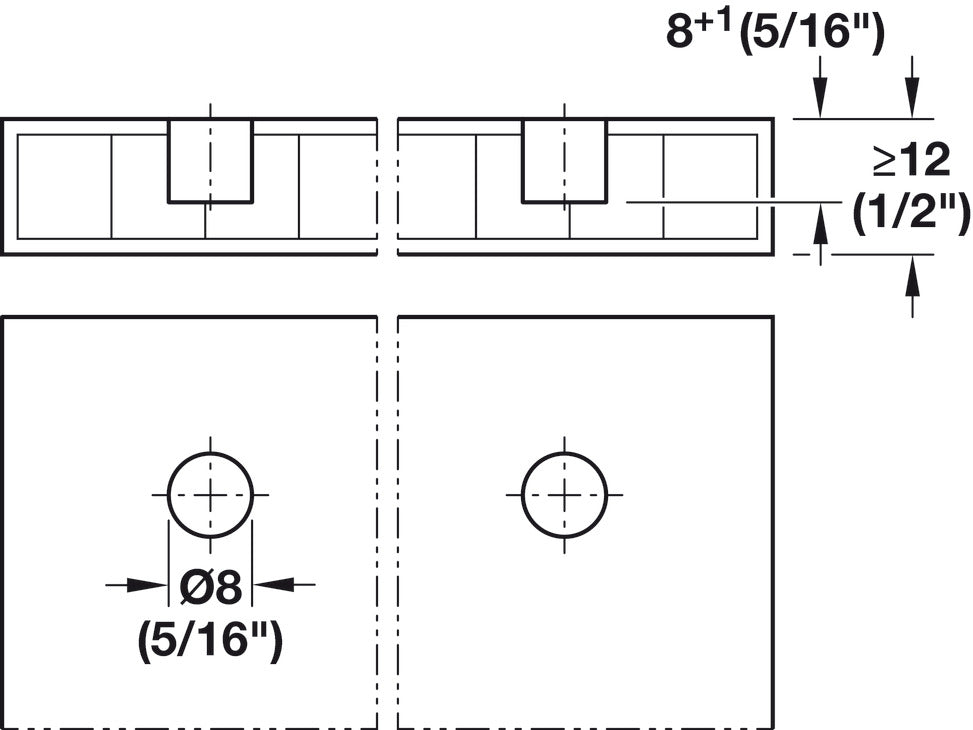

    the connector grips into the 8 mm drill hole of the front panel when the drawer side is raised

  • Functioning principle :

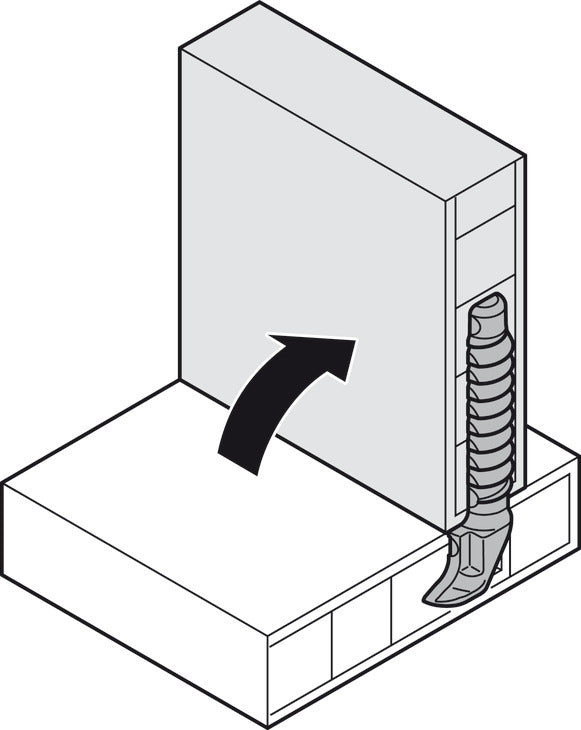

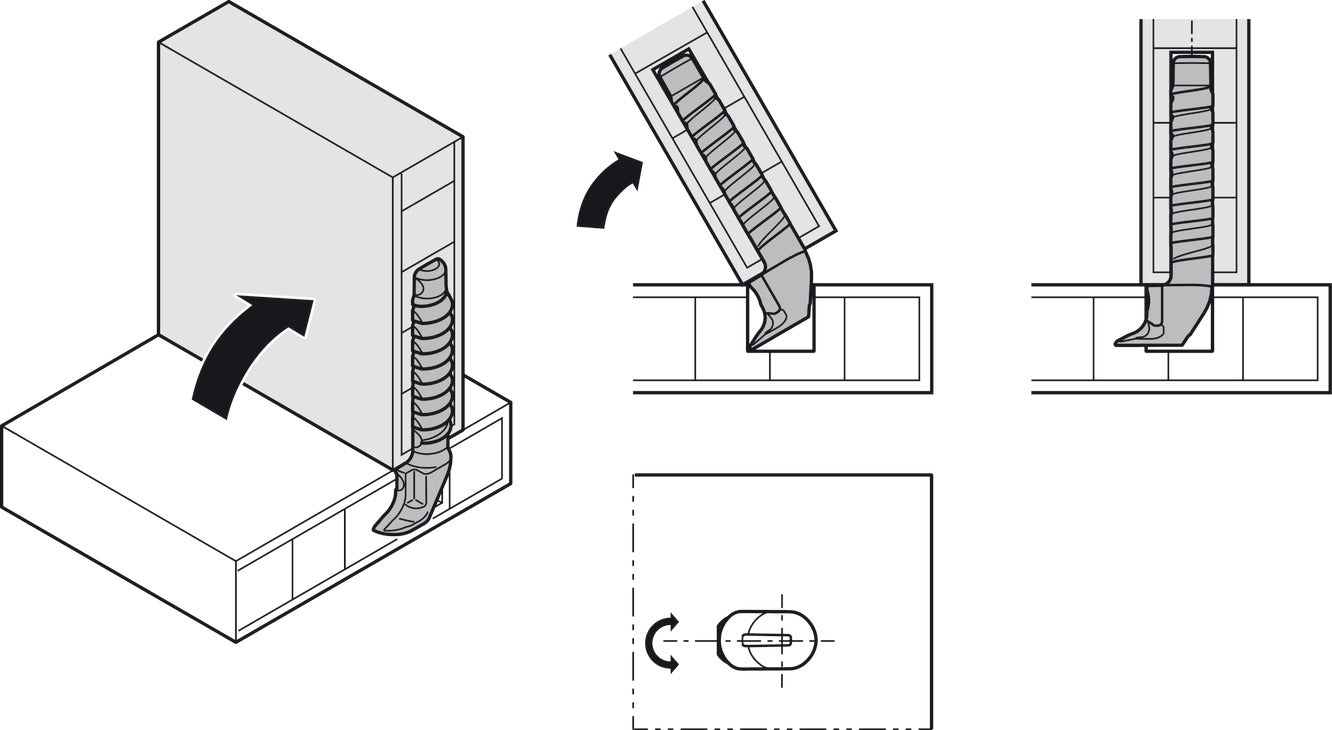

    The connector grips into the front panel when the drawer side is raised and thus provides a secure, concealed connection.
