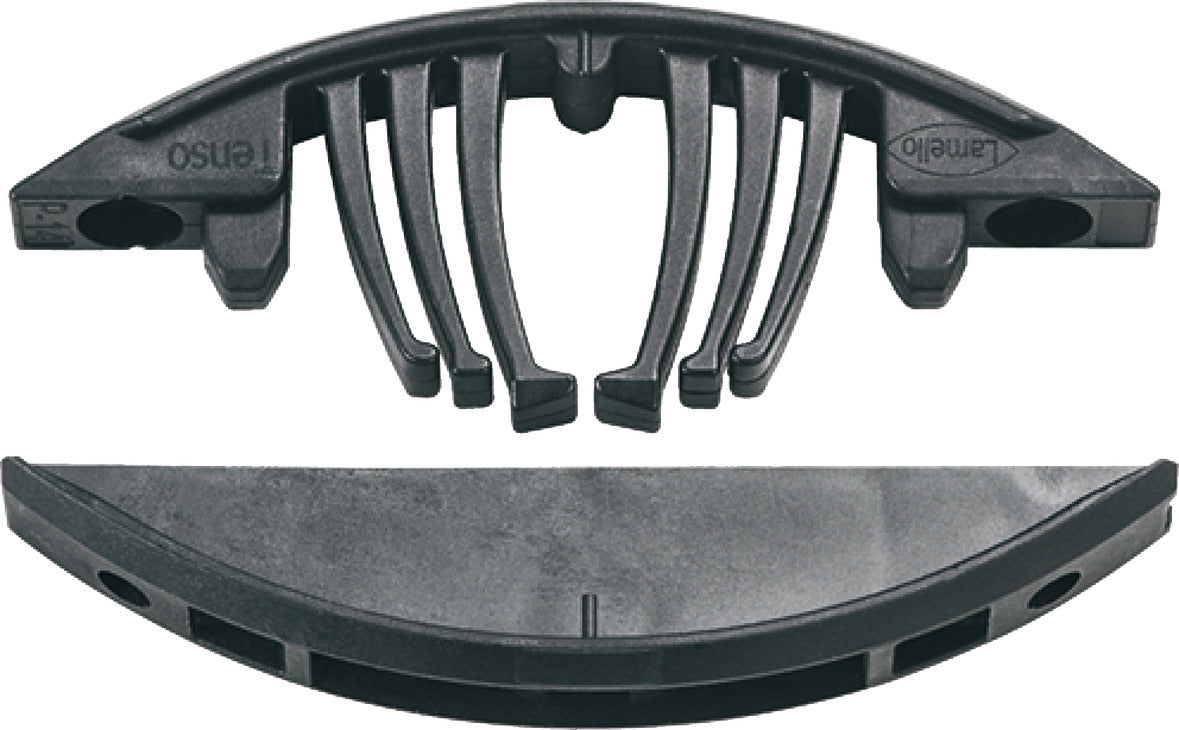

Biscuit Connector, Lamello Tenso P-10

$2.28
$2.28
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • With pre-loaded facility
    Joins and clamps during insertion for perfectly closed joints
    Insertion of shelves after transport for lower transport weight
    Efficient machining and installation with a Zeta based on the P-System
    Narrow element for the use in material of at least 12 mm thickness

  • The ideal gluing aid:
    Without using clamps or pressing devices
    Completely concealed/invisible
    Facilitated storage and transport of the work pieces
    New pre-load clip features:
    Little effort: Only briefly applying pressure is needed for engaging the fitting
    Easy connection of workpieces, even with several connectors
    The pre-load clip is easily pushed in using the installation tool

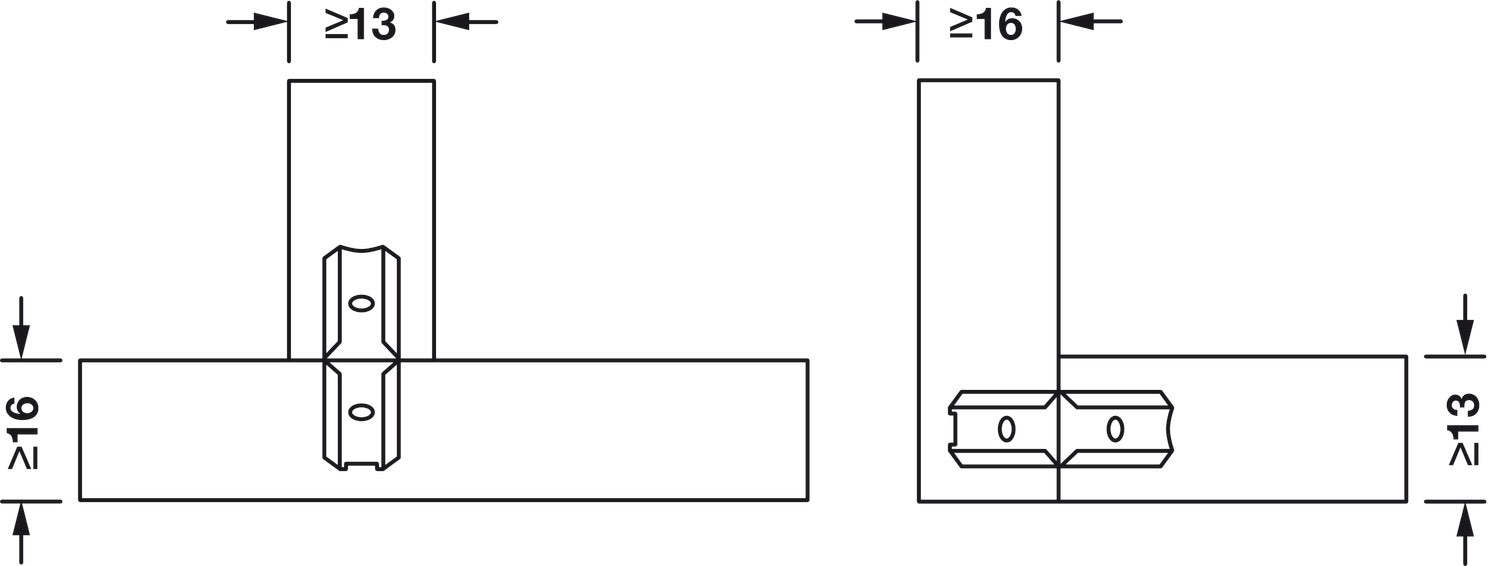

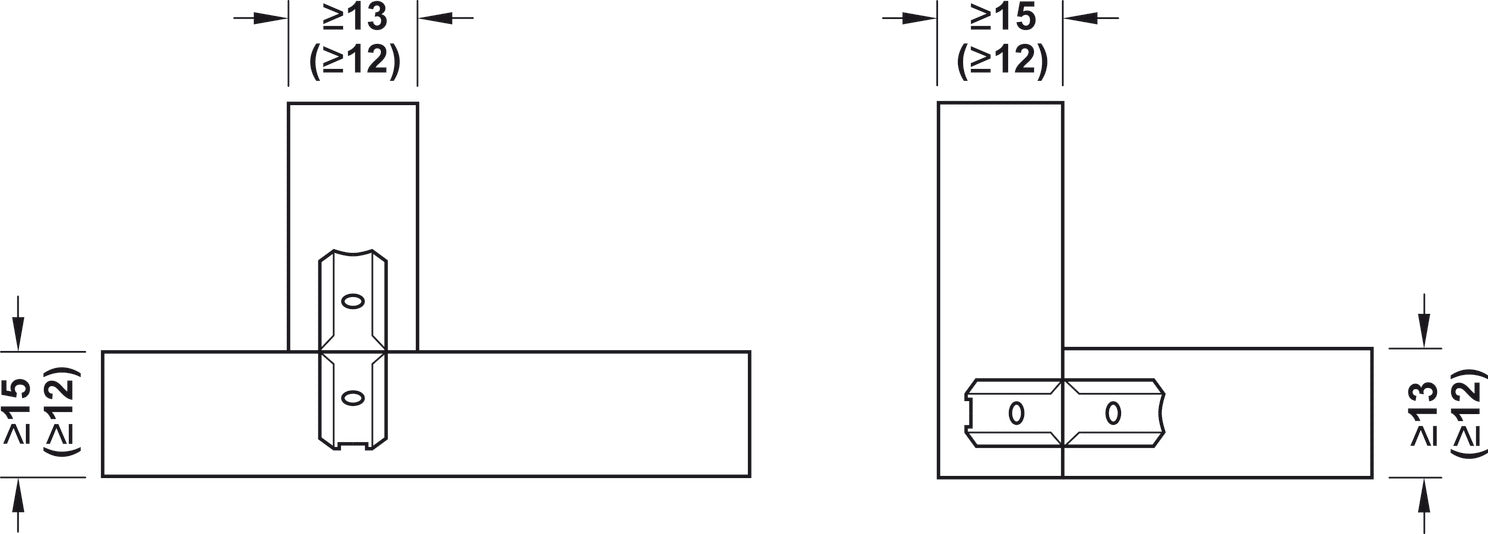

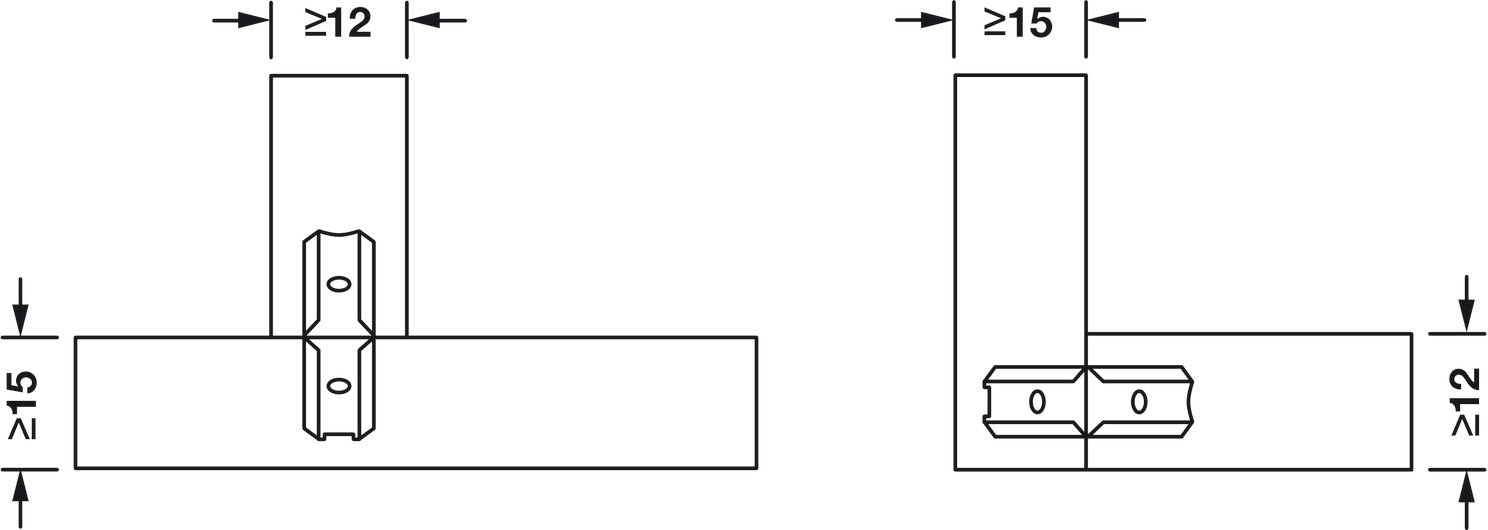

  • For wood thickness min.: 12 mm
  • Routing depth: 10 mm
  • Area of application :

    For cabinets with centre panels and intermediate shelves
    or column claddings in stores
    for drawers, installation of front panels, plug fitting onto plinths, ceiling panels, covers and handle profiles

  • Pull force :

    Pull force: approx. 15 kg/connector
    Tensile strength: approx. 25 kg/connector

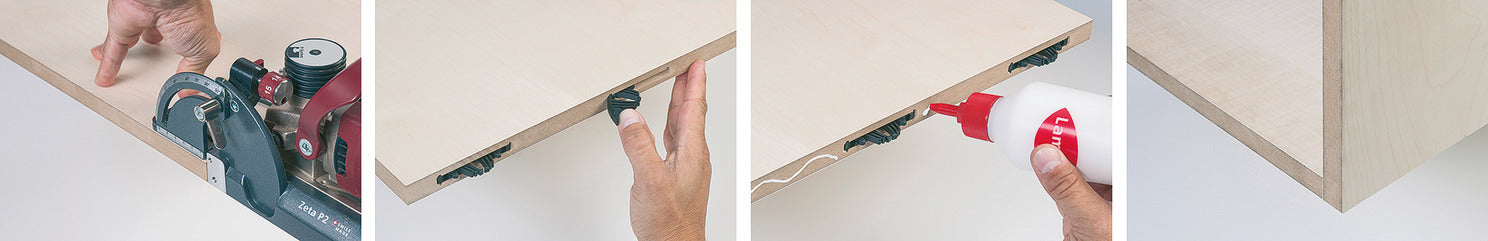

  • Installation :

    Pull force: approx. 15 kg/connector
    tensile strength: approx. 25 kg/connector

  • Supplied with :

    Pre-load clips
    Installation tool
