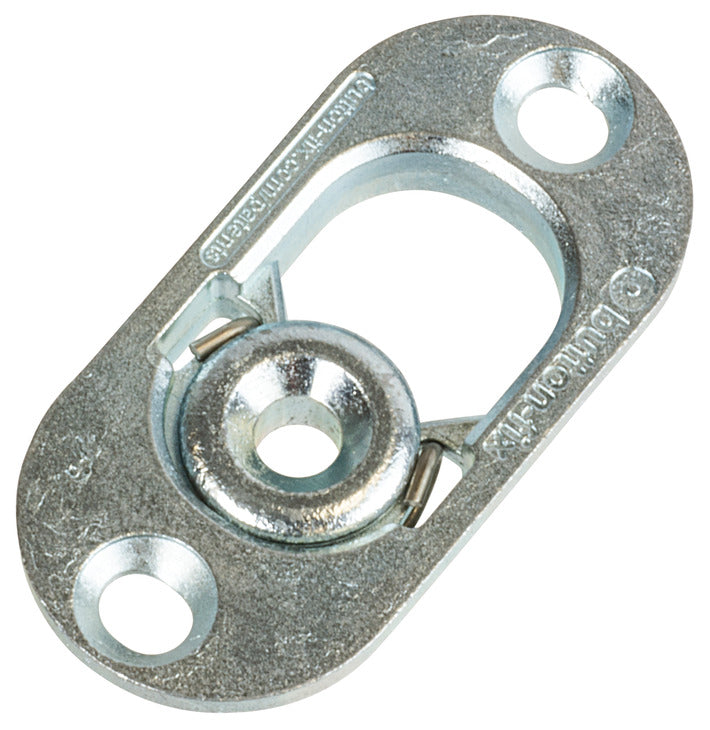

Type 1 Metal Fix, for Parallel Panels

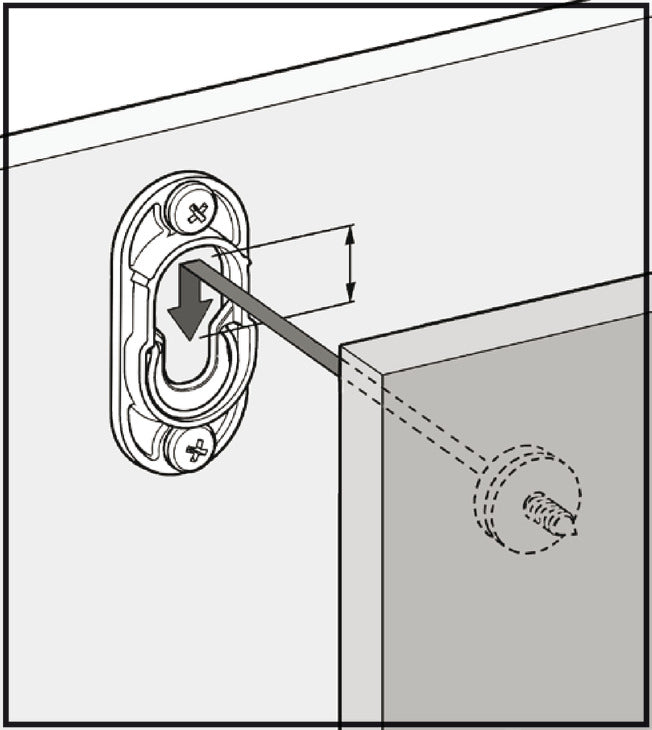

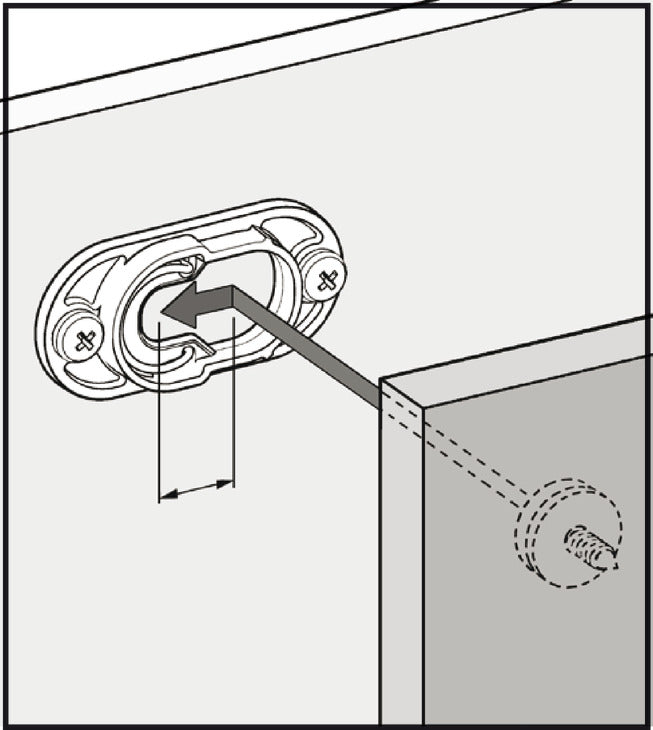

Engage the buttons in the connector and slide the panel down by 15 mm until Button-fix goes ‘click’

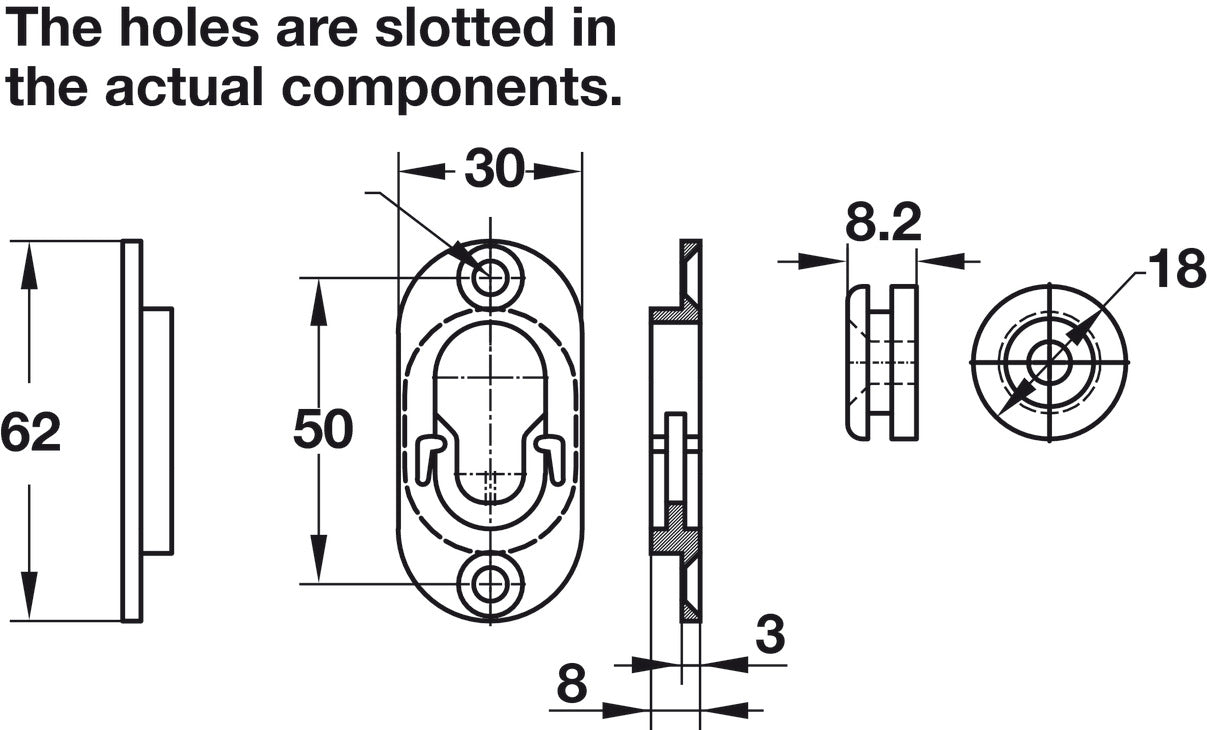

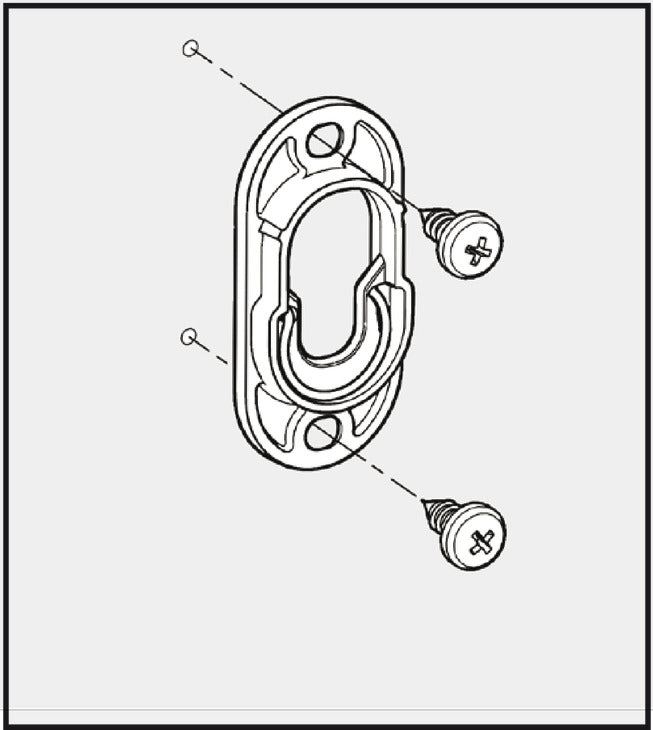

When surface mounted, an 8 mm gap is created between the two attaching panels

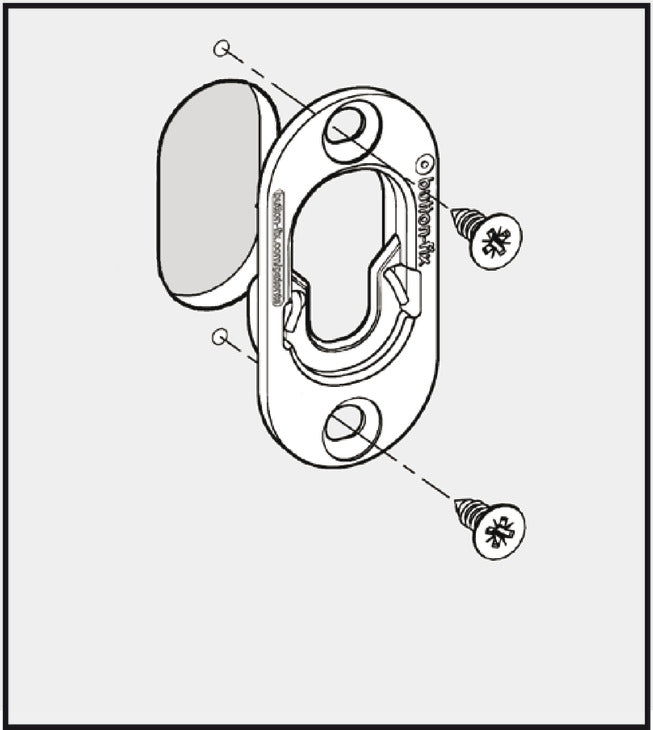

Alternatively, you can mortise connector to reduce the gap between the two attaching panels to only 3 mm
