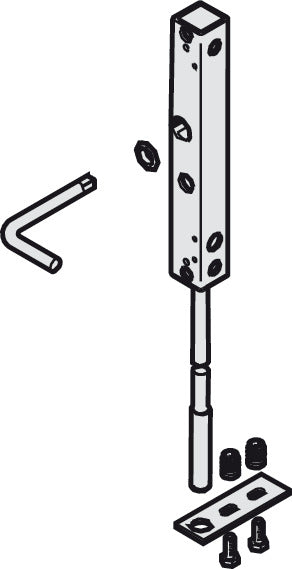

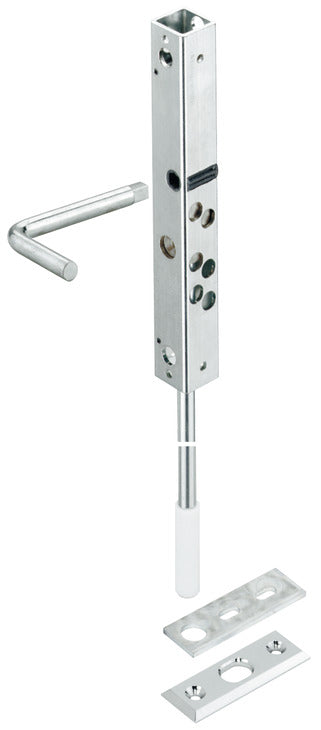

Bar Bolt Lock, Hawa Doorfix

$578.78
$578.78
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Square or hexagonal nut: 7 or 8 mm (9/32” or 5/16”)

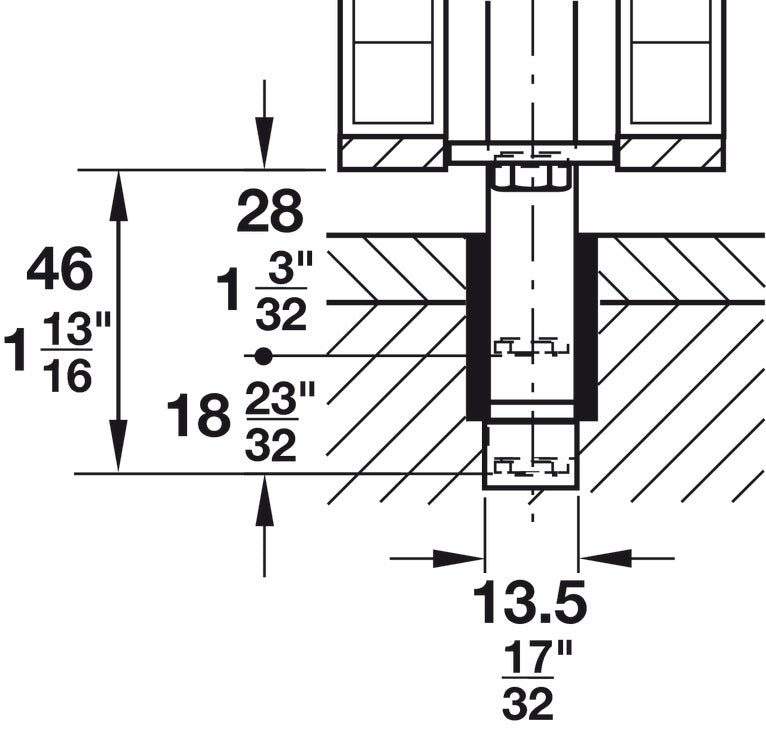

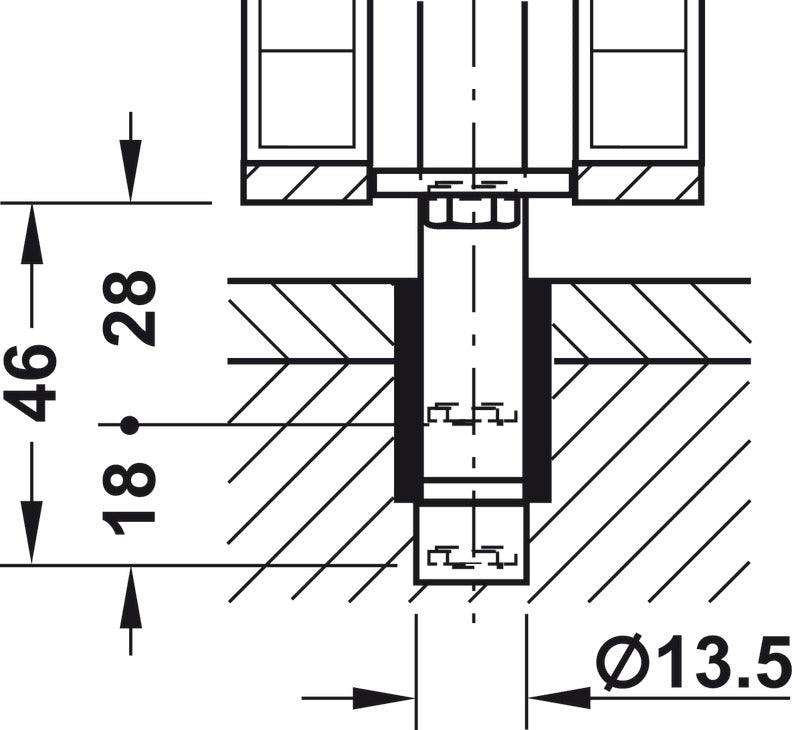

    Total throw of the push bar: 46 mm (1 13/16”)

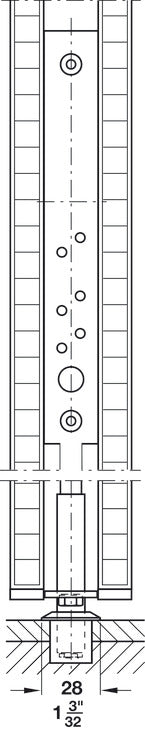

    2 turn: 1. Step: 28 mm (1 3/32”) 2. Step: 18 mm (23/32”)

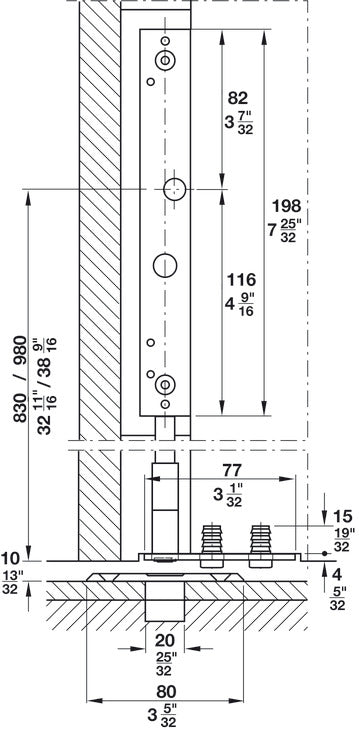

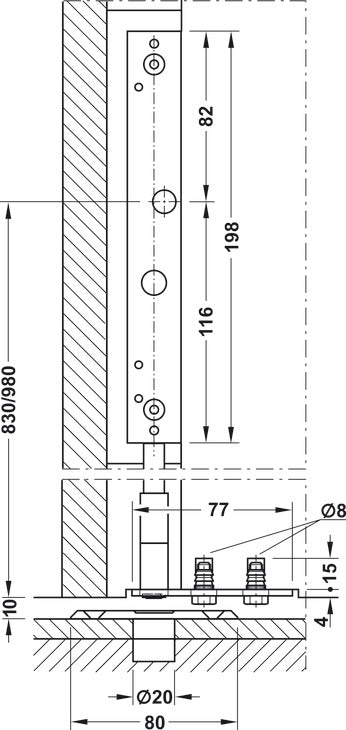

    Operating height: 830 or 960 mm (32 11/16” or 38 9/16”)
    To lock, guide and secure partition walls

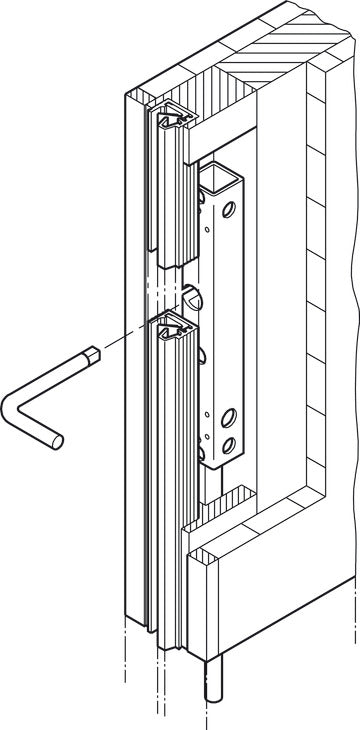

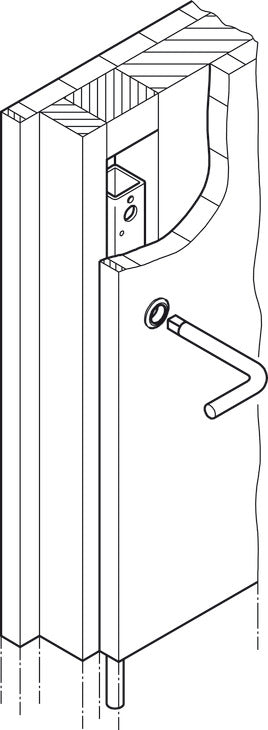

    Operation with square or hexagonal key from the front edge or the door section
    Push bar can be shortened

  • Material:

    Steel

  • Color/finish: Zinc plated, Galvanized
  • Travel: 46 mm
  • Travel: 2 turn - 1. step: 1 7/64", 2. step: 45/64"
  • Material: Steel
  • Area of application :

    For locking, guiding and holding position of folding and concertina walls

  • Version :

    Push bar can be shortened

  • Type of Opening :

    with square socket key or hex key from front edge or from door surface
