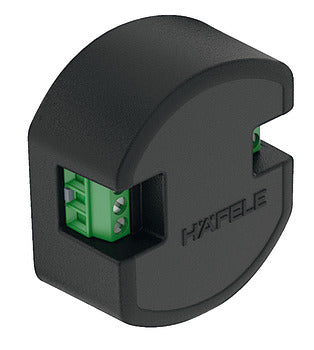

• 2-channel interface, Häfele Connect Mesh, with potential free relay
1 3

2-channel interface, Häfele Connect Mesh, with potential free relay

$101.06
$101.06
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • allows use of wall-mounted push buttons in the house installation design
    Controls furniture and room lighting as well as house installation consumers with Häfele Connect Mesh

  • Area of application:

    For switching room lights or other house installations on/off using Connect Mesh (all functions that are possible by pressing or holding a button)

  • Brand:
  • Model: Connect Mesh
  • Version:

    With potential free relay

  • Product type: 2-channel interface
  • Installation reference:

    suitable for installation in switch boxes (recommended box depth 60 mm)

  • International certifications: Australia RCM, Japan JATE TELEC MIC, Great Britain UKCA
  • Wireless technology: Bluetooth®
  • Degree of protection: IP20
  • Labels for correct purpose of use: Only to be used in enclosed, dry rooms.
  • Plug mains voltage: Direct connection for screw fixing
  • Connection: 2 switching inputs for conventional standard wall-mounted push buttons (double-throw), 1 output port for switching 80–240 V on/off, max. 3 A, (max 240 W at 80 V and 720 W at 240 V), (can be controlled by any active component in the network)
  • Packing: 1 Ks

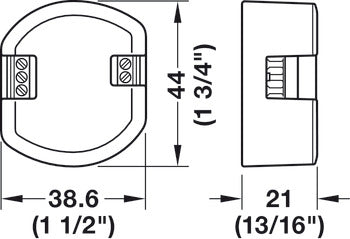

  • Dim. (L x W x H): 39 x 44 x 21 mm
  • Material: Plastic
  • Power consumption : 2 W
  • Order reference :

    Please order Häfele Connect Mesh 6-way distributor separately.
    Wall-mounted push button (e.g. Gira 015500) and cavity wall box (customer-provided).

  • Supplied with :

    1 2-channel interface
