Loox5 Motion Detector, for aluminium profile, Häfele Loox5, modular

$32.11
$32.11
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Switching contact: touchless
  • Connected output ports: 1 x Clip, Loox5 LED strip light 8 mm monochrome
  • Color/finish: opal
  • Switching function: Soft on/off, automatically
  • Memory function: No

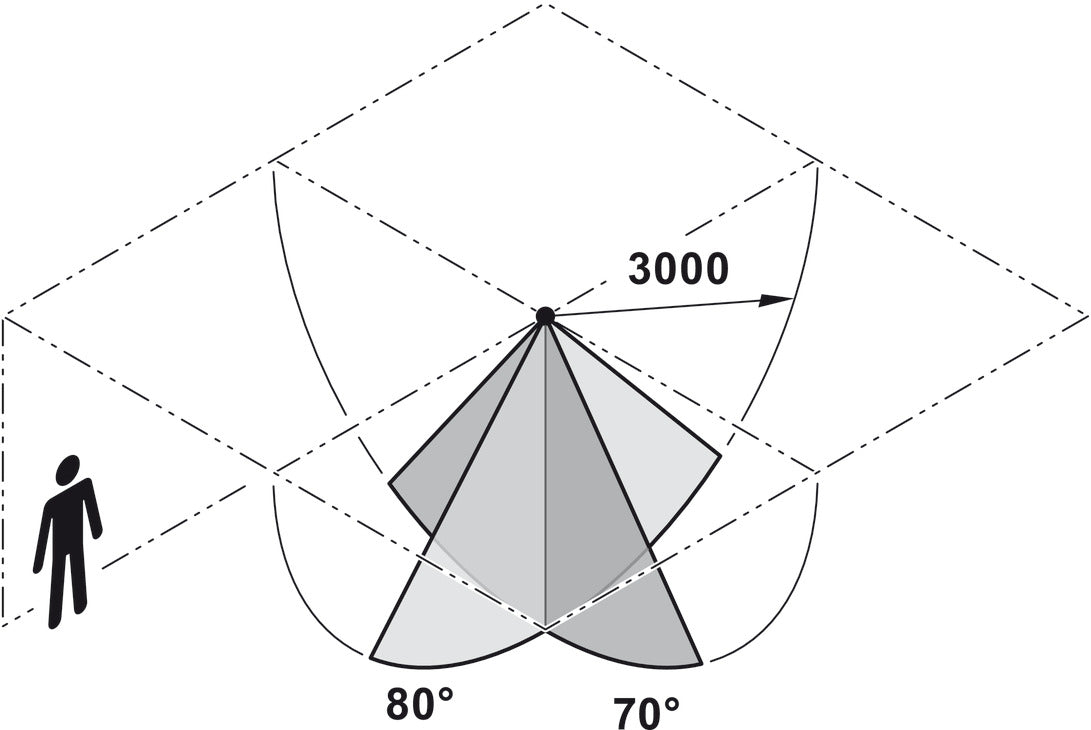

  • Sensor range: 3,000 mm
  • Area of application :

    For monochrome 8 mm Loox5 LED strip lights in Loox5 aluminium profiles

  • Suitable for : Profile 1103, Profile 1105, Profile 2102, Profile 2103, Profile 2104
  • Material : Plastic
  • Sensor angle : 80 °
  • Vertical sensor bracket : 70 °
  • Installation : For sliding into aluminum profile

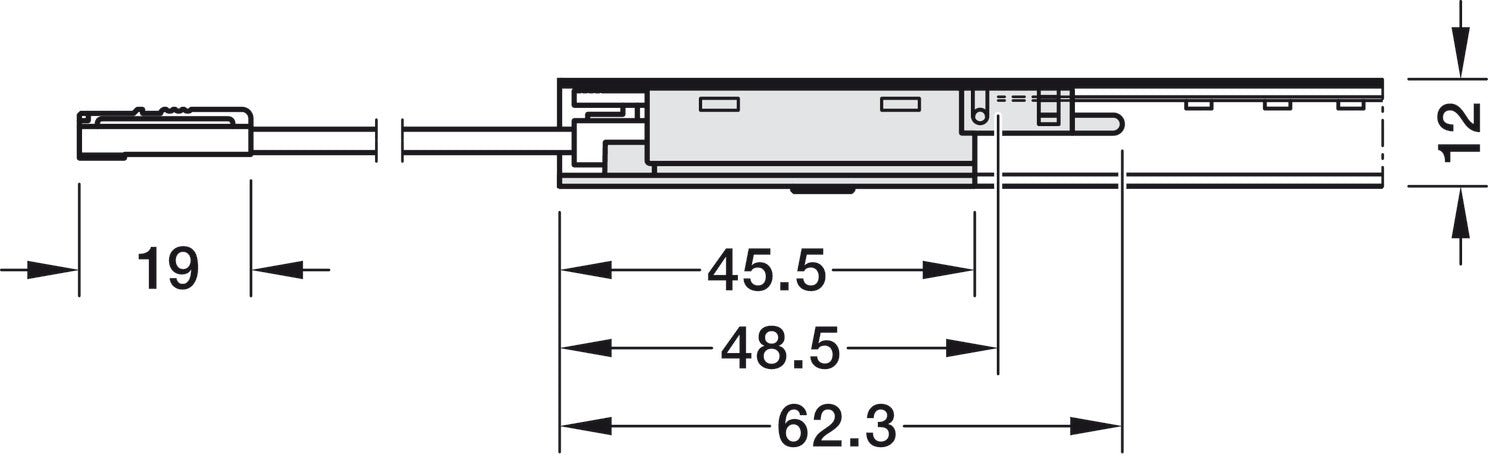

  • Installation reference :

    Shorten LED strip light by approx. 50 mm in relation to the total length of the aluminium profile. Shorten diffuser by 45.5 mm.

  • Order reference :

    Please order lead (modular with Loox5 2-pin snap-in connector) separately.
    Please note nominal voltage and current carrying capacity!
    12 V/5 A, 1000 mm: Cat. No. 833.95.831, 2000 mm: Cat. No. 833.95.830
    24 V/5 A, 1000 mm: Cat. No. 833.95.836, 2000 mm: Cat. No. 833.95.835

  • Supplied with :

    1 motion detector
