• Concealed Hinge, Salice Series 200 with integrated silicone oil dampers
1 5

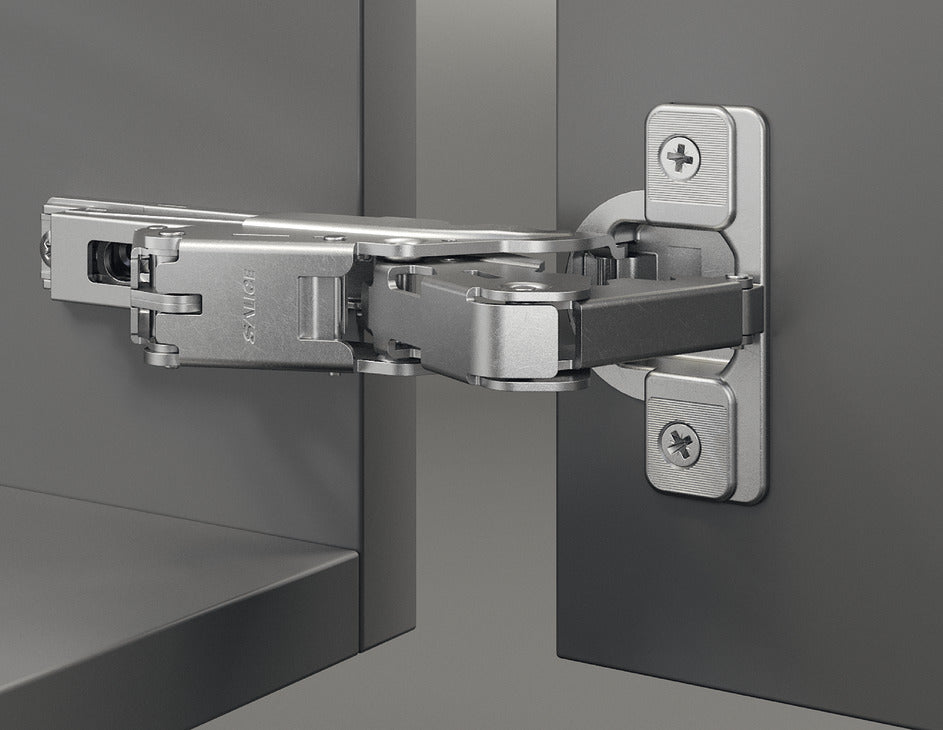

Concealed Hinge, Salice Series 200 with integrated silicone oil dampers

$16.69
$16.69
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

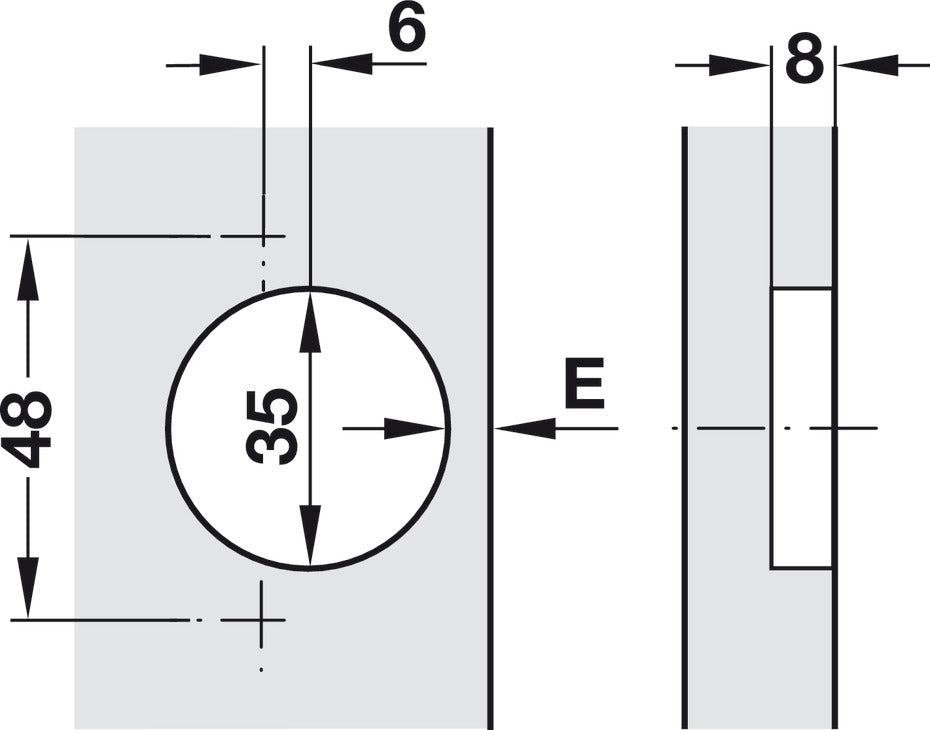

  • Required drilling depth for hinge cup only 8 mm

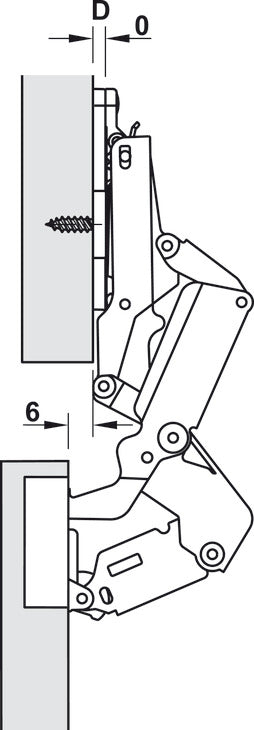

    0-door offset for use with internal pull outs î ‚or extending trays

  • Model: 200
  • Side panel thickness min.: 5/8"
  • Model series : 200
  • Opening angle : 155 °

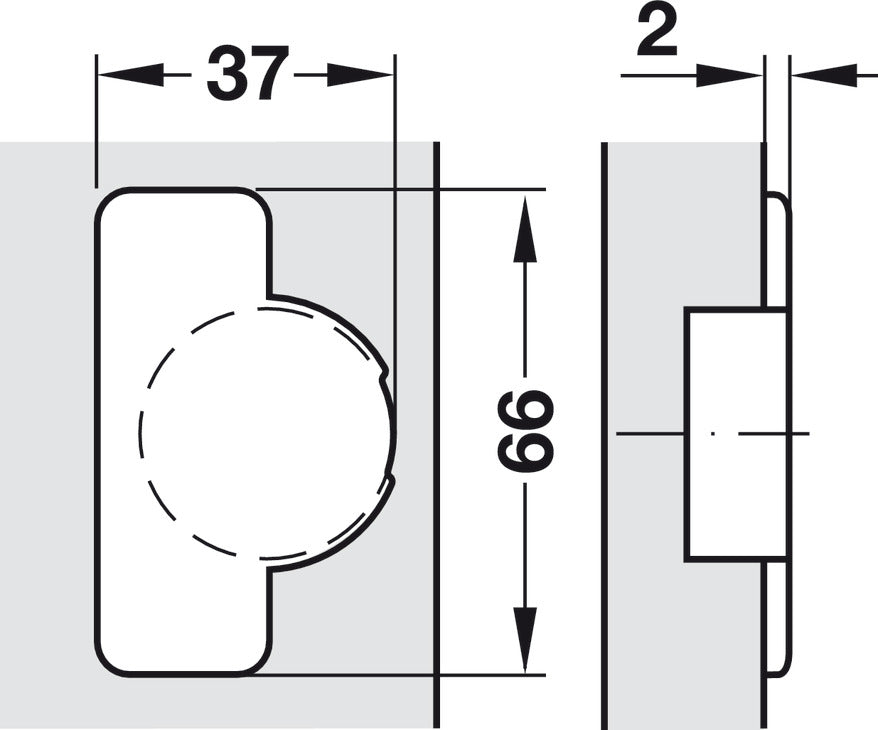

  • Adjustment facility : Side adjustment from –1.5 to +4.5 mm height adjustment from –2 to +2 mm depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from –0.5 to +2.8 mm
  • For door thickness min. : 5/8"
