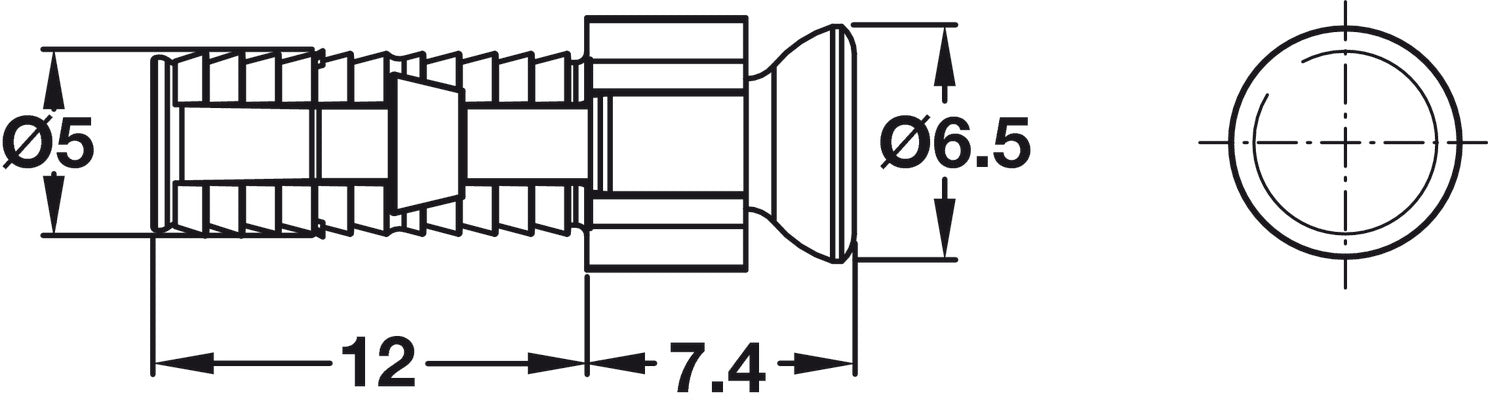

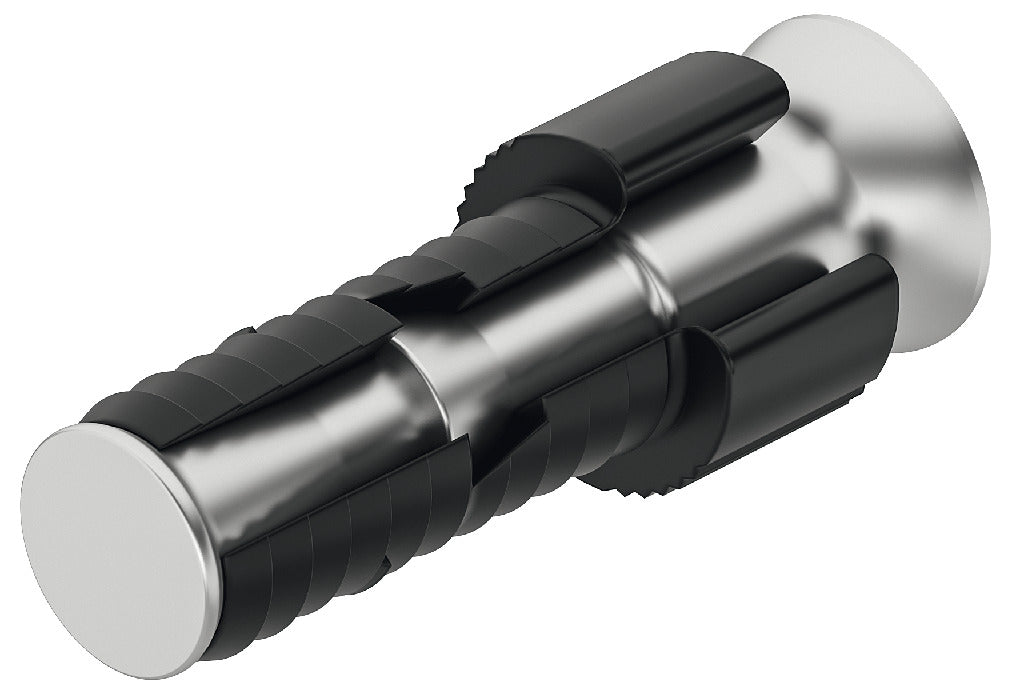

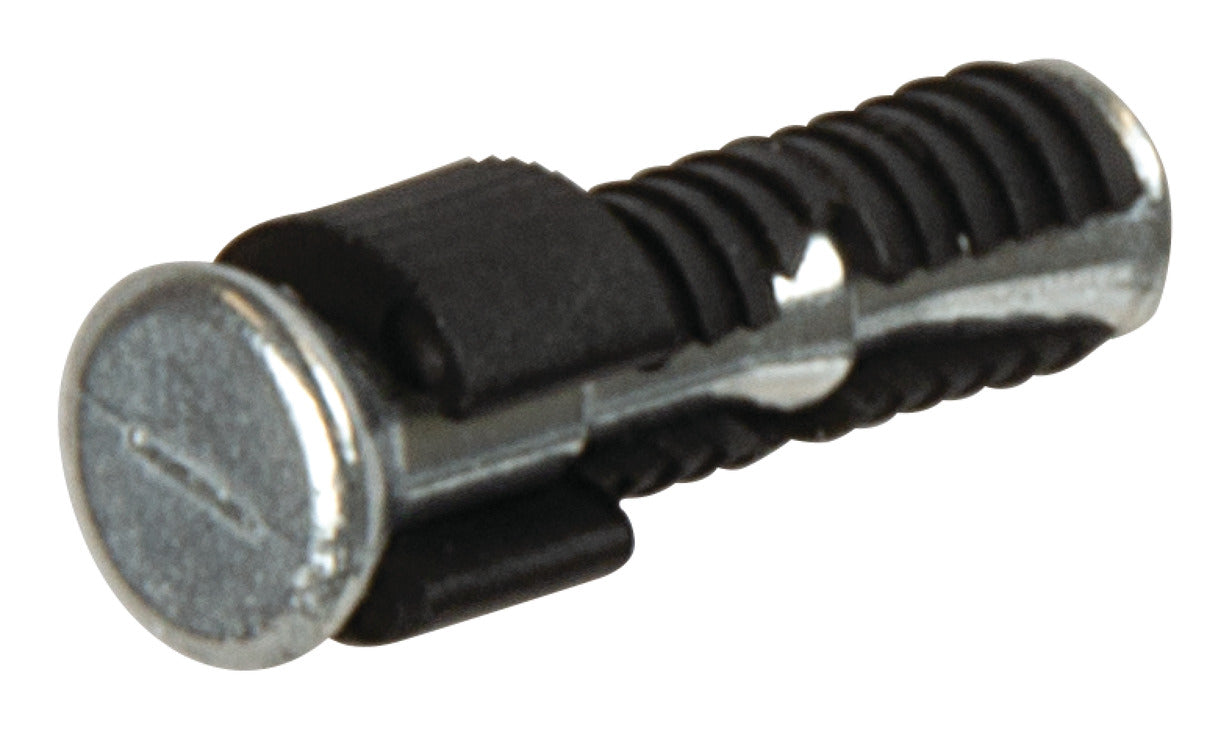

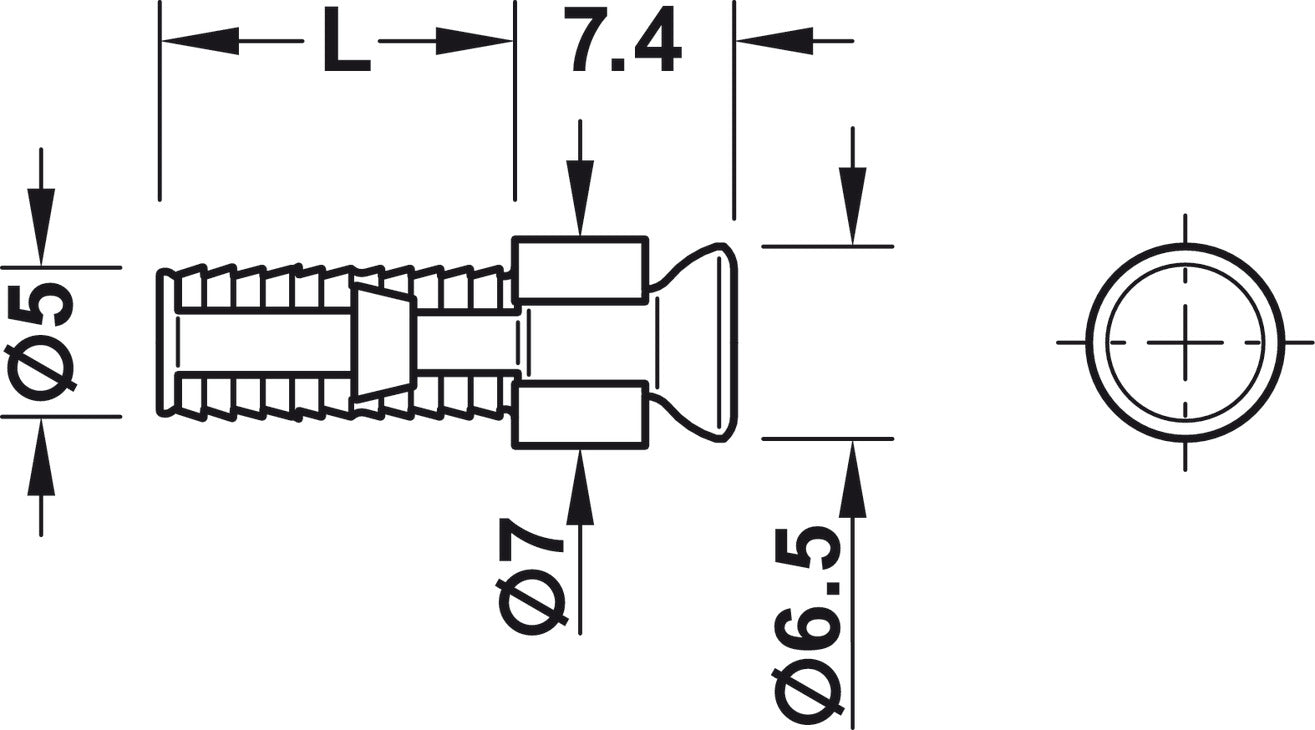

Spreading Bolt, Häfele Rafix C20

For Rafix housing with ridge

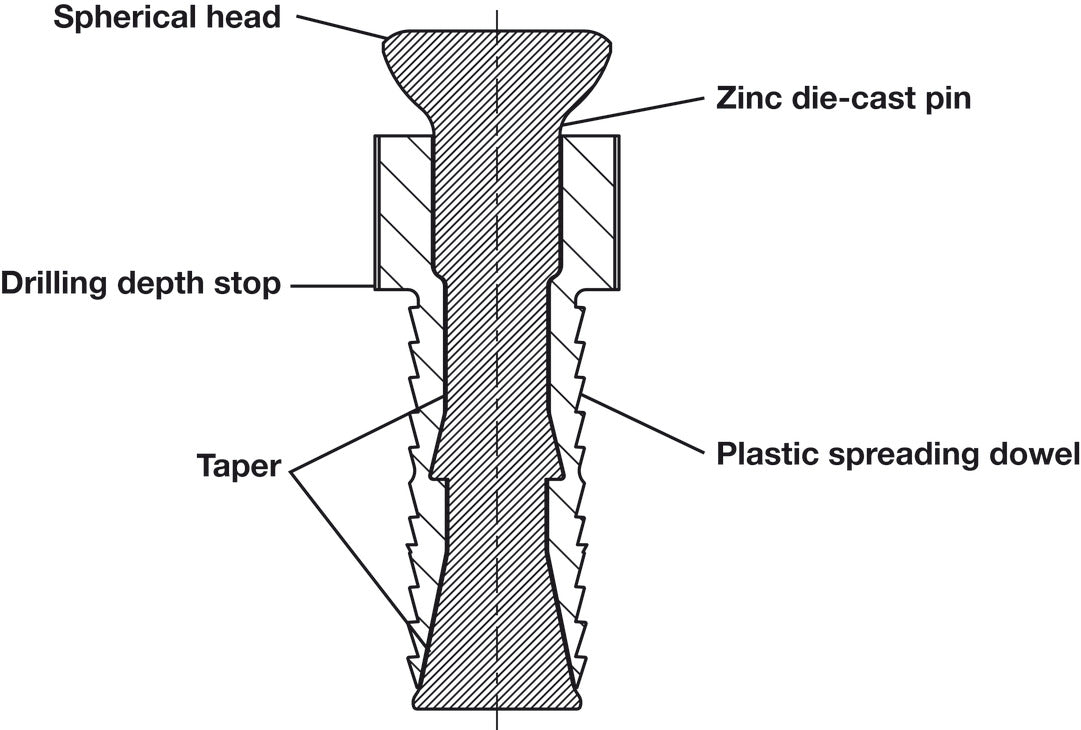

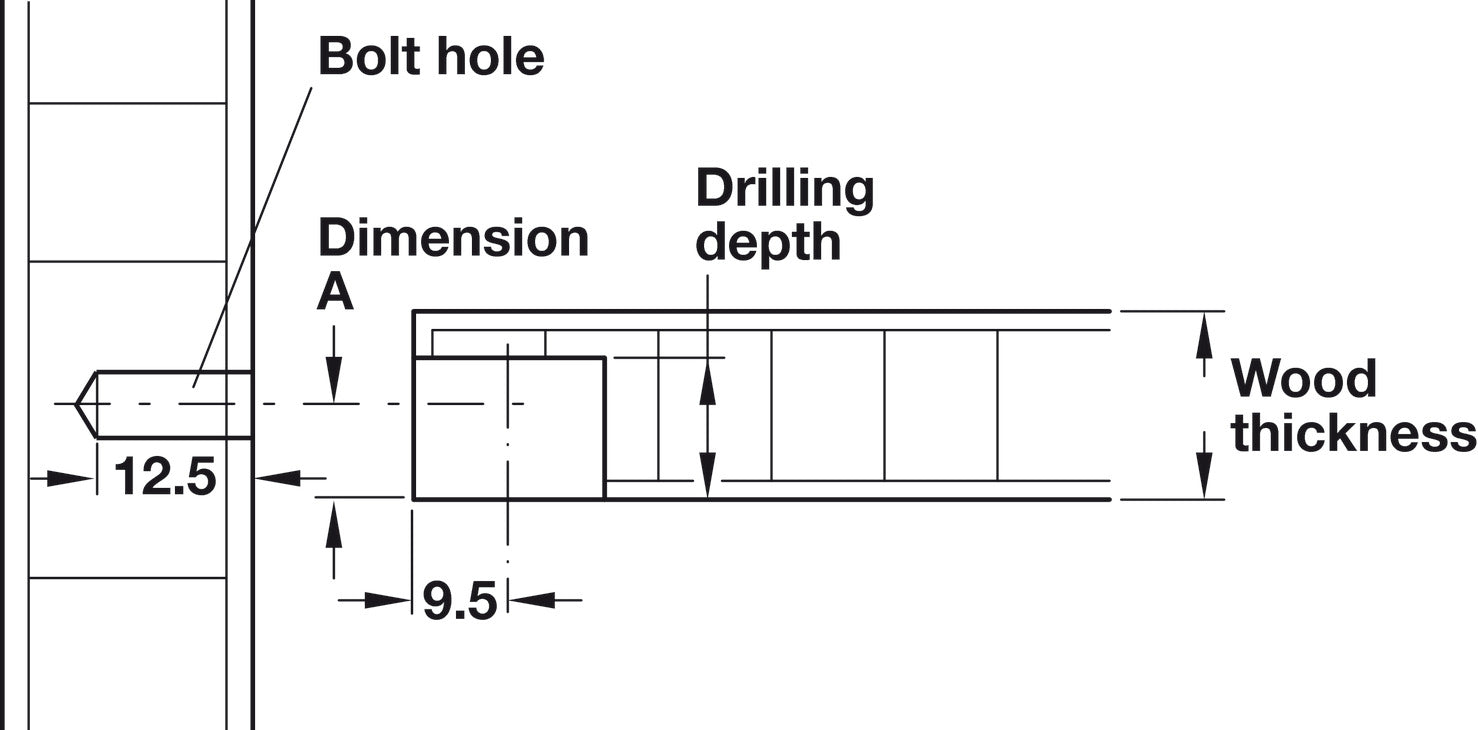

Insert spreading sleeve into drill hole by hand until the stop is reached. The dowel is spread and fixed by tightening the Rafix housing
For disassembly, push bolt back into the dowel and pull out of the drill hole together with the spreading sleeve.
