Wooden Pivot Sliding Doors, Hawa Concepta

$1,266.46
$1,266.46
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

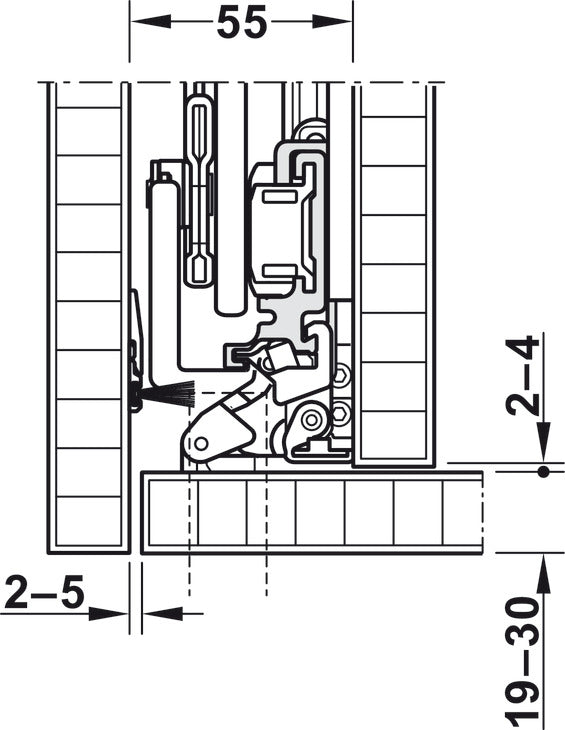

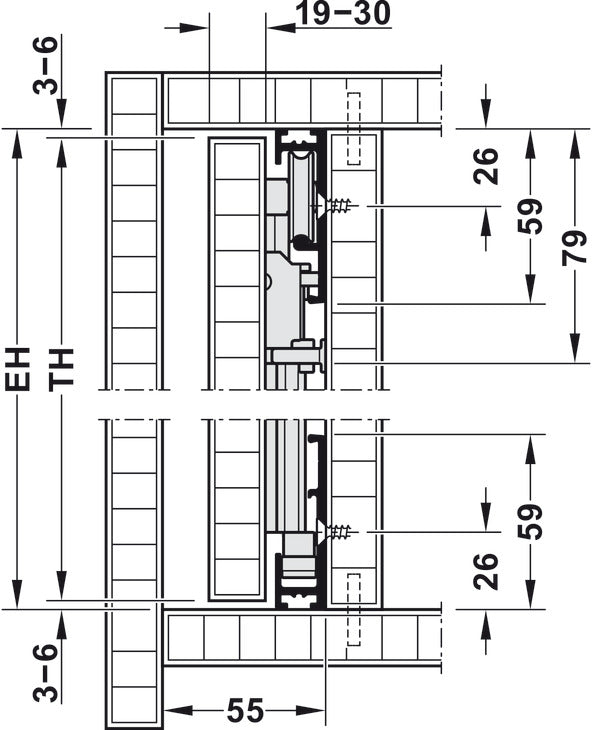

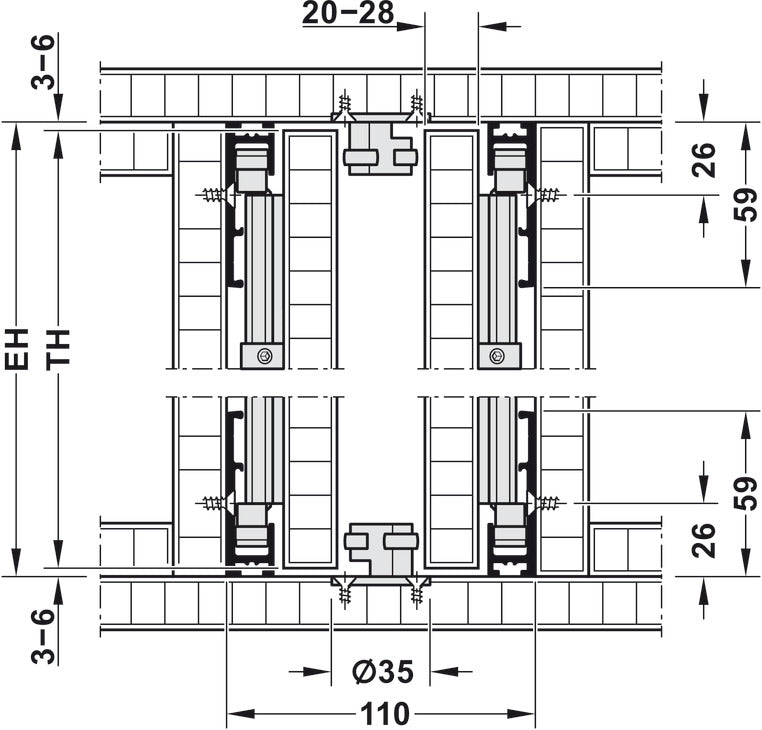

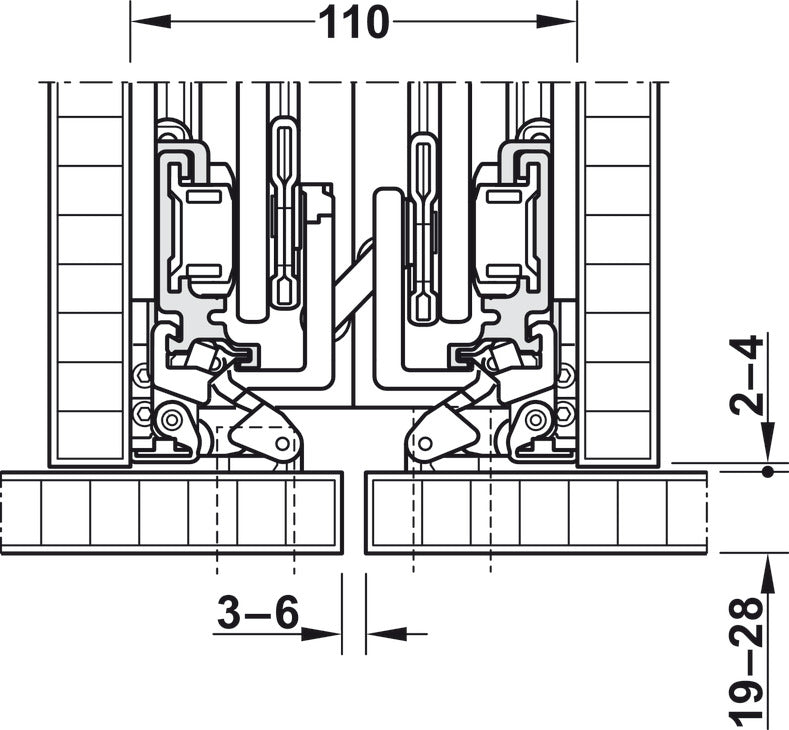

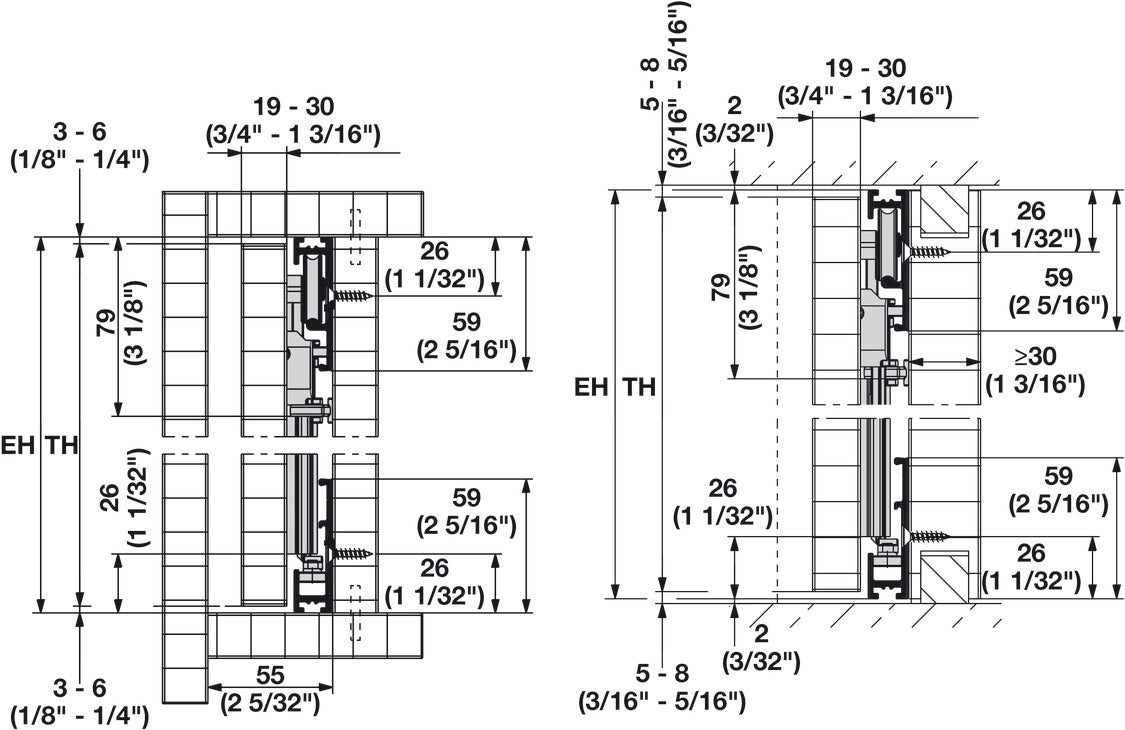

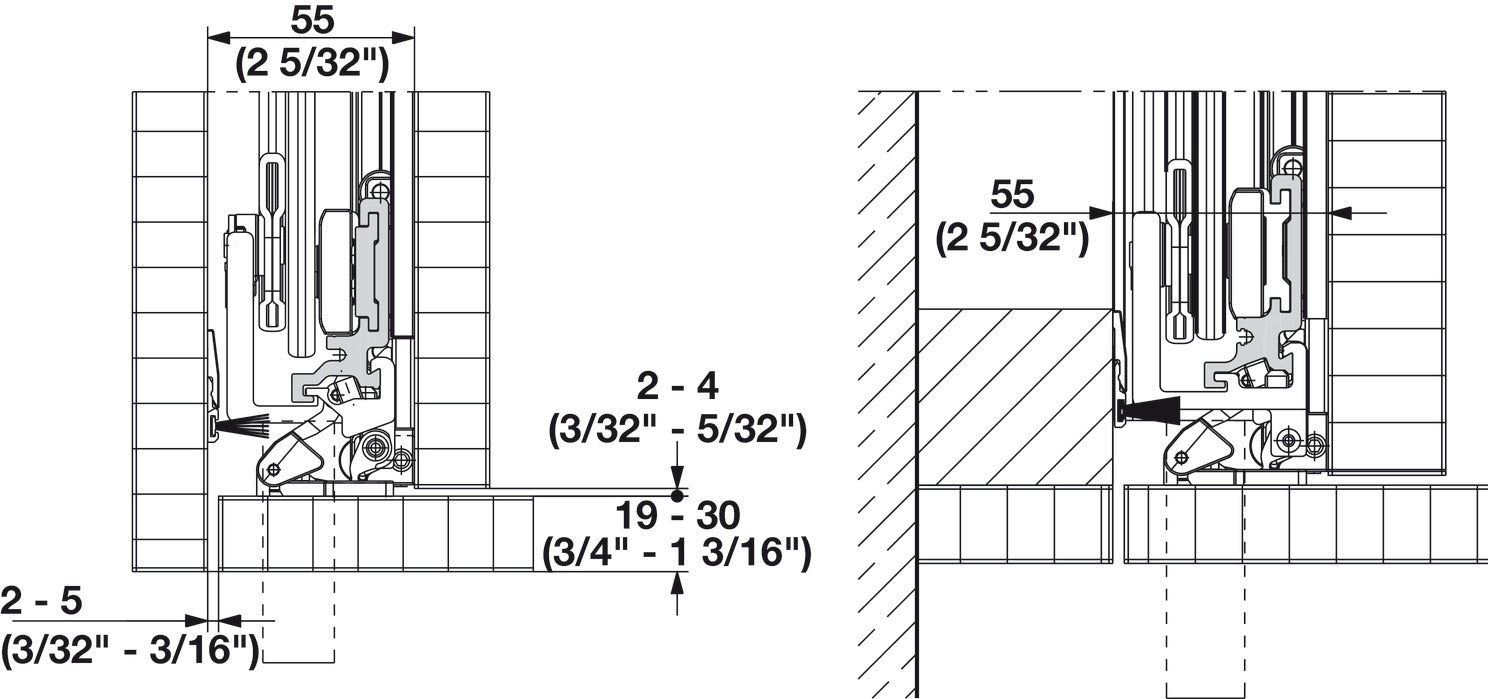

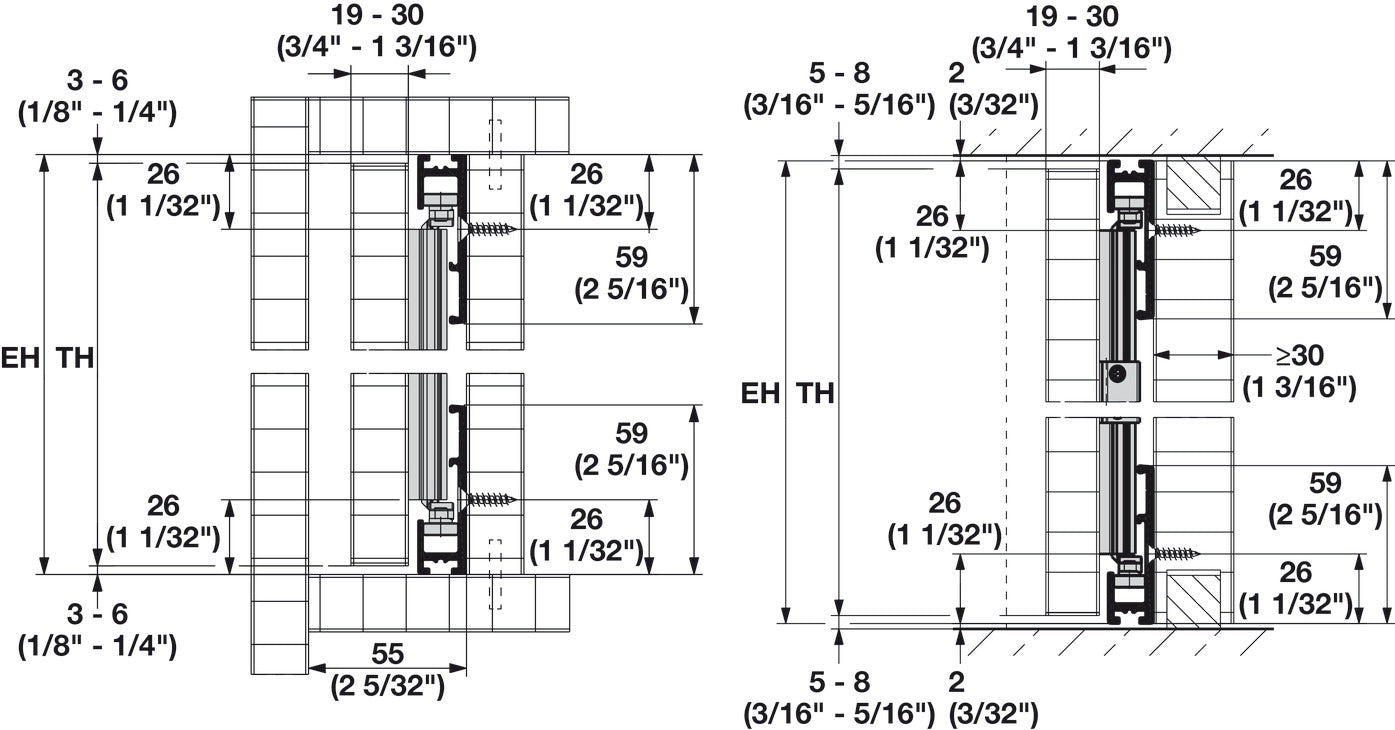

  • Door Thickness:Straight edge: 19 - 30 mm (3/4" - 1 3/16") Rabbeted edge: >30 - 50 mm (>1 3/16" - 1 15/16")

  • Version:

    Hinges with soft closing mechanism

  • Mounting: Left/right

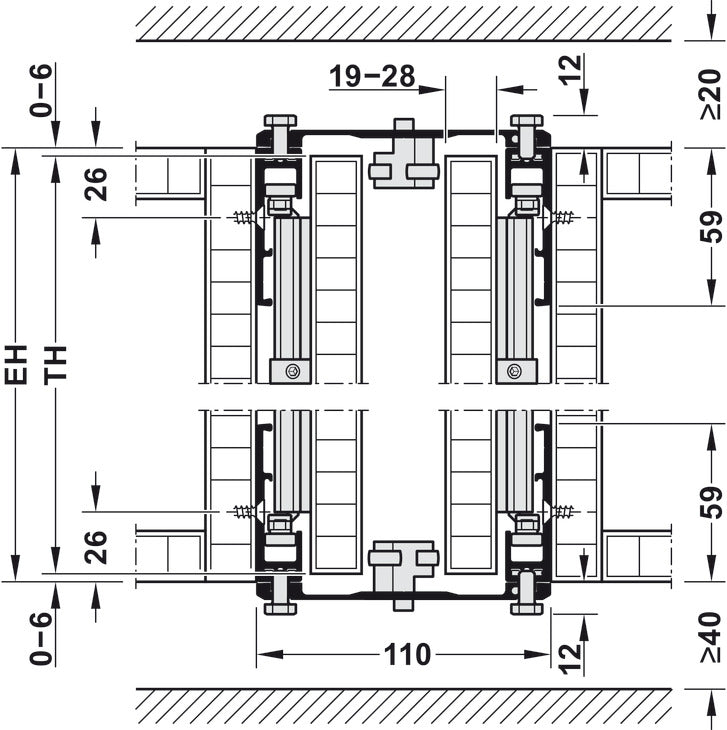

  • Cabinet height: In wall recesses ≥ 1 3/16"
  • For door thickness min.: 3/4"
  • For door thickness max.: 1 13/16"
  • Length (inch): 2' 1 19/32"
  • Door width max.: 900
  • Side panel thickness min.:In wall recesses ≥ 1 3/16"
  • Door height min.: 6' 7/8"
  • Area of application :

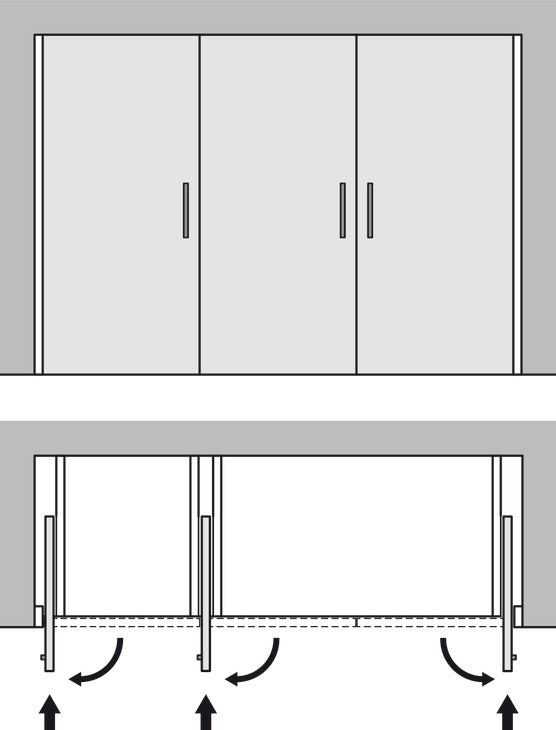

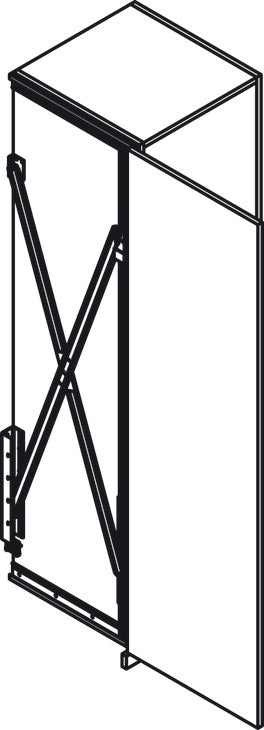

    For laterally sliding-in cabinet doors

  • For door material : wood
  • For door thickness : 19 – 30 mm
  • Note on door thickness :

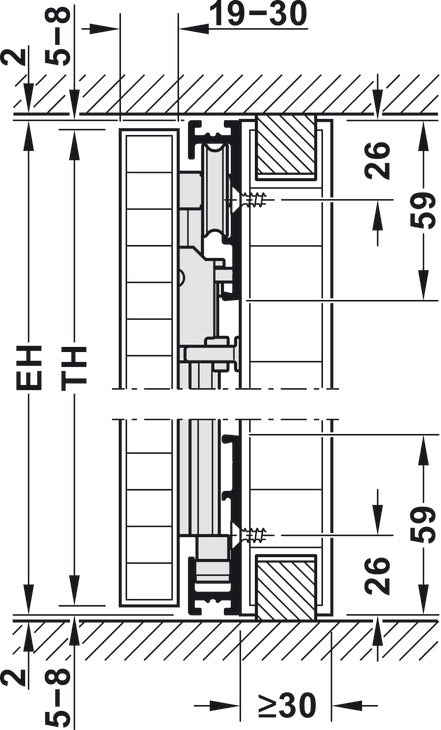

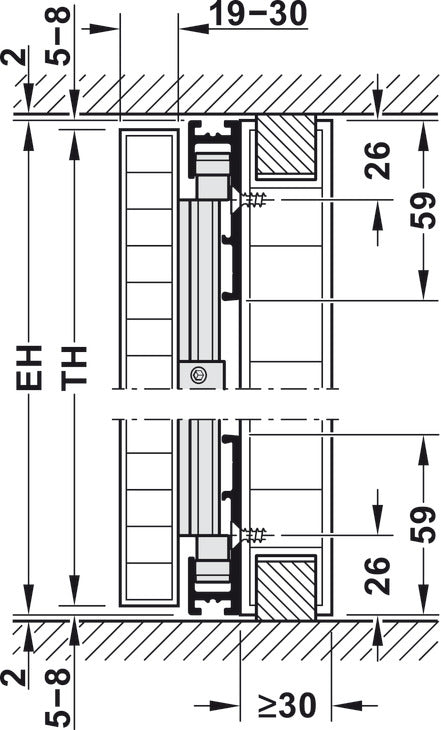

    In wall recesses

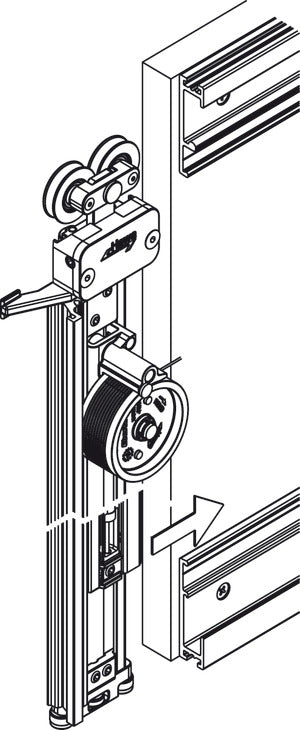

  • Running gear version :

    40/50 kg: 2 rollers

  • Running gear guided by : Ball bearing
  • Installation :

    For left and right hand use

  • Order reference :

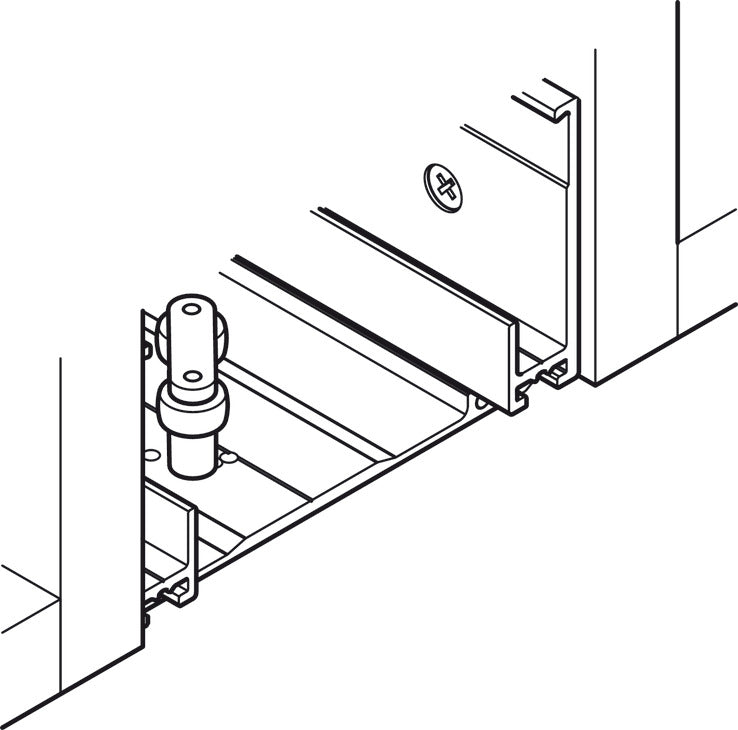

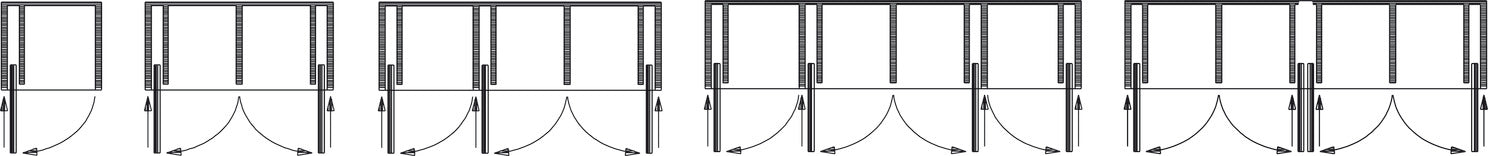

    â’· Parking pocket for 1 door
    Length 650 mm: 1 set Cat. No. 408.30.243
    Length 900 mm: 2 pieces Cat. No. 408.30.092

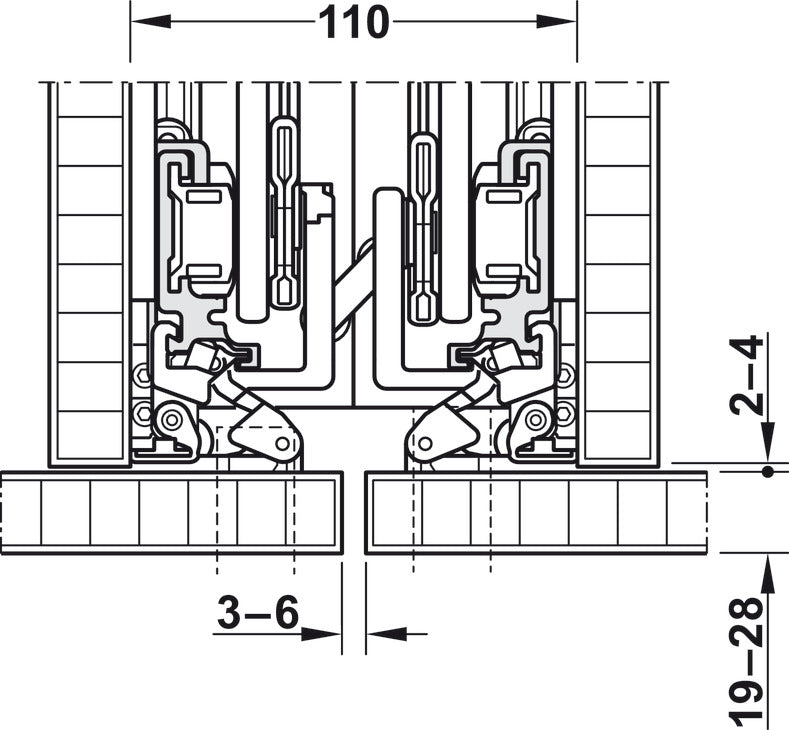

    â’¸, â’¹ Parking pocket for 2 doors

    Construction with adjustable feet

    Profile for top and bottom:
    Length 650 mm: 2 pieces Cat. No. 408.30.093
    Length 900 mm: 2 pieces Cat. No. 408.30.094

    Construction with fixed plinth
    Profile for top:
    Length 650 mm: 1 pieces Cat. No. 408.30.093
    Length 900 mm: 1 pieces Cat. No. 408.30.094
    Profile for bottom:
    Length 26 mm: 1 pieces Cat. No. 408.30.095
