• Sliding door fitting, Slido D-Line43 80N, frame door for glass and wooden panel
1 7

Sliding door fitting, Slido D-Line43 80N, frame door for glass and wooden panel

$1,036.59
$1,036.59
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

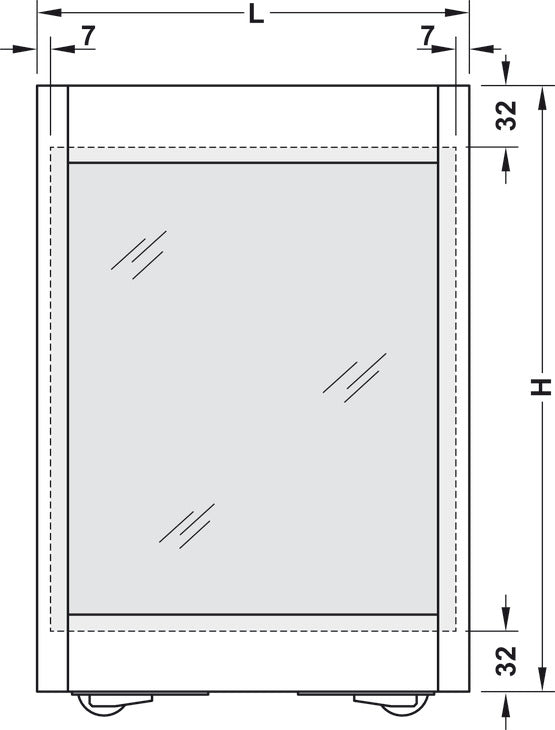

  • Aluminium frame:
    Can be shortened as required
    optionally available in silver coloured and black anodized

  • Model: 80N
  • Version:

    Invisible running equipment integrated in door

  • Soft closing mechanism: with soft and self closing mechanism
  • For door weight: ≤80 kg
  • For door material: wood, glass, frame doors
  • Controller installation options: Wall mounting
  • For glass thickness with tempered safety glass: 6 mm, 8 mm, 5 mm

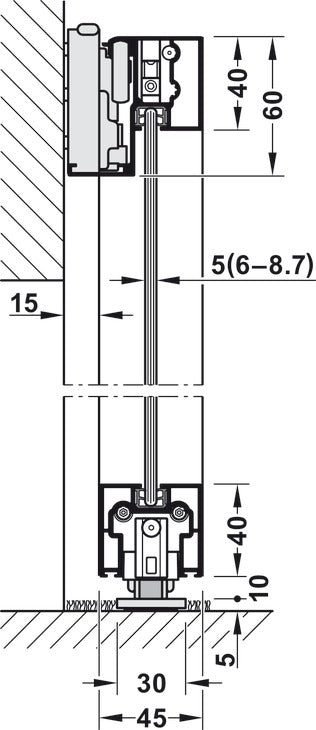

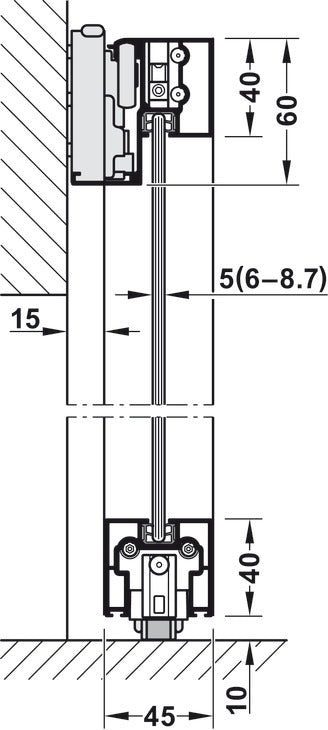

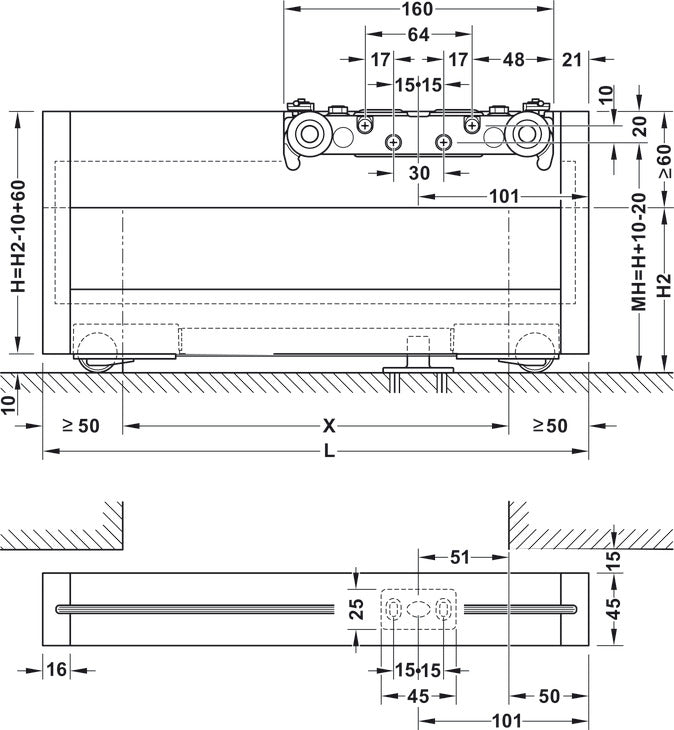

  • Adjustment facility: Height adjustment facility: ±2 mm, Distance door to wall +4 mm (adjustment on both sides, for compensating uneven walls) height ±2 mm
  • Number of doors: 1
  • Number of doors per system max. : 1
  • For glass type : Tempered safety glass, Laminated glass
  • For door height : ≤2,600 mm

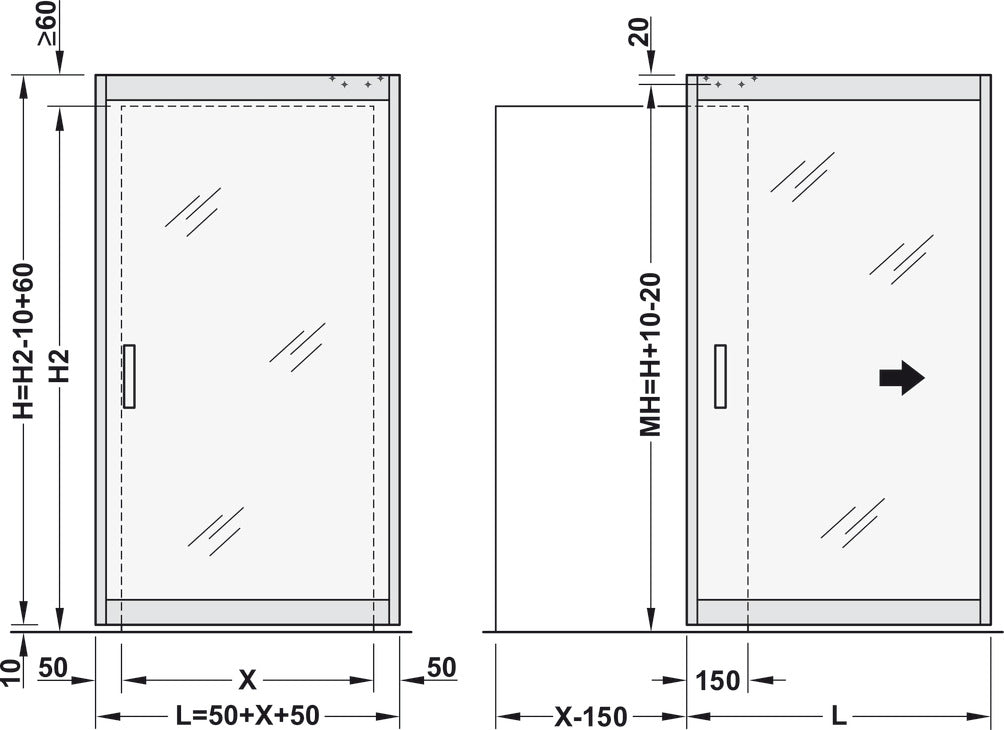

  • Installation reference :

    Ensure that the floor is level
    Bottom track is required for soft floors
    Prepare wall structure for top roller

  • Supplied with :

    1 set of aluminium frames with attaching parts
    1 set of panel sealing profiles
    1 running track
    1 running gear
    2 soft and self closing mechanisms
    1 guide track
    1 floor guide
    1 set of guide rollers
    2 spacers
    1 pair of end caps
    1 floor mounted door stop (for optional use)
    2 Allen key
    1 open-ended spanner
