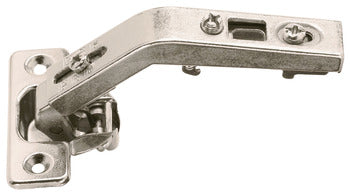

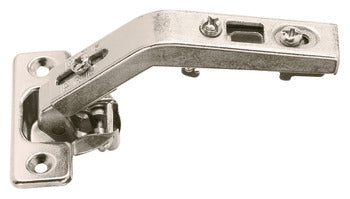

Corner Hinge, Pie-Cut

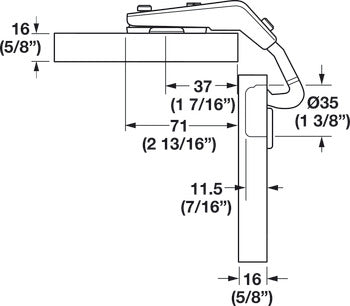

Alignment of the door corners can be made using the center adjustment screw in the arm. The maximum space required to accommodate the hinge is 71 mm (2 13/16") with 16 mm (5/8") thick doors. With thicker doors the amount of space required is reduced.
